IBM SAN96C-6 32G FC Fabric Switch with 96 Ports and 48 32G Optics

VENDOR: CISCO Mfg Part#: 02JD731
1 1

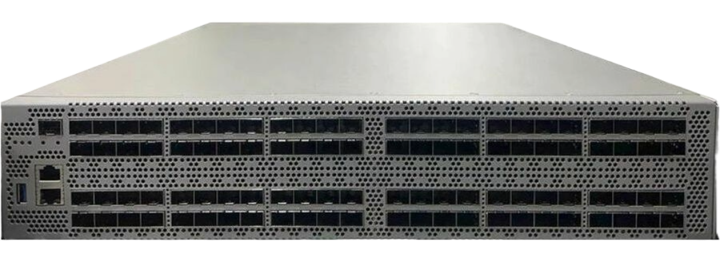

Photo is for illustration purposes only. Actual product may be different.
$37,729.04
$37,729.04
Sale Sold out
MSRP: $113,859.92
Shipping calculated at checkout.
  • 96 SFP+ Fibre Channel ports supporting 32 Gbps transfer rates
  • Includes 48 32G optics for immediate scalability
  • 1RU form factor conserves rack space
  • Multiple interfaces: Fibre Channel, Ethernet, RS-232, USB
  • Advanced security with AES encryption and RADIUS/TACACS+ authentication
  • Remote management via SSH, SNMPv3, and HTTPS

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high port density and bandwidth with 96 32G Fibre Channel ports for performance-hungry SAN environments
  • Ready for large-scale deployment with 48 pre-included 32G optics and TAA compliance
  • Versatile connectivity and remote management support reduce operational complexity and enhance data center agility

Product Overview

The IBM SAN96C-6 Fibre Channel Fabric Switch is a powerful, enterprise-grade solution engineered for next-generation data centers. This high-density switch includes 96 SFP+ ports at 32Gbps and 48 32G optics, enabling out-of-the-box deployment with high throughput. Its compact 1RU footprint optimizes rack space usage while delivering exceptional performance. Connectivity options include Ethernet, Fibre Channel, USB, and RS-232 with support for modern remote management protocols like SSH, SNMPv3, and HTTPS. Enhanced security features such as AES encryption and RADIUS/TACACS+ authentication ensure data integrity. Designed to withstand a wide temperature range in both operation and storage, and requiring 600W power input with 100–240VAC, the switch balances efficiency and adaptability. Its TAA compliance and Mexico-based origin support government procurement and enterprise deployments.

Specifications

Product Overview
Type Fibre Channel Fabric Switch
Model SAN96C-6
Manufacturer Part Number 02JD731
Form Factor 1RU
Connectivity Technology Wired
Weight 20.4 kg
Power Requirements 100 to 240 VAC
Power Consumption 600 W
Redundant Power Supplies Yes
Rack Mountable Yes

Cloud Management & Licensing
Remote Management Protocols SSH, SNMPv3, HTTPS
Management Interface Cisco SAN Management GUI, CLI
Licensing Options On-demand port license activation
Compliance with DCNM Yes

Physical & Environmental
Width 17.3 in
Depth 22.3 in
Height 1.72 in
Minimum Operating Temperature 0°C
Maximum Operating Temperature 40°C
Minimum Storage Temperature -40°C
Maximum Storage Temperature 70°C
Relative Humidity (Operating) 10% to 85% (non-condensing)
Relative Humidity (Storage) 10% to 95% (non-condensing)

Interfaces
Port Count 96 x 32 Gbps SFP+ Fibre Channel ports
Preinstalled Transceivers 48 x 32G SFP+
10/100/1000BASE-T Ports 2
Console Ports 1 x RS-232
USB Ports 1 x USB Type-A
Interface Types Fibre Channel, Ethernet, RS-232, USB
Data Transfer Rate 32 Gbps per port
Backplane Bandwidth 6144 Gbps
Forwarding Rate 4.8 billion packets per second

Advanced Security Features
Encryption AES-256
Authentication Methods RADIUS, TACACS+
Role-Based Access Control (RBAC) Yes
Secure Boot Yes
Secure Zero Touch Provisioning Yes
Access Control Lists Yes

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
Safety Certifications UL, CSA, CE, CB
EMC Certifications FCC Part 15 Class A, EN55032 Class A
RoHS Compliant Yes
