IBM SAN96C-7 64G 96-Port FC Fabric Switch PSE Base

VENDOR: CISCO Mfg Part#: 00NR244
1 2

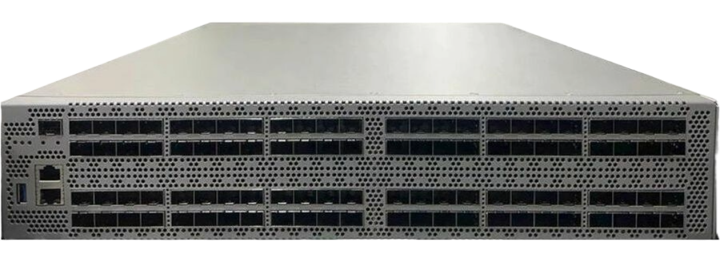

Photo is for illustration purposes only. Actual product may be different.
$39,763.64
$39,763.64
Sale Sold out
MSRP: $120,000.00
Shipping calculated at checkout.
  • Supports up to 96 ports operating at 64 Gbps for high-performance SAN connectivity
  • 2RU form factor accommodates dense data center deployments
  • VSAN feature enables efficient storage network utilization
  • Supports Gigabit Ethernet protocols to ensure compatibility and performance
  • TAA-compliant—suitable for government and regulated deployments
  • Metal chassis dimensions: 17.4" W x 23.9" D x 3.4" H; weight: 20 kg

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers superior 64 Gbps Fibre Channel performance across a high 96-port density for optimized SAN operations
  • Compact 2RU form factor maximizes data center space efficiency without sacrificing performance
  • TAA compliance ensures readiness for government and enterprise procurement standards

Product Overview

The IBM SAN96C-7 64G 96-Port FC Fabric Switch is a high-performance, enterprise-class Fibre Channel switch that delivers 64 Gbps throughput across up to 96 ports. Its 2RU form factor ensures an efficient use of rack space, and the support for Virtual SANs (VSANs) enhances storage network segmentation. The switch offers TAA compliance and a robust metal design measuring 17.4" x 23.9" x 3.4". Weighing 20 kg, it supports installations in demanding environments where performance, reliability, and regulatory compliance are essential.

Specifications

Product Overview
Manufacturer CISCO
Product Name IBM SAN96C-7 64G 96-Port FC Fabric Switch PSE Base
Model SAN96C-7
Manufacturer Part Number 00NR244
Product Type Fibre Channel Switch
Form Factor 2RU
Power Requirements AC 100-240V, 50/60 Hz
Weight 20 kg

Wireless Features
Wireless Capability

Compliance & Origin
TAA Compliant Yes
Country of Origin Mexico
Certifications FCC Class A, CE Mark, UL, RoHS, WEEE, ICES-003

Advanced Security Features
Authentication Mechanisms RADIUS, TACACS+, LDAP
Security Features Secure Boot, Role-Based Access Control (RBAC), SSHv2, SNMPv3, User Access Logging
Zoning Support Yes, hardware-enforced zoning
VSAN Support Yes
Port Security Yes
Fabric Binding Yes

Interfaces
Total Ports 96
Port Type Fibre Channel (SFP56)
Supported Port Speed 64 Gbps per port
Aggregate System Throughput 6.1 Tbps (full duplex)
Data Transfer Rate 64 Gbps per port
Module Slots 1 expansion module slot
SFP Transceiver Support SFP28, QSFP28, SFP56
Console Ports 1 x RJ-45 serial console
Management Ports 1 x 10/100/1000BASE-T Ethernet
USB Ports 1 x USB 2.0 Type-A

Physical & Environmental
Width 17.4 inches (442 mm)
Depth 23.9 inches (607 mm)
Height 3.4 inches (86 mm)
Operating Temperature Range 32°F to 104°F (0°C to 40°C)
Storage Temperature Range -40°F to 158°F (-40°C to 70°C)
Operating Humidity 5% to 85% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Cooling Type Hot-swappable fan trays
Power Supply Redundancy Yes, dual redundant power supplies
Power Consumption (Typical) Approximately 450W

Cloud Management & Licensing
Management Interface Cisco NX-OS CLI, DCNM (Data Center Network Manager)
Supported Management Protocols SNMPv1/v2/v3, Syslog, SSH, HTTP/HTTPS
Licensing Model Port-based, features unlocked via license
Software Update Options Cisco Smart Licensing, On-premise and Cloud options
