IBM SAN96C-7 64G 96-Port FC Fabric Switch PSI Base

VENDOR: CISCO Mfg Part#: 00NR254
1 2

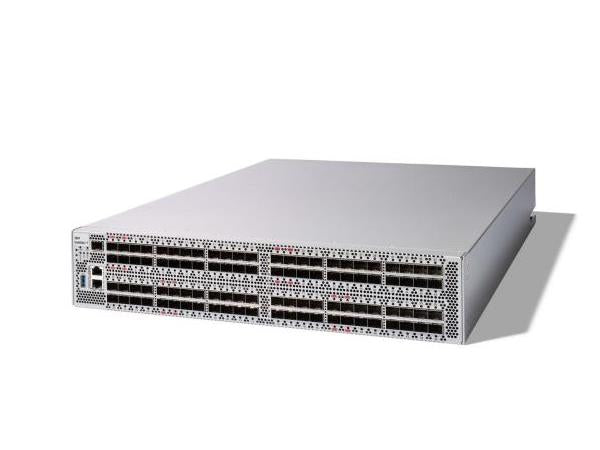

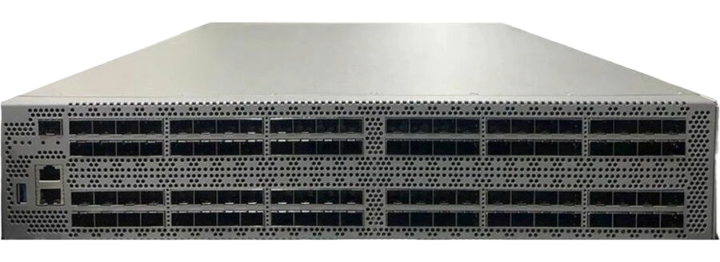

Photo is for illustration purposes only. Actual product may be different.
$39,763.64
$39,763.64
Sale Sold out
MSRP: $120,000.00
Shipping calculated at checkout.
  • Supports 64 Gbps Fibre Channel data transfer rate
  • Up to 96 networking ports for high-density connections
  • 2RU form factor for rack-mount deployments
  • VSAN support enables efficient storage network segmentation
  • TAA-compliant and manufactured in Mexico for regulatory requirements
  • Dimensions: 17.4" W x 23.9" D x 3.4" H; Weight: 20 kg

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high port density and 64 Gbps throughput, ideal for scalable SAN infrastructures
  • VSAN capability enhances network efficiency and security, allowing greater resource utilization
  • TAA compliance positions it well for public sector and regulated environment procurement

Product Overview

The IBM SAN96C-7 64G 96-Port FC Fabric Switch PSI Base, manufactured by Cisco, is a 2RU network switch designed for demanding enterprise SAN deployments. With 64 Gbps Fibre Channel throughput and up to 96 port capacity, it provides high-bandwidth connectivity required for modern data centers. Featuring VSAN support and TAA compliance, this switch is ideal for secure and efficient storage network segmentation. Its structured form factor ensures rack compatibility and its powerful performance optimizes both scalability and data flow within complex IT environments.

Specifications

Product Overview
Manufacturer Cisco
Model SAN96C-7
Type Fibre Channel Fabric Switch
Form Factor 2RU
Weight 20 Kg
Power Supply Type Redundant hot-swappable power supplies (AC or DC options)
Power Consumption (Maximum) 742 Watts
Hot-Swappable Components Power supplies and fan modules

Wireless Features
Wireless Capabilities

Compliance & Origin
Country of Origin Mexico
TAA Compliant Yes
RoHS Compliance Yes
EMC Standards EN 55032 Class A, CISPR 32 Class A
Safety Standards UL 60950-1, EN 60950-1
Environmental Standards REACH, WEEE

Advanced Security Features
Role-Based Access Control (RBAC) Yes
AAA Support TACACS+, RADIUS
Secure Management SSHv2, HTTPS, SNMPv3
Zoning Support Yes (hardware-based zoning)
Fabric Binding Capabilities Yes
Digital Certificate Authentication Yes
FIPS 140-2 Compliance Yes (when configured)

Interfaces
Port Count Up to 96 ports
Port Type Fibre Channel
Port Speed 64 Gbps per port (line-rate)
Aggregate Bandwidth 6.4 Tbps
Port Expansion Module Support Yes, via port expansion modules
SFP Support SFP+, SFP28, QSFP28 and SFP-DD transceivers
Data Transfer Protocol Fibre Channel
VSAN Support Yes

Physical & Environmental
Width 17.4 in (442 mm)
Depth 23.9 in (607.6 mm)
Height 3.4 in (86.4 mm)
Rack Mountable Yes
Cooling Fan modules (front-to-back or back-to-front airflow)
Operating Temperature Range 32°F to 104°F (0°C to 40°C)
Storage Temperature Range -40°C to 70°C (-40°F to 158°F)
Operating Humidity 5% to 85% non-condensing
Storage Humidity 5% to 95% non-condensing

Cloud Management & Licensing
Management Interface Cisco NX-OS CLI, Cisco DCNM
Cloud Management Support Cisco Nexus Dashboard/Fabric Controller (NDFC)
Licensing Model Port-based licensing
Base License Included Yes, PSI Base license
Telemetry Support Yes
Automation Support Yes (NX-API, REST APIs, Ansible)
