Kingston 16GB DDR4 2666MHz ECC Reg CL19 DIMM 1Rx4 Module

VENDOR: KINGSTON Mfg Part#: KSM26RS4/16HDI UPC#: 740617308181
1 3

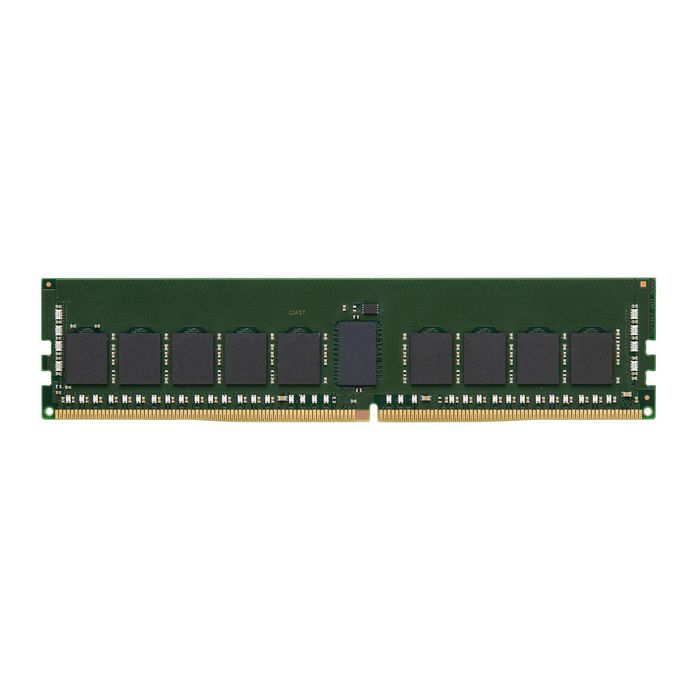

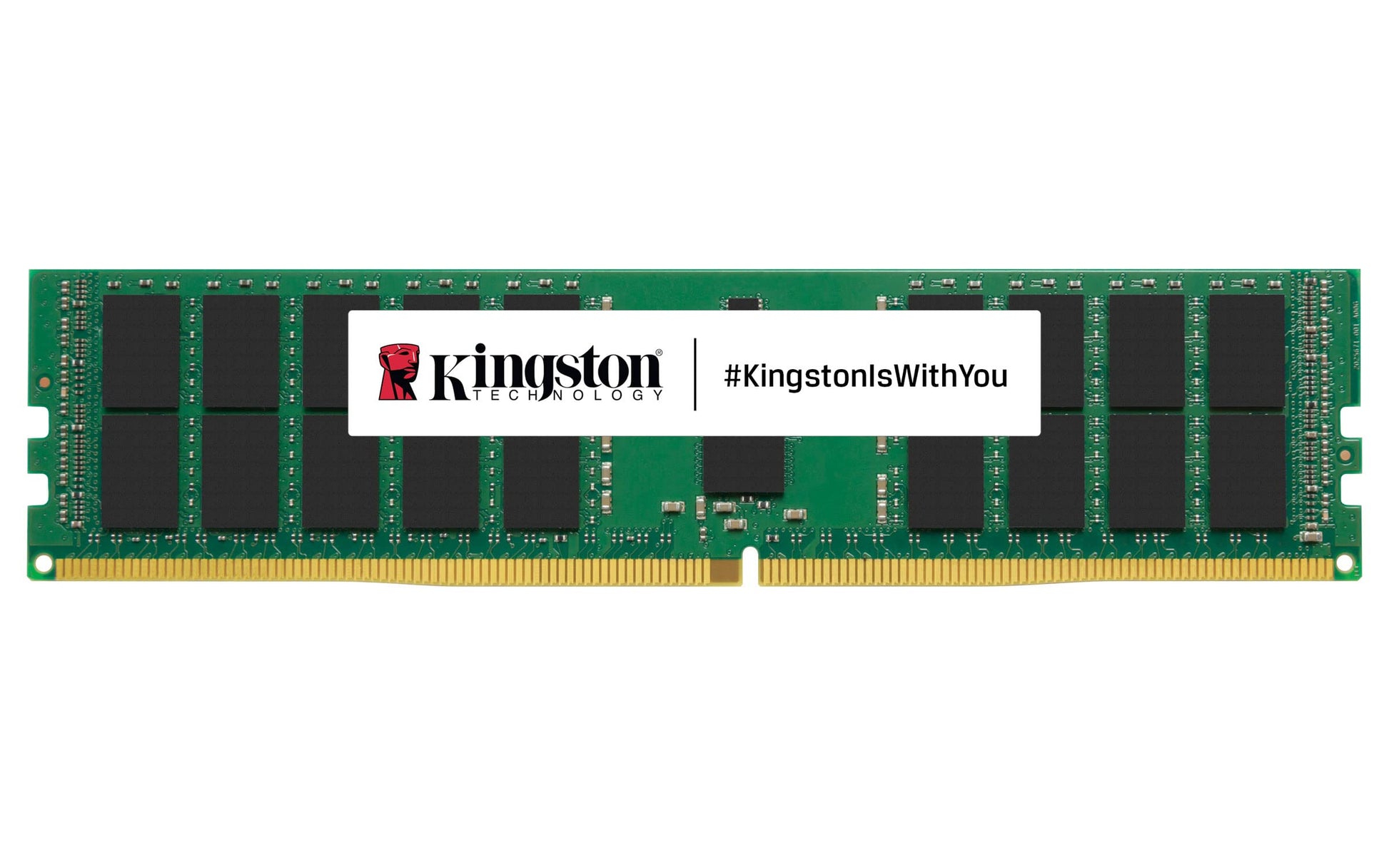

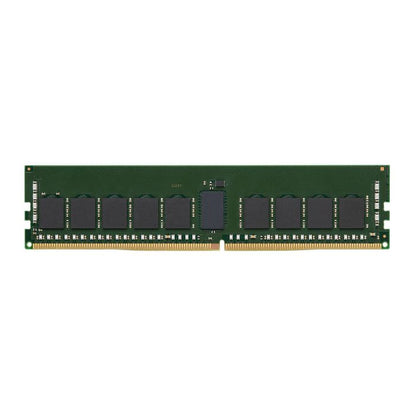

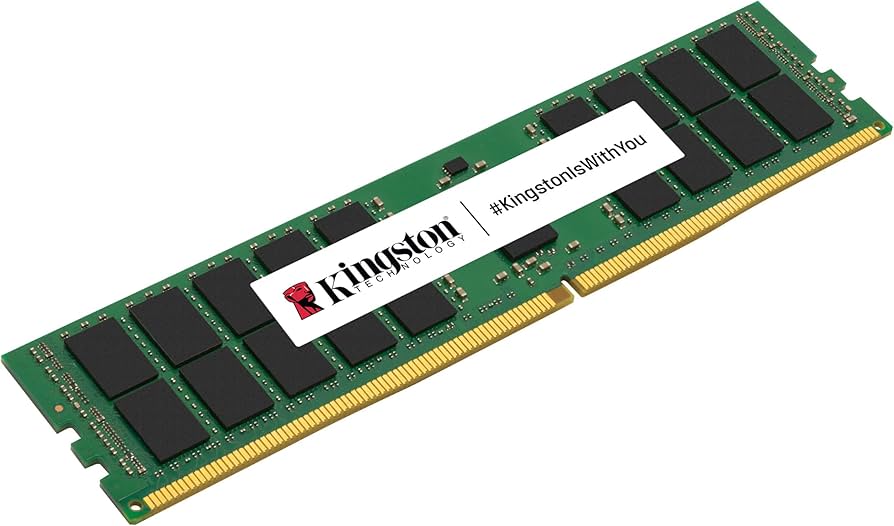

Photo is for illustration purposes only. Actual product may be different.
$70.41
$70.41
Sale Sold out
MSRP: $103.00
Shipping calculated at checkout.
  • 16GB DDR4 Registered DIMM module
  • 2666MHz memory speed with CL19 latency
  • Error-Correcting Code (ECC) support for data integrity
  • 1Rx4 rank configuration for optimized server compatibility
  • TAA compliant for federal procurement requirements
  • Uses Hynix DRAM components

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for stability and error correction in enterprise-class systems
  • High-speed 2666MHz performance ideal for memory-demanding tasks
  • TAA compliance and Hynix components support reliability in regulated environments

Product Overview

The Kingston 16GB DDR4 ECC Registered memory module, part number KSM26RS4/16HDI, is engineered for performance and dependability in demanding computing environments. Operating at 2666MHz with a CL19 latency, this DIMM uses a 1Rx4 configuration ideal for data centers and enterprise platforms that require robust multitasking and memory-intensive application support. The ECC functionality detects and corrects common in-memory data errors, enhancing system stability, particularly in server deployments.

This module is TAA compliant, making it suitable for procurement under government regulations, and it leverages high-quality Hynix DRAM components for consistent performance. Designed for systems that support Registered DIMMs, it contributes to increased scalability and performance in platforms needing high-capacity memory solutions. In-depth electrical and thermal characteristics are not provided.

Specifications

Product Overview
Type DDR4 ECC Registered DIMM
Form Factor UDIMM
Capacity 16GB
Memory Rank 1Rx4
Module Configuration 1G x 72-Bit
Speed 2666MHz (PC4-21300)
CAS Latency CL19
Voltage 1.2V
Error Checking ECC
Registered/Buffered Registered
Chip Organization x4 DRAM
DRAM Manufacturer Hynix

Physical & Environmental
Module Height 31.25 mm
Operating Temperature (Tcase) 0°C to 95°C
Storage Temperature -55°C to 100°C
Heat Spreader No
Weight Approx. 20g
PCB Layers 8-layer PCB

Advanced Security Features
ECC Error Correction Single-bit error correction and multi-bit error detection

Wireless Features
Wireless Capabilities Not Applicable

Interfaces
Memory Bus 64-bit
Pin Count 288-pin
Interface Type DDR4 SDRAM

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Halogen Free Yes
Compliance Standards JEDEC

Cloud Management & Licensing
Managed via Software No
Subscription Licensing Not Required
Cloud Integration Not Applicable
