Kingston 16GB DDR4 3200MHz ECC Reg CL22 DIMM

VENDOR: KINGSTON Mfg Part#: KSM32RD8/16HDR UPC#: 740617308112
1 3

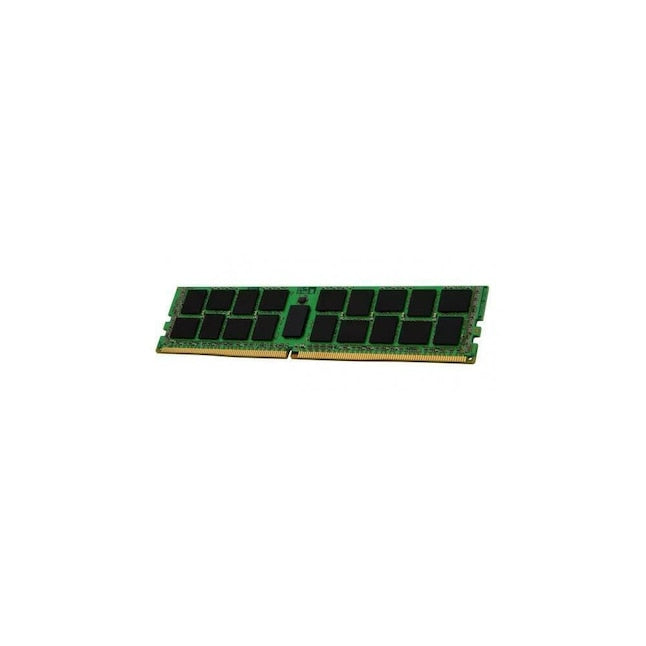

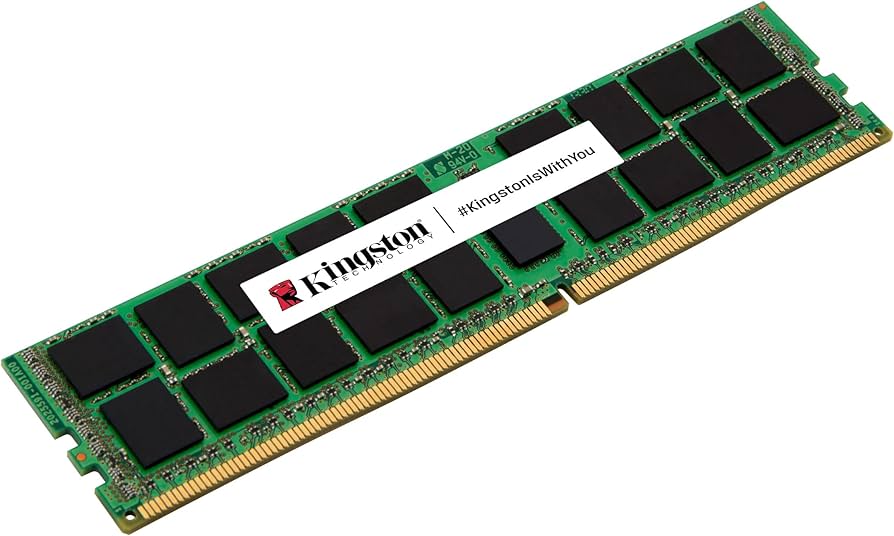

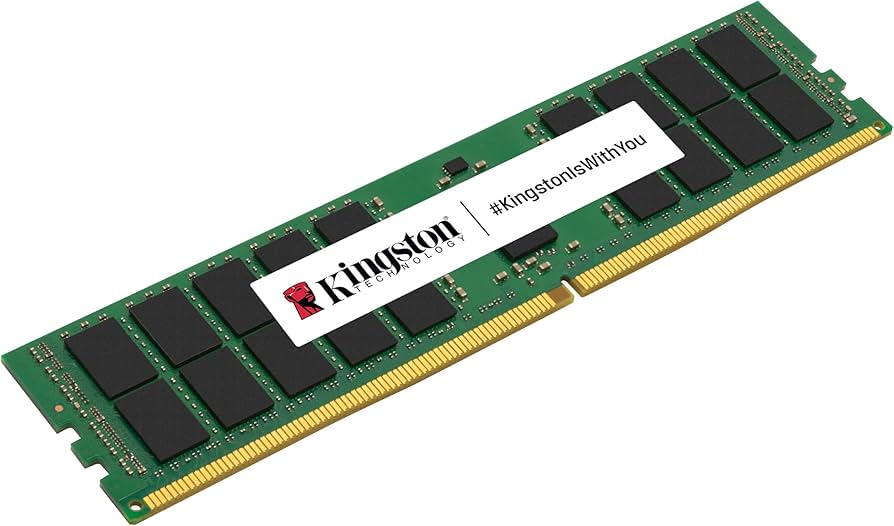

Photo is for illustration purposes only. Actual product may be different.
$70.41
$70.41
Sale Sold out
MSRP: $103.00
Shipping calculated at checkout.
  • 16GB DDR4 Registered ECC memory module
  • Operates at 3200MHz clock speed
  • CL22 CAS latency for balanced performance
  • 2Rx8 dual-rank configuration for improved throughput
  • TAA compliant and manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers enterprise-grade reliability with ECC and registered DIMM architecture, minimizing server crashes and data errors.
  • Compatible with government procurement thanks to full TAA compliance.
  • Trusted Kingston build quality using Hynix DRAM for consistent and scalable performance in critical systems.

Product Overview

The Kingston 16GB DDR4 3200MHz ECC Registered DIMM (KSM32RD8/16HDR) delivers high-speed, error-correcting performance tailored for server and enterprise environments. Operating at 3200MHz and featuring ECC for enhanced data integrity, it offers a 2Rx8 dual-rank design for improved memory density. With CL22 latency and registered DIMM architecture, it ensures system compatibility and stability. TAA compliance makes it ideal for federally-regulated deployments. Built with high-quality components in Taiwan, this module supports scalable and mission-critical computing demands.

Specifications

Product Overview
Type DDR4 ECC Registered DIMM
Capacity 16GB
Memory Speed 3200MHz
CAS Latency CL22
Rank 2Rx8 (Dual Rank)
Error Correction ECC (Error-Correcting Code)
Buffering Registered
Voltage 1.2V
Form Factor DIMM 288-pin
Module Configuration 2G x 72
Component Composition DRAM Chips, PCB with Gold Edge Contacts
Power Requirements Standard DDR4 1.2V DDR4 DIMM Power

Physical & Environmental
Dimensions (H x L) 31.25 mm x 133.35 mm
Heat Spreader No
Operating Temperature 0°C to 85°C
Storage Temperature -55°C to 100°C
Humidity (non-condensing) 10% to 90%
PCB Height Standard

Cloud Management & Licensing
Remote Management
Management Interface
Licensing Requirements None (Plug-and-Play Module)

Interfaces
Memory Interface DDR4
Pin Count 288-pin
Bus Type PC4-25600
Data Rate 25600 MB/s

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
JEDEC Compliant Yes
Halogen Free Yes
CE Certified Yes
REACH Compliant Yes

Advanced Security Features
Memory Security Features ECC error correction for improved data integrity
Secure Erase Support
