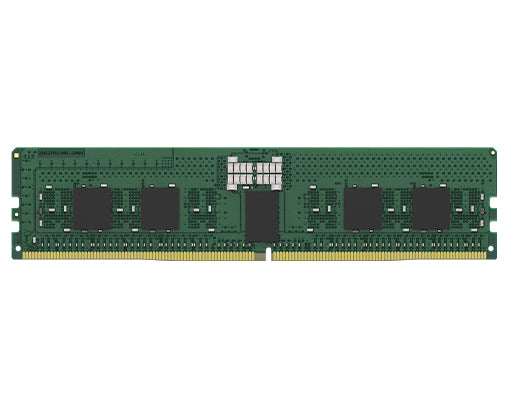

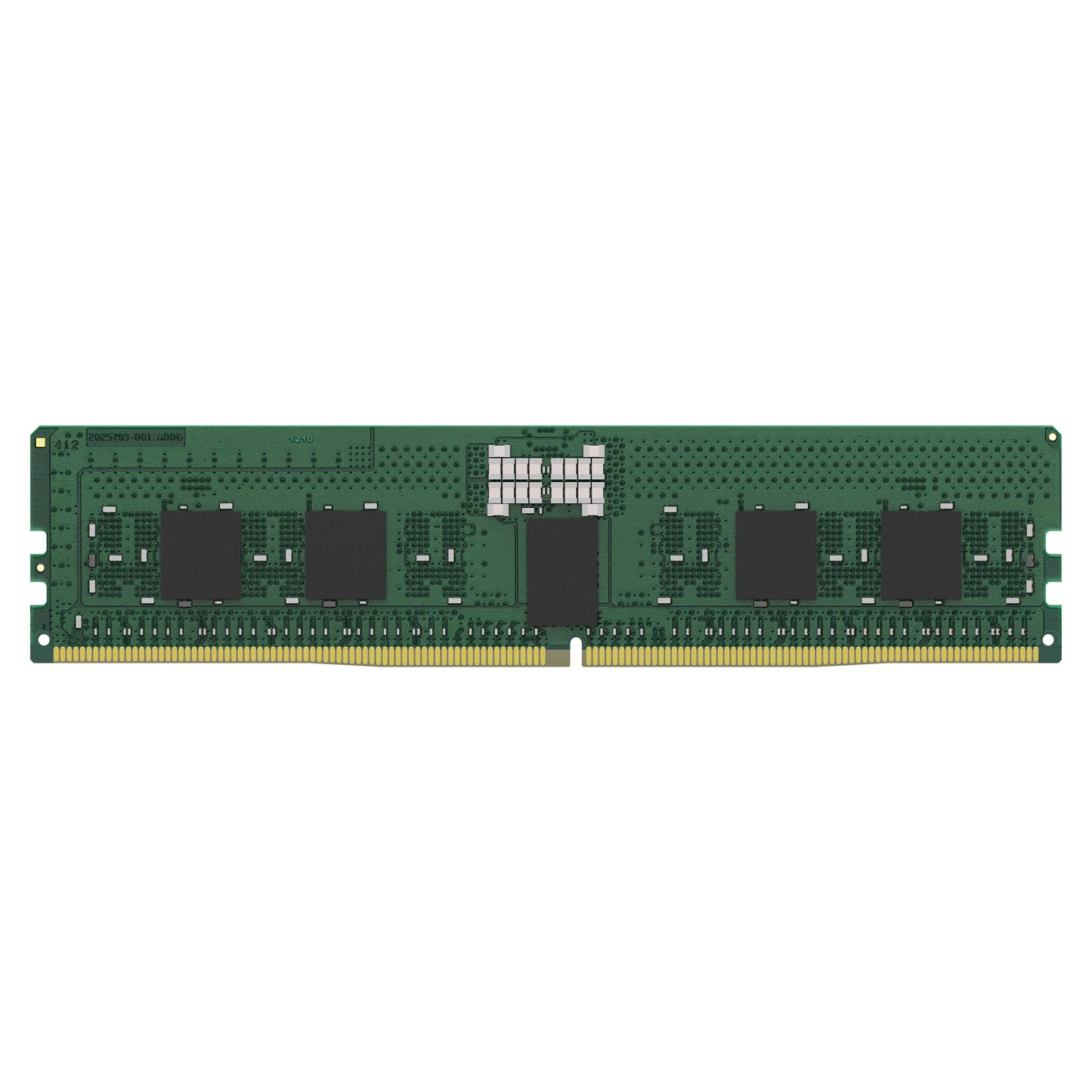

Kingston 16GB DDR5 4800MT/s ECC Reg DIMM CL40

VENDOR: KINGSTON Mfg Part#: KSM48R40BS8-16HA
1 3
Photo is for illustration purposes only. Actual product may be different.
$108.10
$108.10
Sale Sold out
MSRP: $158.00
Shipping calculated at checkout.
  • 16GB DDR5 Registered ECC memory module
  • Operates at high speed of 4800MT/s with CL40 latency
  • 288-pin DIMM form factor ensures compatibility with enterprise motherboards
  • Features ECC (Error-Correcting Code) for improved data integrity
  • Low-voltage 1.1V design for power-efficient operation
  • TAA-compliant and manufactured in Taiwan using Hynix A chips

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for enterprise servers and workstations requiring ECC-registered DDR5 memory
  • High-speed performance at 4800MT/s increases throughput in intensive workloads
  • TAA compliance makes it suitable for procurement in government-regulated environments

Product Overview

The Kingston 16GB DDR5 ECC Registered DIMM (KSM48R40BS8-16HA) delivers 4800MT/s speed and CL40 latency for enterprise-class applications. Built with Hynix A DRAM chips, this 288-pin DIMM supports ECC error correction and operates at a low 1.1V for power efficiency. Its registered architecture ensures signal integrity in server environments, and its TAA-compliant status makes it ideal for government procurement.

Specifications

Product Overview
Type ECC Registered DDR5 SDRAM Module
Form Factor DIMM 288-pin
Capacity 16 GB
Rank 1Rx8
Chip Organization 8 banks per group, 2 groups
Module Height 31.25 mm
Module Depth
Power Requirements 1.1 V
Technologies Used Hynix A DRAM Chips

Physical & Environmental
Dimensions (L x H) 133.35 mm x 31.25 mm
Operating Temperature 0°C to 95°C (DRAM case temperature)
Storage Temperature -55°C to 100°C
Humidity Range (Non-operating) up to 93% RH @ 40°C (non-condensing)
Heat Spreader No

Advanced Security Features
Error Correction ECC (Error-Correcting Code)
On-Die ECC Yes
Chipkill Support

Wireless Features
Wi-Fi

Interfaces
Memory Interface DDR5
Bus Speed 4800 MT/s
Memory Clock Speed 2400 MHz (effective 4800 MT/s)
CAS Latency (CL) CL40
Timing 40-39-39
Module Bandwidth 38.4 GB/s

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
RoHS Compliance Yes
JEDEC Compliance Yes
Halogen Free Yes
UL Listed Yes

Cloud Management & Licensing
Management Interface
Remote Monitoring Supported
Cloud Licensing Included
