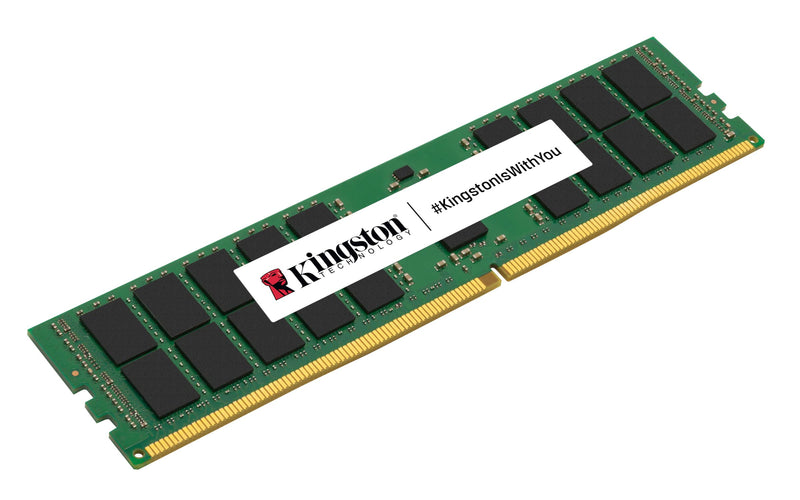

Kingston 16GB DDR5 5600MT/s ECC Reg DIMM CL46 (KSM56R46BS8-16MD)

VENDOR: KINGSTON Mfg Part#: KSM56R46BS8-16MD
1 2
Photo is for illustration purposes only. Actual product may be different.
$109.66
$109.66
Sale Sold out
MSRP: $160.00
Shipping calculated at checkout.
  • 16GB DDR5 memory module operating at 5600 MHz
  • ECC (Error-Correcting Code) support for improved data integrity
  • Registered DIMM (RDIMM) with Micron D-die and 1Rx8 layout
  • Low 1.1V power consumption for energy efficiency
  • CL46 latency ideal for enterprise-grade performance
  • TAA compliant and manufactured in Taiwan

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Maximized performance for data-intensive applications with 5600MT/s DDR5 speed
  • Greater system reliability using ECC and Registered architecture for mission-critical environments
  • Compliance with TAA makes it suitable for government and regulated sectors

Product Overview

The Kingston 16GB DDR5 Registered DIMM (KSM56R46BS8-16MD) is engineered for high-performance computing workloads where speed, data integrity, and thermal efficiency are top priorities. Running at a memory speed of 5600MT/s, this module significantly improves bandwidth over DDR4, enabling faster data processing in server and workstation installations. With its 1Rx8 layout, this module is based on Micron D-die technology and supports ECC (Error-Correcting Code) to minimize system crashes due to data corruption, making it highly suitable for mission-critical applications.

Designed in a standard DIMM form factor and operating at a low supply voltage of 1.1V, this memory module meets the latest standards for energy efficiency and hardware compatibility. Its CL46 latency provides balanced responsiveness for enterprise-grade multitasking. The unit’s TAA compliance makes it a suitable fit for government and federally funded procurement. Manufactured in Taiwan, this DRAM is built to Kingston's stringent standards for reliability and durability, and it helps organizations achieve long-term return on investment through reduced maintenance and downtime.

This module is an optimal choice for upgrading or building high-availability enterprise systems, offering a superior combination of speed, stability, and regulatory compliance for IT professionals in public and private sectors.

Specifications

Product Overview
Type Registered ECC Memory Module
Form Factor DIMM
Memory Architecture 1Rx8
Memory Capacity 16 GB
Technology DDR5
Module Height 31.25 mm
Supply Voltage 1.1 V
Rank Single Rank (1Rx8)
Chip Organization x8
Chip Manufacturer Micron
Compatible Systems Servers and Workstations (DDR5 Registered ECC DIMM compatible)

Physical & Environmental
Dimensions (L x H) 133.35 mm x 31.25 mm
Operating Temperature Range 0°C to 85°C
Storage Temperature Range -55°C to 100°C
Humidity (Operating) 10% to 85% RH (non-condensing)
Humidity (Storage) 5% to 95% RH (non-condensing)

Advanced Security Features
ECC Support Yes (Error-Correcting Code)
On-Die ECC Yes
Chip-Level Enhancements Micron D-die Technology

Performance
CAS Latency (CL) CL46
RAS to CAS Delay (tRCD) tRCD 46
Row Precharge Time (tRP) tRP 46
Row Active Time (tRAS) tRAS 88
Memory Bandwidth 44.8 GB/s

Manufacturer Details
Manufacturer Kingston
Manufacturer Part Number KSM56R46BS8-16MD

Interfaces
Interface Type 288-pin DIMM
Bus Type PC5-44800
Data Transfer Rate 5600 MT/s

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliance Yes
JEDEC Standard Yes
Halogen Free Yes

Cloud Management & Licensing
Remote Management Compatible Yes (via system board/platform)

Reliability
Tested Compatibility Yes
Module Reliability Server-grade with ECC and thermal sensors
Thermal Sensor Yes
