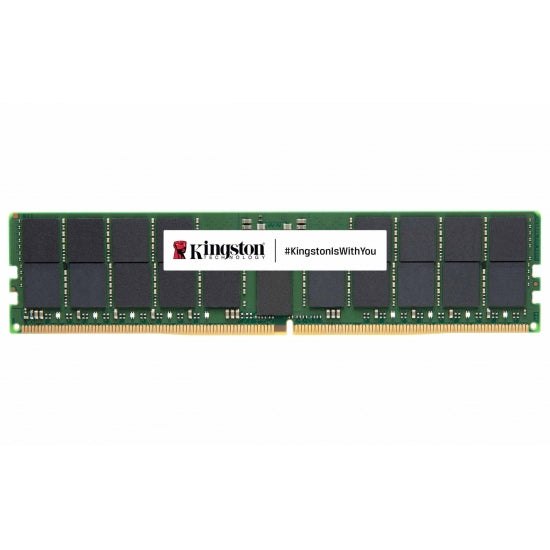

Kingston 96GB DDR5 5600MT/s ECC REG CL46 DIMM (KSM56R46BD4PMI-96MBI)

VENDOR: KINGSTON Mfg Part#: KSM56R46BD4PMI-96MBI UPC#: 740617340266
1 2
Photo is for illustration purposes only. Actual product may be different.
$587.85
$587.85
Sale Sold out
MSRP: $859.00
Shipping calculated at checkout.
  • - 96GB DDR5 ECC Registered DIMM for high-memory-capacity applications
  • - 5600MT/s memory speed with CL46 latency for enhanced data bandwidth
  • - Built using Micron B-die and Renesas control components
  • - Dual rank configuration (2Rx4) for balanced performance
  • - TAA compliant and manufactured in Taiwan for procurement suitability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Optimized for enterprise workloads requiring high capacity and consistency with 96GB of ECC DDR5 RAM.
  • Increased data throughput and low latency achieved with 5600MT/s speed and CL46 timing.
  • Ideal for government and regulated sectors thanks to TAA compliance and Taiwan manufacturing origin.

Product Overview

The Kingston KSM56R46BD4PMI-96MBI is a 96GB DDR5 ECC Registered DIMM designed for demanding enterprise environments. With a speed of 5600MT/s and CL46 latency, it supports high-data throughput and low-latency computing. Constructed with Micron B-die and Renesas components, it ensures optimal stability and efficiency. The TAA-compliant module is manufactured in Taiwan, making it suitable for regulated industries and government use. It’s ideal for applications like virtualization, scientific computing, and large-scale database systems, offering both capacity and ECC protection.

Specifications

Product Overview
Product Type DDR5 ECC Registered DIMM
Memory Capacity 96GB
Memory Technology DDR5 SDRAM
Ranks 2Rx4
CAS Latency CL46
Memory Speed 5600MT/s
Bandwidth 44800 MB/s
ECC Support Yes (Error-Correcting Code)
Registered/Buffered Registered (Buffered)
Chip Organization x4
Component Manufacturer Micron B-die
Power Management IC Renesas
Voltage 1.1V
Form Factor 288-pin DIMM
Module Configuration 96GB (12G x 72 Bit)

Physical & Environmental
Dimensions 133.35 mm x 31.25 mm
Operating Temperature (Min) 0°C
Operating Temperature (Max) 85°C
Storage Temperature Range -55°C to 100°C
Heat Spreader No

Advanced Security Features
ECC Support with Chipkill Yes (platform dependent)
Parity Support Yes

Interfaces
Memory Interface DDR5
Pin Count 288-pin
Module Type RDIMM
SPD Support Yes
Data Transfer Rate 5600 MT/s

Compliance & Origin
TAA Compliant Yes
Country of Origin Taiwan
RoHS Compliant Yes
REACH Compliant Yes
Halogen Free Yes
JEDEC Standard Yes
UL Certified Yes
