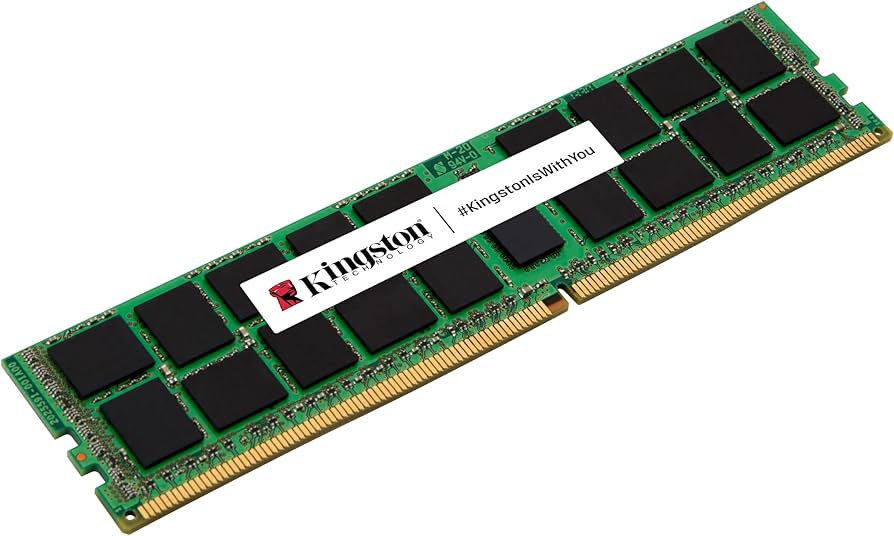

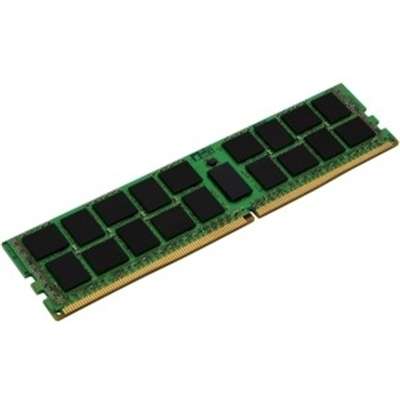

Kingston KTD-PE432S4/32G 32GB DDR4-3200MHz ECC Reg DIMM

VENDOR: KINGSTON Mfg Part#: KTD-PE432S4/32G UPC#: 740617308730
1 3

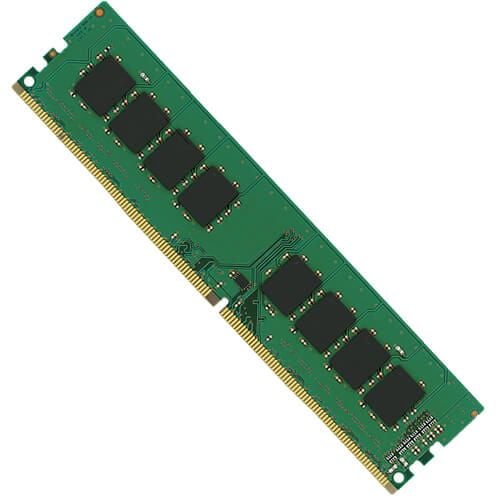

Photo is for illustration purposes only. Actual product may be different.
$133.60
$133.60
Sale Sold out
MSRP: $195.00
Shipping calculated at checkout.
  • 32GB capacity DDR4 RAM operating at 3200 MHz for high performance
  • Registered ECC design enhances data reliability for server-grade applications
  • Low operating voltage of 1.2V promotes energy-efficient performance
  • DIMM 288-pin form factor for compatibility with most modern server motherboards
  • ECC support for automatic detection and correction of memory errors
  • TAA compliant and produced in Taiwan, suitable for government contracts

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Built-in ECC ensures critical error correction for enterprise stability and data integrity
  • 3200 MHz memory speed and CL22 latency provide fast and dependable performance for workstations and servers
  • TAA compliance makes it a viable option for government and institutional procurement

Product Overview

The Kingston KTD-PE432S4/32G is a 32GB DDR4-3200MHz Registered ECC memory module tailored for enterprise applications. It features a 1Rx4 architecture, 288-pin DIMM form factor, and runs on 1.2V for energy-efficient operation. Designed for systems demanding ECC memory, it delivers reliable data integrity and high uptime. With TAA compliance and a CL22 latency, this module is ideal for servers handling sensitive and critical computing tasks.

Specifications

Product Overview
Manufacturer Kingston
Manufacturer Part Number KTD-PE432S4/32G
Product Name Kingston KTD-PE432S4/32G 32GB DDR4-3200MHz ECC Reg DIMM
Memory Type DRAM
Technology DDR4 SDRAM
Total Installed Memory 32 GB
Form Factor 288-pin DIMM
Module Configuration 1Rx4
Memory Rank Single Rank
Memory Speed 3200 MHz
Supply Voltage 1.2 V
Buffered/Registered Registered
ECC Support Yes
Latency (CAS) CL22
Pins 288
Compatible Systems Servers and Workstations Supporting DDR4 ECC Registered Memory

Physical & Environmental
Dimensions (L x H) 133.35 mm x 31.25 mm
Operating Temperature 0°C to 85°C
Storage Temperature -55°C to +100°C
Operating Humidity 10% to 90% (non-condensing)
Storage Humidity 5% to 95% (non-condensing)
Heat Spreader No

Advanced Security Features
Error Correction Technology ECC (Error Correcting Code)

Interfaces
Interface Type DDR4 SDRAM
Data Transfer Rate PC4-25600 (3200 MT/s)

Compliance & Origin
Country of Origin Taiwan
TAA Compliant Yes
RoHS Compliant Yes
Halogen Free Yes
JEDEC Compliant Yes
REACH Compliant Yes
Environmental Certification RoHS, REACH
