Products Memory, Storage and Components Lenovo 2.5" 7450M 1.6TB MU ...

Lenovo 2.5" 7450M 1.6TB MU NVMe SSD Hot-Swap

VENDOR: LENOVO Mfg Part#: 4XB7A13967
1 3

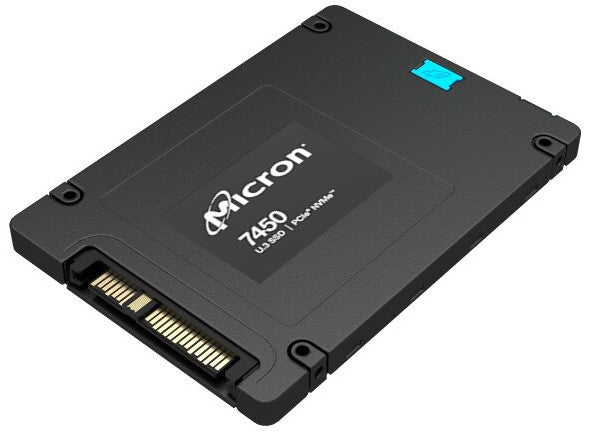

Photo is for illustration purposes only. Actual product may be different.
$1,799.00
$1,799.00
Sale Sold out
Shipping calculated at checkout.
  • 1. 1.6TB SSD capacity using TLC NAND flash
  • 2. PCIe NVMe interface with up to 6800 MB/s sequential read speed
  • 3. 3 Drive Writes Per Day (DWPD) endurance rating
  • 4. High IOPS performance: up to 800,000 read / 250,000 write
  • 5. MTBF rated at 2,000,000 hours for enterprise resilience
  • 6. Hot-swappable 2.5-inch form factor for easy serviceability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Delivers ultra-fast data access with 6800 MB/s read speeds over PCIe NVMe interface
  • Provides robust endurance (3 DWPD) and MTBF of 2 million hours, ensuring longevity in intensive applications
  • Hot-swap design simplifies maintenance and minimizes system downtime in enterprise environments

Product Overview

The Lenovo 2.5" 7450M 1.6TB MU NVMe HS SSD (Model 4XB7A13967) offers up to 6800 MB/s sequential read and 2700 MB/s write speeds via a PCIe NVMe interface. Built with TLC NAND flash, it delivers 3 DWPD endurance and boasts an MTBF of 2 million hours. The hot-swap 2.5-inch form factor supports seamless integration in enterprise environments, making it a robust solution for low-latency and high-throughput applications.

Specifications

Product Overview
Type Enterprise SSD
Form Factor 2.5-inch
Hot-Swap Support Yes
Capacity 1.6 TB
Flash Memory Type TLC NAND
Drive Write Endurance (DWPD) 3 DWPD
MTBF (Mean Time Between Failures) 2,000,000 hours
Manufacturer Part Number 4XB7A13967
Product Family 7450M Series

Physical & Environmental
Dimensions (W x D x H) 69.85 mm x 100.45 mm x 7.0 mm
Operating Temperature 0°C to 70°C
Non-Operating Temperature -40°C to 85°C
Storage Humidity (non-condensing) 5% to 95%
Operating Humidity 5% to 95% R.H.
Shock Resistance (Operating) 1000 G/0.5 ms
Vibration - Operating 2.17 GRMS (5–800 Hz)
Vibration - Non-Operating 3.13 GRMS (5–800 Hz)
Power Consumption (Active) ≤ 10 W
Power Consumption (Idle) ≤ 4.5 W

Cloud Management & Licensing
Remote Management Interface
Software Licensing Required No
Bundled Management Software

Interfaces
Interface Type PCIe NVMe
PCIe Version PCIe 4.0
Connector Type U.2
Max Sequential Read Speed 6800 MB/s
Max Sequential Write Speed 2700 MB/s
Max 4KB Random Read IOPS 800,000 IOPS
Max 4KB Random Write IOPS 250,000 IOPS

Compliance & Origin
TAA Compliant
Country of Origin
RoHS Compliance Yes
FCC Certification Yes
CE Certification Yes
UL Certification Yes
WEEE Compliance Yes

Advanced Security Features
Data Encryption AES 256-bit
Secure Erase Yes
TCG Opal 2.0 Support Yes
Power Loss Protection Yes
