Lenovo 2.5" U.2 P5620 6.4TB PCIe 4.0 NVMe SSD

VENDOR: LENOVO Mfg Part#: 4XB7A17133
1 4

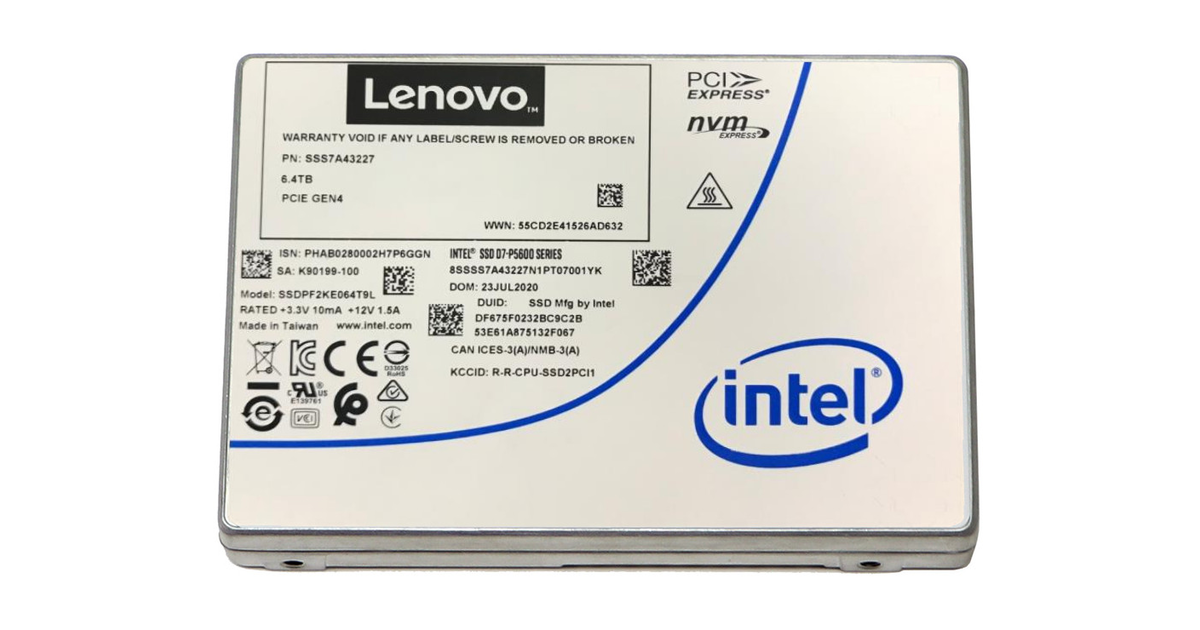

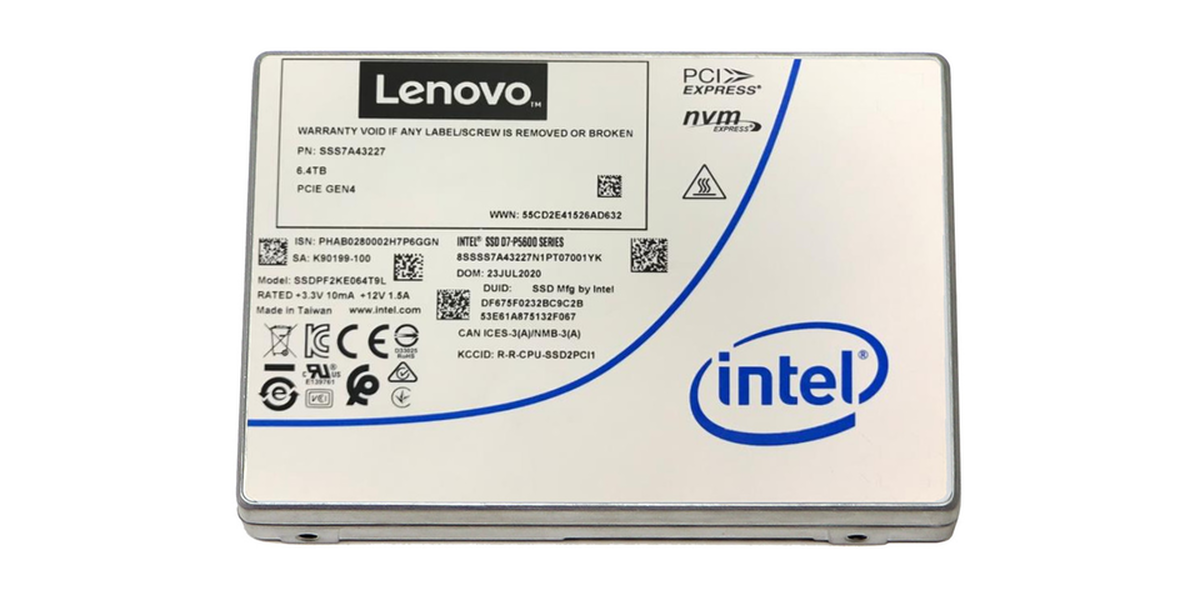

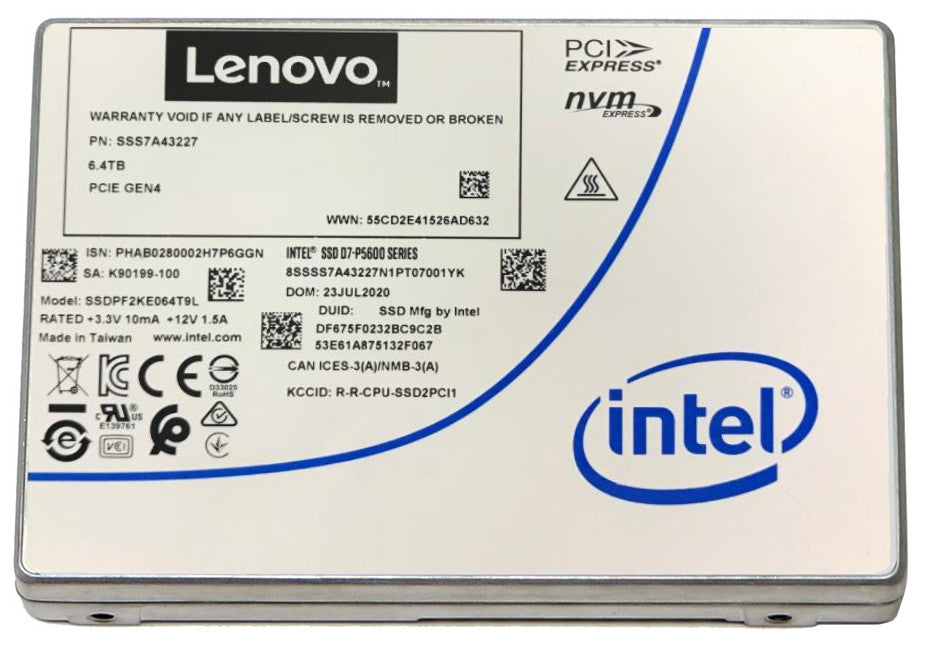

Photo is for illustration purposes only. Actual product may be different.
$12,709.00
$12,709.00
Sale Sold out
Shipping calculated at checkout.
  • 6.4TB TLC NAND flash with U.2 2.5-inch form factor
  • PCIe 4.0 NVMe interface for high-speed data transfer
  • Sequential read up to 7100 MBps, write up to 4200 MBps
  • Random read up to 1,100,000 IOPS, write up to 390,000 IOPS
  • Endurance rating of 3900 TBW and 2,000,000-hour MTBF
  • Optimized for enterprise and virtualized workloads

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers exceptional performance with PCIe 4.0 NVMe and up to 7100 MBps read speeds
  • High reliability and endurance with 2 million MTBF and 3900 TBW, ideal for enterprise use
  • Large 6.4TB capacity in a compact 2.5” U.2 form factor enables efficient data center scaling

Product Overview

The Lenovo 2.5" U.2 P5620 6.4TB NVMe SSD is engineered for performance-driven environments that demand fast throughput, high endurance, and robust reliability. Featuring a U.2 form factor and utilizing TLC NAND flash, this drive supports PCIe 4.0 NVMe interface for maximum bandwidth and ultra-low latency. It delivers peak sequential read speeds of 7100 MB/s and write speeds up to 4200 MB/s, paired with outstanding random IOPS performance. Backed by a 2 million-hour MTBF and 3900 TB endurance, the P5620 is ideal for data-heavy enterprise tasks. The 6.4TB storage capacity provides a scalable solution for dense server deployments and virtualized workloads, delivering consistent, reliable performance for mission-critical operations.

Specifications

Product Overview
Type Enterprise SSD
Form Factor 2.5" U.2
Interface PCIe 4.0 NVMe
Capacity 6.4 TB
Flash Memory Type 3D TLC NAND
MTBF (Mean Time Between Failures) 2,000,000 hours
Endurance (Total Bytes Written) 3900 TB
Power Consumption (Typical) 14 W
Power Consumption (Idle) 5 W

Physical & Environmental
Dimensions (W x D x H) 69.85 x 100.45 x 15 mm
Weight 180 g
Operating Temperature Range 0°C to 70°C (32°F to 158°F)
Storage Temperature Range -40°C to 85°C (-40°F to 185°F)
Operating Humidity 5% to 95% (non-condensing)
Shock (Operating) 1000G, 0.5 ms duration, half sine wave
Vibration (Operating) 2.17 GRMS (5–800 Hz)
Vibration (Non-Operating) 3.13 GRMS (5–800 Hz)

Advanced Security Features
End-to-End Data Protection Yes
Hardware Encryption AES 256-bit
Power Loss Protection Yes
Secure Erase Yes

Interfaces
Interface Type PCIe Gen4 x4 NVMe
Connector U.2 (SFF-8639)
Sequential Read Speed 7100 MB/s
Sequential Write Speed 4200 MB/s
Random Read (4KB) 1,100,000 IOPS
Random Write (4KB) 390,000 IOPS
Protocol NVMe 1.3c

Compliance & Origin
Country of Origin
TAA Compliant
RoHS Compliant Yes
Halogen-Free Yes
CE Certified Yes
FCC Certified Yes
UL Certified Yes

Cloud Management & Licensing
Management Interface NVMe Management Interface (NVMe-MI)
Firmware Update Support Yes
Lenovo Enterprise Support Tools Compatibility Yes
