Lenovo 3.84TB 2.5" PM1653 RI SAS SSD (4XB7A80320)

VENDOR: LENOVO Mfg Part#: 4XB7A80320
1 3

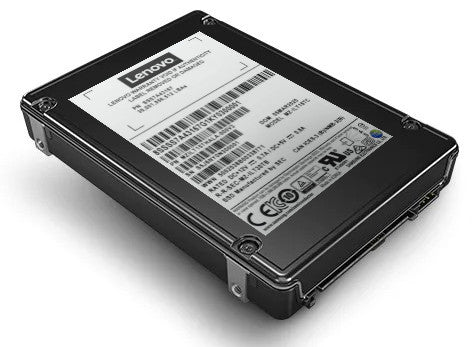

Photo is for illustration purposes only. Actual product may be different.
$3,909.00
$3,909.00
Sale Sold out
Shipping calculated at checkout.
  • 3.84TB capacity in a standard 2.5" form factor
  • 24 Gb/s SAS interface for fast and reliable data transfer
  • Max 4K random read speed of up to 420,000 IOPS
  • Max 4K random write performance up to 140,000 IOPS
  • Sequential read/write speeds of 2100 MB/s and 2000 MB/s
  • MTBF rated at 2,000,000 hours for high reliability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High-performance SAS 24 Gb/s interface ensures excellent data throughput in enterprise environments
  • Optimized for read-intensive workloads with superior IOPS, ideal for virtualized and database-heavy systems
  • Excellent reliability with 2 million hour MTBF reduces downtime and maintenance costs

Product Overview

The Lenovo 2.5" PM1653 3.84TB Read-Intensive SAS SSD (4XB7A80320) provides enterprise-class performance in a compact form factor. Featuring a 24 Gb/s SAS interface and high IOPS capabilities — up to 420,000 IOPS read and 140,000 IOPS write — it supports fast, read-intensive workloads. With sequential speeds reaching 2100 MB/s read and 2000 MB/s write, plus 2 million hours MTBF, this SSD offers both speed and reliability for mission-critical server applications. Though COO and TAA compliance details are unavailable, the drive’s form factor and performance profile make it ideal for enterprise and data center use.

Specifications

Product Overview
Manufacturer Lenovo
Product Name Lenovo 3.84TB 2.5" PM1653 RI SAS SSD
Manufacturer Part Number 4XB7A80320
Product Type Solid State Drive (SSD)
Form Factor 2.5 inch
Device Class Enterprise Read-Intensive SSD
Power Requirements 5V / 12V DC
Typical Power Consumption (Read) 7.7 W
Typical Power Consumption (Write) 8.0 W
Weight 150 g

Physical & Environmental
Width 2.8 inch (70.1 mm)
Depth 4.0 inch (101.6 mm)
Height 0.6 inch (15 mm)
Operating Temperature 0°C to 70°C
Storage Temperature -40°C to 85°C
Operating Humidity Range 5% – 95% (non-condensing)
MTBF (Mean Time Between Failures) 2 million hours
Shock Resistance (Operating) 1000G (0.5ms)
Vibration (Operating) 2.17 Grms (5–800 Hz)

Cloud Management & Licensing
Drive Management Tools Lenovo XClarity, Lenovo Diagnostics
Firmware Upgradable Yes

Interfaces
Interface Type SAS-4 (24 Gb/s)
Compatible Interface SAS 12 Gb/s, SAS 6 Gb/s (backward compatible)
Data Transfer Rate 24 Gbps
Sequential Read Speed 2100 MB/s
Sequential Write Speed 2000 MB/s
Random Read IOPS (4K) 420,000 IOPS
Random Write IOPS (4K) 140,000 IOPS

Compliance & Origin
RoHS Compliance Yes
Halogen Free Yes
TAA Compliant
Country of Origin
Certifications UL, TUV, CE, FCC, BSMI, VCCI, KCC, RCM

Advanced Security Features
Data Protection End-to-end data protection
Encryption TCG Enterprise SSC (Self-Encrypting Drive option)
Power Loss Protection Yes (power fail capacitors)
Secure Erase Yes
