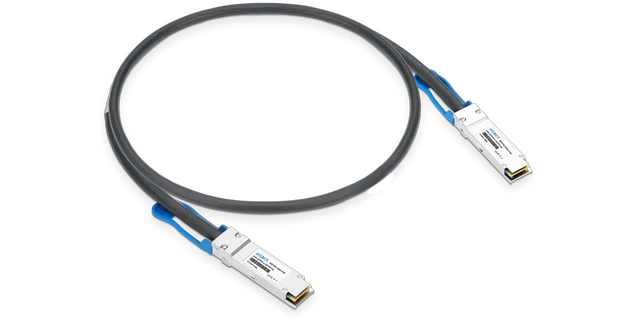

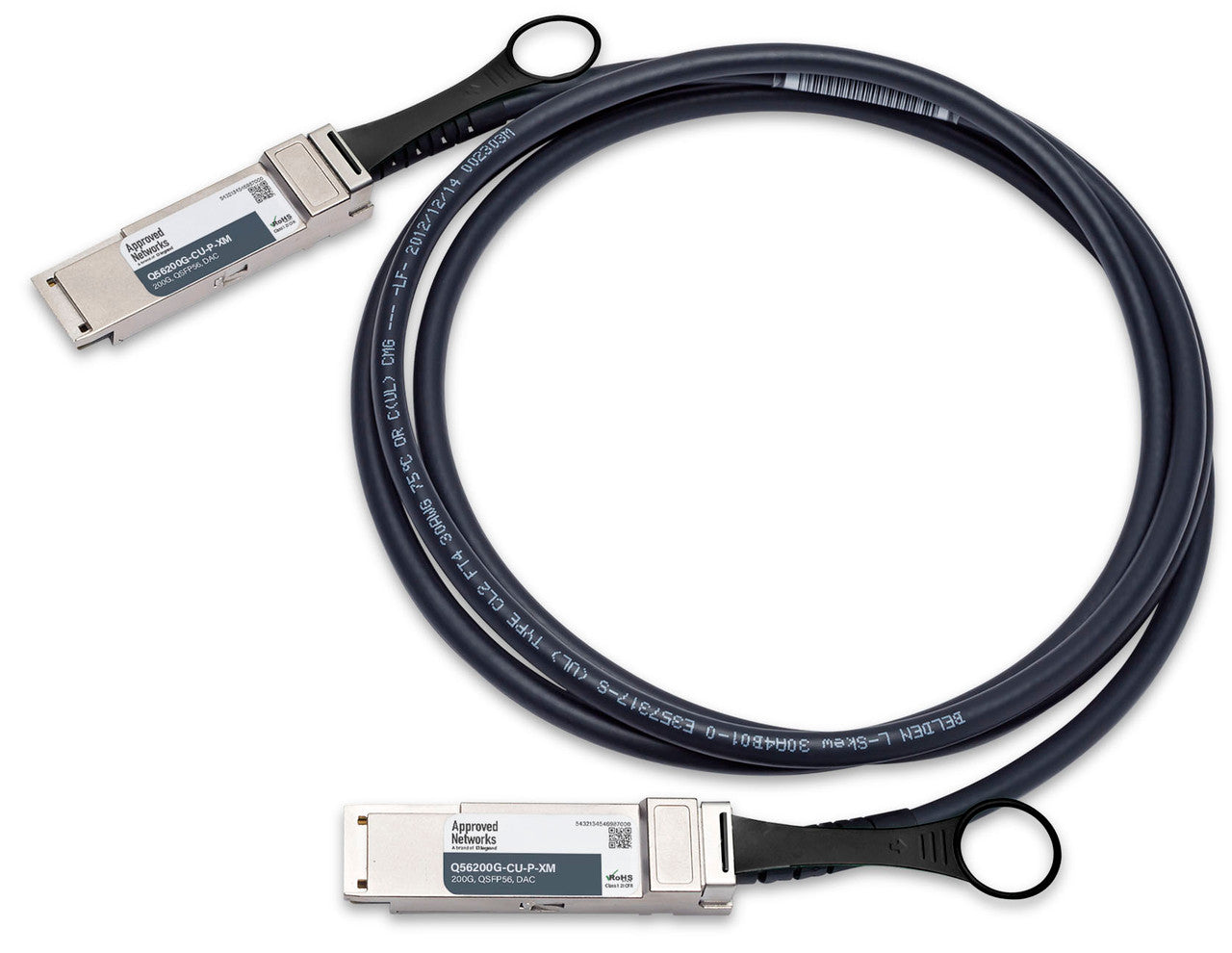

Lenovo 3m Passive 200G QSFP56 DAC Cable

VENDOR: LENOVO Mfg Part#: 4X97A12613
1 3
Photo is for illustration purposes only. Actual product may be different.
$1,479.00
$1,479.00
Sale Sold out
Shipping calculated at checkout.
  • 200G data transfer rate enabled via QSFP56 direct attach copper interface
  • 3-meter cable length optimal for short-reach data center applications
  • Passive DAC design eliminates need for additional power or transceivers
  • QSFP56 connectors ensure compatibility with modern 200G networking gear
  • Robust construction suitable for enterprise and high-performance environments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Supports high-speed 200G connectivity, suitable for modern enterprise and hyperscale deployments
  • Energy-efficient passive DAC design reduces heat and operational costs compared to active cables
  • Ideal 3-meter length streamlines intra-rack and short inter-rack connectivity in dense data center environments

Product Overview

The Lenovo 3m Passive 200G QSFP56 DAC Cable delivers 200G high-speed data transfer using QSFP56 connectors on both ends across a 3-meter copper cable. Designed as a passive DAC solution, it enables energy-efficient, low-latency operation ideal for data center and enterprise networks. This cable is tailored for high-performance computing applications requiring short-distance, high-throughput connectivity.

Specifications

Product Overview
Product Type Passive Direct Attach Copper (DAC) Cable
Form Factor Plug-in module
Cable Length 3 m
Data Rate 200 Gbps
Connector Type QSFP56 to QSFP56
Media Type Twinax Copper
Passive/Active Passive
Device Supported Network switch, router, server
Application Short-reach, high-speed interconnect
Power Requirement No external power required

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Inquire
TAA Compliant Inquire
RoHS Compliance Yes
Halogen-Free Yes (typically for data center DACs)
CE / FCC Certified Yes
ISO Certifications ISO 9001 manufacturing certified (Lenovo production standard)

Advanced Security Features
Traffic Encryption
MACsec Support
Hardware Encryption Engine

Interfaces
Interface Type QSFP56
Connector on First End QSFP56 Male
Connector on Second End QSFP56 Male
Number of Connectors 2
Data Transfer Rate 200 Gbit/s
Transmission Medium Direct Attach Copper (DAC)
Port Type Compatibility QSFP56 standard-compliant ports

Physical & Environmental
Cable Jacket Material PVC or similar (exact material not specified)
Conductor Type Twinax Copper
Minimum Operating Temperature 0°C
Maximum Operating Temperature 70°C
Humidity Range (Operating) 10% to 85% non-condensing
Flexibility Standard bend radius
Cable OD (Outer Diameter) Approx. ≤6.0 mm (estimated typical DAC
