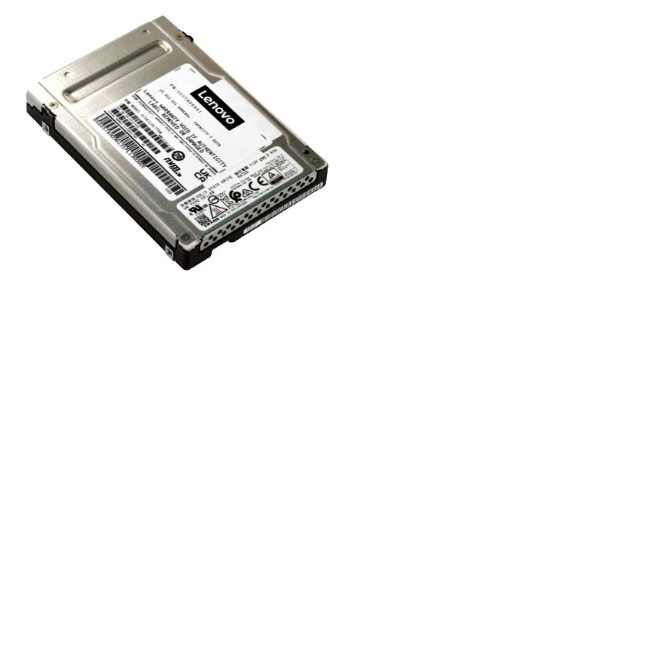

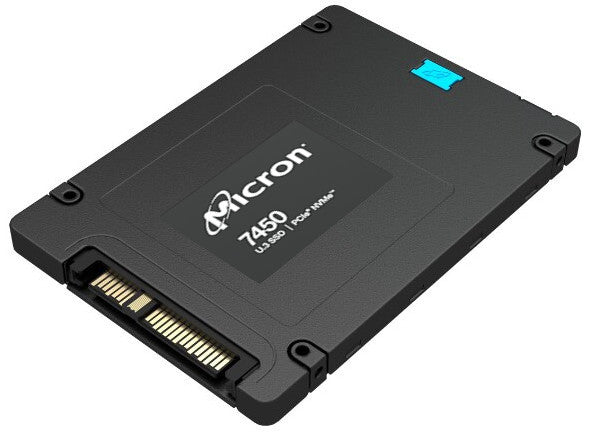

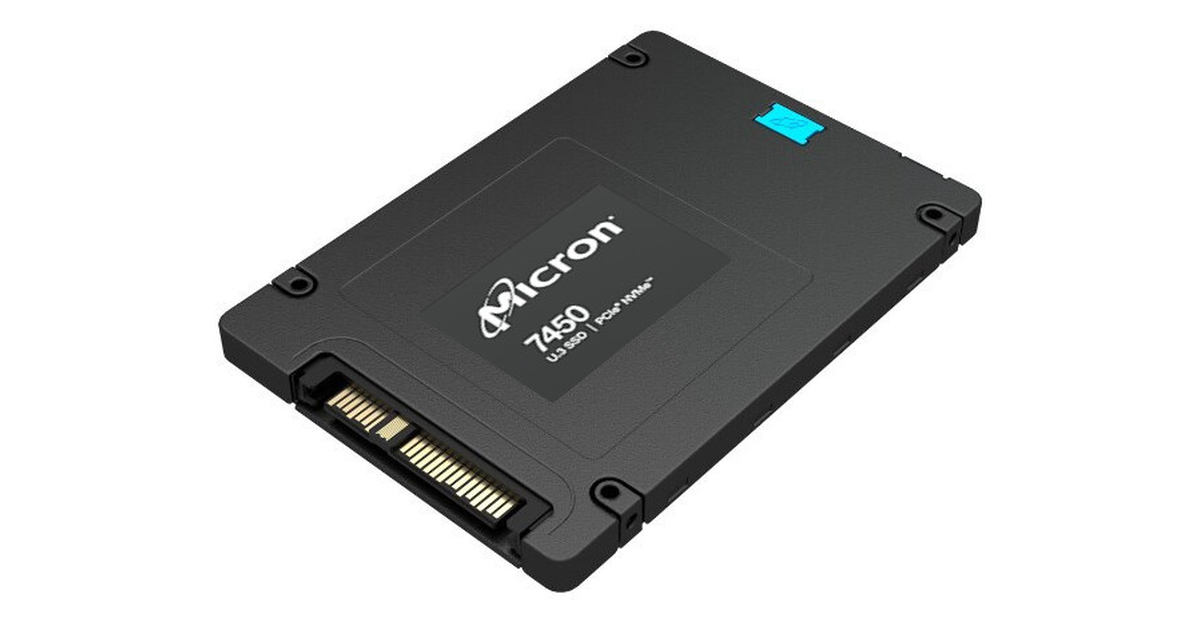

Lenovo 7450 MAX 12.8TB 2.5" U.3 PCIe NVMe SSD

VENDOR: LENOVO Mfg Part#: 4XB7A84056
1 3
Photo is for illustration purposes only. Actual product may be different.
$5,959.00
$5,959.00
Sale Sold out
Shipping calculated at checkout.
  • 12.8TB capacity with TLC NAND flash for high-density storage
  • PCIe 4.0 NVMe interface delivers 6800 Mbps read, 5600 Mbps write speeds
  • 2.5" U.3 hot-swappable form factor for enterprise compatibility
  • Up to 1,000,000 IOPS (4KB random read) and 410,000 IOPS (write) for high performance
  • MTBF of 2,000,000 hours enhances device reliability
  • 17W operational power consumption supports energy efficiency

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ultra-high capacity and NVMe performance ideal for data-intensive enterprise applications
  • Proven reliability with 2 million hours MTBF and RoHS compliance for sustainable deployment
  • Hot-swappable 2.5" U.3 design allows easy integration and maintenance in server environments

Product Overview

The Lenovo 7450 MAX 12.8TB NVMe SSD features an advanced PCIe 4.0 NVMe interface, housed in a compact 2.5-inch U.3 hot-swappable form factor. Built with TLC flash technology, it offers an impressive 12.8TB capacity, ideal for large-scale data workloads. With read speeds of 6800 Mbps and write speeds of 5600 Mbps, it supports high-speed performance.

It delivers up to 1 million IOPS for 4KB random reads and 410,000 IOPS for writes, along with an MTBF of 2 million hours for long-term reliability. Consuming 17 watts in active operation and being RoHS compliant, it balances power and sustainability. This SSD suits data-intensive enterprise environments looking for efficient and durable storage.

Specifications

Product Overview
Type Enterprise SSD
Form Factor 2.5-inch U.3
Interface PCIe 4.0 NVMe
Hot-Swappable Yes
Capacity 12.8 TB
Flash Type TLC (Triple-Level Cell)
Model 7450 MAX
Power Consumption (Active) 17 Watts
MTBF (Mean Time Between Failures) 2,000,000 hours

Physical & Environmental
Drive Size 2.5-inch
Form Factor Compliance U.3 SFF-TA-1001
Operating Temperature Range 0°C to 70°C
Non-Operating Temperature -40°C to 85°C
Shock Resistance (Non-Operating) 1000 G / 0.5 ms
Vibration Resistance (Operating) 2.17 G RMS (5-700 Hz)
Vibration Resistance (Non-Operating) 3.13 G RMS (5-800 Hz)
Humidity (Operating) 5% to 95% (non-condensing)
Altitude (Operating) Up to 10,000 ft

Cloud Management & Licensing
Remote Management Support No
Software/Tools Provided Lenovo SSD Management tools
Firmware Update Support Yes

Interfaces
Interface Type PCIe 4.0 NVMe
Interface Connector U.3 (SFF-8639)
Data Transfer Rate (Read) 6800 MB/s
Data Transfer Rate (Write) 5600 MB/s
4KB Random Read Performance 1,000,000 IOPS
4KB Random Write Performance 410,000 IOPS

Compliance & Origin
RoHS Compliance Yes
Country of Origin
TAA Compliant
Certifications RoHS, CE, UL, FCC

Advanced Security Features
End-to-End Data Protection Yes
Power Loss Protection Yes
Secure Erase Yes (Crypto Erase)
AES 256-bit Encryption Yes
FIPS 140-2 Validation Yes
TCG Opal 2.0 Support Yes
