Lenovo Brocade Secure 32Gb LWL SFP+ Transceiver 8-Pack

VENDOR: LENOVO Mfg Part#: 4M27A65419 UPC#: 889488546862
1 5
Photo is for illustration purposes only. Actual product may be different.
$43,558.01
$43,558.01
Sale Sold out
MSRP: $44,249.00
Shipping calculated at checkout.
  • SFP+ transceiver module with 32Gb Fibre Channel (LW) protocol support
  • Data transfer rate of up to 28.05 Gbps per module
  • Supports transmission distances up to 6.2 miles (10 km)
  • Includes 8-pack of plug-in modules for scalable SAN deployment

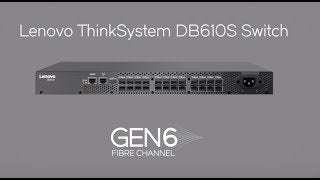

  • Compatible with Lenovo ThinkSystem DB400D, DB610S, DB620S, DB630S, DB720S, and DB800D
  • Long wave laser optics optimized for single-mode fiber cabling

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Offers high-speed 28.05 Gbps data connectivity for demanding SAN environments
  • Designed specifically for Lenovo ThinkSystem SAN Directors, ensuring optimal compatibility
  • Eight-module pack reduces cost-per-port for enterprise-scale deployments

Product Overview

The Lenovo Brocade Secure 32Gb LWL SFP+ Transceiver 8-Pack is purpose-built for fibre channel storage area networks requiring extended range and high bandwidth. Each plug-in module supports data transfer rates up to 28.05 Gbps using 32Gb Fibre Channel (LW) protocol and achieves transmission distances up to 6.2 miles. With an SFP+ form factor and long wave optics, these modules integrate seamlessly into Lenovo ThinkSystem SAN hardware, including DB-series Directors. This solution helps enterprises expand storage throughput while maintaining secure and stable long-range communication over single-mode fiber.

Specifications

Product Overview
Product Type SFP+ transceiver module
Form Factor Plug-in module
Packaged Quantity 8 (specifications are for single item)
Interface Type 32Gb Fibre Channel (LW)
Connectivity Technology Wired
Power Consumption (Typical) ≤1.5W
Application Fibre Channel-based Storage Area Networks (SANs)
Transceiver Type Long Wave (LWL)

Physical & Environmental
Dimensions (W x D x H) 13.7 mm x 56.5 mm x 8.5 mm
Weight (per transceiver) Approximately 20 g
Operating Temperature 0°C to 70°C (32°F to 158°F)
Storage Temperature -40°C to 85°C (-40°F to 185°F)
Relative Humidity (Operating) 10% to 85% non-condensing
Relative Humidity (Storage) 5% to 95% non-condensing
MTBF Over 1 million hours

Cloud Management & Licensing
Management Interface Managed via associated Fibre Channel switch
License Requirements None (plug-and-play hardware)
Firmware Upgradeable Yes

Compatibility
Designed For Lenovo ThinkSystem DB400D, DB610S, DB620S, DB630S, DB720S, DB800D 32Gb SAN Directors
Hot Swap Support Yes
Backwards Compatibility Compatible with 16Gb and 8Gb Fibre Channel standards

Interfaces
Port Type 1 x 32Gb Fibre Channel (LWL)
Data Transfer Rate 28.05 Gbps
Data Link Protocol 32Gb Fibre Channel (Long Wave)
Cable Type Supported Single-mode fiber (SMF)
Connector Type LC duplex
Number of Ports 1 per module
Wavelength 1310 nm
Laser Type DFB laser
Max Transfer Distance 6.2 miles (10 km)

Compliance & Origin
TAA Compliant Yes
RoHS Compliance Yes
EMC Standards EN 55032 Class B, EN 55024
Safety Certifications IEC 60825-1, FDA 21 CFR 1040.10 and 1040.11
Country of Origin Inquire

Advanced Security Features
Data Encryption Support Supported through host SAN infrastructure
Secure Firmware Integrity Digital signature verification
Authentication Protocols Authenticated with associated SAN switch
