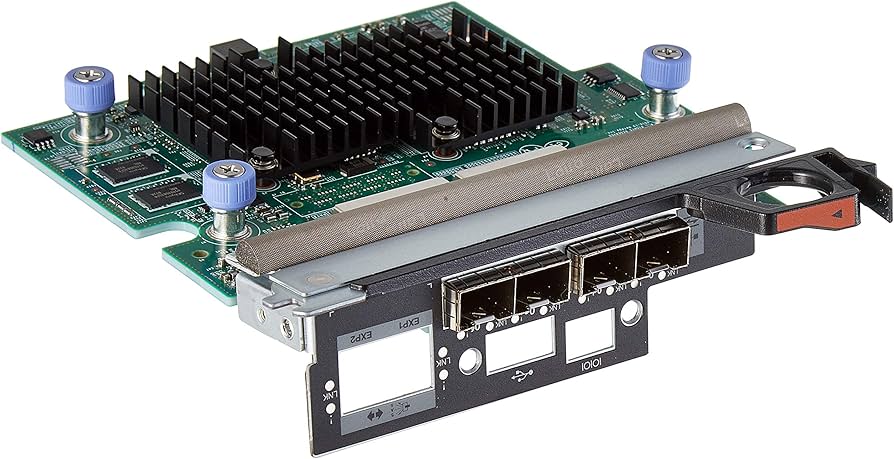

Lenovo DE4000 HIC 16Gb FC/10GbE 4-Port Plug-In Module

VENDOR: LENOVO Mfg Part#: 4C57A14366 UPC#: 889488474356
1 5
Photo is for illustration purposes only. Actual product may be different.
$1,101.39
$1,101.39
Sale Sold out
MSRP: $1,419.00
Shipping calculated at checkout.
  • 4 x Fibre Channel ports for high-density connectivity
  • Supports 16Gbps data transfer rate for high throughput
  • Plug-in module form factor enables easy integration
  • Compatible with 16Gb Fibre Channel protocol
  • Supports both FC and 10Gb Ethernet interfaces
  • Designed for Lenovo DE4000 series environments

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Provides scalable high-speed connectivity ideal for enterprise data centers.
  • Streamlines cabling and reduces hardware complexity with four high-speed ports.
  • Delivers mission-critical performance with up to 16Gbps throughput for bandwidth-intensive applications.

Product Overview

The Lenovo DE4000 HIC 4-Port Plug-In Module delivers enterprise-grade connectivity through dual support for 16Gb Fibre Channel and 10Gb Ethernet. This card offers data transfer rates of up to 16 Gbps and is designed for high-speed data environments like storage networking and mission-critical workflows. Its four Fibre Channel ports maximize connection density, while the compact plug-in design enables seamless integration into existing Lenovo DE4000 Series systems. The adapter reduces infrastructure complexity and enhances cabling efficiency, offering a high-performance solution aligned with today’s enterprise networking needs.

Specifications

Product Overview
Manufacturer Lenovo
Product Name Lenovo DE4000 HIC 16Gb FC/10GbE 4-Port Plug-In Module
Manufacturer Part Number 4C57A14366
UPC 889488474356
Product Type Network Adapter
Family Networking
Category Network Interface Cards
Sub-Category Network Adapters
Form Factor Plug-In Module
Device Compatibility Lenovo DE4000 Series Storage Systems
Enclosure Type Internal Plug-in Card
Weight 0.28 kg (approx.)
Power Consumption 5W (typical)

Wireless Features
Wireless Support

Compliance & Origin
Country of Origin
TAA Compliant
RoHS Compliant Yes
EMI/EMC Compliance FCC Part 15 Class A, EN55032, EN55024
Certifications UL, cUL, CE, VCCI, BSMI

Advanced Security Features
Traffic Isolation Yes (Dedicated Fibre Channel zoning supported)
Authentication Support FC-SP (Fibre Channel Security Protocol)
Data Integrity Protocols T10 PI (Protection Information)
Secure Remote Access Yes, via secure management protocols (HTTPS, SSH)

Interfaces
Interface Type Fibre Channel / Ethernet
Number of Ports 4
Port Type SFP+
Data Transfer Rate 16 Gbps (Fibre Channel), 10 Gbps (Ethernet)
Supported Protocols 16Gb Fibre Channel, 10Gb Ethernet
Connection Interface 4 x SFP+ (Fibre Channel/Ethernet combo)

Physical & Environmental
Dimensions (W x D x H) 19.2 mm x 121.8 mm x 79 mm
Operating Temperature Range 10°C to 40°C (50°F to 104°F)
Storage Temperature Range -25°C to 60°C (-13°F to 140°F)
Operating Humidity 10% - 85% (non-condensing)
Storage Humidity 5% - 95% (non-condensing)
Heat Dissipation 17.06 BTU/hr

Cloud Management & Licensing
Cloud Management Managed via Lenovo System Manager (SAN OS)
Remote Management Interface Web-based GUI, CLI (Telnet/SSH)
Licensing Requirements No additional license required for connectivity
Included Software Features Port mapping, load balancing, advanced diagnostics
