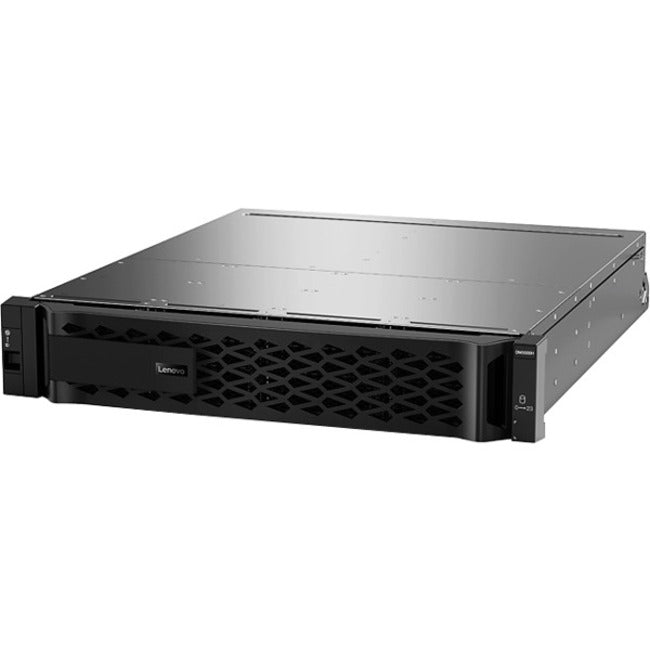

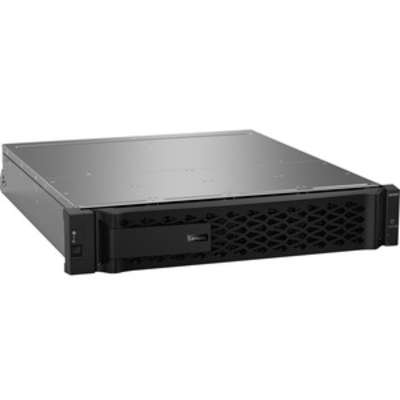

Lenovo DM5000H 2U24 SFF Storage Enclosure

VENDOR: LENOVO Mfg Part#: 7D7V1001NA
1 5
Photo is for illustration purposes only. Actual product may be different.
$48,529.00
$48,529.00
Sale Sold out
Shipping calculated at checkout.
  • 2U rackmount form factor with support for 24 small form factor (SFF) drives
  • Two redundant hot-swap power supplies rated at 913W for power continuity
  • 1x 1 GbE RJ-45 port per controller for out-of-band management
  • Advanced security protocols including SSL, SSH, RBAC, and LDAP authentication
  • Power input: 100–127 V AC; 50/60 Hz; 5.35 A
  • Includes 3-year manufacturer warranty

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Compact 2U design maximizes rack space while supporting large storage capacities
  • Redundant 913W hot-swappable power supplies enhance system uptime and reduce risk of power failure
  • Integrated remote management and enterprise-grade security features enable efficient and secure administration

Product Overview

The Lenovo DM5000H 2U24 SFF is a high-performance storage enclosure built for enterprise workloads. Its 2U rackmount chassis supports 24 SFF drives and includes dual hot-swappable 913W power supplies for redundancy. Network administrators benefit from a 1 GbE management port per controller and extensive security protocols including SSL, SSH, RBAC, and LDAP authentication. Operating on 100–127 V AC, this device ensures rack integration flexibility and dependability. Backed by a three-year warranty, it’s ideal for scalable and secure data storage deployments.

Specifications

Product Overview
Product Type Storage Enclosure
Model DM5000H
Form Factor 2U Rackmount
Drive Bays 24x 2.5" SFF hot-swap drive bays
Supported Drive Types SAS and SSD drives
System Type Storage Enclosure
Redundant Power Supply Yes, dual hot-swappable
Power Supply Wattage 913W per supply
Nominal Voltage 100 to 127 V AC
Frequency 50/60 Hz
Input Current 5.35 A
Chassis Material Metal
Warranty 3 Years

Physical & Environmental
Width 447 mm
Depth 483 mm
Height 85 mm
Rack Units 2U
Weight (with drives) Approximately 29.6 kg (65.2 lbs)
Weight (empty) Approximately 18.1 kg (39.9 lbs)
Operating Temperature 10°C to 35°C (50°F to 95°F)
Non-Operating Temperature -40°C to 60°C (-40°F to 140°F)
Operating Humidity 8% to 85% (non-condensing)
Acoustic Noise Level 62 dB
Heat Dissipation 3116 BTU/hr (maximum)

Cloud Management & Licensing
Management Interface System Manager, OnCommand Unified Manager
Cloud Integration NetApp Cloud Manager (via controllers)
Licensing Model Controller-based software licensing

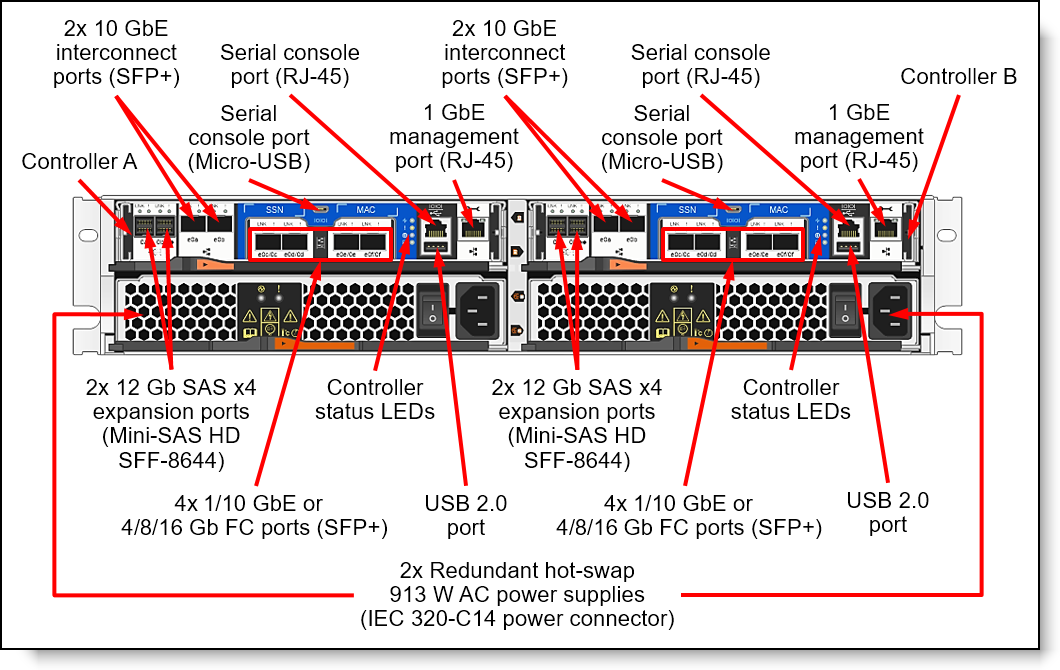

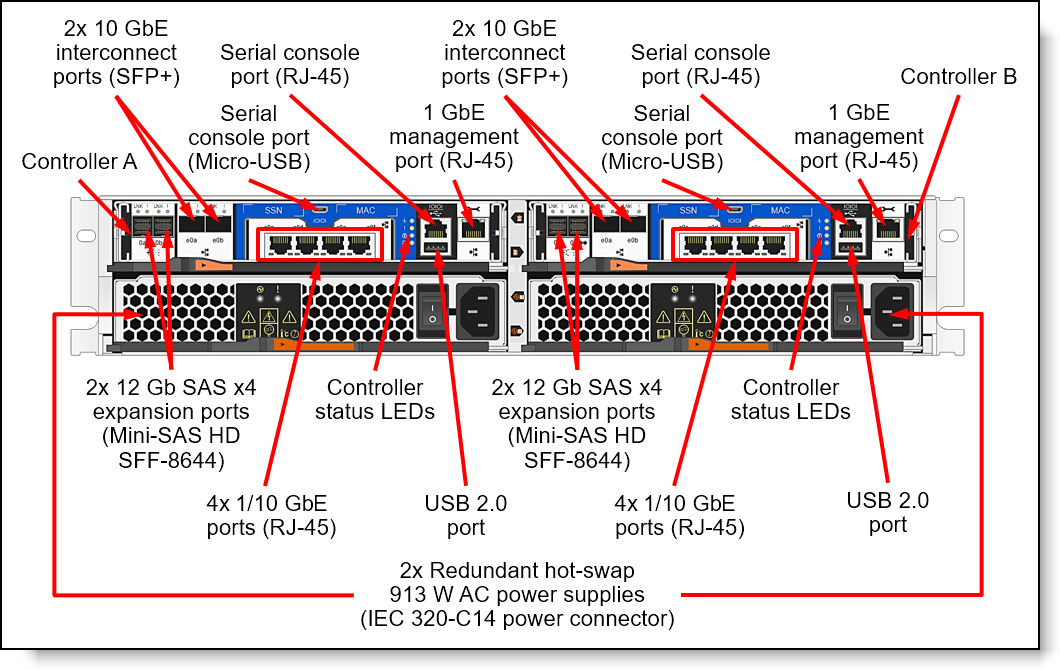

Interfaces
Management Port 1x 1GbE RJ-45 per controller
Host Interface Options Up to 4x 10Gb iSCSI or 12Gb SAS (via controller module, optional)
Expansion Ports 2x SAS expansion ports per controller (requires host interface card)
Data Rates Up to 12Gbps SAS / 10Gbps Ethernet

Compliance & Origin
Country of Origin
TAA Compliance
Certifications RoHS, FCC, UL, CE

Advanced Security Features
Authentication Methods Role-Based Access Control (RBAC), LDAP
Encryption Support Self-encrypting drives (SED) supported
Secure Protocols SSL, SSH
User Management Multi-level user accounts with permission settings
