| Product Type | M.2 SATA/NVMe Adapter |
| Form Factor | PCIe HHHL (Half-Height, Half-Length) |
| Enclosure Type | Internal |
| Number of Drive Bays | 2 |
| Supported Drive Form Factor | M.2 2242/2260/2280 |
| Power Requirements | Supplied via PCIe slot |
| Drive Interface Compatibility | SATA and NVMe |
| RAID Support | No (software RAID may be available via operating system) |
| Hot Swap Support | No |

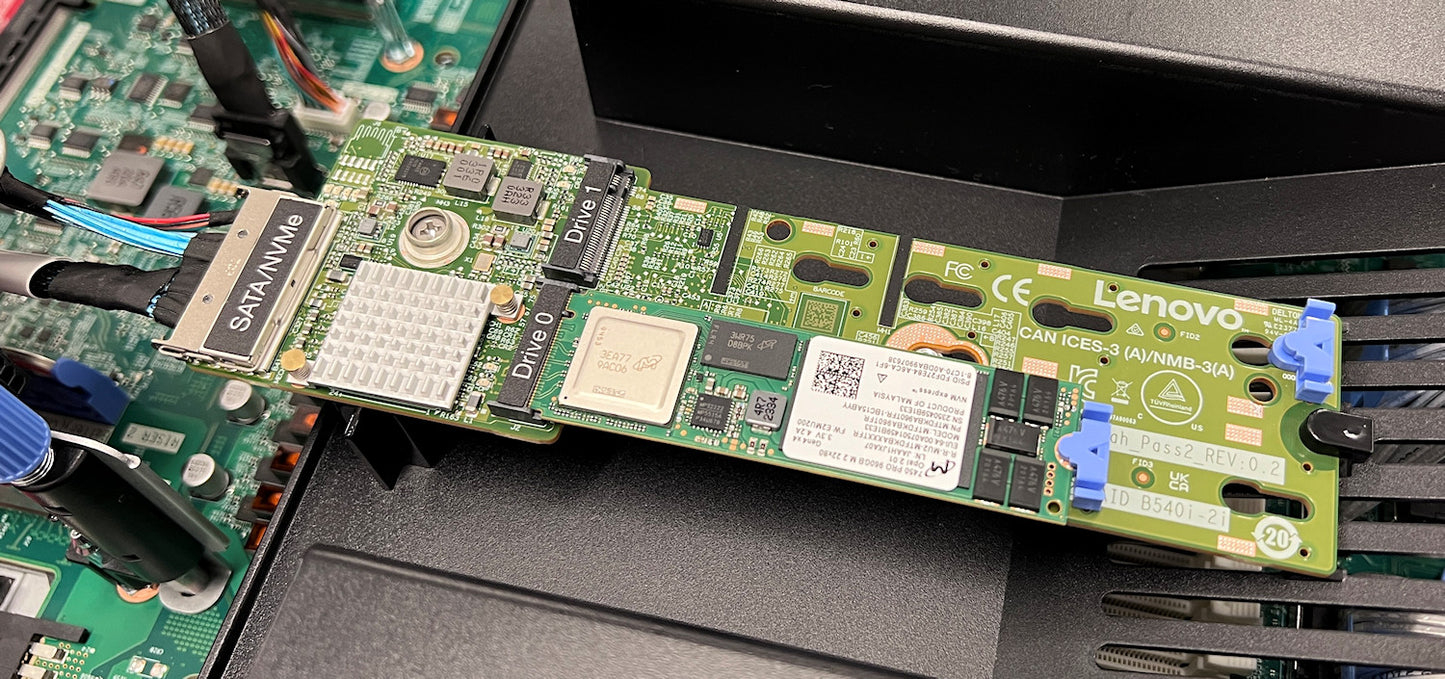

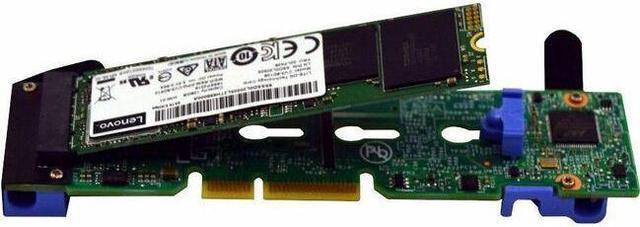

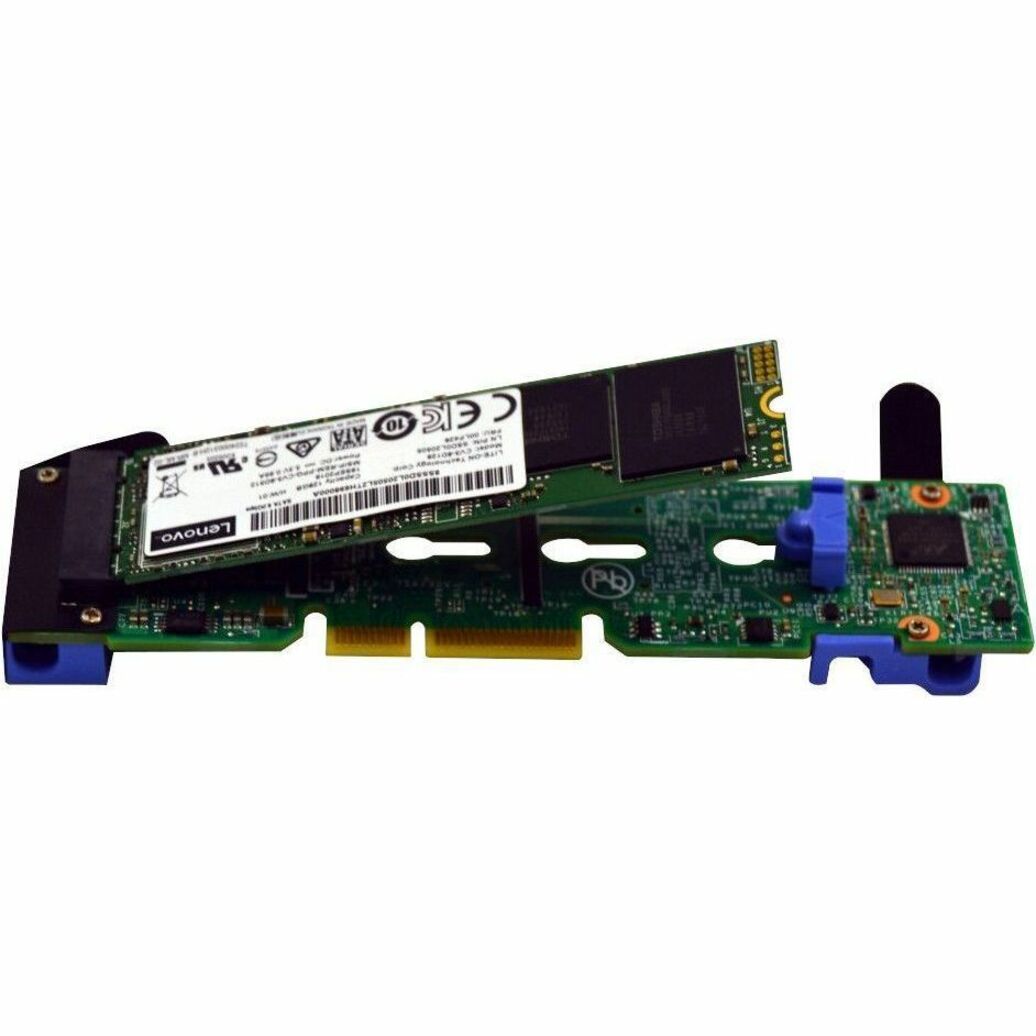

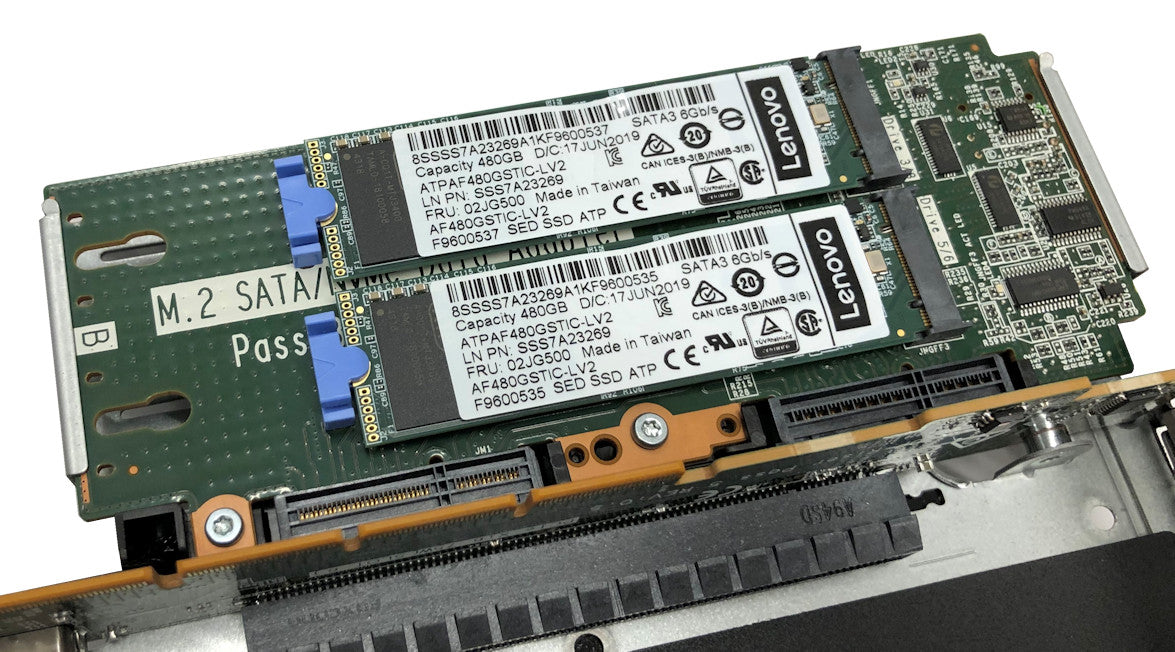

Lenovo M.2 SATA/NVMe 2-Bay Adapter, 4C57A85377
Photo is for illustration purposes only. Actual product may be different.
Regular price
$459.00
Regular price
Sale price
$459.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
- Supports installation of two M.2 drives
- Compatible with both SATA and NVMe interfaces
- Designed as a storage expansion adapter
- Classified as a Lenovo storage accessory
- TAA compliance available upon inquiry
Shipping & Returns
Shipping & Returns
All our products can be shipped anywhere in the Continental United States.
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Dual-bay design offers enhanced storage expansion within a compact footprint.
- Supports both SATA and NVMe M.2 drives for broad compatibility and performance tuning.
- Backed by Lenovo's enterprise-grade storage accessory standards.
Product Overview
The Lenovo M.2 SATA/NVMe 2-Bay Adapter, part number 4C57A85377, supports dual M.2 drives using SATA or NVMe protocols. Ideal for enterprise and professional deployments, this adapter boosts storage expansion and flexibility in compatible Lenovo systems. While specific interface specifications are unavailable, it meets Lenovo's TAA compliance inquiry process and is suitable for industry-specific integration where modular scaling is a priority.
Specifications
Product Overview
Physical & Environmental
| Dimensions (W x D x H) | 167.65 mm x 68.90 mm x 18.96 mm |
| Weight | 250 g |
| Operating Temperature | 10°C to 35°C (50°F to 95°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Operating Humidity | 8% – 80% (non-condensing) |
| Storage Humidity | 5% – 95% (non-condensing) |
Cloud Management & Licensing
| Management Interface | Not applicable |
| Software Licensing | Not required |
| Cloud Integration | No |
Interfaces
| Host Interface | PCIe Gen3 x8 |
| Number of PCIe Lanes Used | 8 |
| Drive Connectors | 2 x M.2 Key M |
| Supported Protocols | PCIe NVMe and SATA |
| Max Data Transfer Rate | Up to 32 Gb/s per NVMe drive |
| Interface Compatibility | PCIe 3.0 |
Compliance & Origin
| Country of Origin | Inquire |
| TAA Compliance | TAA-compliant via Lenovo’s TAA Inquiry Process |
| RoHS Compliance | Yes |
| FCC Certification | Yes |
| CE Marking | Yes |
| WEEE Compliance | Yes |
Advanced Security Features
| Drive Security | Dependent on installed drive capabilities |
| Physical Security | Chassis-level security recommended |
| TPM Support | Supported via host system |
| Tamper Resistance | No integrated tamper detection |
| Authentication Support | Drive-based (if supported) |
