Products Memory, Storage and Components Lenovo Nytro 3750 800GB 2.5...

Lenovo Nytro 3750 800GB 2.5" SAS SSD, 12Gb/s

VENDOR: LENOVO Mfg Part#: 4XB7A83215
1 3

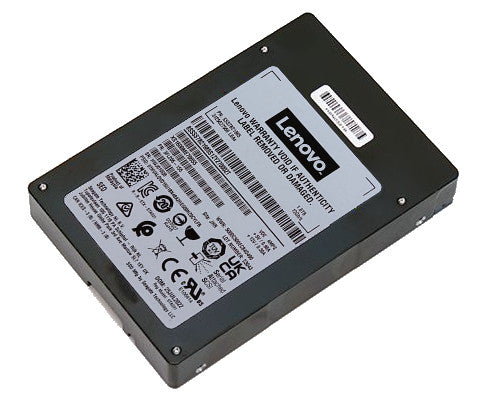

Photo is for illustration purposes only. Actual product may be different.
$3,389.00
$3,389.00
Sale Sold out
Shipping calculated at checkout.
  • - 800GB SSD capacity with 2.5-inch form factor
  • - SAS 12 Gb/s interface for high-speed data transfers
  • - Sustained read speed up to 1105 Mbps and write speed up to 1096 Mbps
  • - Random IOPS: up to 148,000 read and 162,000 write on 4KB blocks
  • - Endurance of 10 DWPD over five years (14,600 TBW total)
  • - MTBF of 2,500,000 hours for enterprise-class reliability

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • - Designed for enterprise workloads requiring high IOPS and sustained throughput, making it suitable for data centers
  • - High endurance and MTBF ratings ensure longevity and cost-effectiveness over time
  • - SAS 12 Gb/s interface provides scalable speed advantages in multi-drive configurations

Product Overview

The Lenovo Nytro 3750 800GB SSD features a 2.5-inch form factor and uses a SAS 12 Gb/s interface to deliver fast, reliable data throughput. With read/write speeds up to 1105/1096 Mbps and IOPS performance of 148,000/162,000, it handles enterprise-grade workloads efficiently. The drive boasts an MTBF of 2.5 million hours and 10 DWPD endurance, ensuring long-term performance in demanding environments. At 7.7 Watts power consumption, it balances speed with energy efficiency—making it ideal for high-performance servers, SANs, and virtualized infrastructure.

Specifications

Product Overview
Product Type Enterprise SSD
Series Nytro 3750
Capacity 800 GB
Form Factor 2.5-inch
Flash Memory Type TLC (Triple-Level Cell)
Part Number 4XB7A83215
Power Consumption (Active) 7.7 Watts
Endurance 10 DWPD for 5 years (14,600 TBW)
MTBF 2,500,000 hours
Hot Swap Support Yes

Physical & Environmental
Drive Height 15 mm
Product Dimensions (W x D x H) 70 mm × 100 mm × 15 mm
Drive Weight Approx. 146 grams
Operating Temperature Range 0°C to 70°C
Non-Operating Temperature -40°C to 85°C
Operating Vibration 0.5 Gs @ 5–700 Hz
Non-Operating Vibration 3.0 Gs @ 5–500 Hz
Shock Resistance (Operating) 1000 G/0.5 ms
Humidity (Operating) 5% to 95% (non-condensing)
Humidity (Non-Operating) 5% to 95% (non-condensing)

Cloud Management & Licensing
Cloud Management Not Supported
Software Licensing Included Not Applicable

Interfaces
Interface Type SAS
SAS Interface Speed 12 Gb/s
Interface Bandwidth Up to 1.2 GB/s
Read Speed (Sequential) 1105 MB/s
Write Speed (Sequential) 1096 MB/s
4KB Random Read IOPS 148,000
4KB Random Write IOPS 162,000

Compliance & Origin
Country of Origin
Trade Agreements Act (TAA) Compliant
RoHS Compliance Yes
Halogen Free Yes
Environmental Certifications REACH, RoHS

Advanced Security Features
Self-Encrypting Drive (SED) Support Yes
Encryption Standard AES-256
Power Loss Protection Yes
Data Path Protection Yes
Security Features Secure Data Sanitize, FIPS Configurable (varies by model)
