| Data Link Protocol | Wi-Fi, Bluetooth |
| Processor / Type | Core i7 |
| Processor / Manufacturer | Intel |
| Processor / Number | 14700T |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 135 Watt |
| Model | ThinkCentre M70Q Gen 5 |
| Width | 7.05 Inch |
| Depth | 7.2 Inch |
| Height | 1.44 Inch |
| RAM / Total Installed Size | 16 GB |
| System Type | Personal Computer |
| Cabinet Form Factor | Tiny |
| Processor / Generation | Intel 14th Generation |
| Multi-Core Technology | 20-Core |
| Processor / Clock Speed | 1.3 GHz |
| Cache Memory Installed Size | 33 MB |
| Max Turbo Frequency | 5.2 GHz |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| Cache Memory Installed Size | 33 MB |
| RAM / Installed Qty | 1 |
| Mainboard / Chipset Type | Intel Q670 |
| RAM / Technology | DDR5 |
| RAM / Total Slots Qty | 2 |
| RAM / Memory Speed | 5600 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 64 GB |
| Storage Controller Type | M.2 |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | None |
| Audio Output | High Definition (HD) Audio |
| Storage Controller Type | M.2 |
| Memory Card Reader | No card reader |
| Hard Drive / Capacity (2nd) | None GB |
| Network Controller | Intel Wi-Fi 6E AX211 |
| Graphics Controller | Intel UHD Graphics 770 |
| Video Memory / Technology | None |
| Video Memory / Installed Size | None GB |
| Video Output Interface | Display Port, HDMI |
| Speakers | 1 x 2W |
| Input Device Support Type | Keyboard |
| Keyboard Language | English |
| Keyboard | USB Traditional Keyboard, Black |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Professional |
| Efficiency | 89% |
| Interfaces & Connections | 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with [email protected] charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [email protected] charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x USB-A (Hi-Speed USB / USB 2.0), with smart power-on; 1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45) |

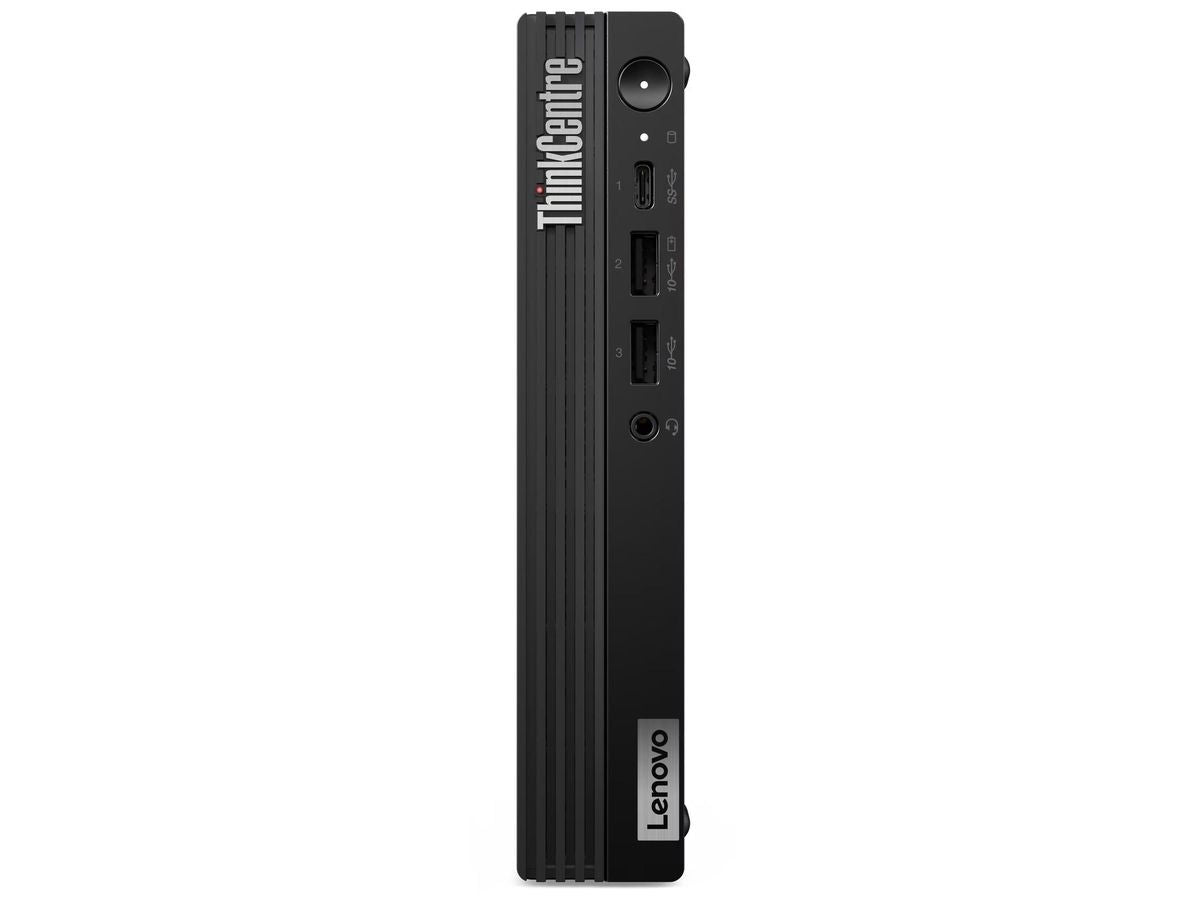

| Front I/O Ports | 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with [email protected] charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [email protected] charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm) |

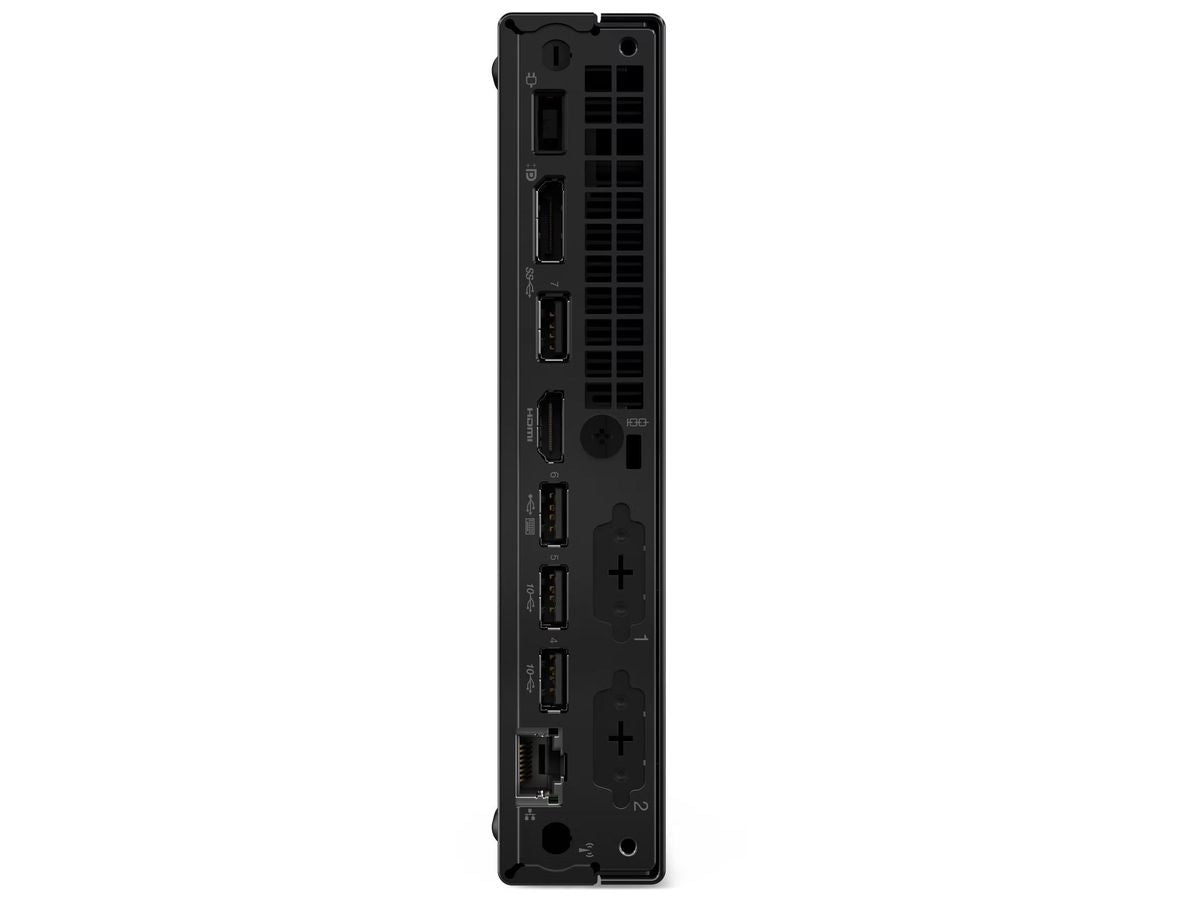

| Rear I/O Ports | 1x USB-A (Hi-Speed USB / USB 2.0), with smart power-on; 1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45) |
| Expansion Slots Total (Free) | Three M.2 slots (one for WLAN, two for SSD) |
| Weight | 2.76 lbs. |
| Enclosure Color | Black |
| Service & Support Type | 3-year, Onsite Warranty |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Stand | Yes |

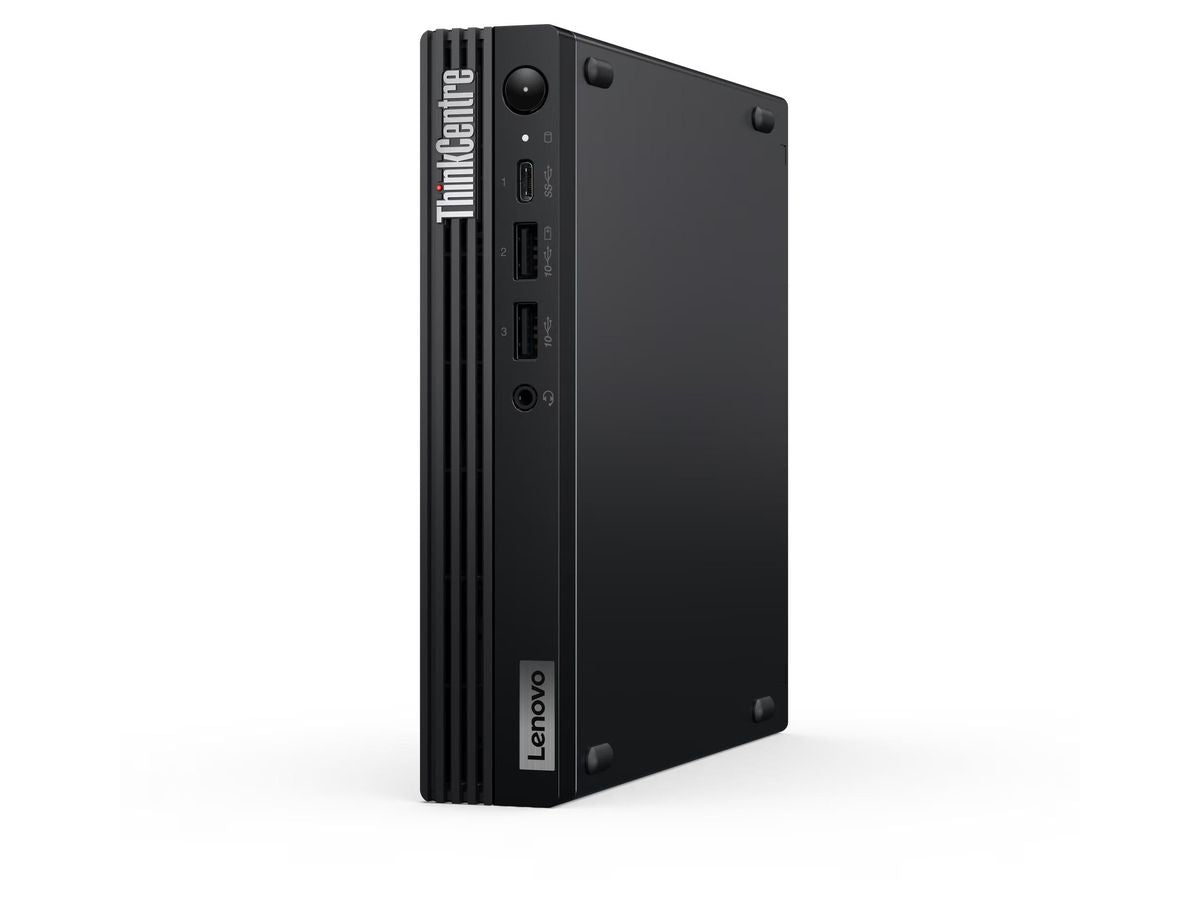

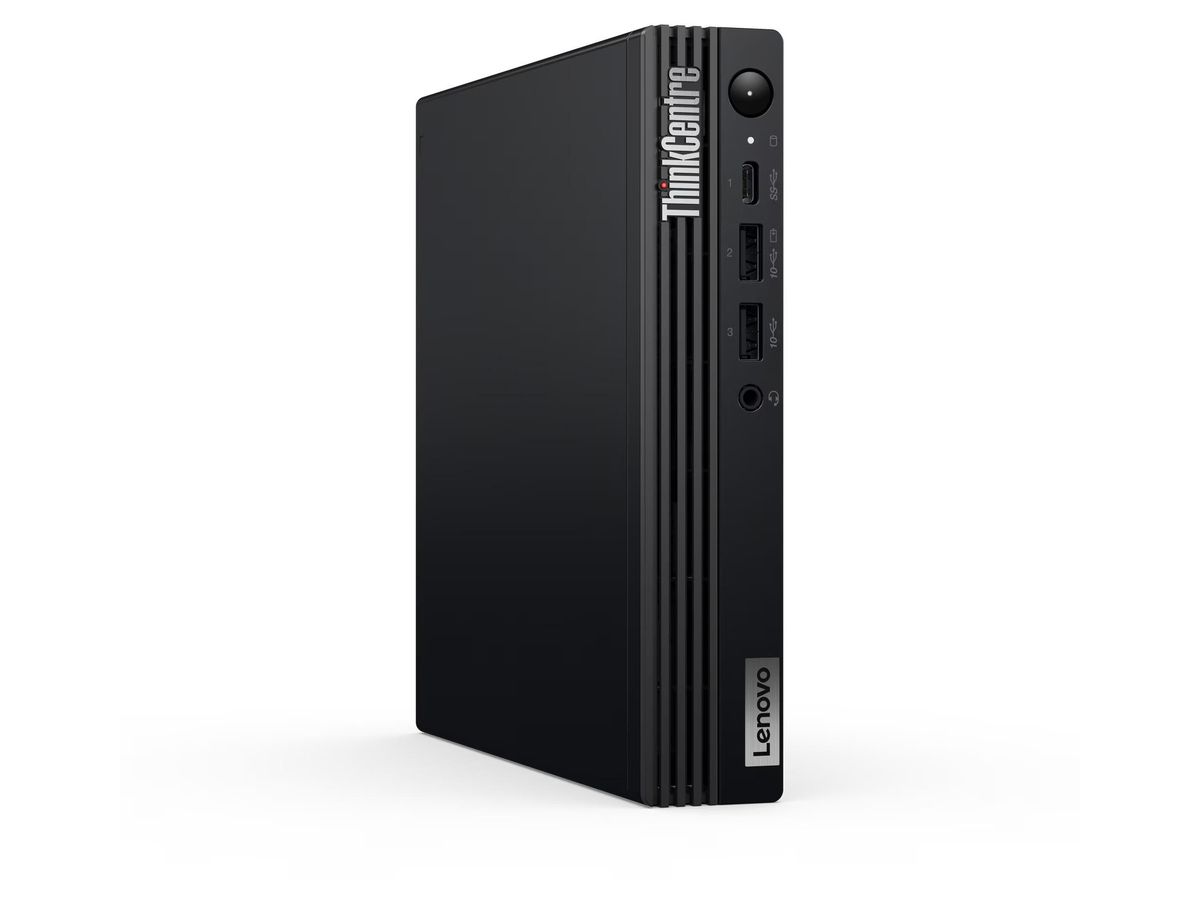

Lenovo ThinkCentre M70q Gen 5 Tiny i7-14700T 16GB 512GB SSD Win11 Pro
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,326.40
Regular price
Sale price
$1,326.40
Unit price
per
MSRP: $1,329.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Intel Core i7-14700T 20-core processor with up to 5 GHz Max Turbo
- 16GB DDR5 SODIMM RAM at 5600 MHz, expandable up to 64GB
- 512GB PCIe Gen4 M.2 SSD for fast storage and boot times
- Intel UHD Graphics 770 with HDMI and DisplayPort outputs
- Discrete TPM 2.0, TCG certified, FIPS 140-2 compliant for security
- Three M.2 slots for flexible storage and WLAN expansion
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- High-performance 14th Gen Intel processor enables scalable multitasking for business workloads
- Compact Tiny form factor (1.44" height) saves desk space without sacrificing functionality
- Includes Windows 11 Pro and 3-year onsite warranty for enterprise-grade reliability and support
Product Overview
The Lenovo ThinkCentre M70q Gen 5 Tiny is designed for enterprise performance in a compact form factor. Powered by a 14th Gen Intel Core i7-14700T with turbo speeds up to 5 GHz, it ensures high-speed multitasking and processing efficiency. Its 16GB DDR5 RAM at 5600 MHz and 512GB Gen4 SSD contribute to rapid data access and system responsiveness. Onboard Intel UHD Graphics 770 supports standard business visuals across DisplayPort and HDMI outputs. Enhanced with TPM 2.0, TCG, and FIPS 140-2 compliance, this PC meets advanced security needs. Other key features include USB-C connectivity, Gigabit LAN, and Wi-Fi 6 with Bluetooth 5.1+. With a weight of just 1.25 kg and 3-year onsite warranty coverage, the M70q Gen 5 offers scalable productivity in a reliable, space-saving package.
Specifications
Primary Information
Power
| Power / Device Type | Power Supply |
| Power / Provided (W) | 135 Watt |
| Efficiency | 89% |
UNSPSC Code
| UNSPSC Code | 43211508 |
Memory
| Cache Memory Type | Smart Cache |
| RAM / Installed Qty | 1 |
| RAM / Total Slots Qty | 2 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 16 GB |
| RAM / Memory Speed | 5600 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 64 GB |
Storage
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | None |
| Storage Controller Type | M.2 |
| Hard Drive / Capacity (2nd) | None GB |
I/O
| Input Device Support Type | Keyboard |
| Keyboard | USB Traditional Keyboard, Black |
| Mouse | USB Calliope Mouse, Black |
| Keyboard Language | English |
Video
| Graphics Controller | Intel UHD Graphics 770 |
| Video Memory / Technology | None |
| Video Memory / Installed Size | None GB |
| Video Output Interface | Display Port, HDMI |
Dimensions&Miscellaneous
| Width | 7.05 Inch |
| Depth | 7.2 Inch |
| Height | 1.44 Inch |
| Weight | 2.76 lbs. |
| Enclosure Color | Black |
Special Feature
| COO | MEXICO |
| TAA compliance | Yes |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
General
| Processor | Intel, Core i7, 14700T, Base 1.3GHz, Smart Cache 33MB, MaxTurbo 5.2GHz |
| RAM | DDR5 SODIMM, Total Installed 16GB, 5600MHz, Max Supported 64GB |
Processor
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i7 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 20-Core |
| Processor / Clock Speed | 1.3 GHz |
| Max Turbo Frequency | 5.2 GHz |
| Processor / Number | 14700T |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 33 MB |
Expansion
| Interfaces & Connections | 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with [email protected] charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [email protected] charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x USB-A (Hi-Speed USB / USB 2.0), with smart power-on; 1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45) |
| Expansion Slots Total (Free) | Three M.2 slots (one for WLAN, two for SSD) |
| Front I/O Ports | 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with [email protected] charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [email protected] charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 1x USB-A (Hi-Speed USB / USB 2.0), with smart power-on; 1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45) |
Networking
| Data Link Protocol | Wi-Fi, Bluetooth |
| Network Controller | Intel Wi-Fi 6E AX211 |
