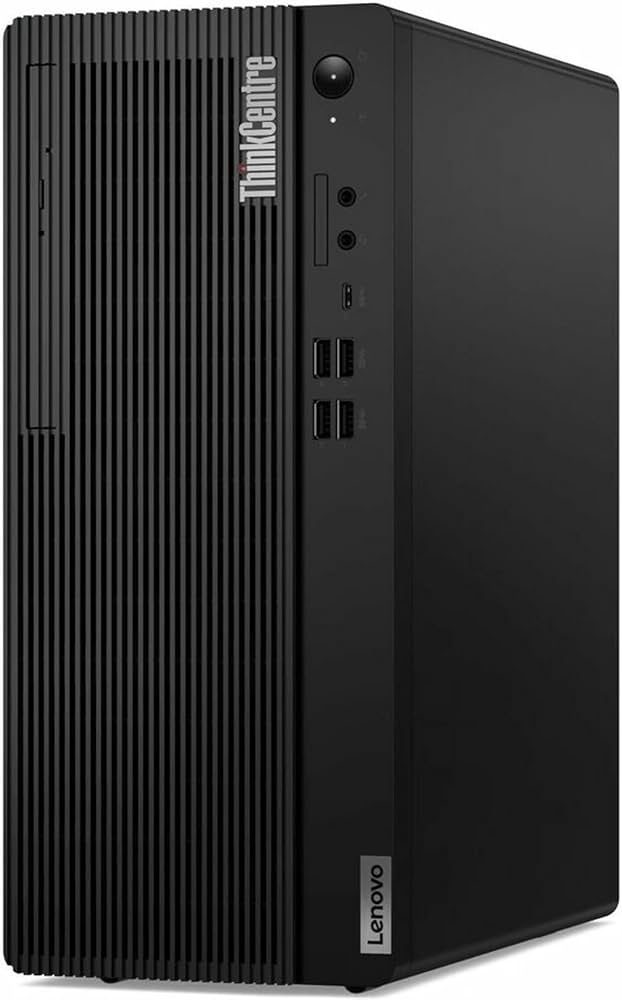

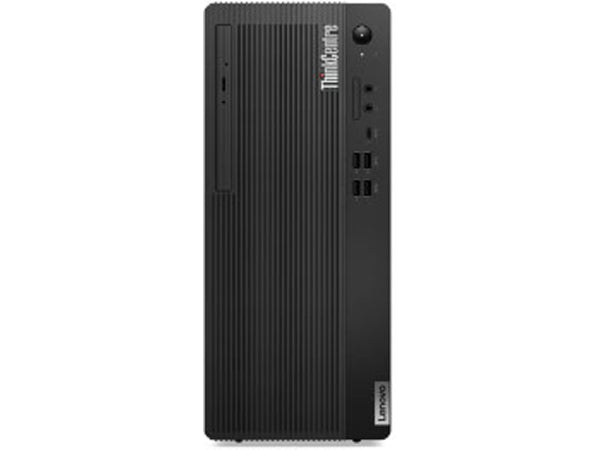

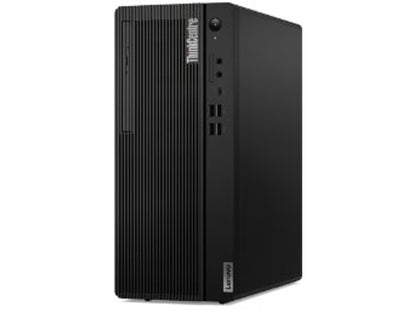

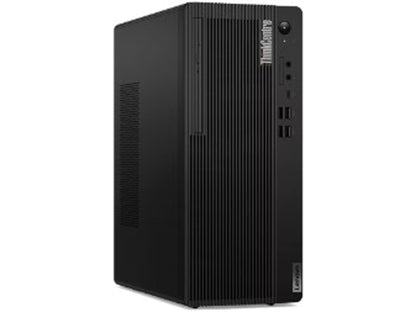

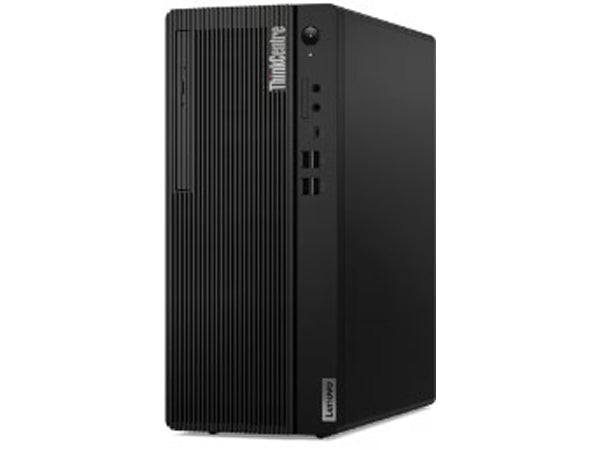

Lenovo ThinkCentre M70t Gen 5 Tower i5-14500 16GB 256GB SSD

VENDOR: LENOVO Mfg Part#: 12U0000MUS UPC#: 198153878161
  • The Lenovo ThinkCentre M70t Gen 5 is a powerful business-class desktop built for performance and reliability. Equipped with a 14th Gen Intel Core i5-14500 processor, 16GB DDR5 RAM, and a 256GB PCIe Gen4 SSD, it is optimized for multitasking and secure enterprise operations. With built-in Wi-Fi 6, Bluetooth 5.3, and onboard Intel UHD Graphics 770, it’s ready for modern workplaces demanding connectivity, speed, and stability.
  • The Lenovo ThinkCentre M70t Gen 5 is a powerful business-class desktop built for performance and reliability. Equipped with a 14th Gen Intel Core i5-14500 processor, 16GB DDR5 RAM, and a 256GB PCIe Gen4 SSD, it is optimized for multitasking and secure enterprise operations. With built-in Wi-Fi 6, Bluetooth 5.3, and onboard Intel UHD Graphics 770, it’s ready for modern workplaces demanding connectivity, speed, and stability.
  • The Lenovo ThinkCentre M70t Gen 5 is a powerful business-class desktop built for performance and reliability. Equipped with a 14th Gen Intel Core i5-14500 processor, 16GB DDR5 RAM, and a 256GB PCIe Gen4 SSD, it is optimized for multitasking and secure enterprise operations. With built-in Wi-Fi 6, Bluetooth 5.3, and onboard Intel UHD Graphics 770, it’s ready for modern workplaces demanding connectivity, speed, and stability.
  • The Lenovo ThinkCentre M70t Gen 5 is a powerful business-class desktop built for performance and reliability. Equipped with a 14th Gen Intel Core i5-14500 processor, 16GB DDR5 RAM, and a 256GB PCIe Gen4 SSD, it is optimized for multitasking and secure enterprise operations. With built-in Wi-Fi 6, Bluetooth 5.3, and onboard Intel UHD Graphics 770, it’s ready for modern workplaces demanding connectivity, speed, and stability.
1 4
Photo is for illustration purposes only. Actual product may be different.
$1,186.68
$1,186.68
Sale Sold out
MSRP: $1,189.00
Shipping calculated at checkout.
  • Intel Core i5-14500 14-core processor with 5.0 GHz turbo and 24MB Smart Cache
  • 16GB DDR5 RAM (4800MHz), upgradable to 64GB
  • 256GB PCIe Gen4 M.2 SSD with Opal encryption support
  • Intel UHD Graphics 770 with HDMI and DisplayPort outputs
  • Wi-Fi 6 (802.11ax) and Bluetooth 5.3 for modern wireless connectivity
  • Discrete TPM 2.0 with TCG and FIPS 140-2 certification for enterprise security
View full details

Key Benefits

Eye-Insights
  • Delivers enterprise-grade speed and responsiveness with a 14-core Intel Core i5-14500 and high-speed DDR5 RAM
  • Highly secure and government-ready with TPM 2.0, FIPS 140-2 compliance, and TAA compliance
  • Compact tower design with front USB-C and high-efficiency 260W PSU ensures workspace optimization and energy savings

Product Overview

Engineered for enterprise-grade performance, the Lenovo ThinkCentre M70t Gen 5 Tower combines cutting-edge processing with system-level expandability. Powered by an Intel Core i5-14500 14-core processor with a maximum turbo frequency of 5.0 GHz and 24MB Smart Cache, this tower PC handles intense workloads efficiently. The bundled 16GB DDR5 4800MHz RAM, expandable to 64GB, ensures fast and responsive multitasking, while the speedy 256GB M.2 PCIe Gen4 SSD with Opal encryption delivers quick boot times and enhanced data security.

The system includes Intel UHD Graphics 770 with HDMI and DisplayPort outputs, offering solid support for general-purpose display needs. The M70t is also equipped with modern I/O including USB-C with 15W charging support in front, and four USB 2.0 ports at the rear. Integrated Wi-Fi 6 (802.11ax), Bluetooth 5.3, and a high-efficiency 260W power supply (90% efficient) support connectivity and power conservation. Added features like the slim DVD-RW drive and 3-year on-site warranty enhance usability and long-term value for IT environments.

Security is baked in with a discrete TPM 2.0 chip, TCG and FIPS 140-2 certification, while support for TAA compliance makes it an ideal fit for government or regulated sectors. Its compact mid-tower chassis measuring just 5.7 x 11.7 x 13.6 inches keeps your workspace efficient without sacrificing power.

Specifications

General
Processor Intel, Core i5, 14500, Base 2.6GHz, Smart Cache 24MB, MaxTurbo 5GHz
RAM DDR5 UDIMM, Total Installed 16GB, 4800MHz, Max Supported 64GB

Memory
Cache Memory Type Smart Cache
RAM / Installed Qty 1
RAM / Total Slots Qty 2
RAM / Technology DDR5
RAM / Total Installed Size 16 GB
RAM / Memory Speed 4800 MHz
RAM Form Factor UDIMM
RAM / Max Supported Size 64 GB

Storage
Hard Drive / Type SSD
Hard Drive Capacity / HDD None GB
Hard Drive / Installed Qty None
Hard Drive / Spindle Speed None RPM
SSD Capacity 256 GB
SSD / Installed Qty 1
Optical Storage Type DVD+-RW
Hard Drive / Capacity (2nd) None GB
Hard Drive / Interface Type None
Storage Controller Type M.2

I/O
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Keyboard Language English

Power
Power / Device Type Power Supply
Power / Provided (W) 260 Watt
Efficiency 90%

Video
Graphics Controller Intel UHD Graphics 770
Video Memory / Technology None
Video Memory / Installed Size None GB
Video Output Interface Display Port, HDMI

UNSPSC Code
UNSPSC Code 43211508

Primary Information
System Type Personal Computer
Model ThinkCentre M70t Gen 5
Cabinet Form Factor Tower
Processor / Generation Intel 14th Generation
Processor / Type Core i5
Processor / Manufacturer Intel
Multi-Core Technology 14-Core
Processor / Clock Speed 2.6 GHz
Cache Memory Installed Size 24 MB
Max Turbo Frequency 5 GHz
Processor / Number 14500
Processor / Installed Qty 1
Cache Memory Installed Size 24 MB
RAM / Installed Qty 1
Mainboard / Chipset Type Intel Q670
RAM / Technology DDR5
RAM / Total Slots Qty 2
RAM / Total Installed Size 16 GB
RAM / Memory Speed 4800 MHz
RAM Form Factor UDIMM
RAM / Max Supported Size 64 GB
Hard Drive / Type SSD
Hard Drive Capacity / HDD None GB
Hard Drive / Installed Qty None
Hard Drive / Spindle Speed None RPM
SSD Capacity 256 GB
SSD / Installed Qty 1
Optical Storage Type DVD+-RW
Audio Output High Definition (HD) Audio, Realtek ALC623-CG codec
Memory Card Reader None
Hard Drive / Capacity (2nd) None GB
Data Link Protocol IEEE 802.11 ax, Bluetooth 5.3
Graphics Controller Intel UHD Graphics 770
Video Memory / Technology None
Video Memory / Installed Size None GB
Video Output Interface Display Port, HDMI
Speakers 1 x 2W
Keyboard Language English
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Operating System Microsoft Windows 11 Professional
Power / Device Type Power Supply
Power / Provided (W) 260 Watt
Efficiency 90%
Interfaces & Connections Front Ports: 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging, 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm); Rear Ports: 4x USB-A (Hi-Speed USB / USB 2.0), 1x HDMI 2.1 TMDS, 1x DisplayPort 1.4a (HBR2, DSC), 1x Ethernet (RJ-45)
Front I/O Ports 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging, 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm)

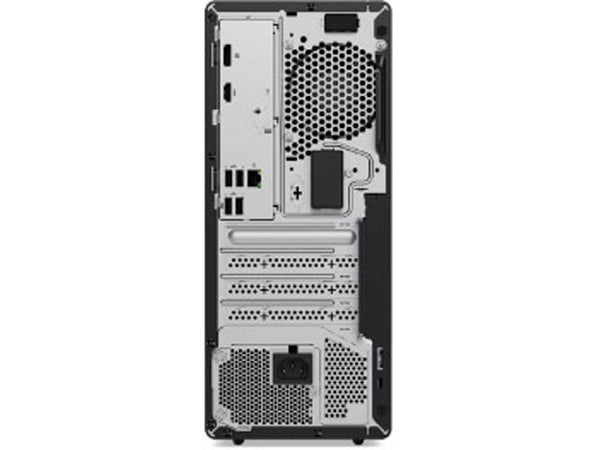

Rear I/O Ports 4x USB-A (Hi-Speed USB / USB 2.0), 1x HDMI 2.1 TMDS, 1x DisplayPort 1.4a (HBR2, DSC), 1x Ethernet (RJ-45)
Expansion Slots Total (Free) One PCIe 3.0 x16, full-height, length 222.7mm, height 111.2mm, One PCIe 3.0 x1, full-height, (length 185mm, height 100mm) or (length 118mm, height 110mm), Two M.2 slots (one for WLAN, one for SSD)
Width 5.7 Inch
Depth 11.7 Inch
Height 13.6 Inch
Weight 13 lbs.
Enclosure Color Black
Service & Support Type 3-year, Onsite Warranty
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Features Integrated 100/1000M
Storage Controller Type M.2
Hard Drive / Interface Type None
Storage Controller Type M.2
Network Controller Intel Wi-Fi 6E

Processor
Processor / Generation Intel 14th Generation
Processor / Type Core i5
Processor / Manufacturer Intel
Multi-Core Technology 14-Core
Processor / Clock Speed 2.6 GHz
Max Turbo Frequency 5 GHz
Processor / Number 14500
Processor / Installed Qty 1
Cache Memory Type Smart Cache
Cache Memory Installed Size 24 MB

Expansion
Interfaces & Connections Front Ports: 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging, 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm); Rear Ports: 4x USB-A (Hi-Speed USB / USB 2.0), 1x HDMI 2.1 TMDS, 1x DisplayPort 1.4a (HBR2, DSC), 1x Ethernet (RJ-45)
Expansion Slots Total (Free) One PCIe 3.0 x16, full-height, length 222.7mm, height 111.2mm, One PCIe 3.0 x1, full-height, (length 185mm, height 100mm) or (length 118mm, height 110mm), Two M.2 slots (one for WLAN, one for SSD)
Front I/O Ports 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging, 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm)
Rear I/O Ports 4x USB-A (Hi-Speed USB / USB 2.0), 1x HDMI 2.1 TMDS, 1x DisplayPort 1.4a (HBR2, DSC), 1x Ethernet (RJ-45)

Networking
Data Link Protocol IEEE 802.11 ax, Bluetooth 5.3
Network Controller Intel Wi-Fi 6E

Special Feature
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
COO MEXICO
TAA compliance Yes

Dimensions&Miscellaneous
Enclosure Color Black
Width 5.7 Inch
Depth 11.7 Inch
Height 13.6 Inch
Weight 13 lbs.
