Lenovo ThinkCentre M90q Gen 5 Tiny, Core i7-14700, 32GB, 512GB SSD

VENDOR: LENOVO Mfg Part#: 12TH0010US UPC#: 198153871858
  • ThinkCentre M90q Gen 5 Tiny is a compact yet powerful business desktop featuring Intel Core i7-14700 vPro processor, 32GB DDR5 RAM, and a 512GB PCIe Gen4 SSD. Its modern architecture ensures responsiveness and performance, making it well-suited for space-constrained workspaces. Preloaded with Windows 11 Pro and packaged with a full suite of I/O and security features, it offers enterprise-grade reliability and manageability.
  • ThinkCentre M90q Gen 5 Tiny is a compact yet powerful business desktop featuring Intel Core i7-14700 vPro processor, 32GB DDR5 RAM, and a 512GB PCIe Gen4 SSD. Its modern architecture ensures responsiveness and performance, making it well-suited for space-constrained workspaces. Preloaded with Windows 11 Pro and packaged with a full suite of I/O and security features, it offers enterprise-grade reliability and manageability.
  • ThinkCentre M90q Gen 5 Tiny is a compact yet powerful business desktop featuring Intel Core i7-14700 vPro processor, 32GB DDR5 RAM, and a 512GB PCIe Gen4 SSD. Its modern architecture ensures responsiveness and performance, making it well-suited for space-constrained workspaces. Preloaded with Windows 11 Pro and packaged with a full suite of I/O and security features, it offers enterprise-grade reliability and manageability.
  • ThinkCentre M90q Gen 5 Tiny is a compact yet powerful business desktop featuring Intel Core i7-14700 vPro processor, 32GB DDR5 RAM, and a 512GB PCIe Gen4 SSD. Its modern architecture ensures responsiveness and performance, making it well-suited for space-constrained workspaces. Preloaded with Windows 11 Pro and packaged with a full suite of I/O and security features, it offers enterprise-grade reliability and manageability.
1 4
Photo is for illustration purposes only. Actual product may be different.
$1,753.23
$1,753.23
Sale Sold out
MSRP: $1,769.00
Shipping calculated at checkout.
  • Intel Core i7-14700 vPro processor with 20 cores and 5.4 GHz max turbo frequency
  • 32GB DDR5 5200MHz SODIMM RAM with up to 64GB supported
  • 512GB M.2 PCIe Gen4 SSD with Opal encryption
  • Ultra-compact Tiny form factor measuring 1.44" height and 1.25 Kg weight
  • Intel UHD Graphics 770, supports Display Port and HDMI outputs
  • Robust security with Discrete TPM 2.0 and FIPS 140-2 certification
View full details

Key Benefits

Eye-Insights
  • Delivers high performance in a minimal physical footprint, ideal for enterprise desk space optimization
  • Top-tier security compliance (TPM 2.0, FIPS 140-2) makes it suitable for sensitive applications
  • Supports dual high-resolution displays with HDMI and DisplayPort for productivity-focused workflows

Product Overview

The Lenovo ThinkCentre M90q Gen 5 Tiny desktop is engineered with enterprise performance in mind, packing a 14th Gen Intel Core i7-14700 vPro processor featuring 20 cores and a max turbo frequency up to 5.4 GHz. It comes equipped with 32GB DDR5 5200MHz memory and a 512GB PCIe Gen4 SSD with Opal encryption. This ensures rapid data access, high multitasking efficiency, and strong data security for professional environments.

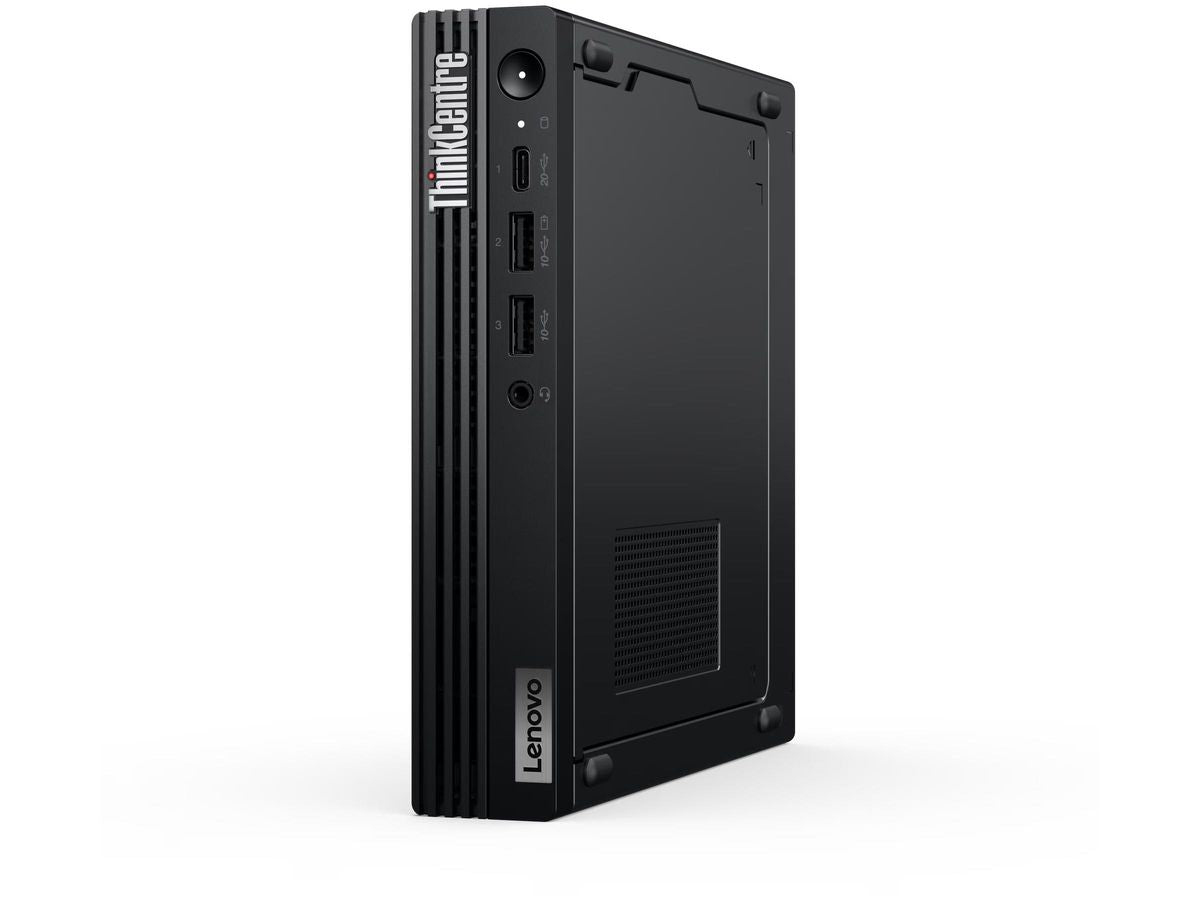

Its compact 'Tiny' form factor (1.25 kg and under 1.5 inches in height) makes it ideal for space-constrained installations, such as kiosks or healthcare stations. Integrated Intel UHD Graphics 770 supports dual displays via HDMI and DisplayPort, and modern I/O coverage includes a USB-C 20Gbps front port. Security features, including Discrete TPM 2.0 and FIPS 140-2 certification, meet enterprise-grade protection standards.

Included are a USB keyboard and Calliope mouse, a 3-year onsite warranty, and a 230W efficient power supply. Compatible with TAA regulations and assembled in Mexico, the M90q Gen 5 Tiny aligns with compliance needs across federal sectors.

Specifications

Primary Information
System Type Personal Computer
Model ThinkCentre M90q Gen 5
Cabinet Form Factor Tiny
Processor / Generation Intel 14th Generation
Processor / Type Core i7
Processor / Manufacturer Intel
Multi-Core Technology 20-Core
Processor / Clock Speed 2.1 GHz
Cache Memory Installed Size 33 MB
Max Turbo Frequency 5.4 GHz
Processor / Number 14700
Processor / Installed Qty 1
Cache Memory Installed Size 33 MB
RAM / Installed Qty 1
Mainboard / Chipset Type Intel Q670
RAM / Technology DDR5
RAM / Total Slots Qty 2
RAM / Total Installed Size 32 GB
RAM / Memory Speed 5600 MHz
RAM Form Factor SODIMM
RAM / Max Supported Size 64 GB
Storage Controller Type M.2
Hard Drive / Type SSD
Hard Drive Capacity / HDD None GB
Hard Drive / Installed Qty None
Hard Drive / Spindle Speed None RPM
SSD Capacity 512 GB
SSD / Installed Qty 1
Optical Storage Type None
Audio Output High Definition (HD) Audio, Realtek ALC233 codec
Storage Controller Type M.2
Memory Card Reader None
Hard Drive / Capacity (2nd) None GB
Data Link Protocol Wi-Fi, Bluetooth
Network Controller Intel Wi-Fi 6E AX211
Graphics Controller Intel UHD Graphics 770
Video Memory / Installed Size None GB
Video Output Interface Display Port; HDMI
Speakers 1 x 2W
Input Device Support Type Keyboard
Keyboard Language English
Keyboard USB Traditional Keyboard, Black
Mouse USB Calliope Mouse, Black
Operating System Microsoft Windows 11 Pro
Power / Device Type Power Adapter
Power / Provided (W) 230 Watt
Efficiency 90%
Interfaces & Connections 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [email protected] charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On; 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (GbE RJ-45)

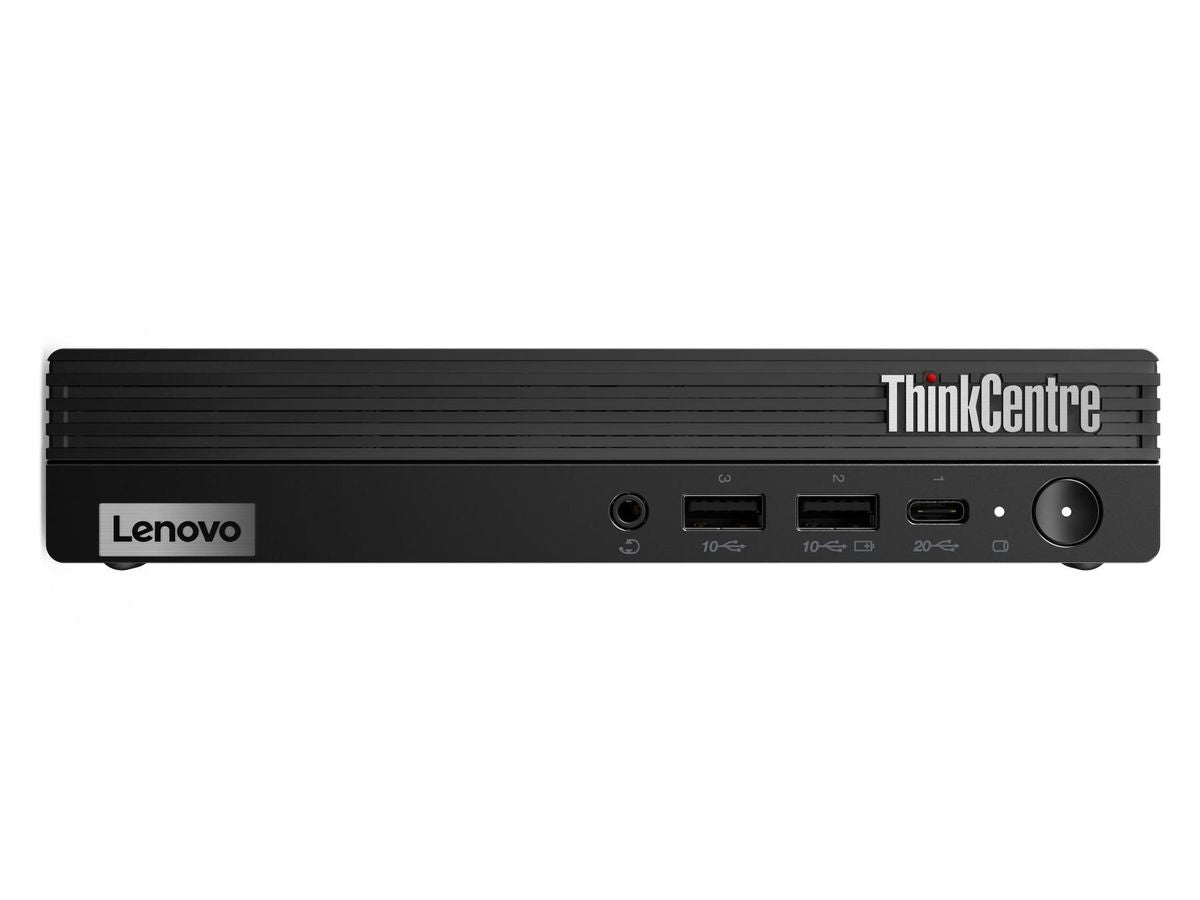

Front I/O Ports 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [email protected] charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm)

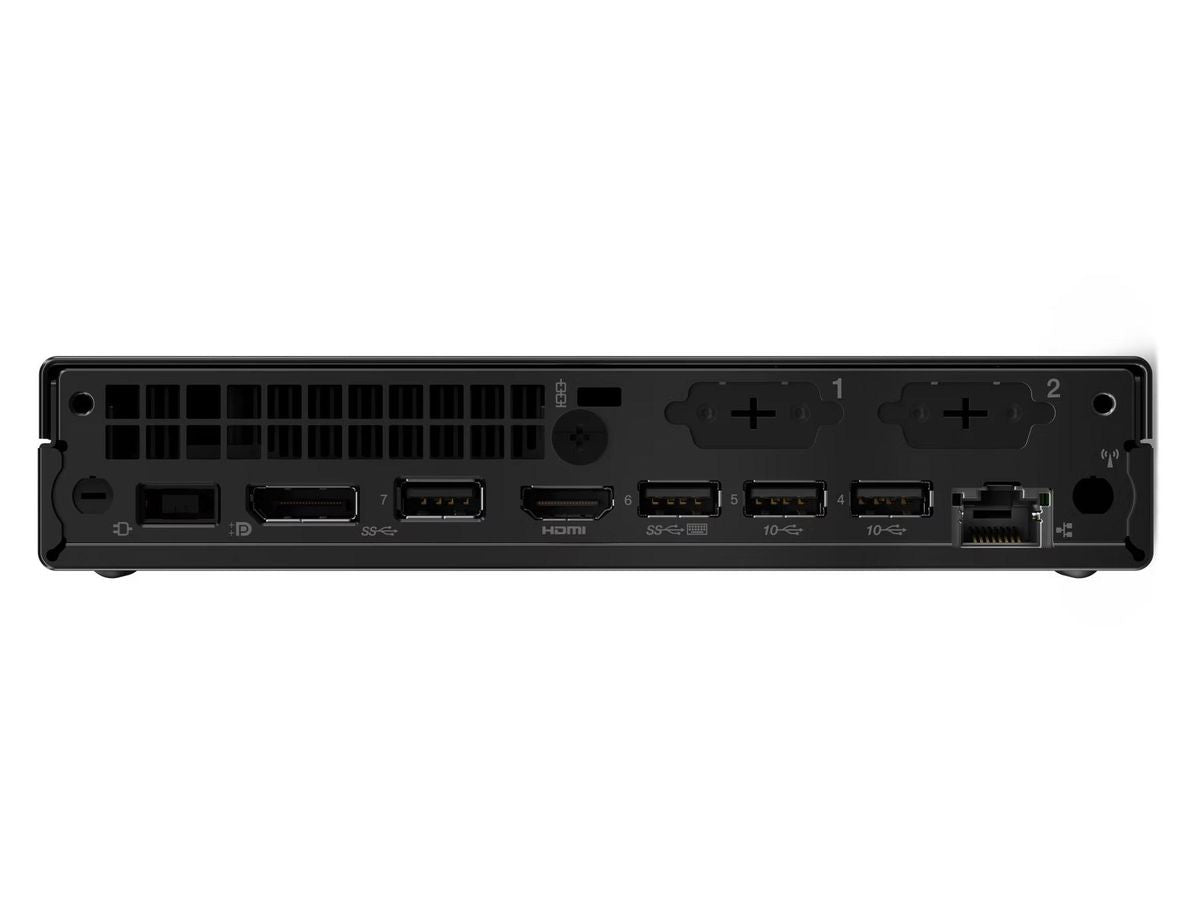

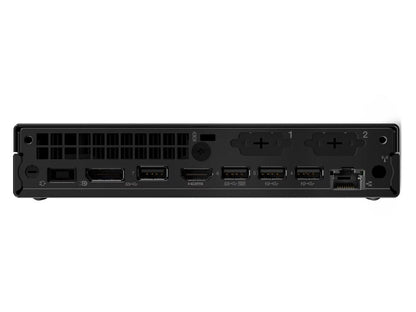

Rear I/O Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On; 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (GbE RJ-45)
Expansion Slots Total (Free) One PCIe 4.0 x8, low-profile; Two M.2 PCIe Gen 4x4 slots (for SSD); One M.2 slot (for WLAN)
Width 7.05 Inch
Depth 7.2 Inch
Height 1.44 Inch
Weight 2.76 lbs.
Enclosure Color Black
Service & Support Type 3-year, Onsite Warranty
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Stand Yes
Processor / Max Supported Qty 1
Video Memory / Technology None

Processor
Processor / Generation Intel 14th Generation
Processor / Type Core i7
Processor / Manufacturer Intel
Multi-Core Technology 20-Core
Processor / Clock Speed 2.1 GHz
Max Turbo Frequency 5.4 GHz
Processor / Number 14700
Processor / Installed Qty 1
Cache Memory Type Smart Cache
Cache Memory Installed Size 33 MB
Processor / Max Supported Qty 1

Expansion
Interfaces & Connections 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [email protected] charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On; 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (GbE RJ-45)
Expansion Slots Total (Free) One PCIe 4.0 x8, low-profile; Two M.2 PCIe Gen 4x4 slots (for SSD); One M.2 slot (for WLAN)
Front I/O Ports 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [email protected] charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm)
Rear I/O Ports 1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On; 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (GbE RJ-45)

Networking
Data Link Protocol Wi-Fi, Bluetooth
Network Controller Intel Wi-Fi 6E AX211

Special Feature
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
COO MEXICO
TAA compliance Yes

Dimensions&Miscellaneous
Enclosure Color Black
Width 7.05 Inch
Depth 7.2 Inch
Height 1.44 Inch
Weight 2.76 lbs.

General
Processor Intel, Core i7, 14700, Base 2.1GHz, Smart Cache 33MB, MaxTurbo 5.4GHz
RAM DDR5 SODIMM, Total Installed 32GB, 5600MHz, Max Supported 64GB

Memory
Cache Memory Type Smart Cache
RAM / Installed Qty 1
RAM / Total Slots Qty 2
RAM / Technology DDR5
RAM / Total Installed Size 32 GB
RAM / Memory Speed 5600 MHz
RAM Form Factor SODIMM
RAM / Max Supported Size 64 GB

Storage
Hard Drive / Type SSD
Hard Drive Capacity / HDD None GB
Hard Drive / Installed Qty None
Hard Drive / Spindle Speed None RPM
SSD Capacity 512 GB
SSD / Installed Qty 1
Optical Storage Type None
Storage Controller Type M.2
Hard Drive / Capacity (2nd) None GB

I/O
Input Device Support Type Keyboard
Keyboard USB Traditional Keyboard, Black
Mouse USB Calliope Mouse, Black
Keyboard Language English

Power
Power / Device Type Power Adapter
Power / Provided (W) 230 Watt
Efficiency 90%

Video
Graphics Controller Intel UHD Graphics 770
Video Memory / Installed Size None GB
Video Output Interface Display Port; HDMI
Video Memory / Technology None

UNSPSC Code
UNSPSC Code 43211508
