| Processor | Intel, Core i5, 14500, Base 2.6GHz, Smart Cache 24MB, MaxTurbo 5GHz |
| RAM | DDR5 SODIMM, Total Installed 16GB, 4800MHz, Max Supported 64GB |

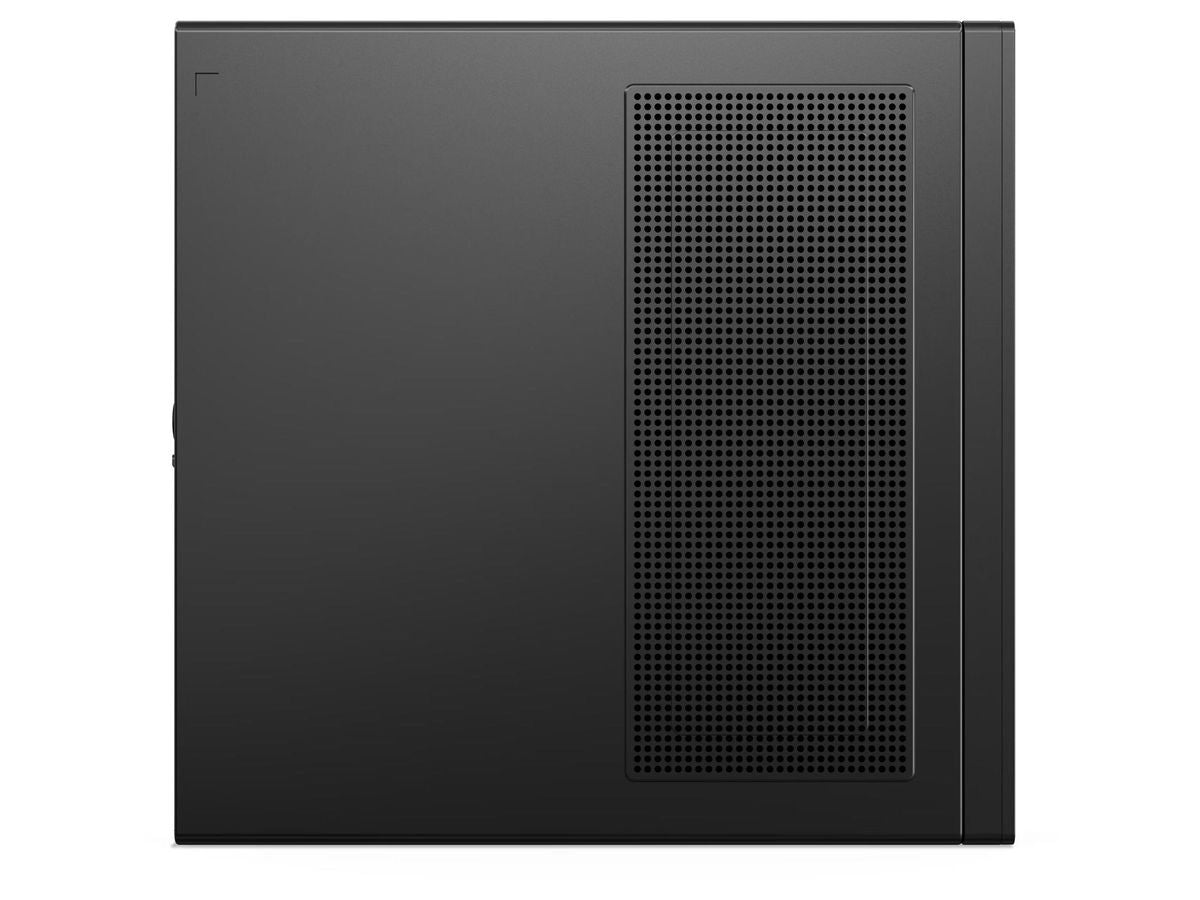

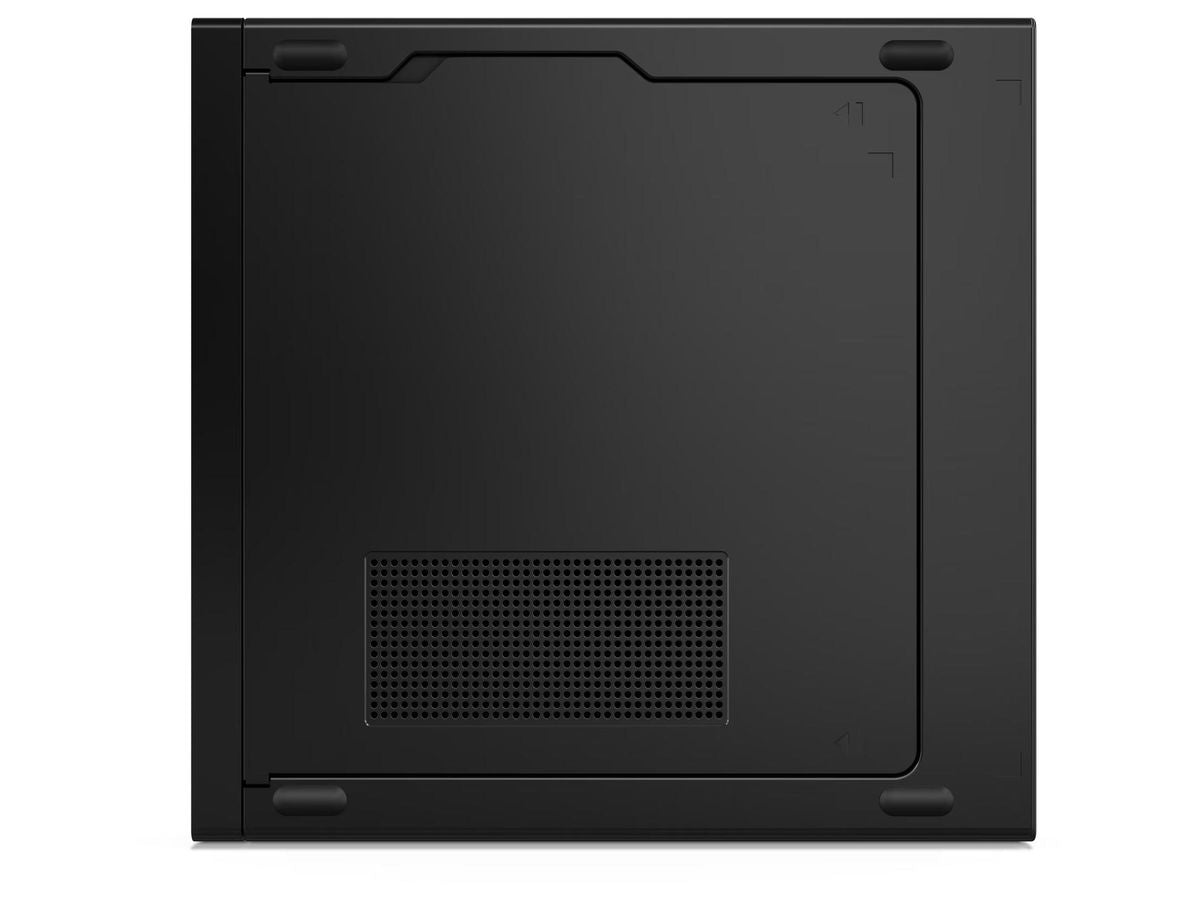

Lenovo ThinkCentre M90q Gen 5 Tiny i5-14500 16GB 512GB SSD
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,237.86
Regular price
Sale price
$1,237.86
Unit price
per
MSRP: $1,249.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 14-core Intel Core i5-14500 processor (up to 5.0 GHz Turbo, 24MB Smart Cache)
- 16GB DDR5 RAM (4800 MHz), expandable up to 64GB
- 512GB SSD M.2 PCIe Gen4 storage
- Intel UHD Graphics 770 with HDMI and DisplayPort support
- Intel Q670 chipset and discrete TPM 2.0 security module
- Includes USB keyboard and Calliope mouse; 3-year onsite warranty
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Compact and lightweight (1.25 kg) Tiny form factor fits in space-constrained workspaces
- Enterprise-ready with Intel vPro support, TPM 2.0 security, and FIPS 140-2 certification
- 3-year onsite warranty ensures low total cost of ownership and long-term reliability
Product Overview
The Lenovo ThinkCentre M90q Gen 5 Tiny is engineered for high-efficiency business environments, offering robust processing power in an ultra-compact 1.25 kg form factor. Equipped with a 14-core Intel Core i5-14500 processor, this desktop delivers base clock speeds of 2.6 GHz with Turbo Boost up to 5.0 GHz and supports Intel vPro technology for enterprise-grade manageability and security. The 16GB of high-speed DDR5 memory (4800 MHz) ensures responsive multitasking, and upgradeability up to 64GB supports future growth needs.
Data access and storage reliability are optimized by the 512GB M.2 PCIe Gen4 SSD, supported by the Intel Q670 chipset. The device includes integrated Intel UHD Graphics 770 for clear display output through HDMI and DisplayPort interfaces. Connectivity options feature fast USB-C (20Gbps) and USB-A (5Gbps) ports, integrated 100/1000M Ethernet, Intel AX211 with Wi-Fi, and Bluetooth 5.1 or above for seamless peripheral pairing.
Security and energy efficiency round out the package with discrete TPM 2.0, FIPS 140-2 compliance, and a 90% efficiency-rated 135W power adapter. A full-sized keyboard and Calliope USB mouse are included, making this desktop ready for deployment in professional IT environments. Backed by a 3-year onsite warranty, the M90q Gen 5 is a versatile and manageable solution for corporate, government, and education sectors.
Specifications
General
Memory
| Cache Memory Type | Smart Cache |
| RAM / Installed Qty | 1 |
| RAM / Total Slots Qty | 2 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 16 GB |
| RAM / Memory Speed | 4800 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 64 GB |
Storage
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | None |
| Storage Controller Type | M.2 |
| Hard Drive / Capacity (2nd) | None GB |
I/O
| Input Device Support Type | Keyboard |
| Keyboard | USB Traditional Keyboard, Black |
| Mouse | USB Calliope Mouse, Black |
| Keyboard Language | English |
Power
| Power / Device Type | Power Adapter |
| Power / Provided (W) | 135 Watt |
| Efficiency | 90% |
Video
| Graphics Controller | Intel UHD Graphics 770 |
| Video Memory / Installed Size | None GB |
| Video Output Interface | Display Port; HDMI |
| Video Memory / Technology | None |
UNSPSC Code
| UNSPSC Code | 43211508 |
Primary Information
| System Type | Personal Computer |
| Model | ThinkCentre M90q Gen 5 |
| Cabinet Form Factor | Tiny |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 14-Core |
| Processor / Clock Speed | 2.6 GHz |
| Cache Memory Installed Size | 24 MB |
| Max Turbo Frequency | 5 GHz |
| Processor / Number | 14500 |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| Cache Memory Installed Size | 24 MB |
| RAM / Installed Qty | 1 |
| Mainboard / Chipset Type | Intel Q670 |
| RAM / Technology | DDR5 |
| RAM / Total Slots Qty | 2 |
| RAM / Total Installed Size | 16 GB |
| RAM / Memory Speed | 4800 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 64 GB |
| Storage Controller Type | M.2 |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | None |
| Audio Output | High Definition (HD) Audio, Realtek ALC233 codec |
| Storage Controller Type | M.2 |
| Memory Card Reader | None |
| Hard Drive / Capacity (2nd) | None GB |
| Data Link Protocol | Wi-Fi, Bluetooth |
| Network Controller | Intel Wi-Fi 6E AX211 |
| Graphics Controller | Intel UHD Graphics 770 |
| Video Memory / Installed Size | None GB |
| Video Output Interface | Display Port; HDMI |
| Speakers | 1 x 2W |
| Input Device Support Type | Keyboard |
| Keyboard Language | English |
| Keyboard | USB Traditional Keyboard, Black |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Pro |
| Power / Device Type | Power Adapter |
| Power / Provided (W) | 135 Watt |
| Efficiency | 90% |

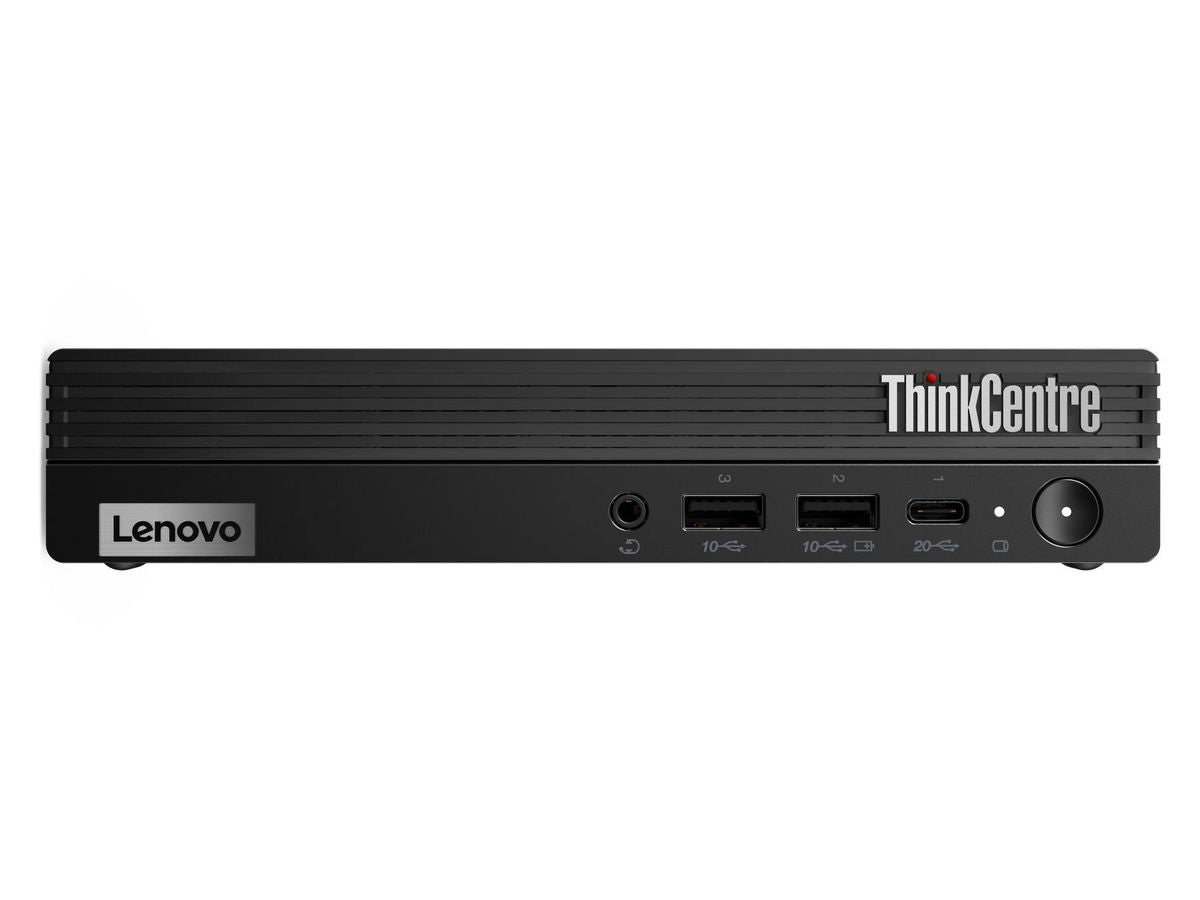

| Front I/O Ports | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [email protected] charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm) |

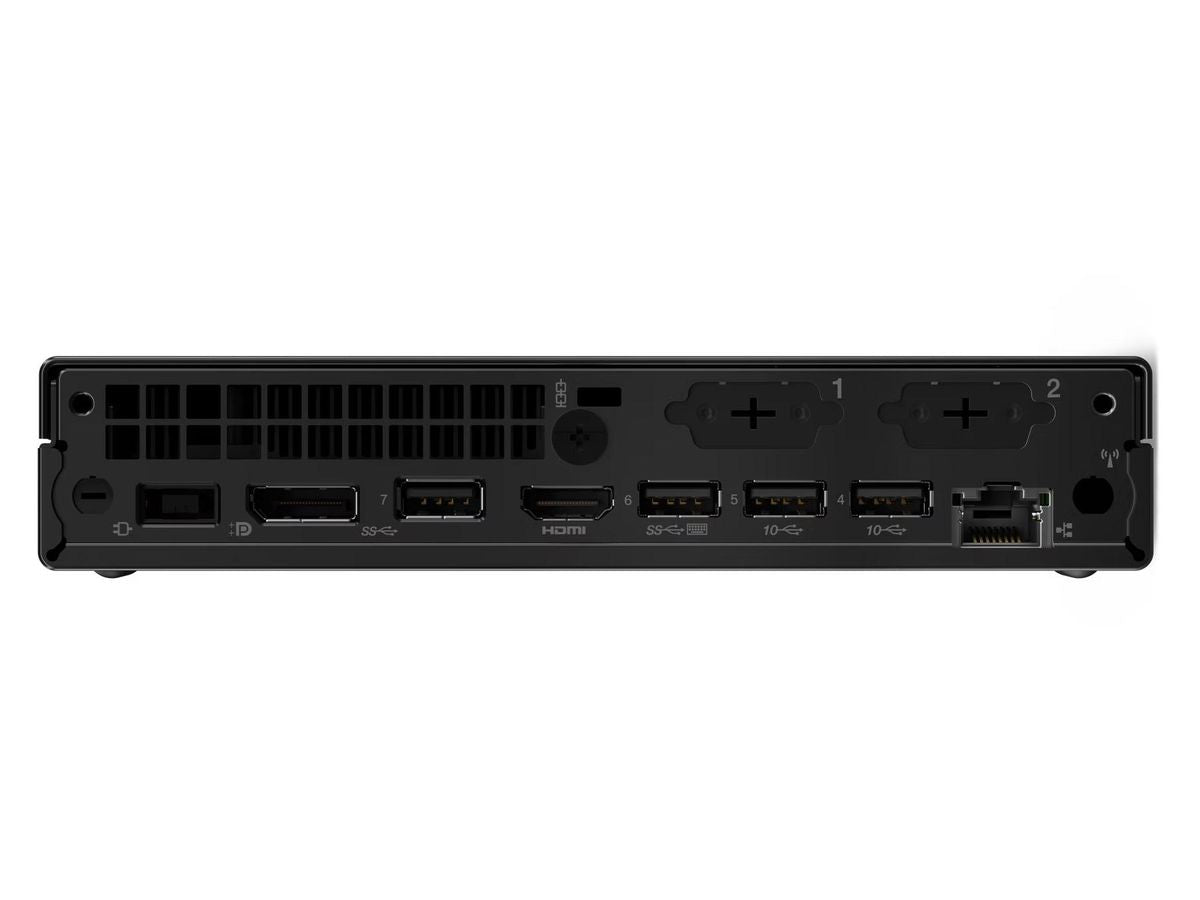

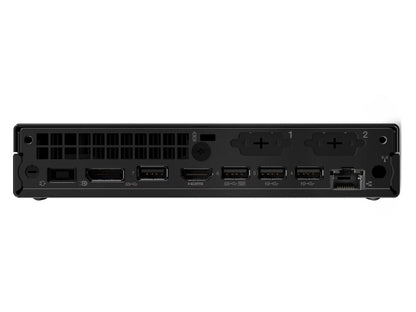

| Rear I/O Ports | 1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On; 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (GbE RJ-45) |
| Expansion Slots Total (Free) | One PCIe 4.0 x8, low-profile; Two M.2 PCIe Gen 4x4 slots (for SSD); One M.2 slot (for WLAN) |
| Width | 7.05 Inch |
| Depth | 7.2 Inch |
| Height | 1.44 Inch |
| Weight | 2.76 lbs. |
| Enclosure Color | Black |
| Service & Support Type | 3-year, Onsite Warranty |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Stand | Yes |
| Video Memory / Technology | None |
| Interfaces & Connections | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [email protected] charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On; 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (GbE RJ-45) |
Processor
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 14-Core |
| Processor / Clock Speed | 2.6 GHz |
| Max Turbo Frequency | 5 GHz |
| Processor / Number | 14500 |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 24 MB |
Expansion
| Expansion Slots Total (Free) | One PCIe 4.0 x8, low-profile; Two M.2 PCIe Gen 4x4 slots (for SSD); One M.2 slot (for WLAN) |
| Front I/O Ports | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [email protected] charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On; 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (GbE RJ-45) |
| Interfaces & Connections | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and [email protected] charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On; 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (GbE RJ-45) |
Networking
| Data Link Protocol | Wi-Fi, Bluetooth |
| Network Controller | Intel Wi-Fi 6E AX211 |
Special Feature
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| COO | MEXICO |
| TAA compliance | Yes |
Dimensions&Miscellaneous
| Enclosure Color | Black |
| Width | 7.05 Inch |
| Depth | 7.2 Inch |
| Height | 1.44 Inch |
| Weight | 2.76 lbs. |
