Lenovo ThinkCentre M90s Gen 5 SFF i5-14500 16GB 512GB SSD Win11 Pro

VENDOR: LENOVO Mfg Part#: 12V4001BUS UPC#: 198155317712
  • The Lenovo ThinkCentre M90s Gen 5 delivers enterprise performance in a compact small form factor. Powered by a 14th Gen Intel Core i5‑14500 processor with Intel vPro Enterprise support, 16GB DDR5 memory, and 512GB PCIe Gen4 SSD, it is designed for professional multitasking and business workloads. With Windows 11 Pro, Wi-Fi 6E, and comprehensive security features, this PC is suited for modern hybrid work environments.
  • The Lenovo ThinkCentre M90s Gen 5 delivers enterprise performance in a compact small form factor. Powered by a 14th Gen Intel Core i5‑14500 processor with Intel vPro Enterprise support, 16GB DDR5 memory, and 512GB PCIe Gen4 SSD, it is designed for professional multitasking and business workloads. With Windows 11 Pro, Wi-Fi 6E, and comprehensive security features, this PC is suited for modern hybrid work environments.
  • The Lenovo ThinkCentre M90s Gen 5 delivers enterprise performance in a compact small form factor. Powered by a 14th Gen Intel Core i5‑14500 processor with Intel vPro Enterprise support, 16GB DDR5 memory, and 512GB PCIe Gen4 SSD, it is designed for professional multitasking and business workloads. With Windows 11 Pro, Wi-Fi 6E, and comprehensive security features, this PC is suited for modern hybrid work environments.
  • The Lenovo ThinkCentre M90s Gen 5 delivers enterprise performance in a compact small form factor. Powered by a 14th Gen Intel Core i5‑14500 processor with Intel vPro Enterprise support, 16GB DDR5 memory, and 512GB PCIe Gen4 SSD, it is designed for professional multitasking and business workloads. With Windows 11 Pro, Wi-Fi 6E, and comprehensive security features, this PC is suited for modern hybrid work environments.
1 4
Photo is for illustration purposes only. Actual product may be different.
$1,329.57
$1,329.57
Sale Sold out
MSRP: $1,369.00
Shipping calculated at checkout.
  • Intel Core i5-14500 14-core processor with 5GHz max turbo frequency and 24MB Smart Cache
  • 16GB DDR5 4400MHz memory, expandable up to 128GB
  • 512GB PCIe Gen4 NVMe SSD for fast storage performance
  • Wi-Fi 6E AX211 and Bluetooth 5.1 for modern wireless connectivity
  • Intel vPro Enterprise and TPM 2.0 for enterprise-grade security and manageability
  • Small form factor chassis with 92% efficient 310W power supply and expansion slot support
View full details

Key Benefits

Eye-Insights
  • Combines 14-core Intel performance and DDR5 memory, ideal for multitasking and demanding applications
  • Includes Intel vPro Enterprise, TPM 2.0, and on-site 3-year warranty for reliable business-grade security and support
  • Compact design with advanced connectivity (USB-C 15W, Wi-Fi 6E) balances desktop power and office space efficiency

Product Overview

The Lenovo ThinkCentre M90s Gen 5 SFF is a space-optimized business desktop engineered for professional-grade computing. Featuring a 14-core Intel Core i5-14500 processor with speeds up to 5 GHz and 24MB Smart Cache, it delivers fast, responsive multitasking power ideal for productivity-heavy tasks. Coupled with 16GB DDR5 4400MHz RAM (upgradeable to 128GB) and a 512GB PCIe Gen4 NVMe SSD, the system ensures quick boot times and efficient data access, enhancing workflow efficiency.

Connectivity is robust, with Intel Wi-Fi 6E AX211 and Bluetooth 5.1, along with front USB-C (with 15W charging) and multiple rear USB-A ports for extensive peripheral support. Security is enterprise-tier, enabled by Discrete TPM 2.0 (TCG and FIPS 140-2 certified), and the system also includes Intel vPro Enterprise, enhancing manageability. It integrates Intel UHD Graphics 770 for reliable visual output via HDMI and DisplayPort, and includes a slim DVD-RW drive.

Designed in a small form factor that saves space without sacrificing expandability, the unit includes a PCIe 4.0 x16 expansion slot. Power is supplied through a highly efficient 310W PSU (92% efficiency). The inclusion of a 3-year onsite warranty makes it a dependable long-term solution for IT environments that demand reliability and low total cost of ownership.

Specifications

Primary Information
System Type Personal Computer
Model ThinkCentre M90s Gen 5
Processor / Type Core i5
Processor / Manufacturer Intel
Max Turbo Frequency 5 GHz
Processor / Clock Speed 2.6 GHz
Multi-Core Technology 14-Core
Cache Memory Installed Size 24 MB
Processor / Number 14500
Processor / Installed Qty 1
RAM / Technology DDR5
RAM / Total Installed Size 16 GB
Hard Drive / Type SSD
Hard Drive / Spindle Speed None RPM
Hard Drive Capacity / HDD None GB
SSD / Installed Qty 1
SSD Capacity 512 GB
Graphics Controller Intel UHD Graphics 770
Video Memory / Installed Size None GB
Operating System Microsoft Windows 11 Pro
Power / Device Type Power Supply
Power / Provided (W) 310 Watt
Input Device Support Type Keyboard, Mouse
Speakers 1 x 1W
Keyboard USB Traditional Keyboard, Black, English
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Enclosure Color Black
Cabinet Form Factor Small Form Factor
Processor / Generation Intel 14th Generation
Mainboard / Chipset Type Intel Q670
RAM / Memory Speed 4400 MHz
RAM Form Factor UDIMM
RAM / Max Supported Size 128 GB
Storage Controller Type M.2
Hard Drive / Installed Qty None
Hard Drive / Interface Type PCIe NVMe
Optical Storage Type DVD+-RW
Audio Output High Definition (HD) Audio, Realtek ALC897Q-CG codec
Storage Controller Type M.2
Memory Card Reader None
Hard Drive / Capacity (2nd) None GB
Data Link Protocol Wi-Fi, Bluetooth
Network Controller Intel Wi-Fi 6E AX211
Video Memory / Technology None
Video Output Interface Display Port, HDMI
Keyboard Language English
Mouse USB Calliope Mouse, Black
Efficiency 92%

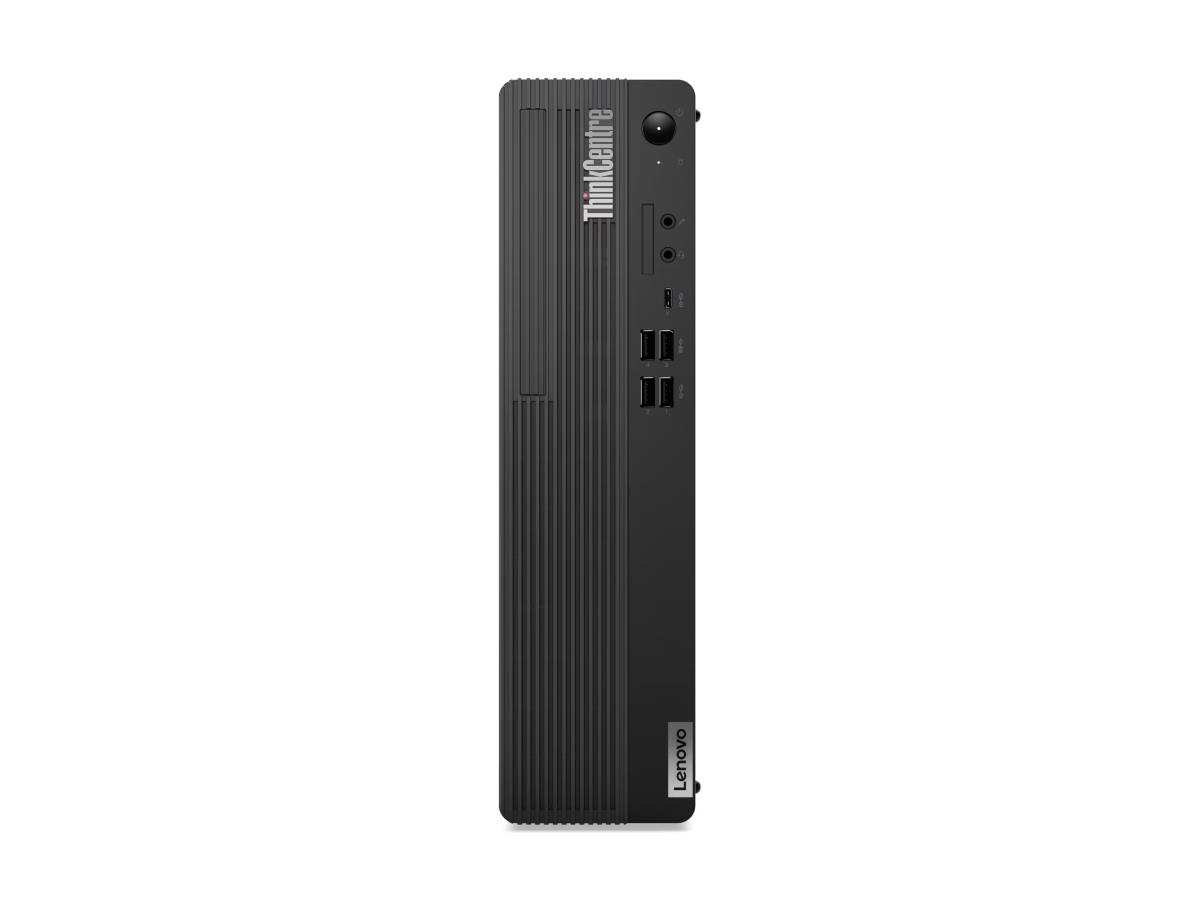

Front I/O Ports 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging, 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm)

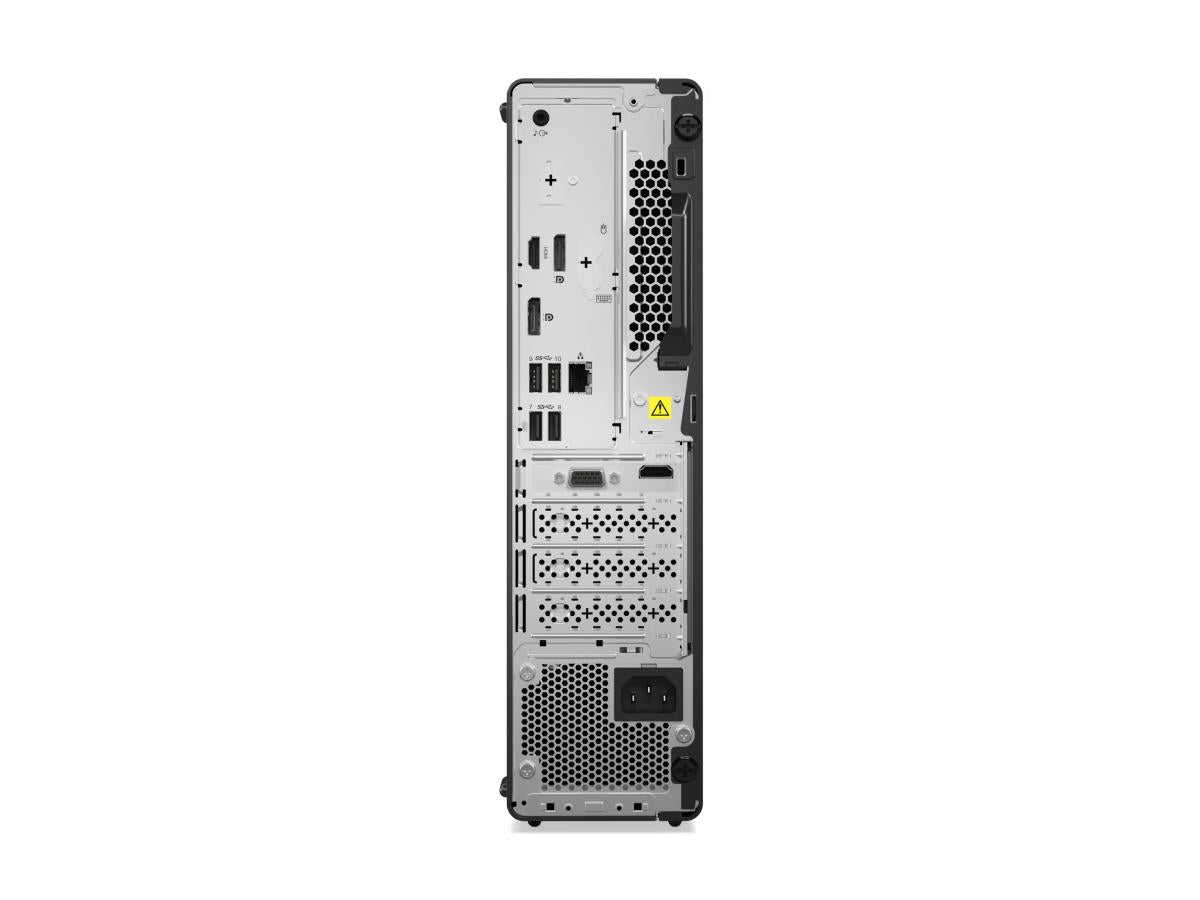

Rear I/O Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x HDMI 2.1 TMDS, 2x DisplayPort 1.4a (HBR2, DSC), 1x Ethernet (RJ-45), 1x line-out (3.5mm)
Expansion Slots Total (Free) One PCIe 4.0 x16 (x4 signal), low-profile, length <=155mm, height <=70mm; One PCIe 4.0 x16, low-profile, length 155mm, height <=70mm; One PCIe 3.0 x1, low-profile, length 155mm, height <=70mm; Three M.2 slots (one for WLAN, two for SSD)
Width 3.6 Inch
Depth 11.7 Inch
Height 13.4 Inch
Weight 11.7 lbs.
Service & Support Type 3-year, Onsite
Stand None
RAM / Installed Qty 2
RAM / Total Slots Qty 4
Platform Technology Intel vPro Enterprise
Interfaces & Connections 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging, 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm); 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x HDMI 2.1 TMDS, 2x DisplayPort 1.4a (HBR2, DSC), 1x Ethernet (RJ-45), 1x line-out (3.5mm)
Features Integrated 100/1000M

Processor
Processor / Type Core i5
Processor / Manufacturer Intel
Cache Memory Type Smart Cache
Processor / Clock Speed 2.6 GHz
Cache Memory Installed Size 24 MB
Processor / Number 14500
Max Turbo Frequency 5 GHz
Multi-Core Technology 14-Core
Processor / Generation Intel 14th Generation
Processor / Installed Qty 1

Storage
Hard Drive / Type SSD
Hard Drive / Spindle Speed None RPM
Hard Drive Capacity / HDD None GB
SSD Capacity 512 GB
SSD / Installed Qty 1
Hard Drive / Installed Qty None
Hard Drive / Interface Type PCIe NVMe
Optical Storage Type DVD+-RW
Storage Controller Type M.2
Hard Drive / Capacity (2nd) None GB

Networking
Data Link Protocol Wi-Fi, Bluetooth
Network Controller Intel Wi-Fi 6E AX211

Expansion
Expansion Slots Total (Free) One PCIe 4.0 x16 (x4 signal), low-profile, length <=155mm, height <=70mm; One PCIe 4.0 x16, low-profile, length 155mm, height <=70mm; One PCIe 3.0 x1, low-profile, length 155mm, height <=70mm; Three M.2 slots (one for WLAN, two for SSD)
Front I/O Ports 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging, 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm)
Rear I/O Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x HDMI 2.1 TMDS, 2x DisplayPort 1.4a (HBR2, DSC), 1x Ethernet (RJ-45), 1x line-out (3.5mm)
Interfaces & Connections 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging, 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm); 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x HDMI 2.1 TMDS, 2x DisplayPort 1.4a (HBR2, DSC), 1x Ethernet (RJ-45), 1x line-out (3.5mm)

I/O
Input Device Support Type Keyboard, Mouse
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Keyboard Language English

General
Processor Intel,Intel, Core i5,Core i5, 14500,14500, Base 2.6,2.6GHz, Smart Cache,Smart Cache 24,24MB, MaxTurbo 5,5GHz
RAM DDR5,DDR5 UDIMM,UDIMM, Total Installed 16,16GB, 4400,4400MHz, Max Supported 128,128GB

Dimensions&Miscellaneous
Width 3.6 Inch
Depth 11.7 Inch
Height 13.4 Inch
Weight 11.7 lbs.
Enclosure Color Black

Memory
RAM / Technology DDR5
RAM / Total Installed Size 16 GB
Cache Memory Type Smart Cache
RAM / Memory Speed 4400 MHz
RAM Form Factor UDIMM
RAM / Max Supported Size 128 GB
RAM / Installed Qty 2
RAM / Total Slots Qty 4

Video
Graphics Controller Intel UHD Graphics 770
Video Memory / Installed Size None GB
Video Memory / Technology None
Video Output Interface Display Port, HDMI

Special Feature
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
COO MEXICO
TAA compliance Yes

UNSPSC Code
UNSPSC Code 43211508

Power
Power / Device Type Power Supply
Power / Provided (W) 310 Watt
Efficiency 92%
