| Processor | Intel, Core i5, 14500, Base 2.6GHz, Smart Cache 24MB, MaxTurbo 5GHz |
| RAM | DDR5 UDIMM, Total Installed 32GB, 4400MHz, Max Supported 128GB |
Lenovo ThinkCentre M90s Gen 5 SFF i5-14500, 32GB, 512GB SSD, Win11 Pro
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,564.92
Regular price
Sale price
$1,564.92
Unit price
per
MSRP: $1,579.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 14-core Intel Core i5-14500 processor with 5.0GHz max turbo and 24MB Smart Cache
- 32GB DDR5 UDIMM memory at 4400MHz, expandable up to 128GB
- 512GB PCIe Gen4 NVMe SSD with M.2 interface for fast storage performance
- Intel UHD Graphics 770 with DisplayPort and HDMI outputs
- Wi-Fi 6E (AX211) and Bluetooth 5.1 connectivity
- Discrete TPM 2.0, FIPS 140-2, TCG certified for enterprise-grade security
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers enterprise-class performance in a compact form factor ideal for business workspaces
- Equipped with Intel vPro and certified security features including TPM 2.0, enhancing manageability and compliance
- Comes with 3-year onsite warranty for minimized downtime and excellent post-purchase support
Product Overview
The Lenovo ThinkCentre M90s Gen 5 SFF desktop is engineered for professional performance in a compact footprint. Powered by a 14-core Intel Core i5-14500 processor (2.6GHz base clock, 5.0GHz max turbo) and 32GB of high-speed DDR5 RAM at 4400MHz, this system provides robust processing for multitasking, analytics, content creation, and enterprise applications. A 512GB PCIe Gen4 NVMe SSD ensures fast boot times and high-speed access to data storage, while Intel UHD Graphics 770 supports standard multimedia tasks with display outputs via HDMI and DisplayPort interfaces.
Built on the Intel vPro Enterprise platform, the M90s Gen 5 ensures comprehensive remote manageability and security. It includes Discrete TPM 2.0 with TCG/FIPS certifications, Wi-Fi 6E and Bluetooth 5.1 connectivity, and a 310W power supply with 92% energy efficiency. Expansion is enabled through a PCIe 4.0 x16 low-profile slot and a full set of front and rear USB ports including high-speed USB-C with 15W charging. The system ships with Windows 11 Pro, a traditional USB keyboard and Calliope mouse, and comes with a 3-year onsite warranty—making it an ideal investment for enterprise desktop deployments.
Specifications
General
Memory
| Cache Memory Type | Smart Cache |
| RAM / Installed Qty | 2 |
| RAM / Total Slots Qty | 4 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 32 GB |
| RAM / Memory Speed | 4400 MHz |
| RAM Form Factor | UDIMM |
| RAM / Max Supported Size | 128 GB |
Processor
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 14-Core |
| Processor / Clock Speed | 2.6 GHz |
| Max Turbo Frequency | 5 GHz |
| Processor / Number | 14500 |
| Processor / Installed Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 24 MB |
Expansion
| Interfaces & Connections | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging, 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm); 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x HDMI 2.1 TMDS, 2x DisplayPort 1.4a (HBR2, DSC), 1x Ethernet (RJ-45), 1x line-out (3.5mm) |
| Expansion Slots Total (Free) | One PCIe 4.0 x16 (x4 signal), low-profile, length <=155mm, height <=70mm; One PCIe 4.0 x16, low-profile, length 155mm, height <=70mm; One PCIe 3.0 x1, low-profile, length 155mm, height <=70mm; Three M.2 slots (one for WLAN, two for SSD) |
| Front I/O Ports | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging, 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm) |

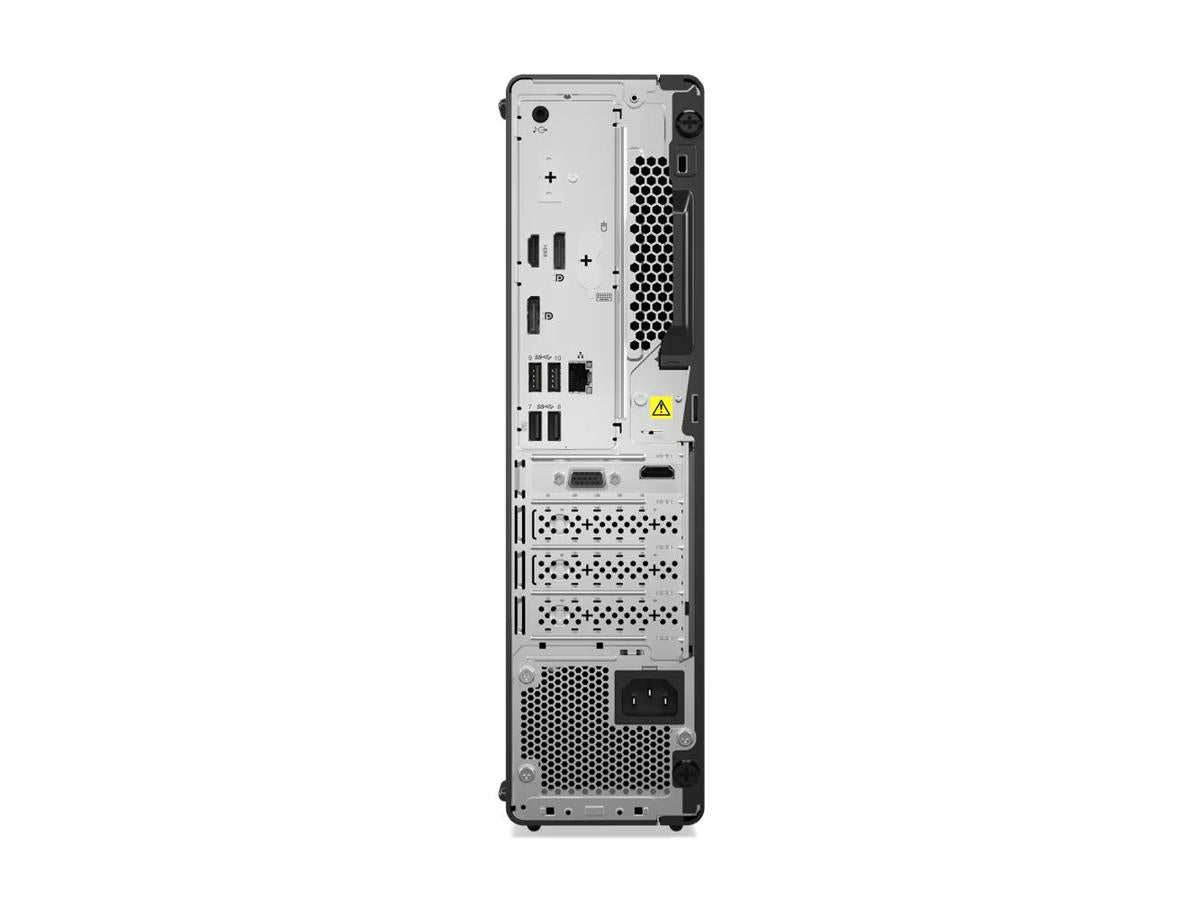

| Rear I/O Ports | 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x HDMI 2.1 TMDS, 2x DisplayPort 1.4a (HBR2, DSC), 1x Ethernet (RJ-45), 1x line-out (3.5mm) |
Networking
| Data Link Protocol | Wi-Fi, Bluetooth |
| Network Controller | Intel Wi-Fi 6E AX211 |
Video
| Graphics Controller | Intel UHD Graphics 770 |
| Video Memory / Technology | None |
| Video Memory / Installed Size | None GB |
| Video Output Interface | Display Port, HDMI |
UNSPSC Code
| UNSPSC Code | 43211508 |
Primary Information
| System Type | Personal Computer |
| Model | ThinkCentre M90s Gen 5 |
| Cabinet Form Factor | Small Form Factor |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 14-Core |
| Processor / Clock Speed | 2.6 GHz |
| Cache Memory Installed Size | 24 MB |
| Max Turbo Frequency | 5 GHz |
| Processor / Number | 14500 |
| Processor / Installed Qty | 1 |
| Cache Memory Installed Size | 24 MB |
| RAM / Installed Qty | 2 |
| Mainboard / Chipset Type | Intel Q670 |
| RAM / Technology | DDR5 |
| RAM / Total Slots Qty | 4 |
| RAM / Total Installed Size | 32 GB |
| RAM / Memory Speed | 4400 MHz |
| RAM Form Factor | UDIMM |
| RAM / Max Supported Size | 128 GB |
| Storage Controller Type | M.2 |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | PCIe NVMe |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | DVD+-RW |
| Audio Output | High Definition (HD) Audio, Realtek ALC897Q-CG codec |
| Storage Controller Type | M.2 |
| Memory Card Reader | None |
| Hard Drive / Capacity (2nd) | None GB |
| Data Link Protocol | Wi-Fi, Bluetooth |
| Graphics Controller | Intel UHD Graphics 770 |
| Video Memory / Technology | None |
| Video Memory / Installed Size | None GB |
| Video Output Interface | Display Port, HDMI |
| Speakers | 1 x 1W |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard Language | English |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Pro |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 310 Watt |
| Efficiency | 92% |
| Interfaces & Connections | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging, 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm); 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x HDMI 2.1 TMDS, 2x DisplayPort 1.4a (HBR2, DSC), 1x Ethernet (RJ-45), 1x line-out (3.5mm) |
| Front I/O Ports | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging, 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm) |
| Rear I/O Ports | 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x HDMI 2.1 TMDS, 2x DisplayPort 1.4a (HBR2, DSC), 1x Ethernet (RJ-45), 1x line-out (3.5mm) |
| Expansion Slots Total (Free) | One PCIe 4.0 x16 (x4 signal), low-profile, length <=155mm, height <=70mm; One PCIe 4.0 x16, low-profile, length 155mm, height <=70mm; One PCIe 3.0 x1, low-profile, length 155mm, height <=70mm; Three M.2 slots (one for WLAN, two for SSD) |
| Width | 3.6 Inch |
| Depth | 11.7 Inch |
| Height | 13.4 Inch |
| Weight | 11.7 lbs. |
| Enclosure Color | Black |
| Service & Support Type | 3-year, Onsite |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Features | Integrated 100/1000M |
| Stand | None |
| Network Controller | Intel Wi-Fi 6E AX211 |
| Platform Technology | Intel vPro Enterprise |
Special Feature
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| COO | MEXICO |
| TAA compliance | Yes |
Storage
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | PCIe NVMe |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | DVD+-RW |
| Storage Controller Type | M.2 |
| Hard Drive / Capacity (2nd) | None GB |
I/O
| Input Device Support Type | Keyboard, Mouse |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Keyboard Language | English |
Power
| Power / Device Type | Power Supply |
| Power / Provided (W) | 310 Watt |
| Efficiency | 92% |
Dimensions&Miscellaneous
| Enclosure Color | Black |
| Width | 3.6 Inch |
| Depth | 11.7 Inch |
| Height | 13.4 Inch |
| Weight | 11.7 lbs. |
