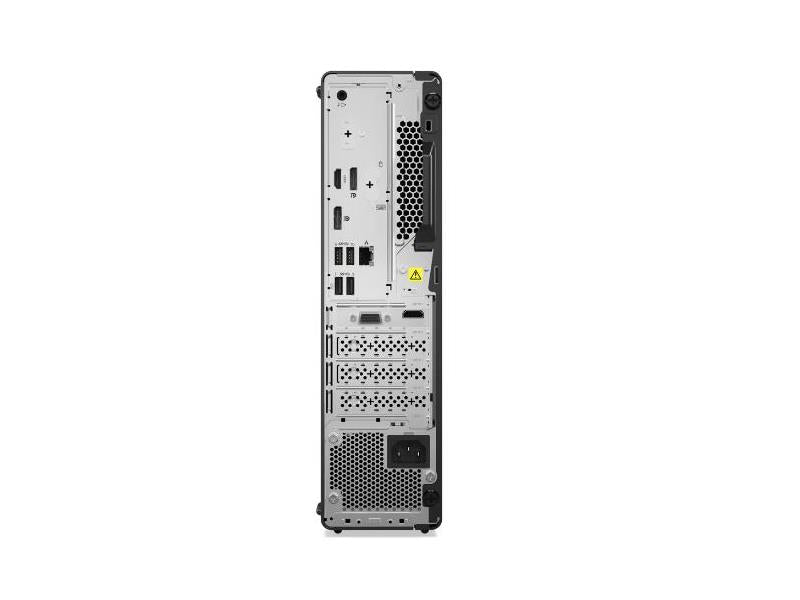

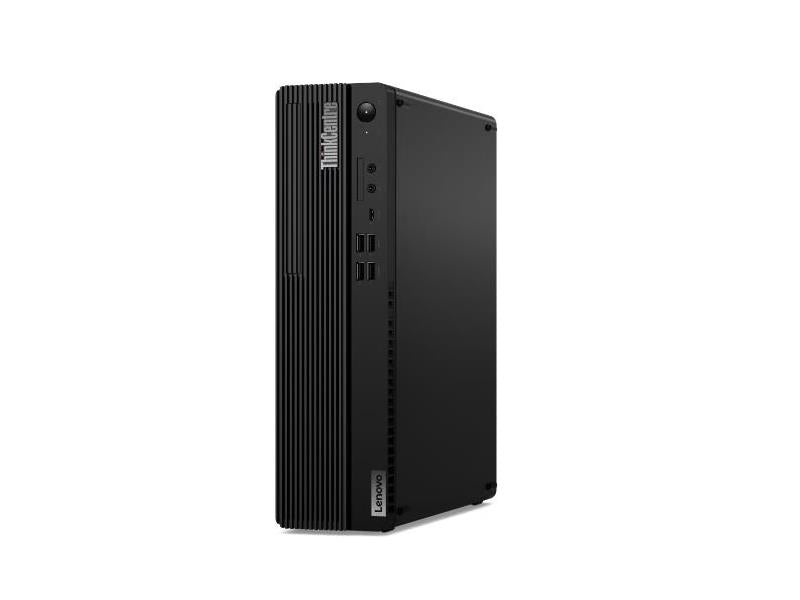

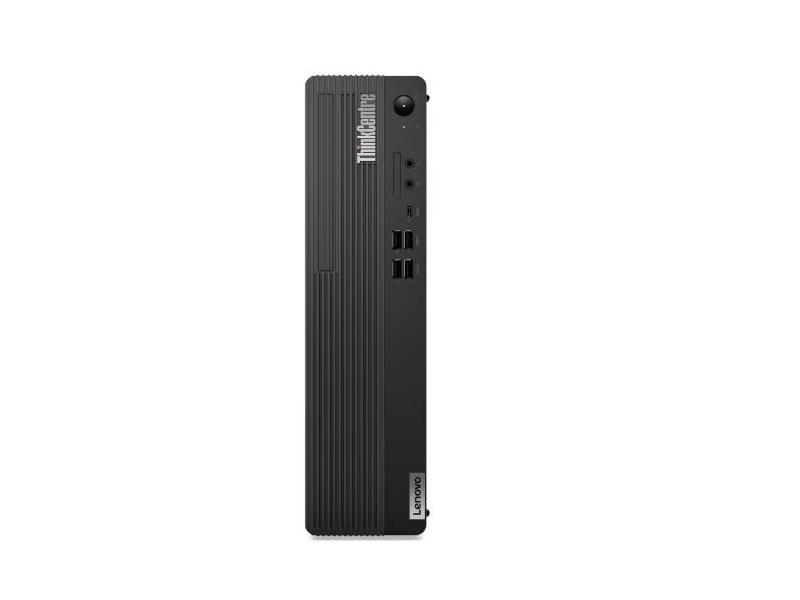

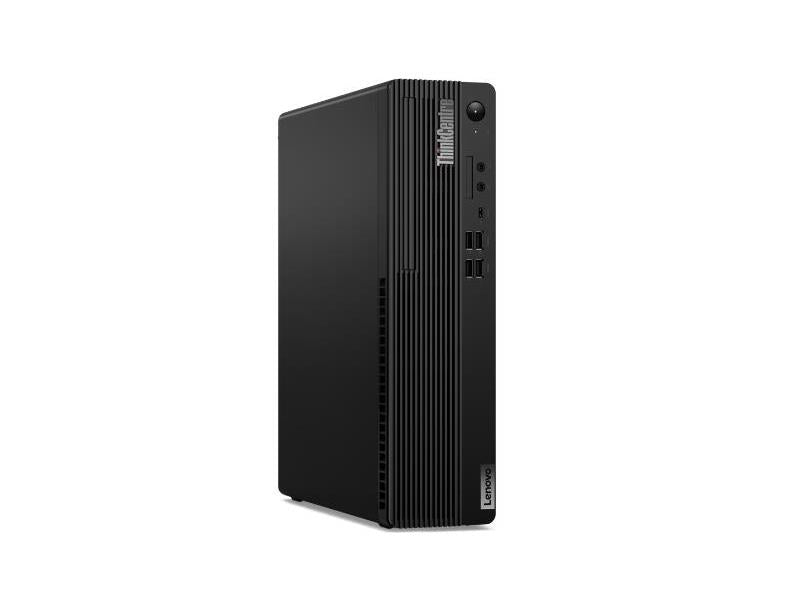

Lenovo ThinkCentre M90s Gen 5 SFF i7-14700 16GB 512GB SSD Win11 Pro

VENDOR: LENOVO Mfg Part#: 12V40002US UPC#: 198153680276
  • The Lenovo ThinkCentre M90s Gen 5 is a powerful small form factor desktop designed for business performance. Powered by a 14th Gen Intel Core i7-14700 processor with vPro support, it features 16GB of fast DDR5 memory and a 512GB PCIe Gen4 SSD for rapid processing and storage access. Preloaded with Windows 11 Pro and equipped with robust connectivity and security features, it’s ready to deliver reliable productivity in enterprise environments.
  • The Lenovo ThinkCentre M90s Gen 5 is a powerful small form factor desktop designed for business performance. Powered by a 14th Gen Intel Core i7-14700 processor with vPro support, it features 16GB of fast DDR5 memory and a 512GB PCIe Gen4 SSD for rapid processing and storage access. Preloaded with Windows 11 Pro and equipped with robust connectivity and security features, it’s ready to deliver reliable productivity in enterprise environments.
  • The Lenovo ThinkCentre M90s Gen 5 is a powerful small form factor desktop designed for business performance. Powered by a 14th Gen Intel Core i7-14700 processor with vPro support, it features 16GB of fast DDR5 memory and a 512GB PCIe Gen4 SSD for rapid processing and storage access. Preloaded with Windows 11 Pro and equipped with robust connectivity and security features, it’s ready to deliver reliable productivity in enterprise environments.
  • The Lenovo ThinkCentre M90s Gen 5 is a powerful small form factor desktop designed for business performance. Powered by a 14th Gen Intel Core i7-14700 processor with vPro support, it features 16GB of fast DDR5 memory and a 512GB PCIe Gen4 SSD for rapid processing and storage access. Preloaded with Windows 11 Pro and equipped with robust connectivity and security features, it’s ready to deliver reliable productivity in enterprise environments.
1 4
Photo is for illustration purposes only. Actual product may be different.
$1,664.03
$1,664.03
Sale Sold out
MSRP: $1,679.00
Shipping calculated at checkout.
  • Intel Core i7-14700 processor with 20 cores and up to 5.4GHz turbo boost
  • 16GB DDR5 RAM (4400MHz), expandable to 128GB via 4 DIMM slots
  • 512GB PCIe Gen4 M.2 SSD with Opal encryption
  • Wi-Fi 6E (802.11ax) and Bluetooth 5.3 connectivity
  • Intel UHD Graphics 770 with DisplayPort and HDMI support
  • 92% efficient 310W power supply with small form factor chassis
View full details

Key Benefits

Eye-Insights
  • Equipped with a powerful 14th gen Intel Core i7 processor for advanced multitasking and business performance
  • Includes high-speed DDR5 memory and PCIe Gen4 SSD for reduced latency and faster workflows
  • Comes with enterprise-grade security and a 3-year onsite warranty, ensuring business continuity and compliance

Product Overview

The Lenovo ThinkCentre M90s Gen 5 is a compact, business-class desktop built for performance, security, and manageability. Engineered around the 14th Generation Intel Core i7-14700 processor with vPro technology, it boasts 20 cores, a base clock speed of 2.1GHz, and a max turbo frequency of 5.4GHz, offering fast multitasking and efficient workload handling. With 16GB of DDR5 memory at 4400MHz and expandability up to 128GB, it's ideal for demanding applications.

Storage is handled by a 512GB M.2 PCIe Gen4 SSD with Opal encryption, ensuring fast boot and secure access. Connectivity includes Wi-Fi 6E and Bluetooth 5.3, with USB-C and USB-A 3.2 ports for high-speed data transfer. Integrated Intel UHD Graphics 770 support DisplayPort and HDMI outputs for dual displays. Enterprise-grade security features include Discrete TPM 2.0 and FIPS 140-2 compliance, while the 92% efficient 310W PSU optimizes power use. Bundled peripherals and onsite 3-year warranty complete this robust, space-saving solution.

Specifications

General
Processor Intel, Core i7, 14700, Base 2.1GHz, Smart Cache 33MB, MaxTurbo 5.4GHz
RAM DDR5 UDIMM, Total Installed 16GB, 4400MHz, Max Supported 128GB

Memory
Cache Memory Type Smart Cache
RAM / Installed Qty 2
RAM / Total Slots Qty 4
RAM / Technology DDR5
RAM / Total Installed Size 16 GB
RAM / Memory Speed 4400 MHz
RAM Form Factor UDIMM
RAM / Max Supported Size 128 GB

Storage
Hard Drive / Type SSD
Hard Drive Capacity / HDD None GB
Hard Drive / Installed Qty None
Hard Drive / Spindle Speed None RPM
SSD Capacity 512 GB
SSD / Installed Qty 1
Optical Storage Type DVD+-RW
Storage Controller Type M.2
Hard Drive / Capacity (2nd) None GB

I/O
Input Device Support Type Keyboard
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Keyboard Language English

Power
Power / Device Type Power Supply
Power / Provided (W) 310 Watt
Efficiency 92%

Video
Graphics Controller Intel UHD Graphics 770
Video Memory / Technology None
Video Memory / Installed Size None GB
Video Output Interface Display Port, HDMI

UNSPSC Code
UNSPSC Code 43211508

Primary Information
System Type Personal Computer
Model ThinkCentre M90s Gen 5
Cabinet Form Factor Small Form Factor
Processor / Generation Intel 14th Generation
Processor / Type Core i7
Processor / Manufacturer Intel
Multi-Core Technology 20-Core
Processor / Clock Speed 2.1 GHz
Cache Memory Installed Size 33 MB
Max Turbo Frequency 5.4 GHz
Processor / Number 14700
Processor / Installed Qty 1
Cache Memory Installed Size 33 MB
RAM / Installed Qty 2
Mainboard / Chipset Type Intel Q670
RAM / Technology DDR5
RAM / Total Slots Qty 4
RAM / Total Installed Size 16 GB
RAM / Memory Speed 4400 MHz
RAM Form Factor UDIMM
RAM / Max Supported Size 128 GB
Storage Controller Type M.2
Hard Drive / Type SSD
Hard Drive Capacity / HDD None GB
Hard Drive / Installed Qty None
Hard Drive / Spindle Speed None RPM
SSD Capacity 512 GB
SSD / Installed Qty 1
Optical Storage Type DVD+-RW
Audio Output High Definition (HD) Audio, Realtek ALC897Q-CG codec
Storage Controller Type M.2
Memory Card Reader None
Hard Drive / Capacity (2nd) None GB
Data Link Protocol Wi-Fi, Bluetooth
Network Controller Intel Wi-Fi 6E AX211
Graphics Controller Intel UHD Graphics 770
Video Memory / Technology None
Video Memory / Installed Size None GB
Video Output Interface Display Port, HDMI
Speakers 1 x 1W
Input Device Support Type Keyboard
Keyboard Language English
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Operating System Microsoft Windows 11 Professional
Power / Device Type Power Supply
Power / Provided (W) 310 Watt
Efficiency 92%
Front I/O Ports 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging, 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm)
Rear I/O Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x HDMI 2.1 TMDS, 2x DisplayPort 1.4a (HBR2, DSC), 1x Ethernet (RJ-45), 1x line-out (3.5mm)
Expansion Slots Total (Free) One PCIe 4.0 x16 (x4 signal), low-profile, length 155mm, height 70mm; One PCIe 4.0 x16, low-profile, length 155mm, height 70mm; One PCIe 3.0 x1, low-profile, length 155mm, height 70mm; Three M.2 slots (one for WLAN, two for SSD)
Width 3.6 Inch
Depth 11.7 Inch
Height 13.4 Inch
Weight 11.7 lbs.
Enclosure Color Black
Service & Support Type 3-year, Onsite Warranty
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Stand None
Interfaces & Connections Front Ports: 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging, 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm); Rear Ports: 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x HDMI 2.1 TMDS, 2x DisplayPort 1.4a (HBR2, DSC), 1x Ethernet (RJ-45), 1x line-out (3.5mm)
Features Integrated 100/1000M

Processor
Processor / Generation Intel 14th Generation
Processor / Type Core i7
Processor / Manufacturer Intel
Multi-Core Technology 20-Core
Processor / Clock Speed 2.1 GHz
Max Turbo Frequency 5.4 GHz
Processor / Number 14700
Processor / Installed Qty 1
Cache Memory Type Smart Cache
Cache Memory Installed Size 33 MB

Expansion
Expansion Slots Total (Free) One PCIe 4.0 x16 (x4 signal), low-profile, length 155mm, height 70mm; One PCIe 4.0 x16, low-profile, length 155mm, height 70mm; One PCIe 3.0 x1, low-profile, length 155mm, height 70mm; Three M.2 slots (one for WLAN, two for SSD)
Front I/O Ports 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging, 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm)
Rear I/O Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x HDMI 2.1 TMDS, 2x DisplayPort 1.4a (HBR2, DSC), 1x Ethernet (RJ-45), 1x line-out (3.5mm)
Interfaces & Connections Front Ports: 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging, 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm); Rear Ports: 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x HDMI 2.1 TMDS, 2x DisplayPort 1.4a (HBR2, DSC), 1x Ethernet (RJ-45), 1x line-out (3.5mm)

Networking
Data Link Protocol Wi-Fi, Bluetooth
Network Controller Intel Wi-Fi 6E AX211

Special Feature
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
COO MEXICO
TAA compliance Yes

Dimensions&Miscellaneous
Enclosure Color Black
Width 3.6 Inch
Depth 11.7 Inch
Height 13.4 Inch
Weight 11.7 lbs.
