| Processor | Intel, Core i7, 14700, Base 2.1GHz, Smart Cache 33MB, MaxTurbo 5.4GHz |
| RAM | DDR5 UDIMM, Total Installed 32GB, 4400MHz, Max Supported 128GB |

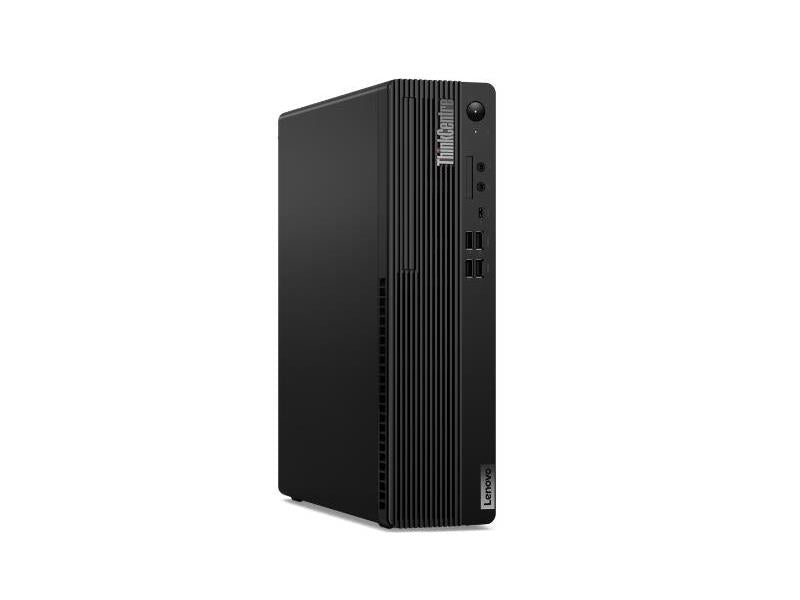

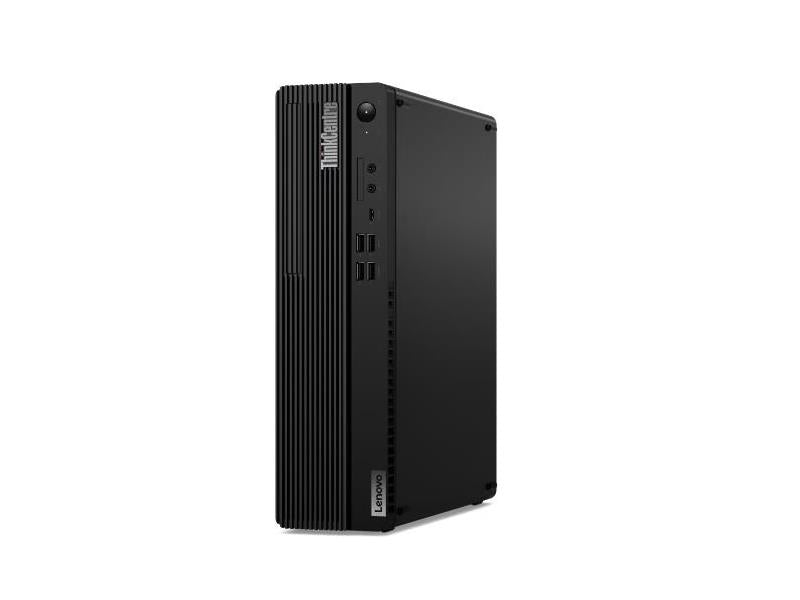

Lenovo ThinkCentre M90s Gen 5 SFF, i7-14700, 32GB, 512GB SSD, W11 Pro
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,832.51
Regular price
Sale price
$1,832.51
Unit price
per
MSRP: $1,849.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Intel Core i7-14700 20-core processor with 5.4GHz max turbo frequency
- 32GB DDR5 4400MHz UDIMM RAM, expandable up to 128GB
- 512GB PCIe Gen4 NVMe SSD for high-speed storage
- Integrated Intel UHD Graphics 770 with DisplayPort and HDMI
- Wi-Fi 6E and Bluetooth 5.1+ connectivity with Intel AX211 controller
- 310W 92% efficient power supply in a compact small form factor design
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- High performance for business workloads with latest 14-core Intel i7-14700 CPU
- Secure and manageable platform with vPro Enterprise, TPM 2.0, FIPS-certified encryption
- Space-saving SFF chassis with powerful expandability options and 3-year on-site warranty
Product Overview
The Lenovo ThinkCentre M90s Gen 5 small form factor desktop combines robust computing power, efficient manageability, and enterprise-grade security into a space-saving chassis. Equipped with a 14th Generation Intel Core i7-14700 processor featuring 20 cores, 33MB Smart Cache, and a max turbo frequency of 5.4GHz, this system ensures smooth multitasking and performance in processing-heavy applications. Enterprise features like Intel vPro Enterprise and TPM 2.0 with FIPS certification support high security and remote management.
With 32GB DDR5 4400MHz RAM (expandable to 128GB) and a 512GB PCIe Gen4 NVMe SSD, the unit provides strong performance and expandability. Connectivity options include Wi-Fi 6E, Bluetooth 5.1+, USB-C with 15W charging, DisplayPort and HDMI outputs. The included 310W 92% efficient power supply maintains energy performance in compact designs, and the system also features a DVD-RW optical drive, USB keyboard and mouse, and 3-year onsite support.
Specifications
General
Memory
| Cache Memory Type | Smart Cache |
| RAM / Installed Qty | 2 |
| RAM / Total Slots Qty | 4 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 32 GB |
| RAM / Memory Speed | 4400 MHz |
| RAM Form Factor | UDIMM |
| RAM / Max Supported Size | 128 GB |
Storage
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | PCIe NVMe |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | DVD+-RW |
| Storage Controller Type | M.2 |
| Hard Drive / Capacity (2nd) | None GB |
I/O
| Input Device Support Type | Keyboard, Mouse |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Keyboard Language | English |
Power
| Power / Device Type | Power Supply |
| Power / Provided (W) | 310 Watt |
| Efficiency | 92% |
Video
| Graphics Controller | Intel UHD Graphics 770 |
| Video Memory / Technology | None |
| Video Memory / Installed Size | None GB |
| Video Output Interface | Display Port, HDMI |
UNSPSC Code
| UNSPSC Code | 43211508 |
Primary Information
| System Type | Personal Computer |
| Model | ThinkCentre M90s Gen 5 |
| Cabinet Form Factor | Small Form Factor |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i7 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 20-Core |
| Processor / Clock Speed | 2.1 GHz |
| Cache Memory Installed Size | 33 MB |
| Max Turbo Frequency | 5.4 GHz |
| Processor / Number | 14700 |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| Cache Memory Installed Size | 33 MB |
| RAM / Installed Qty | 2 |
| Mainboard / Chipset Type | Intel Q670 |
| RAM / Technology | DDR5 |
| RAM / Total Slots Qty | 4 |
| RAM / Total Installed Size | 32 GB |
| RAM / Memory Speed | 4400 MHz |
| RAM Form Factor | UDIMM |
| RAM / Max Supported Size | 128 GB |
| Storage Controller Type | M.2 |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | PCIe NVMe |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | DVD+-RW |
| Audio Output | High Definition (HD) Audio, Realtek ALC897Q-CG codec |
| Storage Controller Type | M.2 |
| Memory Card Reader | None |
| Hard Drive / Capacity (2nd) | None GB |
| Data Link Protocol | Wi-Fi, Bluetooth |
| Network Controller | Intel Wi-Fi 6E AX211 |
| Platform Technology | Intel vPro Enterprise |
| Graphics Controller | Intel UHD Graphics 770 |
| Video Memory / Technology | None |
| Video Memory / Installed Size | None GB |
| Video Output Interface | Display Port, HDMI |
| Speakers | 1 x 1W |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard Language | English |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Pro |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 310 Watt |
| Efficiency | 92% |

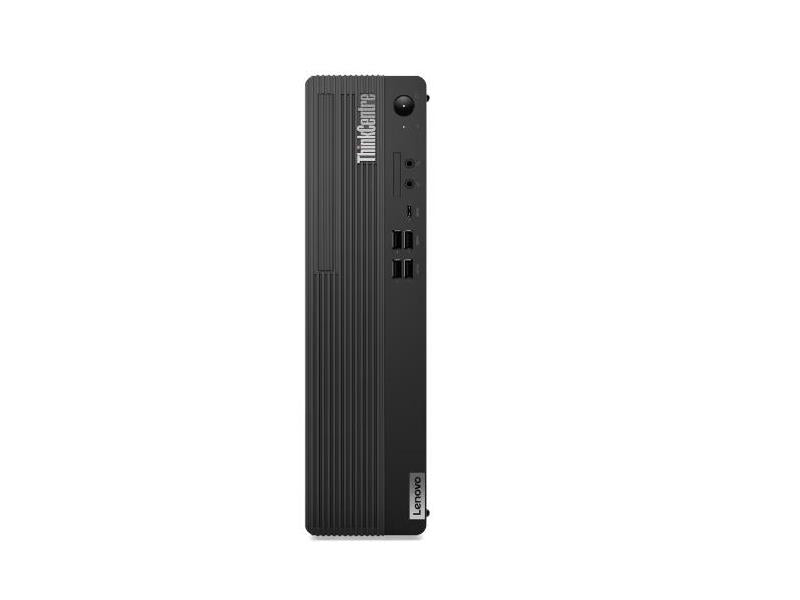

| Front I/O Ports | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging, 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm) |

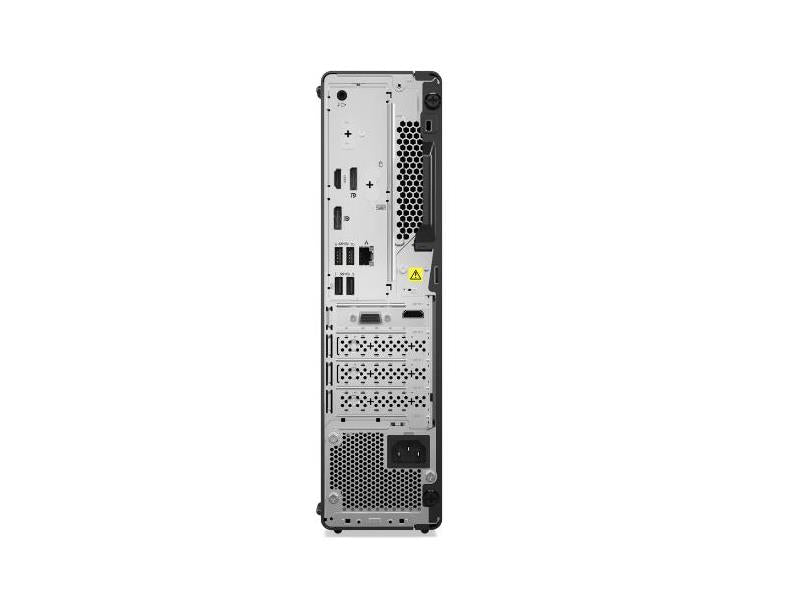

| Rear I/O Ports | 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x HDMI 2.1 TMDS, 2x DisplayPort 1.4a (HBR2, DSC), 1x Ethernet (RJ-45), 1x line-out (3.5mm) |
| Expansion Slots Total (Free) | One PCIe 4.0 x16 (x4 signal), low-profile, length <=155mm, height <=70mm; One PCIe 4.0 x16, low-profile, length 155mm, height <=70mm; One PCIe 3.0 x1, low-profile, length 155mm, height <=70mm; Three M.2 slots (one for WLAN, two for SSD) |
| Width | 92.5 Mm |
| Depth | 297.7 Mm |
| Height | 339.5 Mm |
| Weight | 5.3 Kg |
| Enclosure Color | Black |
| Service & Support Type | 3-year, Onsite |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Stand | None |
Processor
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i7 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 20-Core |
| Processor / Clock Speed | 2.1 GHz |
| Max Turbo Frequency | 5.4 GHz |
| Processor / Number | 14700 |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 33 MB |
Expansion
| Expansion Slots Total (Free) | One PCIe 4.0 x16 (x4 signal), low-profile, length <=155mm, height <=70mm; One PCIe 4.0 x16, low-profile, length 155mm, height <=70mm; One PCIe 3.0 x1, low-profile, length 155mm, height <=70mm; Three M.2 slots (one for WLAN, two for SSD) |
| Front I/O Ports | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging, 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), 1x headphone / microphone combo jack (3.5mm), 1x microphone (3.5mm) |
| Rear I/O Ports | 4x USB-A (USB 5Gbps / USB 3.2 Gen 1), 1x HDMI 2.1 TMDS, 2x DisplayPort 1.4a (HBR2, DSC), 1x Ethernet (RJ-45), 1x line-out (3.5mm) |
Networking
| Data Link Protocol | Wi-Fi, Bluetooth |
| Network Controller | Intel Wi-Fi 6E AX211 |
Special Feature
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| COO | MEXICO |
| TAA compliance | Yes |
Dimensions&Miscellaneous
| Enclosure Color | Black |
| Width | 92.5 Mm |
| Depth | 297.7 Mm |
| Height | 339.5 Mm |
| Weight | 5.3 Kg |
