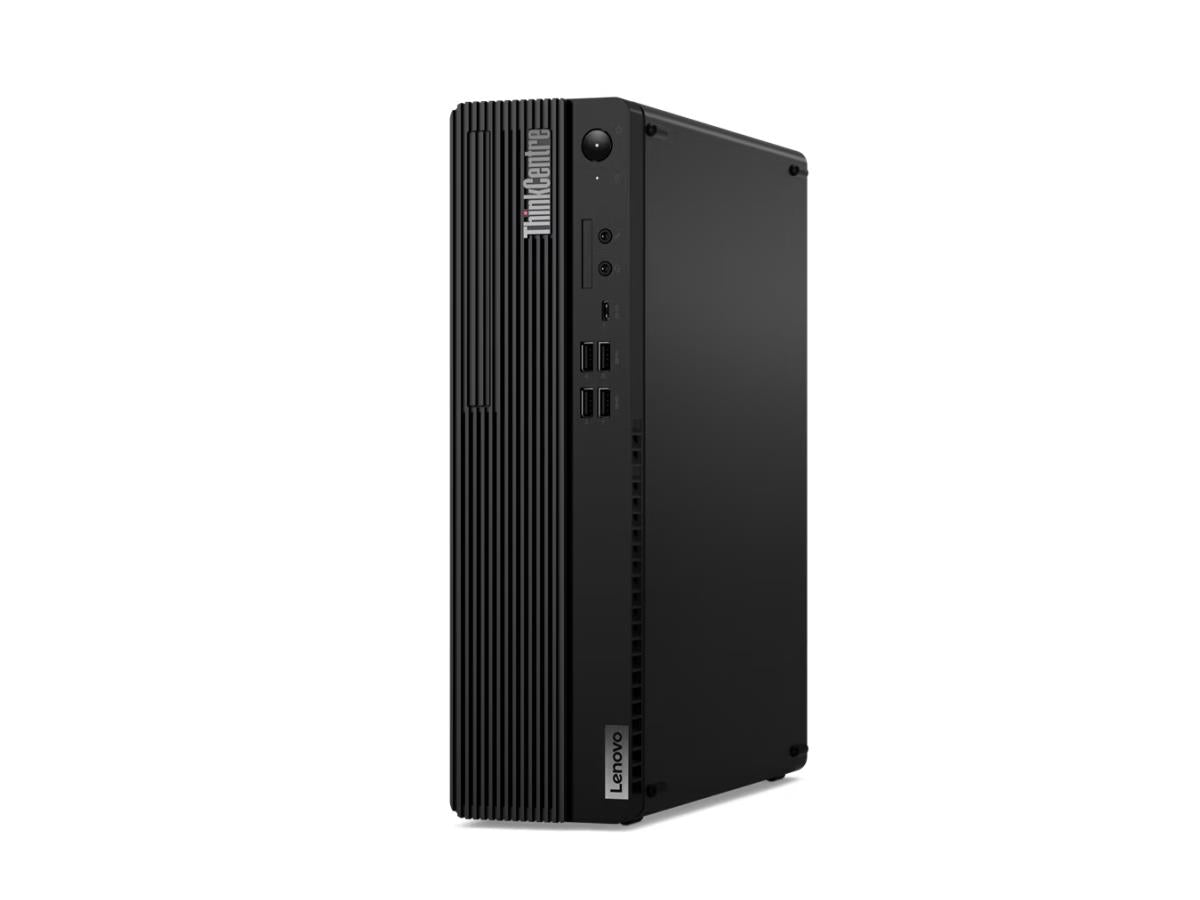

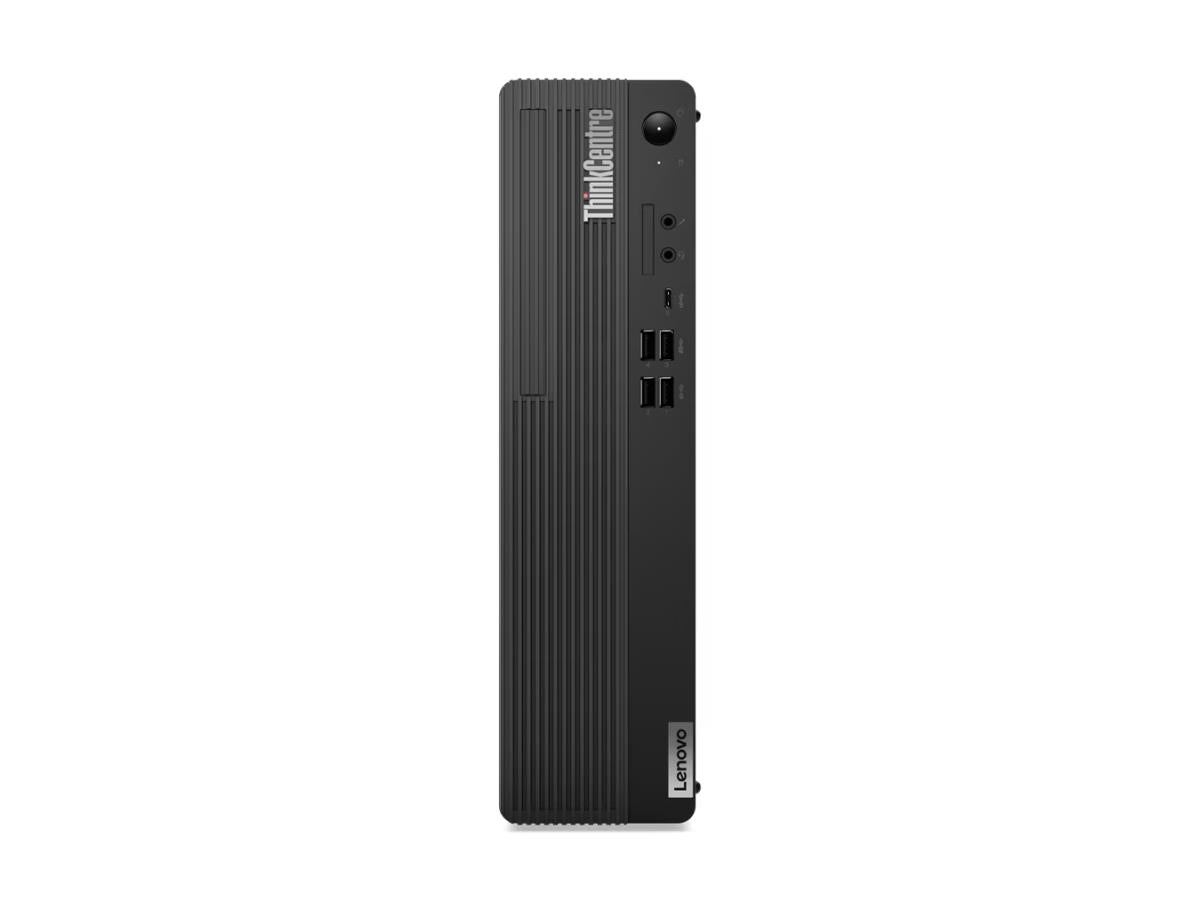

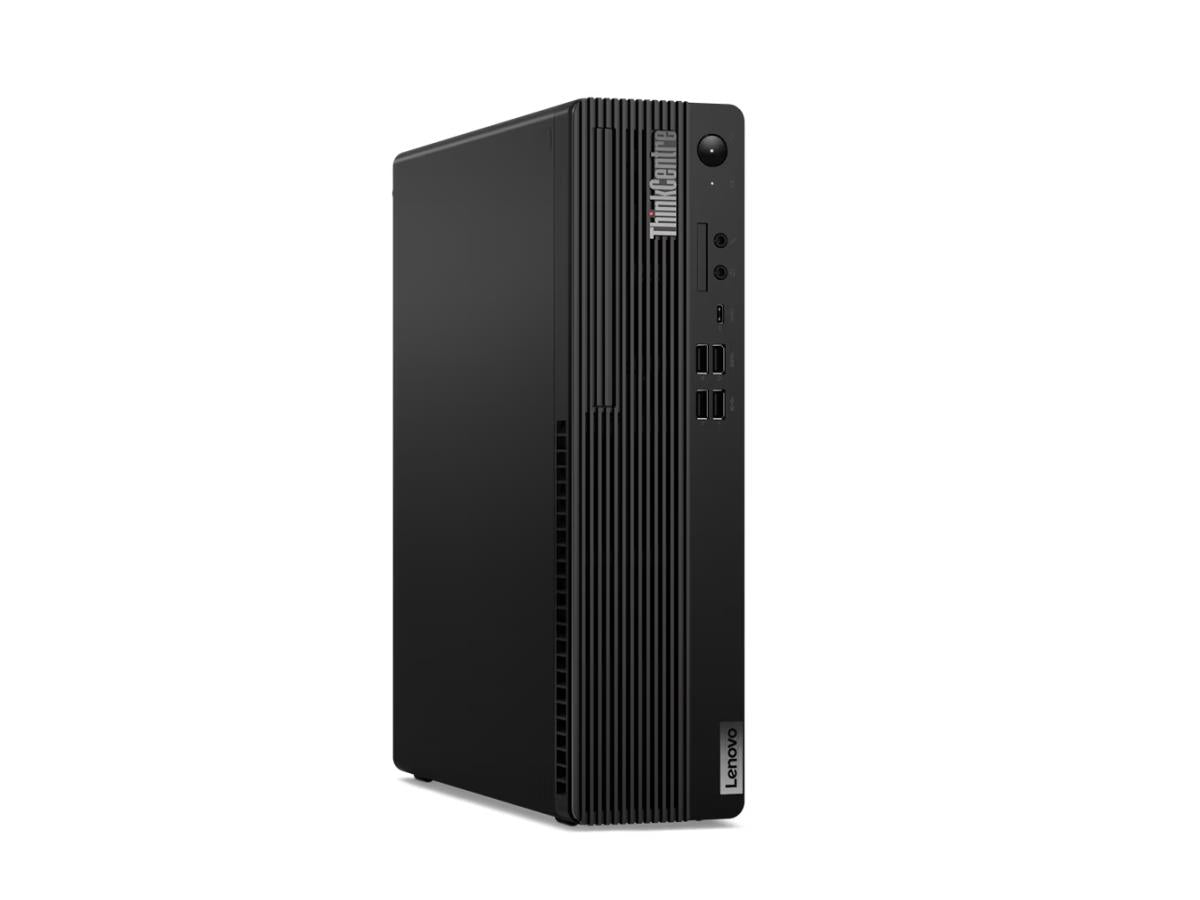

Lenovo ThinkCentre M90s Gen 5 SFF, i7-14700, 32GB RAM, 1TB SSD, Win 11 Pro

VENDOR: LENOVO Mfg Part#: 12V4000UUS
  • The Lenovo ThinkCentre M90s Gen 5 offers premium performance in a compact Small Form Factor design. Powered by an Intel Core i7-14700 processor with 20 cores and up to 5.4GHz turbo speed, it includes 32GB DDR5 memory and a fast 1TB PCIe Gen4 SSD. With Windows 11 Pro, integrated Intel Arc A310 graphics, and built-in Wi-Fi 6E, this system is ideal for demanding business environments requiring security, reliability, and high processing power.
  • The Lenovo ThinkCentre M90s Gen 5 offers premium performance in a compact Small Form Factor design. Powered by an Intel Core i7-14700 processor with 20 cores and up to 5.4GHz turbo speed, it includes 32GB DDR5 memory and a fast 1TB PCIe Gen4 SSD. With Windows 11 Pro, integrated Intel Arc A310 graphics, and built-in Wi-Fi 6E, this system is ideal for demanding business environments requiring security, reliability, and high processing power.
  • The Lenovo ThinkCentre M90s Gen 5 offers premium performance in a compact Small Form Factor design. Powered by an Intel Core i7-14700 processor with 20 cores and up to 5.4GHz turbo speed, it includes 32GB DDR5 memory and a fast 1TB PCIe Gen4 SSD. With Windows 11 Pro, integrated Intel Arc A310 graphics, and built-in Wi-Fi 6E, this system is ideal for demanding business environments requiring security, reliability, and high processing power.
  • The Lenovo ThinkCentre M90s Gen 5 offers premium performance in a compact Small Form Factor design. Powered by an Intel Core i7-14700 processor with 20 cores and up to 5.4GHz turbo speed, it includes 32GB DDR5 memory and a fast 1TB PCIe Gen4 SSD. With Windows 11 Pro, integrated Intel Arc A310 graphics, and built-in Wi-Fi 6E, this system is ideal for demanding business environments requiring security, reliability, and high processing power.
1 4
Photo is for illustration purposes only. Actual product may be different.
$1,708.33
$1,708.33
Sale Sold out
MSRP: $1,759.00
Shipping calculated at checkout.
  • Intel Core i7-14700 processor with 20 cores and max turbo frequency of 5.4 GHz
  • 32GB DDR5 UDIMM RAM at 5600 MHz, expandable up to 128GB
  • 1TB PCIe Gen4 SSD with Opal encryption for enhanced performance and security
  • Intel Arc A310 graphics with 4GB GDDR6 memory
  • Integrated Wi-Fi 6E and Bluetooth 5.3 wireless connectivity
  • Compact Small Form Factor design with 310W 92% efficient power supply
View full details

Key Benefits

Eye-Insights
  • Achieve top-tier performance for professional tasks with a robust 14th Gen Intel Core i7-14700 20-core processor.
  • Turbocharge workload efficiency using the high-speed 1TB PCIe SSD and 32GB of expandable DDR5 RAM.
  • Ensure enterprise-grade compliance and peace of mind with TPM 2.0, FIPS 140-2 security certification, and a 3-year on-site warranty.

Product Overview

The Lenovo ThinkCentre M90s Gen 5 is a high-performance Small Form Factor PC built for advanced professional workloads. Featuring a 20-core Intel Core i7-14700 vPro processor, 32GB DDR5 memory at 5600 MHz, and a 1TB PCIe Gen4 SSD with Opal encryption, it delivers exceptional multitasking and responsiveness. Enhanced with Intel Arc A310 graphics and 4GB GDDR6 VRAM, it accommodates business multimedia and visual workload needs. The system includes Wi-Fi 6E and Bluetooth 5.3 connectivity, enterprise-grade TPM 2.0 security, and a 3-year on-site warranty for business continuity. Its compact chassis with a 310W efficient PSU and versatile I/O options make it an excellent fit for modern office environments where space, speed, and reliability matter.

Specifications

Primary Information
System Type Personal Computer
Model ThinkCentre M90s Gen 5
Cabinet Form Factor Small Form Factor
Processor / Generation Intel 14th Generation
Processor / Type Core i7
Processor / Manufacturer Intel
Multi-Core Technology 20-Core
Processor / Clock Speed 2.1 GHz
Cache Memory Installed Size 33 MB
Max Turbo Frequency 5.4 GHz
Processor / Number 14700
Processor / Installed Qty 1
Cache Memory Installed Size 33 MB
RAM / Installed Qty 2
Mainboard / Chipset Type Intel Q670
RAM / Technology DDR5
RAM / Total Slots Qty 4
RAM / Total Installed Size 32 GB
RAM / Memory Speed 5600 MHz
RAM Form Factor UDIMM
RAM / Max Supported Size 128 GB
Storage Controller Type M.2
Hard Drive / Type SSD
Hard Drive Capacity / HDD None GB
Hard Drive / Installed Qty None
Hard Drive / Interface Type None
Hard Drive / Spindle Speed None RPM
SSD Capacity 1 TB
SSD / Installed Qty 1
Optical Storage Type DVD+-RW
Audio Output High Definition (HD) Audio, Realtek ALC897Q-CG codec
Storage Controller Type M.2
Memory Card Reader None
Hard Drive / Capacity (2nd) None GB
Data Link Protocol IEEE 802.11 ax, Bluetooth 5.3
Graphics Controller Intel Arc A310
Video Memory / Technology GDDR6
Video Memory / Installed Size 4 GB
Speakers 1 x 1W
Input Device Support Type Keyboard, Mouse
Keyboard Language English
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Operating System Microsoft Windows 11 Professional
Power / Device Type Power Supply
Power / Provided (W) 310 Watt
Power / Voltage Required 100-240V, 50-60Hz
Efficiency 92%
Interfaces & Connections 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm) 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI 2.1 TMDS 2x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm)
Front I/O Ports 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm)

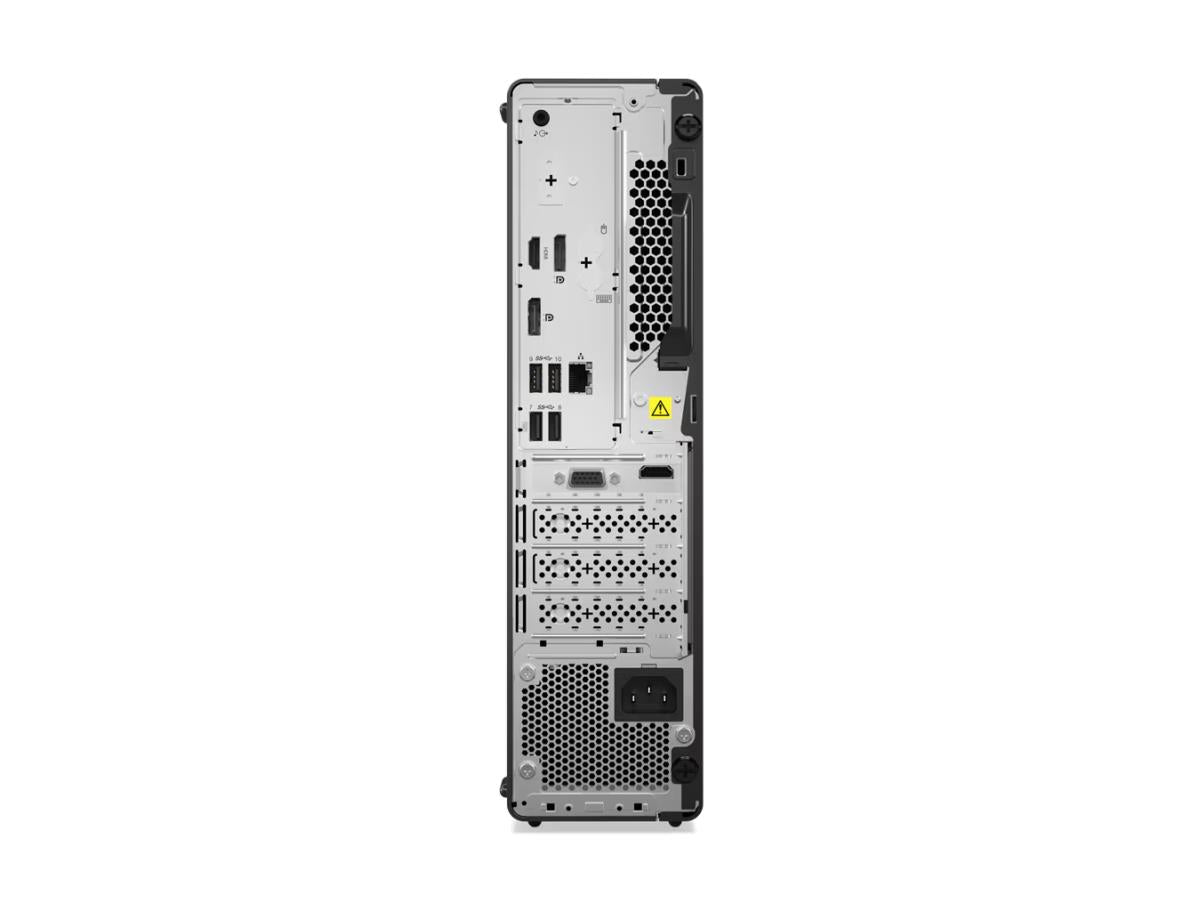

Rear I/O Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI 2.1 TMDS 2x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm)
Expansion Slots Total (Free) One PCIe 4.0 x16 (x4 signal), low-profile, length 155mm, height 70mm One PCIe 4.0 x16, low-profile, length 155mm, height 70mm One PCIe 3.0 x1, low-profile, length 155mm, height 70mm Three M.2 slots (one for WLAN, two for SSD)
Width 3.6 Inch
Depth 11.7 Inch
Height 13.4 Inch
Weight 11.7 lbs.
Enclosure Color Black
Service & Support Type 3-year, Onsite Warranty
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Features Integrated 100/1000M
Stand None
Network Controller Wi-Fi 6E 11ax

Processor
Processor / Generation Intel 14th Generation
Processor / Type Core i7
Processor / Manufacturer Intel
Multi-Core Technology 20-Core
Processor / Clock Speed 2.1 GHz
Max Turbo Frequency 5.4 GHz
Processor / Number 14700
Processor / Installed Qty 1
Cache Memory Type Smart Cache
Cache Memory Installed Size 33 MB

Expansion
Interfaces & Connections 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm) 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI 2.1 TMDS 2x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm)
Expansion Slots Total (Free) One PCIe 4.0 x16 (x4 signal), low-profile, length 155mm, height 70mm One PCIe 4.0 x16, low-profile, length 155mm, height 70mm One PCIe 3.0 x1, low-profile, length 155mm, height 70mm Three M.2 slots (one for WLAN, two for SSD)
Front I/O Ports 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm)
Rear I/O Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI 2.1 TMDS 2x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm)

Networking
Data Link Protocol IEEE 802.11 ax, Bluetooth 5.3
Network Controller Wi-Fi 6E 11ax

Special Feature
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
COO MEXICO
TAA compliance Yes

Dimensions&Miscellaneous
Enclosure Color Black
Width 3.6 Inch
Depth 11.7 Inch
Height 13.4 Inch
Weight 11.7 lbs.

General
Processor Intel,Intel Core i7,Core i7 2.1,2.1GHz Smart Cache,Smart Cache 14700,14700 Cache Memory 33,33MB Max Turbo 5.4,5.4GHz
RAM UDIMM,UDIMM DDR5,DDR5 Total Installed 32,32GB 5600,5600MHz Max Supported 128,128GB

Memory
Cache Memory Type Smart Cache
RAM / Installed Qty 2
RAM / Total Slots Qty 4
RAM / Technology DDR5
RAM / Total Installed Size 32 GB
RAM / Memory Speed 5600 MHz
RAM Form Factor UDIMM
RAM / Max Supported Size 128 GB

Storage
Hard Drive / Type SSD
Hard Drive Capacity / HDD None GB
Hard Drive / Installed Qty None
Hard Drive / Interface Type None
Hard Drive / Spindle Speed None RPM
SSD Capacity 1 TB
SSD / Installed Qty 1
Optical Storage Type DVD+-RW
Storage Controller Type M.2
Hard Drive / Capacity (2nd) None GB

I/O
Input Device Support Type Keyboard, Mouse
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Keyboard Language English

Power
Power / Device Type Power Supply
Power / Provided (W) 310 Watt
Power / Voltage Required 100-240V, 50-60Hz
Efficiency 92%

Video
Graphics Controller Intel Arc A310
Video Memory / Technology GDDR6
Video Memory / Installed Size 4 GB

UNSPSC Code
UNSPSC Code 43211508
