| System Type | Personal Computer |
| Model | ThinkCentre M90s Gen 5 |
| Cabinet Form Factor | Small Form Factor |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i7 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 20-Core |
| Processor / Clock Speed | 2.1 GHz |
| Cache Memory Installed Size | 33 MB |
| Max Turbo Frequency | 5.3 GHz |
| Processor / Number | 14700 |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| Cache Memory Installed Size | 33 MB |
| Mainboard / Chipset Type | Intel Q670 |
| RAM / Technology | DDR5 UDIMM |
| RAM / Total Slots Qty | 4 |
| RAM / Total Installed Size | 64 GB |
| RAM / Memory Speed | 4000 MHz |
| RAM Form Factor | UDIMM |
| RAM / Max Supported Size | 128 GB |
| Storage Controller Type | PCIe 4.0x4 NVMe |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 1 TB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | DVDRW |
| Audio Output | High Definition Audio |
| Storage Controller Type | PCIe 4.0x4 NVMe |
| Storage Controller / Channel Qty | 1 |
| Memory Card Reader | None |
| Hard Drive / Capacity (2nd) | None GB |
| RAID Level | None |
| Data Link Protocol | Wi-Fi, Bluetooth 5.3 |
| Network Controller | Intel Wi-Fi 6E |
| Graphics Controller | Intel UHD Graphics 770 |
| Video Memory / Technology | None |
| Video Memory / Installed Size | None GB |
| Video Output Interface | HDMI |
| Speakers | 1 x 1W |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard Language | English |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Professional |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 310 Watt |
| Efficiency | 92% |
| Front I/O Ports | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm) |
| Rear I/O Ports | 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI 2.1 TMDS 2x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm) |
| Expansion Slots Total (Free) | One PCIe 4.0 x16 (x4 signal), low-profile, length 155mm, height 70mm One PCIe 4.0 x16, low-profile, length 155mm, height 70mm One PCIe 3.0 x1, low-profile, length 155mm, height 70mm Three M.2 slots (one for WLAN, two for SSD) |
| Width | 3.6 Inch |
| Depth | 11.7 Inch |
| Height | 13.4 Inch |
| Weight | 11.7 lbs. |
| Enclosure Color | Black |
| Service & Support Type | 3-year, Onsite |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Stand | None |

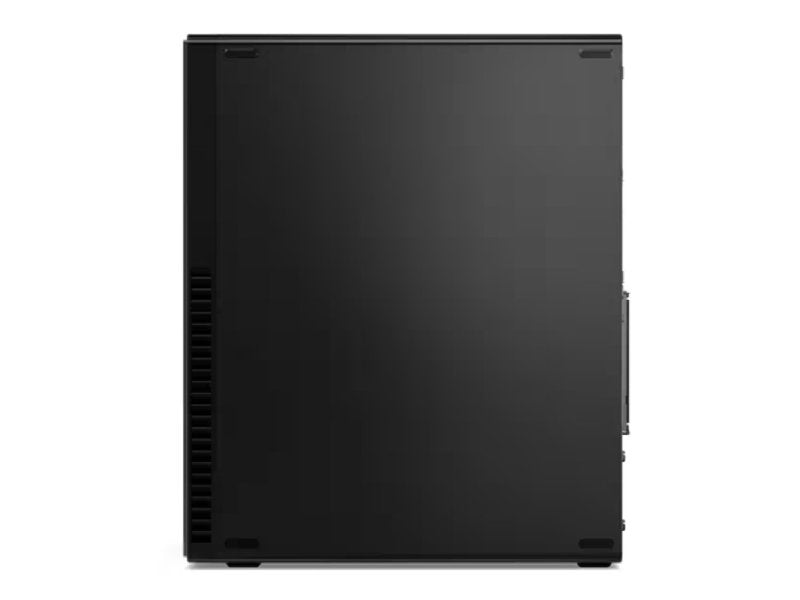

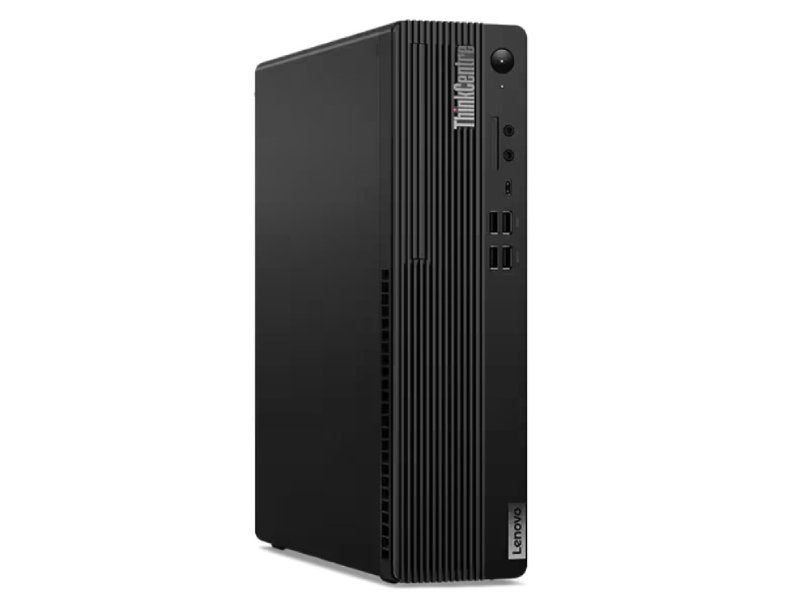

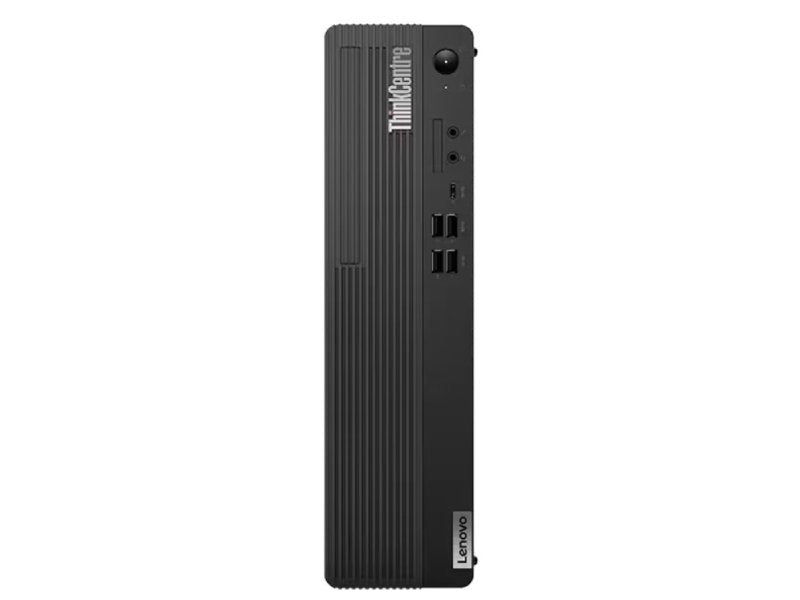

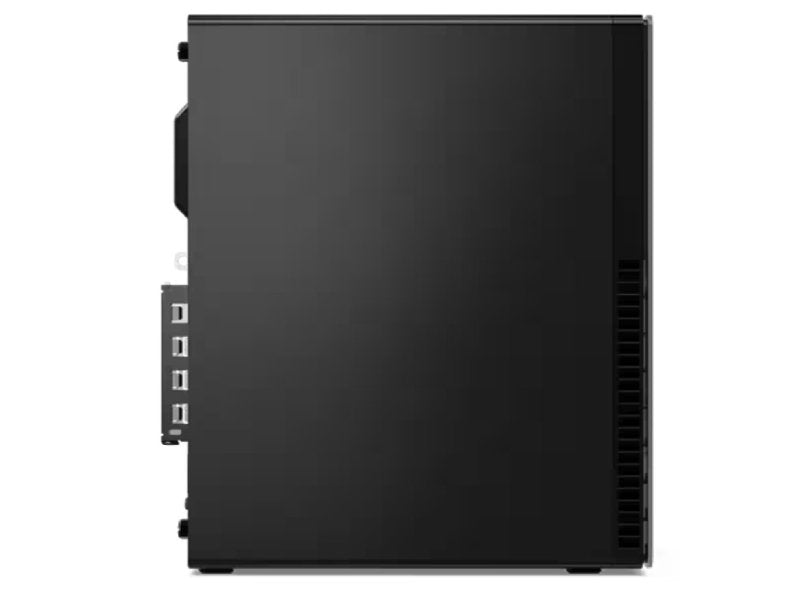

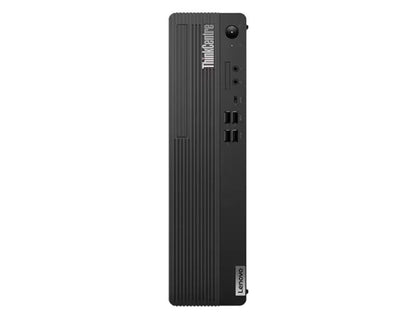

Lenovo ThinkCentre M90s Gen 5 SFF, i7-14700, 64GB RAM, 1TB SSD, Win 11 Pro
Photo is for illustration purposes only. Actual product may be different.
Regular price
$2,223.07
Regular price
Sale price
$2,223.07
Unit price
per
MSRP: $2,289.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Intel Core i7-14700 vPro CPU with 20 cores and up to 5.3GHz turbo frequency
- 64GB DDR5 4000MHz UDIMM memory, expandable to 128GB
- 1TB PCIe Gen4 NVMe SSD for high-speed storage
- Integrated Intel UHD Graphics 770 with HDMI output
- Wi-Fi 6E and Bluetooth 5.3 via Intel AX211vPro adapter
- Discrete TPM 2.0 with TCG and FIPS 140-2 certification for security
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Equipped with a 14th Gen Intel Core i7-14700 vPro processor for outstanding business performance
- Supports 64GB DDR5 memory and high-speed storage, ideal for multitasking and data-heavy workloads
- Compact form factor with enterprise-grade security and manageability, ideal for modern office deployments
Product Overview
The Lenovo ThinkCentre M90s Gen 5 is a powerful small form factor business desktop featuring a 14th Gen Intel Core i7-14700 vPro processor with 20 cores and up to 5.3GHz turbo speed. It includes 64GB DDR5 RAM running at 4000MHz for seamless multitasking. A speedy 1TB PCIe Gen4 NVMe SSD delivers fast load times and storage access. Integrated Intel UHD Graphics 770, Wi-Fi 6E, Bluetooth 5.3, and advanced security via TPM 2.0 offer productivity, connectivity, and data protection, all within a compact 3.6" wide case. It includes Windows 11 Pro, DVDRW, and a 3-year onsite warranty, making it an ideal professional desktop solution.
Specifications
Primary Information
Processor
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i7 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 20-Core |
| Processor / Clock Speed | 2.1 GHz |
| Max Turbo Frequency | 5.3 GHz |
| Processor / Number | 14700 |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 33 MB |
Expansion
| Expansion Slots Total (Free) | One PCIe 4.0 x16 (x4 signal), low-profile, length 155mm, height 70mm One PCIe 4.0 x16, low-profile, length 155mm, height 70mm One PCIe 3.0 x1, low-profile, length 155mm, height 70mm Three M.2 slots (one for WLAN, two for SSD) |
| Front I/O Ports | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm) |
| Rear I/O Ports | 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI 2.1 TMDS 2x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm) |
Networking
| Data Link Protocol | Wi-Fi, Bluetooth 5.3 |
| Network Controller | Intel Wi-Fi 6E |
Special Feature
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| COO | MEXICO |
| TAA compliance | Yes |
Dimensions&Miscellaneous
| Enclosure Color | Black |
| Width | 3.6 Inch |
| Depth | 11.7 Inch |
| Height | 13.4 Inch |
| Weight | 11.7 lbs. |
Memory
| Cache Memory Type | Smart Cache |
| RAM / Total Slots Qty | 4 |
| RAM / Technology | DDR5 UDIMM |
| RAM / Total Installed Size | 64 GB |
| RAM / Memory Speed | 4000 MHz |
| RAM Form Factor | UDIMM |
| RAM / Max Supported Size | 128 GB |
Storage
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 1 TB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | DVDRW |
| Storage Controller Type | PCIe 4.0x4 NVMe |
| Hard Drive / Capacity (2nd) | None GB |
| RAID Level | None |
I/O
| Input Device Support Type | Keyboard, Mouse |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Keyboard Language | English |
Power
| Power / Device Type | Power Supply |
| Power / Provided (W) | 310 Watt |
| Efficiency | 92% |
Video
| Graphics Controller | Intel UHD Graphics 770 |
| Video Memory / Technology | None |
| Video Memory / Installed Size | None GB |
| Video Output Interface | HDMI |
UNSPSC Code
| UNSPSC Code | 43211508 |
