| System Type | Personal Computer |
| Model | ThinkCentre M90s Gen 5 |
| Cabinet Form Factor | Small Form Factor |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i9 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 24-Core |
| Processor / Clock Speed | 2 GHz |
| Cache Memory Installed Size | 36 MB |
| Max Turbo Frequency | 5.8 GHz |
| Processor / Number | 14900 |
| Processor / Installed Qty | 1 |
| Cache Memory Installed Size | 36 MB |
| RAM / Installed Qty | 2 |
| Mainboard / Chipset Type | Intel Q670 |
| RAM / Technology | DDR5 |
| RAM / Total Slots Qty | 4 |
| RAM / Total Installed Size | 32 GB |
| RAM / Memory Speed | 5600 MHz |
| RAM Form Factor | UDIMM |
| RAM / Max Supported Size | 128 GB |
| Storage Controller Type | M.2 |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | DVD+-RW |
| Audio Output | High Definition (HD) Audio, Realtek ALC897Q-CG codec |
| Storage Controller Type | M.2 |
| Memory Card Reader | None |
| Hard Drive / Capacity (2nd) | None GB |
| Data Link Protocol | IEEE 802.11 ax, Bluetooth 5.3 |
| Graphics Controller | Intel Arc A310 |
| Video Memory / Technology | GDDR6 |
| Video Memory / Installed Size | 4 GB |
| Speakers | 1 x 1W |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard Language | English |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Professional |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 310 Watt |
| Power / Voltage Required | 100-240V, 50-60Hz |
| Efficiency | 92% |
| Interfaces & Connections | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm) 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI 2.1 TMDS 2x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm) |
| Front I/O Ports | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm) |
| Rear I/O Ports | 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI 2.1 TMDS 2x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm) |
| Expansion Slots Total (Free) | One PCIe 4.0 x16 (x4 signal), low-profile, length 155mm, height 70mm One PCIe 4.0 x16, low-profile, length 155mm, height 70mm One PCIe 3.0 x1, low-profile, length 155mm, height 70mm Three M.2 slots (one for WLAN, two for SSD) |
| Width | 3.6 Inch |
| Depth | 11.7 Inch |
| Height | 13.4 Inch |
| Weight | 11.7 lbs. |
| Enclosure Color | Black |
| Service & Support Type | 3-year, Onsite Warranty |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Features | Integrated 100/1000M |
| Stand | None |

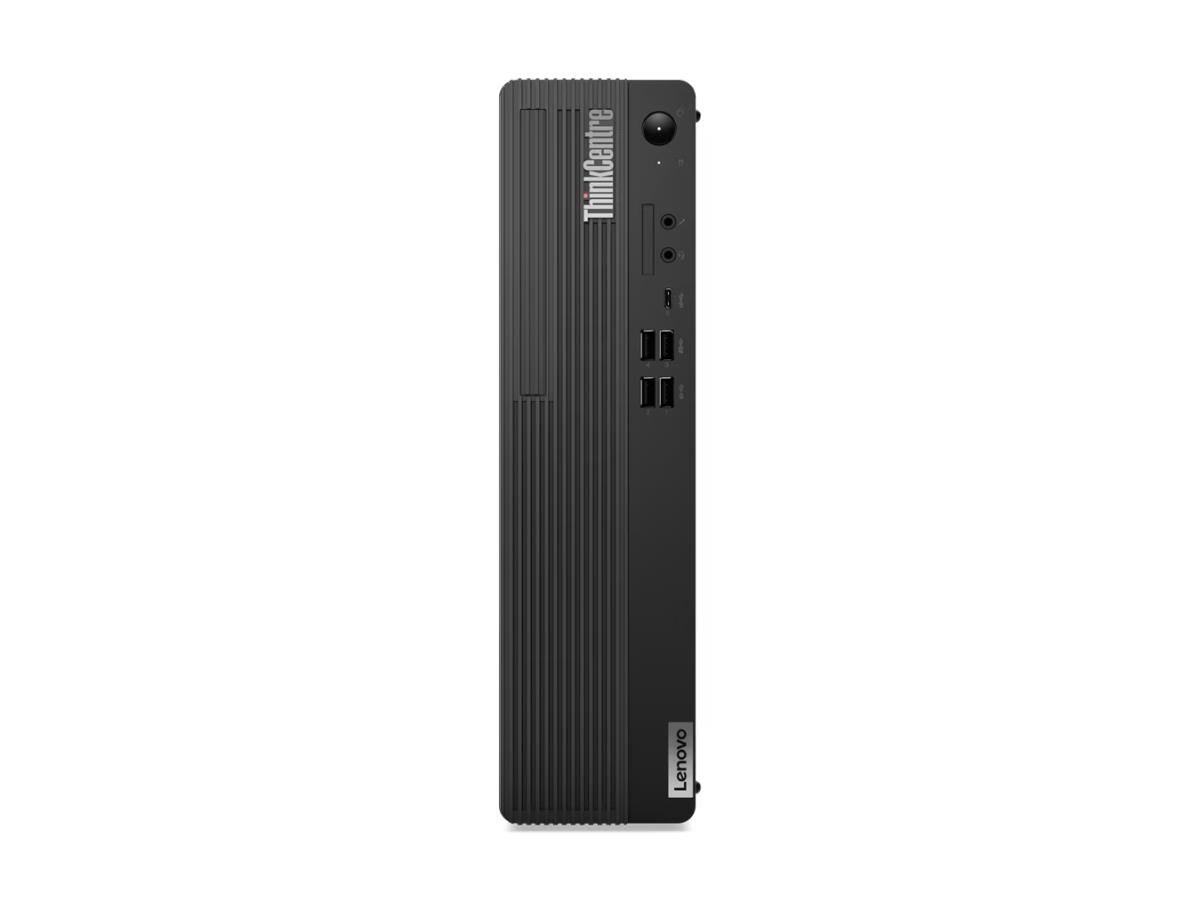

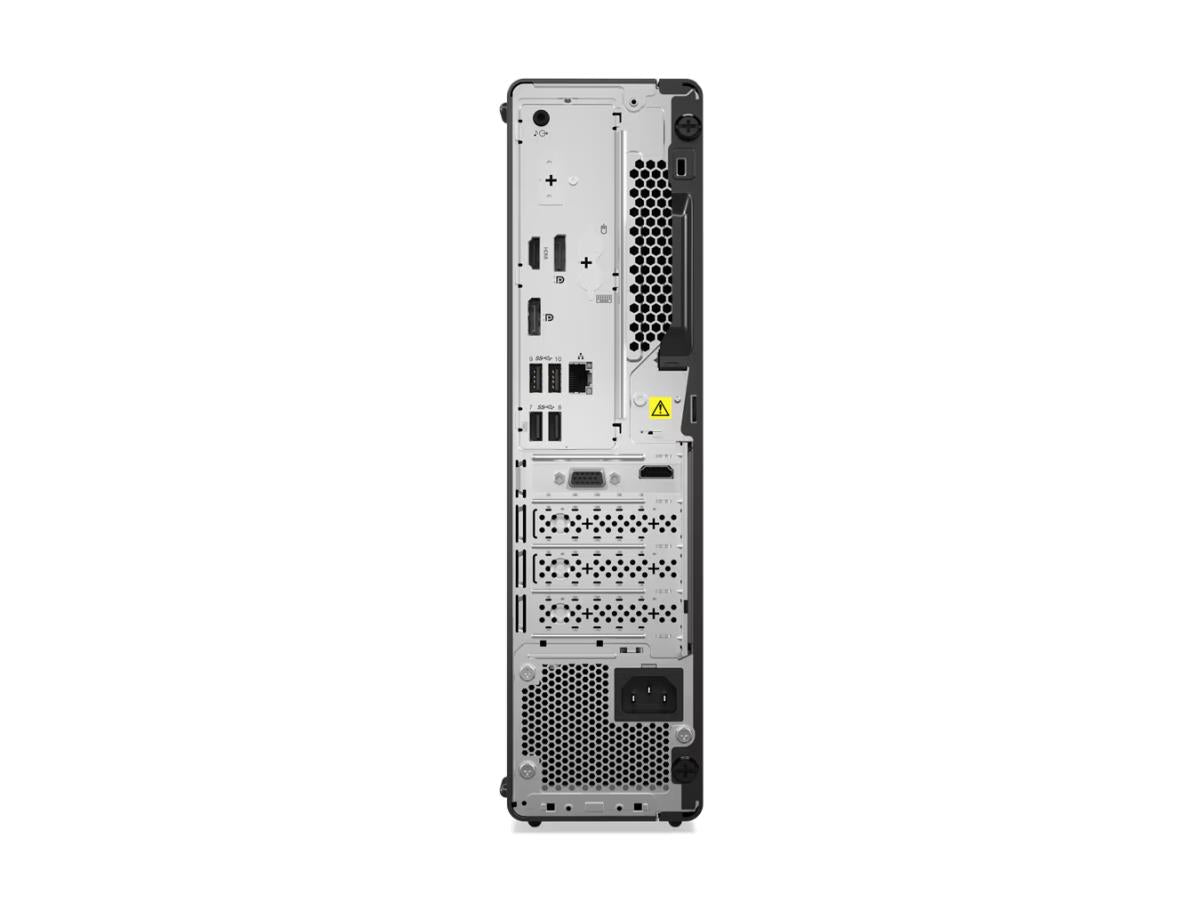

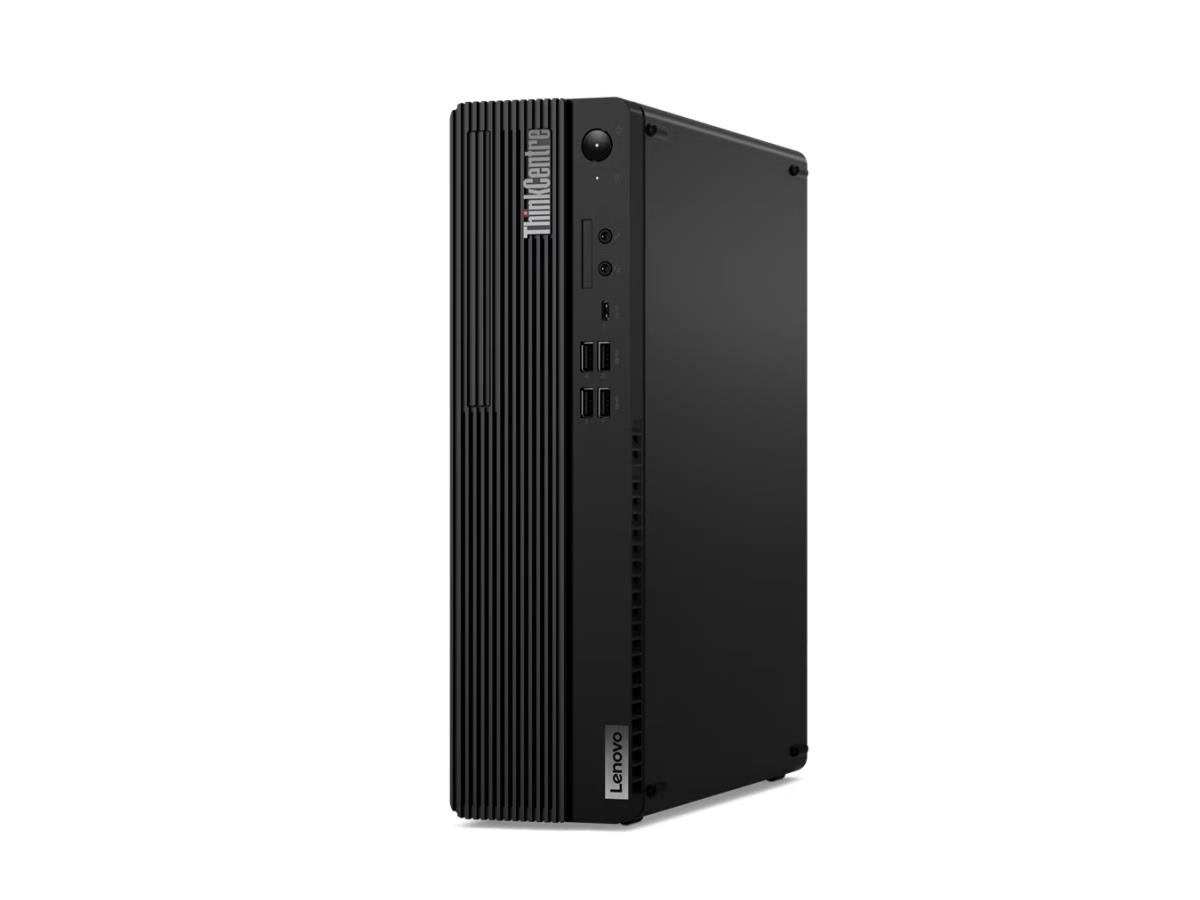

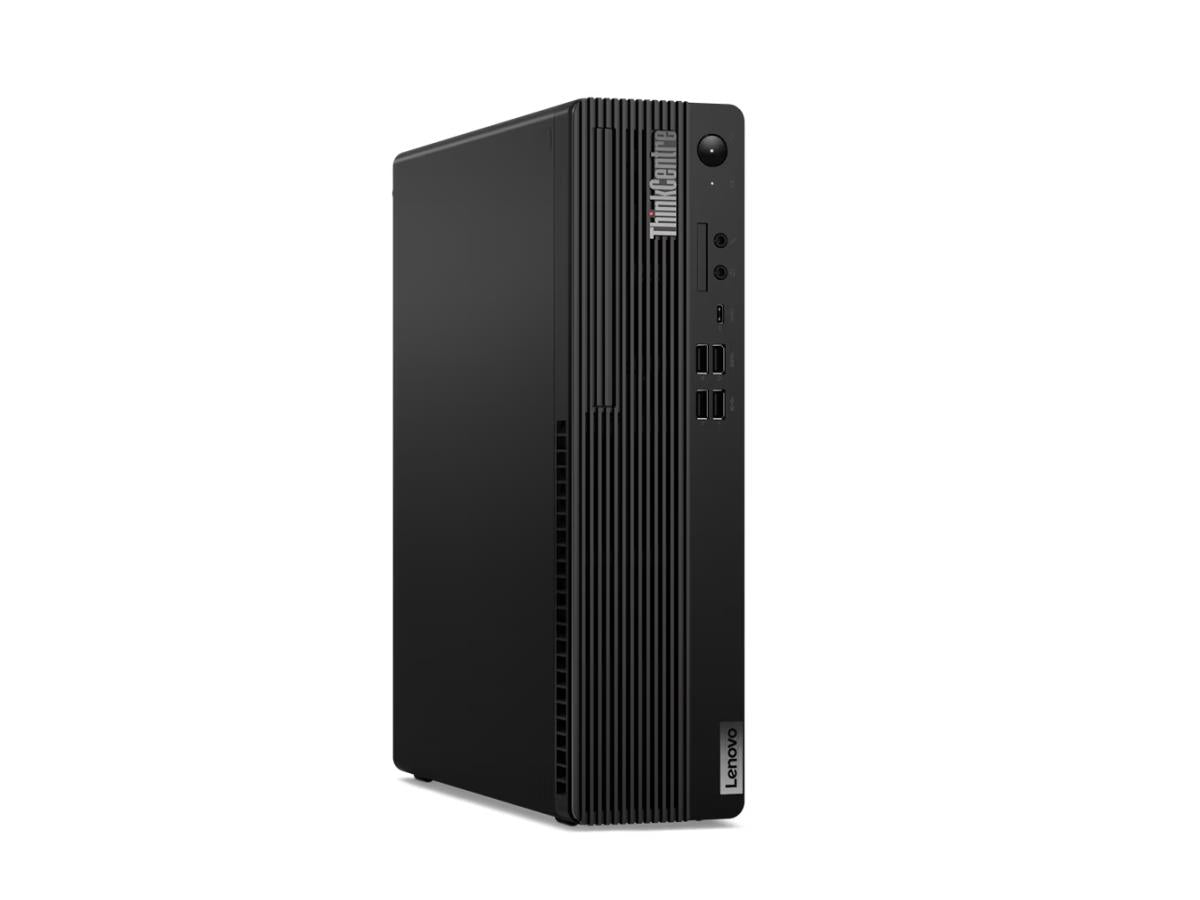

Lenovo ThinkCentre M90s Gen 5 SFF i9-14900, 32GB RAM, 512GB SSD
Photo is for illustration purposes only. Actual product may be different.
Regular price
$1,902.57
Regular price
Sale price
$1,902.57
Unit price
per
MSRP: $1,959.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Intel Core i9-14900 processor with 24 cores and up to 5.8 GHz turbo speed
- 32GB DDR5 memory (5600 MHz), scalable up to 128GB
- 512GB SSD, PCIe Gen4, M.2 2280, TLC Opal architecture
- Intel Arc A310 discrete graphics with 4GB GDDR6 memory
- Wi-Fi 6E (802.11ax) and Bluetooth 5.3 via IntelAX211vPro adapter
- TAA compliant with 3-year onsite support and TPM 2.0 security
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Delivers enterprise-grade performance with a powerful 14th Gen Intel Core i9 CPU and 32GB DDR5 RAM
- Compact small form factor design ideal for modern offices with space constraints
- End-to-end business security and reliability features including TPM 2.0, FIPS 140-2 compliance, and a 3-year onsite warranty
Product Overview
The Lenovo ThinkCentre M90s Gen 5 is engineered for high-performance business environments, integrating an Intel Core i9-14900 processor with 24 cores and a maximum turbo frequency of 5.8 GHz. Designed around the Intel Q670 chipset, this system features 32GB DDR5 RAM at 5600 MHz, making it ideal for multitasking and compute-intensive applications. With up to 128GB memory support, IT teams can easily scale performance as business demands evolve.
A 512GB PCIe Gen4 SSD ensures rapid data access and minimal application load times, while the integrated Intel Arc A310 GPU with 4GB of GDDR6 memory supports multimedia and light design tasks. Wireless connectivity is supported through IntelAX211 with Wi-Fi 6E and Bluetooth 5.3 for modern office integration. Compact yet powerful, the chassis's small form factor allows flexible deployment across various workplace setups.
The system includes essential usability features, such as front USB-C with 15W charging, four USB-A rear ports, and an optical DVD+-RW drive. Enterprise-grade security includes TPM 2.0 (FIPS 140-2 certified), and a 3-year onsite warranty ensures professional support. This desktop is TAA compliant and built in Mexico, offering compliance and peace of mind for regulated industries.
Specifications
Primary Information
Processor
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i9 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 24-Core |
| Processor / Clock Speed | 2 GHz |
| Max Turbo Frequency | 5.8 GHz |
| Processor / Number | 14900 |
| Processor / Installed Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 36 MB |
Expansion
| Interfaces & Connections | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm) 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI 2.1 TMDS 2x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm) |
| Expansion Slots Total (Free) | One PCIe 4.0 x16 (x4 signal), low-profile, length 155mm, height 70mm One PCIe 4.0 x16, low-profile, length 155mm, height 70mm One PCIe 3.0 x1, low-profile, length 155mm, height 70mm Three M.2 slots (one for WLAN, two for SSD) |
| Front I/O Ports | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm) |
| Rear I/O Ports | 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI 2.1 TMDS 2x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm) |
Networking
| Data Link Protocol | IEEE 802.11 ax, Bluetooth 5.3 |
Special Feature
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| COO | MEXICO |
| TAA compliance | Yes |
Dimensions&Miscellaneous
| Enclosure Color | Black |
| Width | 3.6 Inch |
| Depth | 11.7 Inch |
| Height | 13.4 Inch |
| Weight | 11.7 lbs. |
Memory
| Cache Memory Type | Smart Cache |
| RAM / Installed Qty | 2 |
| RAM / Total Slots Qty | 4 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 32 GB |
| RAM / Memory Speed | 5600 MHz |
| RAM Form Factor | UDIMM |
| RAM / Max Supported Size | 128 GB |
Storage
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | DVD+-RW |
| Storage Controller Type | M.2 |
| Hard Drive / Capacity (2nd) | None GB |
I/O
| Input Device Support Type | Keyboard, Mouse |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Keyboard Language | English |
Power
| Power / Device Type | Power Supply |
| Power / Provided (W) | 310 Watt |
| Power / Voltage Required | 100-240V, 50-60Hz |
| Efficiency | 92% |
Video
| Graphics Controller | Intel Arc A310 |
| Video Memory / Technology | GDDR6 |
| Video Memory / Installed Size | 4 GB |
UNSPSC Code
| UNSPSC Code | 43211508 |
