| Processor | Intel,Intel Core i5,Core i5 2.6,2.6GHz Smart Cache,Smart Cache 14500,14500 Cache Memory 24,24MB Max Turbo 5,5GHz |
| RAM | UDIMM,UDIMM DDR5 UDIMM,DDR5 UDIMM Total Installed 64,64GB 4000,4000MHz Max Supported 128,128GB |

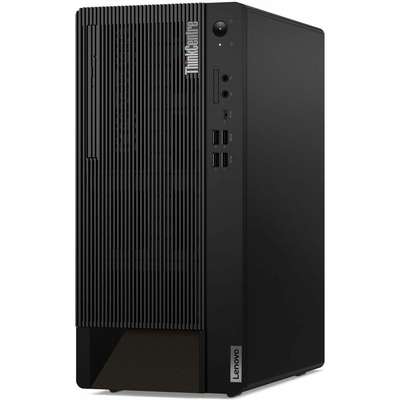

Lenovo ThinkCentre M90t Gen 5 i5-14500, 64GB, 1TB SSD, Win 11 Pro
Photo is for illustration purposes only. Actual product may be different.
Regular price
$2,854.35
Regular price
Sale price
$2,854.35
Unit price
per
MSRP: $2,939.00
Shipping calculated at checkout.
Couldn't load pickup availability
- 14-core Intel Core i5-14500 processor with max turbo frequency of 5 GHz
- 64GB DDR5 UDIMM RAM at 4000 MHz, expandable to 128GB
- 1TB PCIe Gen4 SSD for high-speed storage
- Intel UHD Graphics 770 with HDMI and DisplayPort outputs
- Wi-Fi 6E (IEEE 802.11 ax) and Bluetooth 5.3 connectivity
- TPM 2.0 security with TCG and FIPS 140-2 certifications
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- High-performance CPU and large DDR5 memory configuration enable demanding multitasking and fast processing for enterprise applications.
- Comprehensive connectivity including USB-C with 15W charging, HDMI 2.1, and DisplayPort allows easy integration into various office setups.
- Built-in security features and a 3-year onsite service plan provide long-term reliability and protection for sensitive business environments.
Product Overview
The Lenovo ThinkCentre M90t Gen 5 is a business-grade desktop powered by a 14-core Intel Core i5-14500 vPro processor and 64GB of fast DDR5 4000 MHz memory. It features a 1TB PCIe Gen4 SSD for high-speed storage and Intel UHD Graphics 770 for reliable display output. Connectivity includes USB-C with 15W charging, HDMI 2.1, DisplayPort 1.4a, and Wi-Fi 6E with Bluetooth 5.3. Designed for enterprise deployment, the system integrates TPM 2.0 security, a 300W 90% efficient power supply, and expandable RAM and PCIe slots. Paired with Windows 11 Pro and a 3-year onsite warranty, it delivers strong performance and long-term value.
Specifications
General
Memory
| Cache Memory Type | Smart Cache |
| RAM / Installed Qty | 4 |
| RAM / Total Slots Qty | 4 |
| RAM / Technology | DDR5 UDIMM |
| RAM / Total Installed Size | 64 GB |
| RAM / Memory Speed | 4000 MHz |
| RAM Form Factor | UDIMM |
| RAM / Max Supported Size | 128 GB |
Storage
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 1 TB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | DVD+/-RW |
| Storage Controller Type | M.2 |
| Hard Drive / Capacity (2nd) | None GB |
I/O
| Input Device Support Type | Keyboard, Mouse |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Keyboard Language | English |
Power
| Power / Device Type | Power Supply |
| Power / Provided (W) | 300 Watt |
| Efficiency | 90% |
Video
| Graphics Controller | Intel UHD Graphics 770 |
| Video Memory / Technology | None |
| Video Memory / Installed Size | None GB |
| Video Output Interface | Display Port, HDMI |
UNSPSC Code
| UNSPSC Code | 43211508 |
Primary Information
| System Type | Personal Computer |
| Model | ThinkCentre M90t Gen 5 |
| Cabinet Form Factor | Desktop |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 14-Core |
| Processor / Clock Speed | 2.6 GHz |
| Cache Memory Installed Size | 24 MB |
| Max Turbo Frequency | 5 GHz |
| Processor / Number | 14500 |
| Processor / Installed Qty | 1 |
| Cache Memory Installed Size | 24 MB |
| RAM / Installed Qty | 4 |
| Mainboard / Chipset Type | Intel Q670 |
| RAM / Technology | DDR5 UDIMM |
| RAM / Total Slots Qty | 4 |
| RAM / Total Installed Size | 64 GB |
| RAM / Memory Speed | 4000 MHz |
| RAM Form Factor | UDIMM |
| RAM / Max Supported Size | 128 GB |
| Storage Controller Type | M.2 |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 1 TB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | DVD+/-RW |
| Audio Output | High Definition Audio |
| Storage Controller Type | M.2 |
| Memory Card Reader | None |
| Hard Drive / Capacity (2nd) | None GB |
| Data Link Protocol | IEEE 802.11 ax, Bluetooth 5.3 |
| Graphics Controller | Intel UHD Graphics 770 |
| Video Memory / Technology | None |
| Video Memory / Installed Size | None GB |
| Video Output Interface | Display Port, HDMI |
| Speakers | 1 x 2W |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard Language | English |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Professional |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 300 Watt |
| Efficiency | 90% |
| Interfaces & Connections | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm); 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm) |
| Front I/O Ports | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm) |

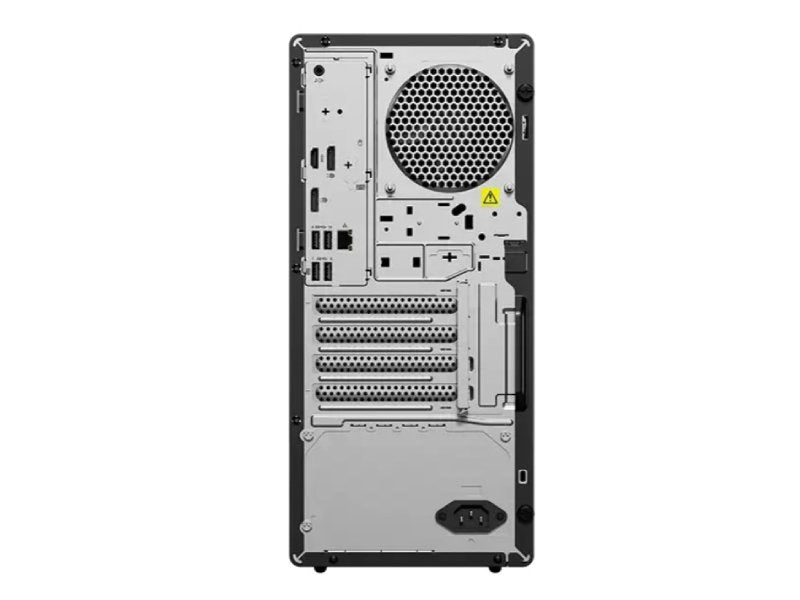

| Rear I/O Ports | 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm) |
| Expansion Slots Total (Free) | One PCIe 4.0 x16 (x4 signal), full-height, length 205mm, height 114.55mm; One PCIe 4.0 x16, full-height, length 268.5mm, height 114.55mm; One PCIe 3.0 x1, full-height, length 205mm, height 114.55mm; Three M.2 slots (one for WLAN, two for SSD) |
| Width | 6.7 Inch |
| Depth | 11.7 Inch |
| Height | 14.8 Inch |
| Weight | 14.3 lbs. |
| Enclosure Color | Black |
| Service & Support Type | 3-year, Onsite |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Features | Integrated 100/1000M |
| Stand | None |
Processor
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 14-Core |
| Processor / Clock Speed | 2.6 GHz |
| Max Turbo Frequency | 5 GHz |
| Processor / Number | 14500 |
| Processor / Installed Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 24 MB |
Expansion
| Interfaces & Connections | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm); 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm) |
| Expansion Slots Total (Free) | One PCIe 4.0 x16 (x4 signal), full-height, length 205mm, height 114.55mm; One PCIe 4.0 x16, full-height, length 268.5mm, height 114.55mm; One PCIe 3.0 x1, full-height, length 205mm, height 114.55mm; Three M.2 slots (one for WLAN, two for SSD) |
| Front I/O Ports | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm) |
| Rear I/O Ports | 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm) |
Networking
| Data Link Protocol | IEEE 802.11 ax, Bluetooth 5.3 |
Special Feature
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| COO | MEXICO |
| TAA compliance | Yes |
Dimensions&Miscellaneous
| Enclosure Color | Black |
| Width | 6.7 Inch |
| Depth | 11.7 Inch |
| Height | 14.8 Inch |
| Weight | 14.3 lbs. |
