| COO | MEXICO |
| TAA compliance | Yes |
| Security Devices | Discrete TPM 2.0, TCG certified |
Lenovo ThinkEdge SE10 Atom x6425RE 32GB 256GB SSD Win10 IoT
Photo is for illustration purposes only. Actual product may be different.
Regular price
$693.96
Regular price
Sale price
$693.96
Unit price
per
MSRP: $699.00
Shipping calculated at checkout.
Couldn't load pickup availability
- Intel Atom x6425RE quad-core processor at 1.9GHz
- 32GB DDR4 RAM (3200MHz) in SODIMM format
- 256GB PCIe Gen4 M.2 SSD with TLC Opal encryption
- Wi-Fi 6E and Bluetooth 5.1 connectivity
- Dual 2.5 Gigabit Ethernet RJ-45 ports
- TPM 2.0 security and Windows 10 IoT Enterprise 64-bit OS
Key Benefits
Eye-Insights™ by Eye-In Technologies
AI-Powered Summaries from Online Customer Reviews
AI-Powered Summaries from Online Customer Reviews
Eye-Insights™ are generated by proprietary AI that analyzes real online customer reviews to highlight top pros and key product features. While we aim for accuracy, insights are provided “as-is” and individual results may vary.
- Optimized for edge computing with a compact, fanless design supporting rugged environments.
- Equipped with 32GB RAM and 256GB PCIe Gen4 SSD for fast, responsive processing and data handling.
- Integrated dual 2.5GbE ports and wireless options ensure versatile and high-speed connectivity.
Product Overview
The Lenovo ThinkEdge SE10 is a durable and highly capable fanless edge device tailored for industrial IoT environments. It features a quad-core Intel Atom x6425RE running at 1.9GHz with 32GB of DDR4 RAM at 3200MHz, ideal for memory-intensive edge applications. With a 256GB PCIe Gen4 M.2 SSD and integrated Intel UHD Graphics, it ensures fast, secure data processing. Connectivity includes dual 2.5GbE Ethernet ports, Wi-Fi 6E, and Bluetooth 5.1, while TPM 2.0 security and Windows 10 IoT Enterprise 64-bit OS provide robust and secure management. Compact and rugged, it operates on a high-efficiency 65W power supply and includes a 1-year on-site warranty.
Specifications
Special Feature
Primary Information
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| System Type | Personal Computer |
| Model | ThinkEdge SE10 |
| Processor / Type | Atom |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | Quad-Core |
| Processor / Clock Speed | 1.9 GHz |
| Cache Memory Installed Size | 1.5 MB |
| Processor / Number | X6425RE |
| Processor / Installed Qty | 1 |
| Cache Memory Installed Size | 1.5 MB |
| RAM / Installed Qty | 2 |
| Mainboard / Chipset Type | Intel SoC Platform |
| RAM / Technology | DDR4 |
| RAM / Total Slots Qty | 2 |
| RAM / Total Installed Size | 32 GB |
| RAM / Memory Speed | 3200 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 32 GB |
| Storage Controller Type | M.2 |
| Hard Drive / Type | SSD |
| Hard Drive / Installed Qty | None |
| SSD Capacity | 256 GB |
| SSD / Installed Qty | 1 |
| Storage Controller Type | M.2 |
| Hard Drive / Capacity (2nd) | None GB |
| Data Link Protocol | IEEE 802.11 ax, Bluetooth 5.1 |
| Graphics Controller | Intel UHD Graphic |
| Keyboard | None |
| Mouse | None |
| Operating System | Microsoft Windows 10 IoT Enterprise 64-bit |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 65 Watt |
| Power / Voltage Required | 100-240V |
| Efficiency | 88% |

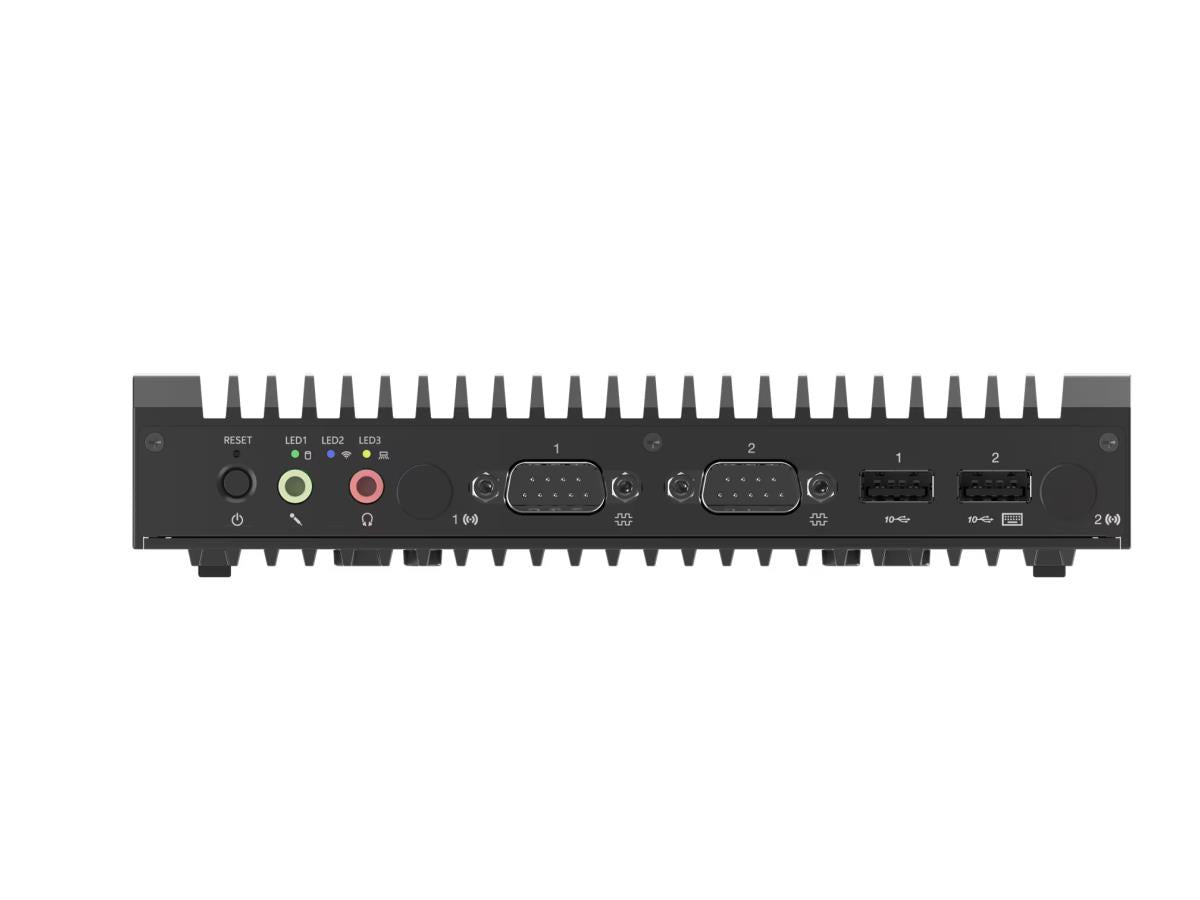

| Interfaces & Connections | 2x USB 3.2 Gen 2 1x line-out (3.5mm) 1x microphone (3.5mm) 2x serial (RS232 / RS422 / RS485, BIOS selectable) 3x LED (LED1: storage / LED2: Wireless / LED3: User defined or WWAN) 2x USB 2.0 1x HDMI 1.4b 1x DisplayPort 1.4 1x DC-in 3pin Phoenix connector for 9-36V WDC (SE10-I only) 1x Slim Tip power connector (SE10 only) 2x 2.5GbE Ethernet (RJ-45) |
| Front I/O Ports | 2x USB 3.2 Gen 2 1x line-out (3.5mm) 1x microphone (3.5mm) 2x serial (RS232 / RS422 / RS485, BIOS selectable) 3x LED (LED1: storage / LED2: Wireless / LED3: User defined or WWAN) |
| Rear I/O Ports | 2x USB 2.0 1x HDMI 1.4b 1x DisplayPort 1.4 1x DC-in 3pin Phoenix connector for 9-36V WDC (SE10-I only) 1x Slim Tip power connector (SE10 only) 2x 2.5GbE Ethernet (RJ-45) |
| Width | 7.04 Inch |
| Depth | 5.31 Inch |
| Height | 1.36 Inch |
| Weight | 3.31 lbs. |
| Enclosure Color | Black |
| Service & Support Type | 1-year, Onsite Warranty |
| Security Devices | Discrete TPM 2.0, TCG certified |
| Features | 2x 2.5 Gigabit Ethernet (2x RJ-45) |
Processor
| Processor / Type | Atom |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | Quad-Core |
| Processor / Clock Speed | 1.9 GHz |
| Processor / Number | X6425RE |
| Processor / Installed Qty | 1 |
| Cache Memory Type | L2 Cache |
| Cache Memory Installed Size | 1.5 MB |
Expansion
| Interfaces & Connections | 2x USB 3.2 Gen 2 1x line-out (3.5mm) 1x microphone (3.5mm) 2x serial (RS232 / RS422 / RS485, BIOS selectable) 3x LED (LED1: storage / LED2: Wireless / LED3: User defined or WWAN) 2x USB 2.0 1x HDMI 1.4b 1x DisplayPort 1.4 1x DC-in 3pin Phoenix connector for 9-36V WDC (SE10-I only) 1x Slim Tip power connector (SE10 only) 2x 2.5GbE Ethernet (RJ-45) |
| Front I/O Ports | 2x USB 3.2 Gen 2 1x line-out (3.5mm) 1x microphone (3.5mm) 2x serial (RS232 / RS422 / RS485, BIOS selectable) 3x LED (LED1: storage / LED2: Wireless / LED3: User defined or WWAN) |
| Rear I/O Ports | 2x USB 2.0 1x HDMI 1.4b 1x DisplayPort 1.4 1x DC-in 3pin Phoenix connector for 9-36V WDC (SE10-I only) 1x Slim Tip power connector (SE10 only) 2x 2.5GbE Ethernet (RJ-45) |
Networking
| Data Link Protocol | IEEE 802.11 ax, Bluetooth 5.1 |
Video
| Graphics Controller | Intel UHD Graphic |
UNSPSC Code
| UNSPSC Code | 43211508 |
Memory
| Cache Memory Type | L2 Cache |
| RAM / Installed Qty | 2 |
| RAM / Total Slots Qty | 2 |
| RAM / Technology | DDR4 |
| RAM / Total Installed Size | 32 GB |
| RAM / Memory Speed | 3200 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 32 GB |
Storage
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 256 GB |
| SSD / Installed Qty | 1 |
| Storage Controller Type | M.2 |
| Hard Drive / Capacity (2nd) | None GB |
I/O
| Keyboard | None |
| Mouse | None |
Power
| Power / Device Type | Power Supply |
| Power / Provided (W) | 65 Watt |
| Power / Voltage Required | 100-240V |
| Efficiency | 88% |
Dimensions&Miscellaneous
| Enclosure Color | Black |
| Width | 7.04 Inch |
| Depth | 5.31 Inch |
| Height | 1.36 Inch |
| Weight | 3.31 lbs. |
