Products Memory, Storage and Components LENOVO ThinkSystem 5400 MAX...

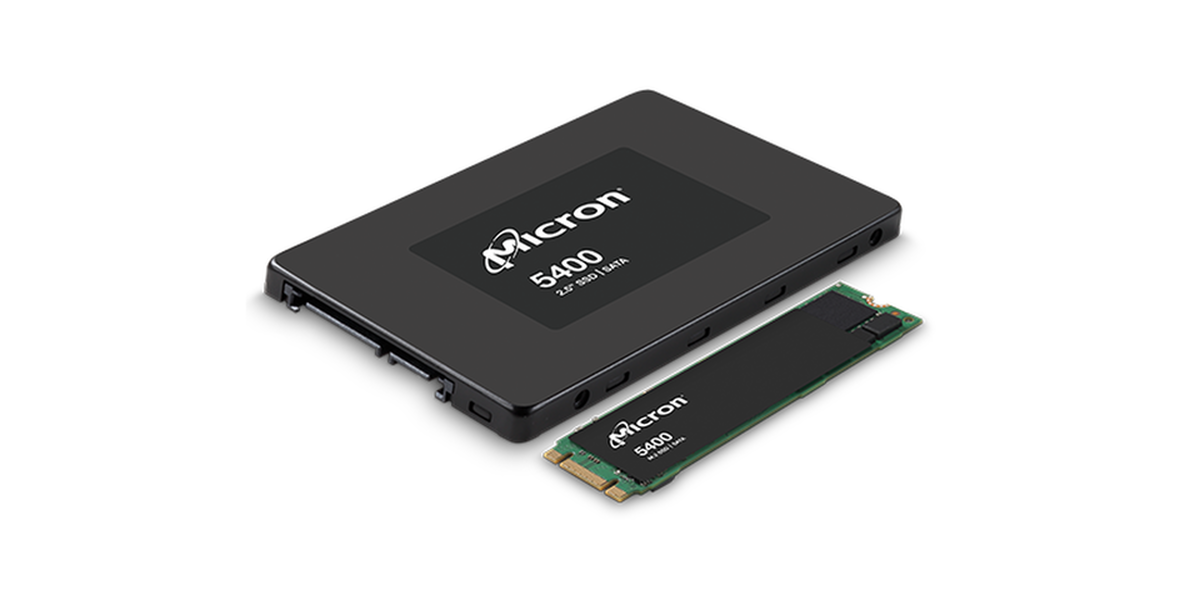

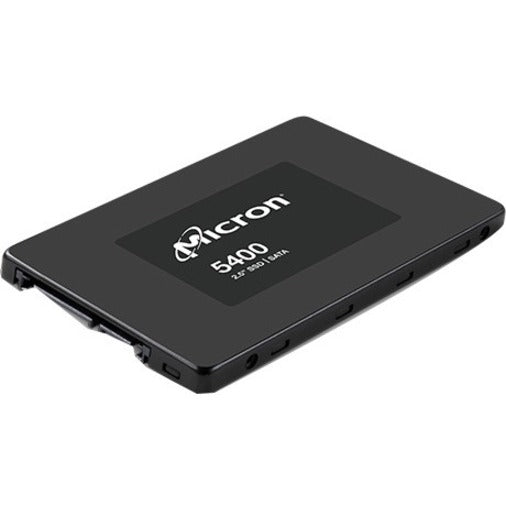

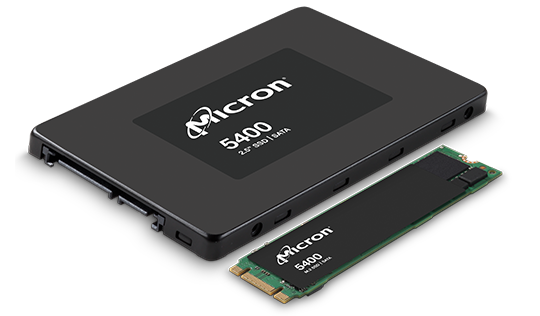

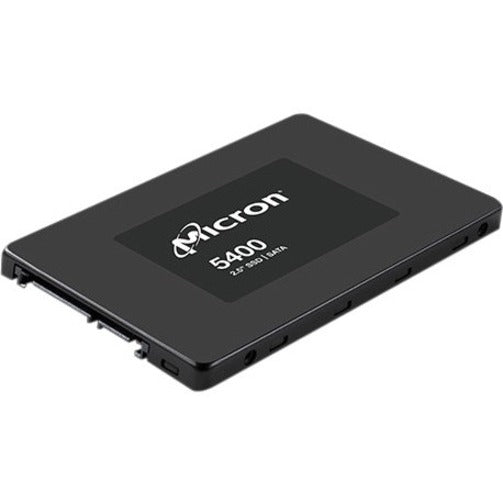

LENOVO ThinkSystem 5400 MAX 480GB 2.5" SATA SSD Hot-Swap

VENDOR: LENOVO Mfg Part#: 4XB7A82289 UPC#: 889488633807
1 5
Photo is for illustration purposes only. Actual product may be different.
$1,019.00
$1,019.00
Sale Sold out
Shipping calculated at checkout.
  • 480 GB capacity with 2.5" hot-swap form factor
  • 3D TLC NAND flash for reliable mixed-use performance
  • Supports SATA 6Gb/s interface with 6 GBps transfer rate
  • Sequential up to 540 MBps read / 520 MBps write; Random 95K/58K IOPS
  • High endurance: 5.0 DWPD; MTBF rated at 3,000,000 hours
  • S.M.A.R.T support and low power consumption (2.5W/3.1W R/W)

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Enterprise-grade endurance with 5.0 DWPD and 3M-hour MTBF for reliability-critical environments
  • Hot-swap compatibility and CRU warranty simplify maintenance in data centers and server racks
  • Balanced performance profile (540MB/s read, 520MB/s write, 95K/58K IOPS) suits mixed workloads

Product Overview

The LENOVO ThinkSystem 5400 MAX 480GB SSD delivers enterprise-grade performance and endurance for data-intensive environments. Built in a standard 2.5-inch hot-swap form factor with a SATA 6Gb/s interface, this SSD is engineered to support mixed-use workloads. Its 3D TLC NAND architecture, combined with high endurance of up to 5.0 DWPD, ensures both speed and lasting durability. The drive supports up to 540 MB/s read and 520 MB/s write, with 95,000/58,000 IOPS respectively. Ideal for high-performance applications and VM deployments.

The 5400 MAX features an impressive 3,000,000-hour MTBF and supports S.M.A.R.T. tools for consistent monitoring. With power-efficient consumption and a 1-year CRU warranty, it's a smart choice for maximizing storage ROI in demanding enterprise settings.

Specifications

Product Overview
Product Type Solid State Drive (SSD)
Form Factor 2.5-inch
Hot-Swap Capability Yes
Interface SATA 6 Gb/s
Capacity 480 GB
Flash Memory Type 3D TLC NAND
Endurance (DWPD) 5.0
MTBF 3,000,000 hours
Power Consumption (Read) 2.5 Watts
Power Consumption (Write) 3.1 Watts
Warranty 1-Year CRU Limited Warranty

Physical & Environmental
Width 2.8 inches
Depth 4 inches
Height 0.3 inches
Minimum Operating Temperature 0 °C
Maximum Operating Temperature 70 °C

Advanced Security Features
S.M.A.R.T. Support Yes

Interfaces
Interface Type SATA 6 Gb/s
Data Transfer Rate 6 Gb/s
Max Sequential Read Speed 540 MB/s
Max Sequential Write Speed 520 MB/s
Max Random 4KB Read IOPS 95,000 IOPS
Max Random 4KB Write IOPS 58,000 IOPS

Compliance & Origin
Country of Origin
TAA Compliant
