LG 2K LSCB025 217-Inch 2.5mm Pixel Pitch FullHD LED Display

VENDOR: LG Mfg Part#: LSCB-F217C UPC#: 195174066928
1 4

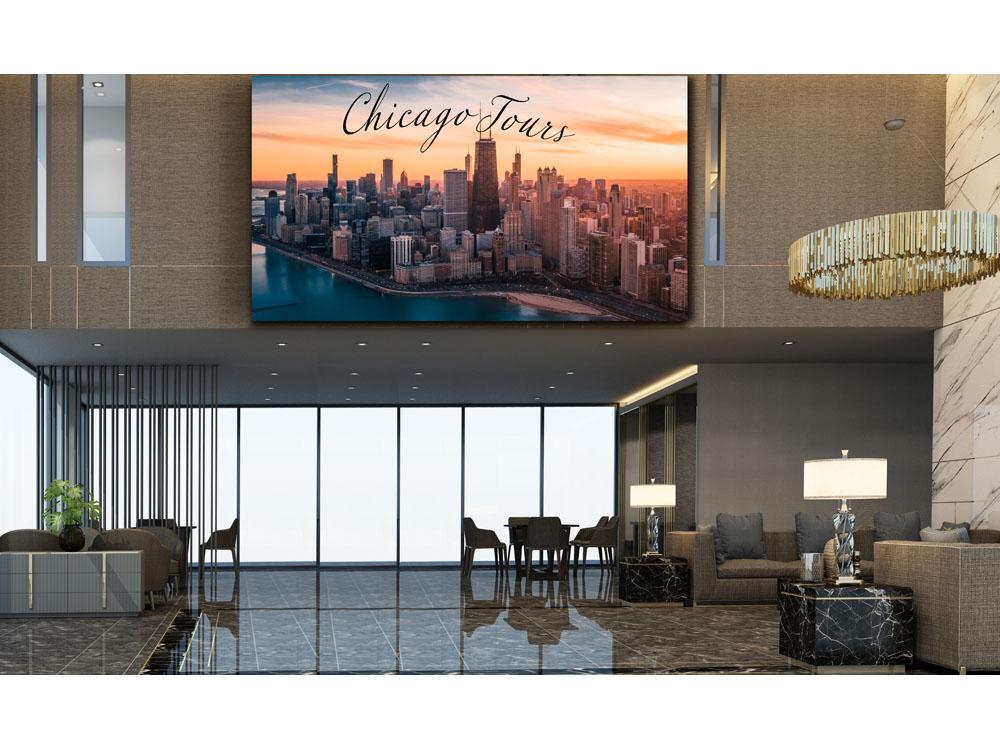

Photo is for illustration purposes only. Actual product may be different.
$96,796.00
$96,796.00
Sale Sold out
MSRP: $122,695.00
Shipping calculated at checkout.
  • 217-inch diagonal LED display for large-format viewing environments
  • 2.5 mm pixel pitch for precise image clarity in indoor applications
  • FullHD resolution (1920 x 1080) supports high-definition content
  • 800 nits brightness delivers strong visibility in ambient lighting
  • Comprises 64 LSCB025-GK.AUS panels and 1 CVCA unit
  • TAA compliant and manufactured in South Korea

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and return policy

View full details

Key Benefits

Eye-Insights
  • Ideal for enterprise and government installations due to TAA compliance and South Korean manufacturing origin
  • Modular design (64 panels + 1 CVCA) offers flexibility in large-scale integrated display configurations
  • Delivers high-performance FullHD visuals across a massive 217-inch canvas for immersive viewer engagement

Product Overview

2K 217Inch LSCB025 2.5mm FullHD, 64 pcs of LSCB025-GK.AUS, 1 CVCA

Specifications

Product Overview
Product Type Direct View LED Display
Form Factor Modular Wall-Mountable Panel Array
Display Diagonal Size 217 Inch
Resolution 1920 x 1080 (FHD)
Pixel Pitch 2.5 mm
Brightness 800 nits
Refresh Rate 3840 Hz
Contrast Ratio 3000:1
Viewing Angle (Horizontal/Vertical) 160° / 160°
Panel Configuration 64 x LSCB025-GK.AUS modules
Controller Unit CVCA
Cabinet Power Consumption (Max) 150W per cabinet
Power Consumption (Total, Max) 9600W (approximate for 64 modules)
Input Voltage 100–240 VAC, 50/60 Hz
Power Supply Type External (via controller)

Physical & Environmental
Width 189 Inch
Height 106.3 Inch
Cabinet Dimensions (W x H x D) 500 x 500 x 87 mm (per module)
Total Display Thickness Approx. 87 mm (front access design)
Cabinet Weight 7.2 kg (per module)
Installation Type Wall-Mounted or Frame-Based
Cooling Method Natural Convection / Fanless Design
Operating Temperature 0°C to 40°C
Operating Humidity 10% to 80% (Non-condensing)
Storage Temperature -20°C to 60°C

Cloud Management & Licensing
Management Platform LG SuperSign or LED Assistant (PC Software)
Cloud Remote Monitoring Supported via CVCA Controller
Content Scheduling Yes (via LG Software)
Firmware Updates Software-enabled via Network

Interfaces
Video Input HDMI, DVI-D, DisplayPort (via CVCA controller)
Control Interface Ethernet / RS-232 (via CVCA controller)
Signal Transmission CAT5e/6 or Fiber Optic (via CVCA controller)
Daisy Chain Support Yes (via Module Interconnection)

Compliance & Origin
TAA Compliant Yes
Country of Origin South Korea
Regulatory Compliance FCC Class A, CE, RoHS
Certifications ETL, EMC, CB, CE

Advanced Security Features
Control Access Protection Password Protected Admin Interface
Data Transmission Security Encrypted Communication (via CVCA)
