LG LSAB009-Q14 0.937mm COB LED Display, 1200nit Peak Brightness

VENDOR: LG Mfg Part#: LSAB009-Q14 UPC#: 195174043899
1 1

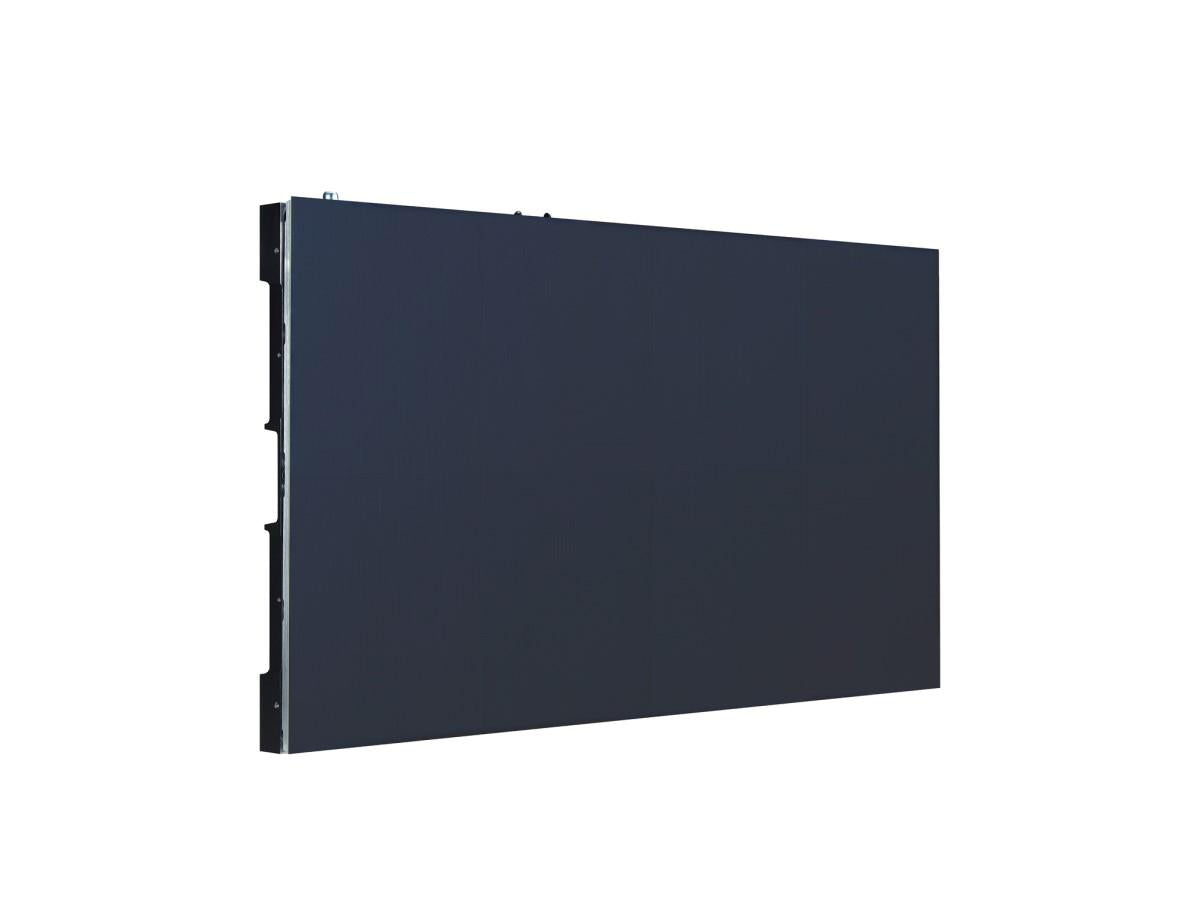

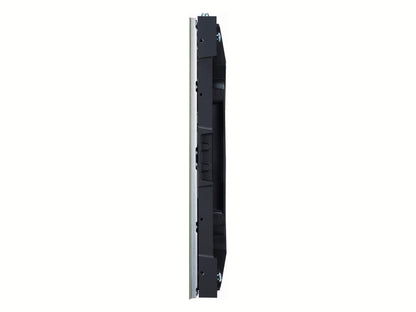

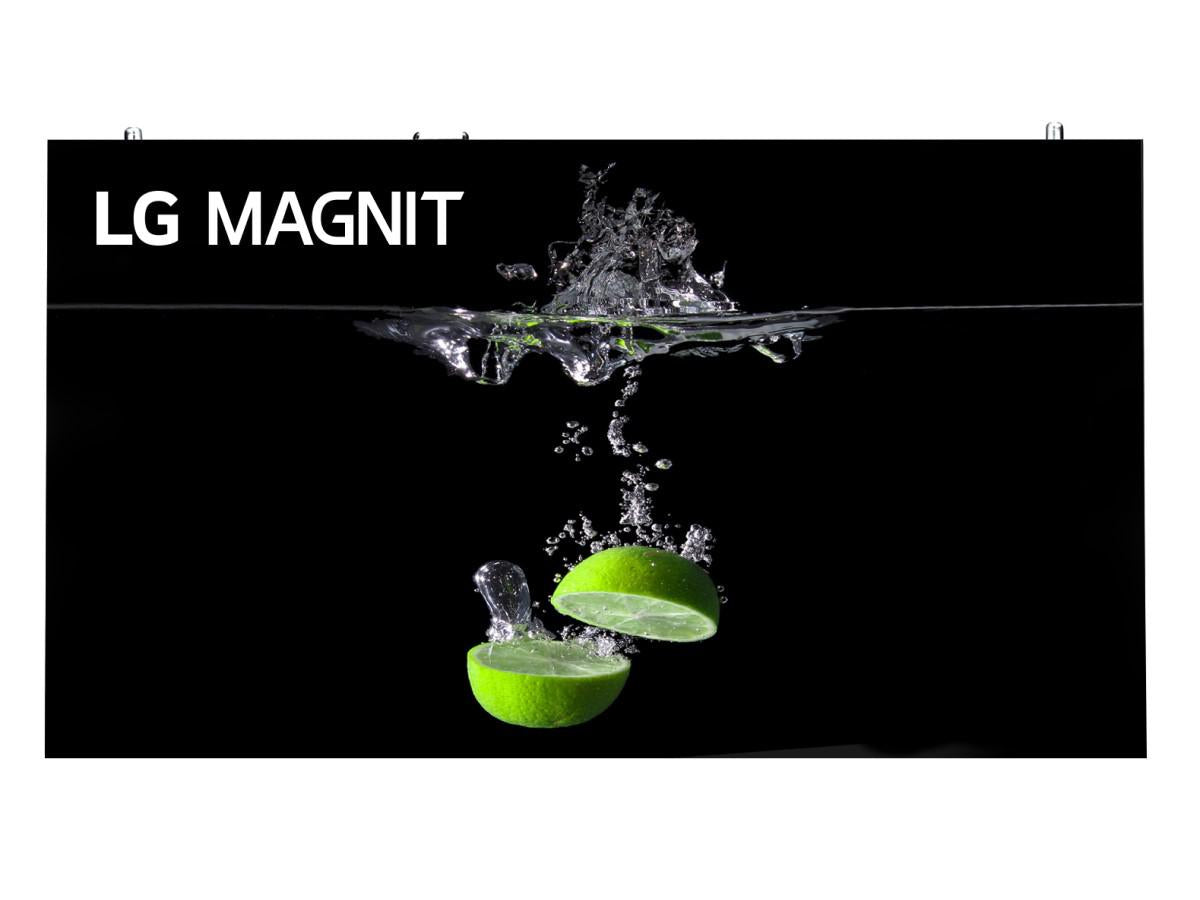

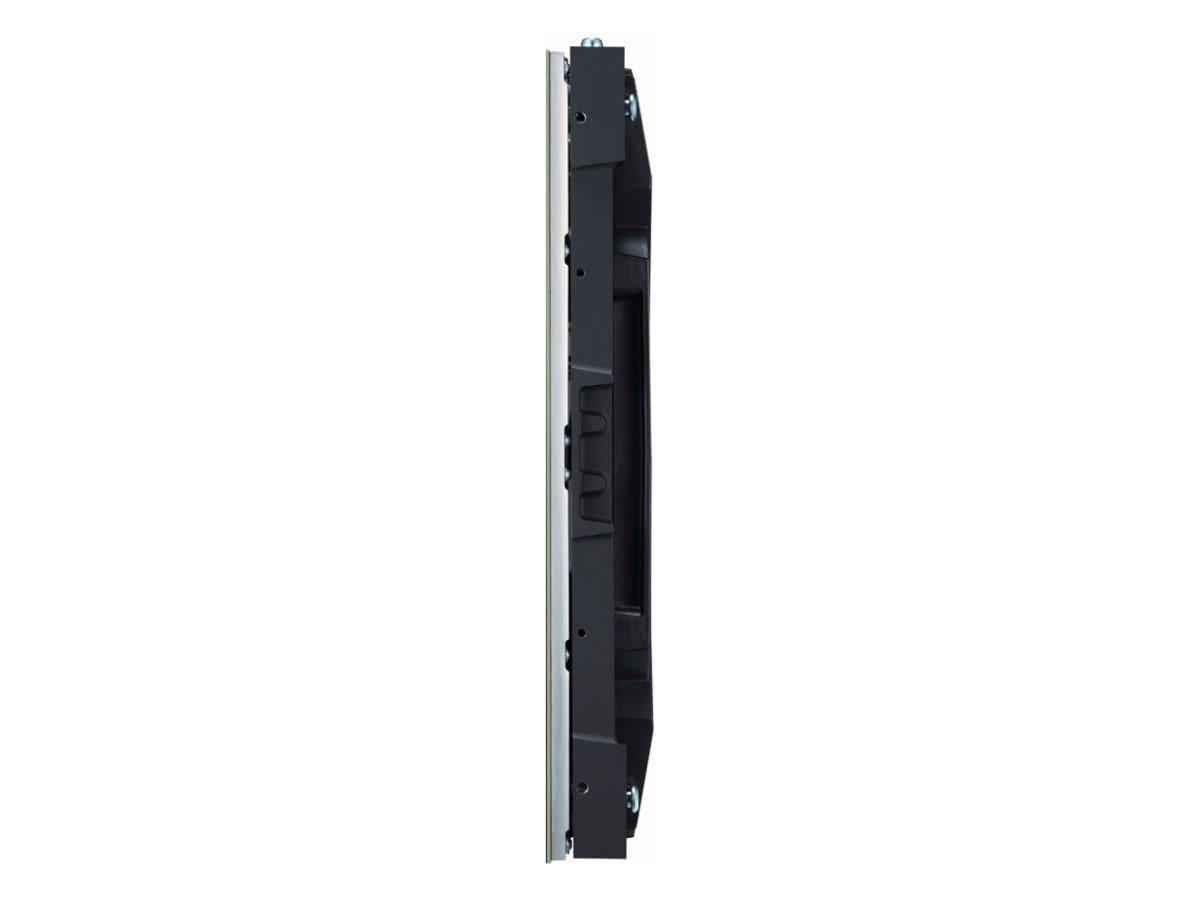

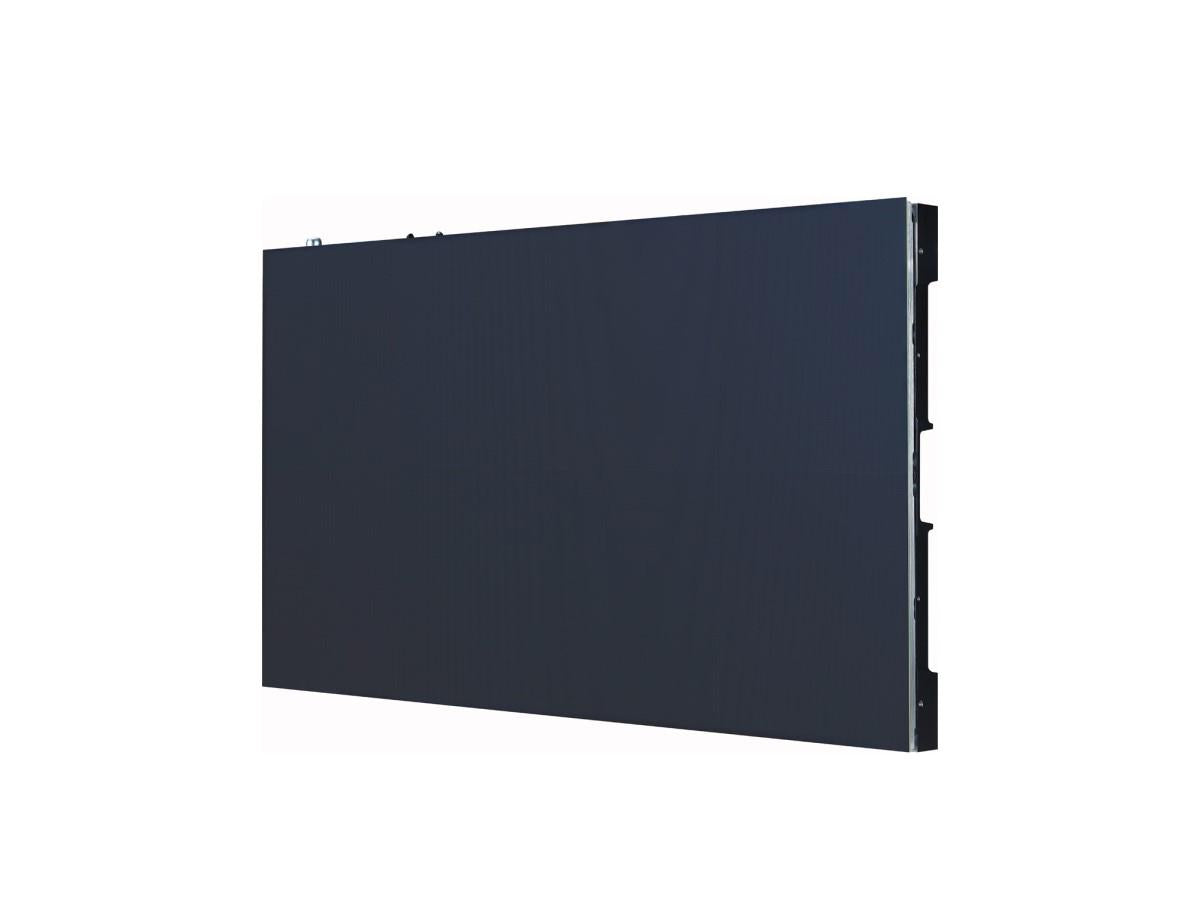

Photo is for illustration purposes only. Actual product may be different.
$7,295.00
$7,295.00
Sale Sold out
MSRP: $9,735.00
Shipping calculated at checkout.
  • Pixel pitch of 0.937mm for ultra-fine image detail
  • Peak brightness of 1,200 nits (typical 600 nits)
  • Chip-On-Board (COB) LED technology for visual clarity
  • Dimension: 600 mm (W) x 337.5 mm (H) x 44.9 mm (D)
  • Main Top Signal redundancy feature for operational stability
  • RoHS and TAA compliance for regulatory assurance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for mission-critical environments with signal redundancy for uninterrupted operation
  • Ultra-fine 0.937mm pitch delivers sharp image quality for high-resolution signage
  • RoHS and TAA certifications support sustainable and government-compliance-focused projects

Product Overview

0.937mm,Peak. 1,200nit Typ. 600nit,COB,600 x 337.5 x 44.9_Main Top Signal redundancy

Specifications

Product Overview
Product Type LED Display
Display Technology Chip-on-Board (COB)
Pixel Pitch 0.937 mm
Peak Brightness 1200 nit
Typical Brightness 600 nit
Form Factor Modular Cabinet
Weight per Cabinet 7.8 kg
Power Consumption (Max) 190 W per cabinet
Power Consumption (Avg) 76 W per cabinet
Input Voltage 100-240V AC, 50/60Hz

Physical & Environmental
Width 600 mm
Height 337.5 mm
Depth 44.9 mm
Operating Temperature Range 0°C to 40°C
Storage Temperature Range -20°C to 60°C
Operating Humidity 10% to 80% (non-condensing)
IP Rating (Front) IP30
Installation Environment Indoor

Cloud Management & Licensing
Remote Management Supported via LG LED Assistant and SuperSign Software
Software Compatibility LG SuperSign LED, LED Assistant
Licensing Requirements No recurring licensing required for standard features

Interfaces
Input Connector Type RJ45 (Ethernet)
Signal Redundancy Yes (Main Top Signal Redundancy)
Control Interface Ethernet-based with external LED controller

Compliance & Origin
RoHS Compliant Yes
TAA Compliant Yes
Country of Origin Republic of Korea
Certifications FCC Class A, CE, ETL

Advanced Security Features
Data Signal Redundancy Yes (Main & Backup line)
Monitoring Capabilities Temperature, Voltage, Signal Status
