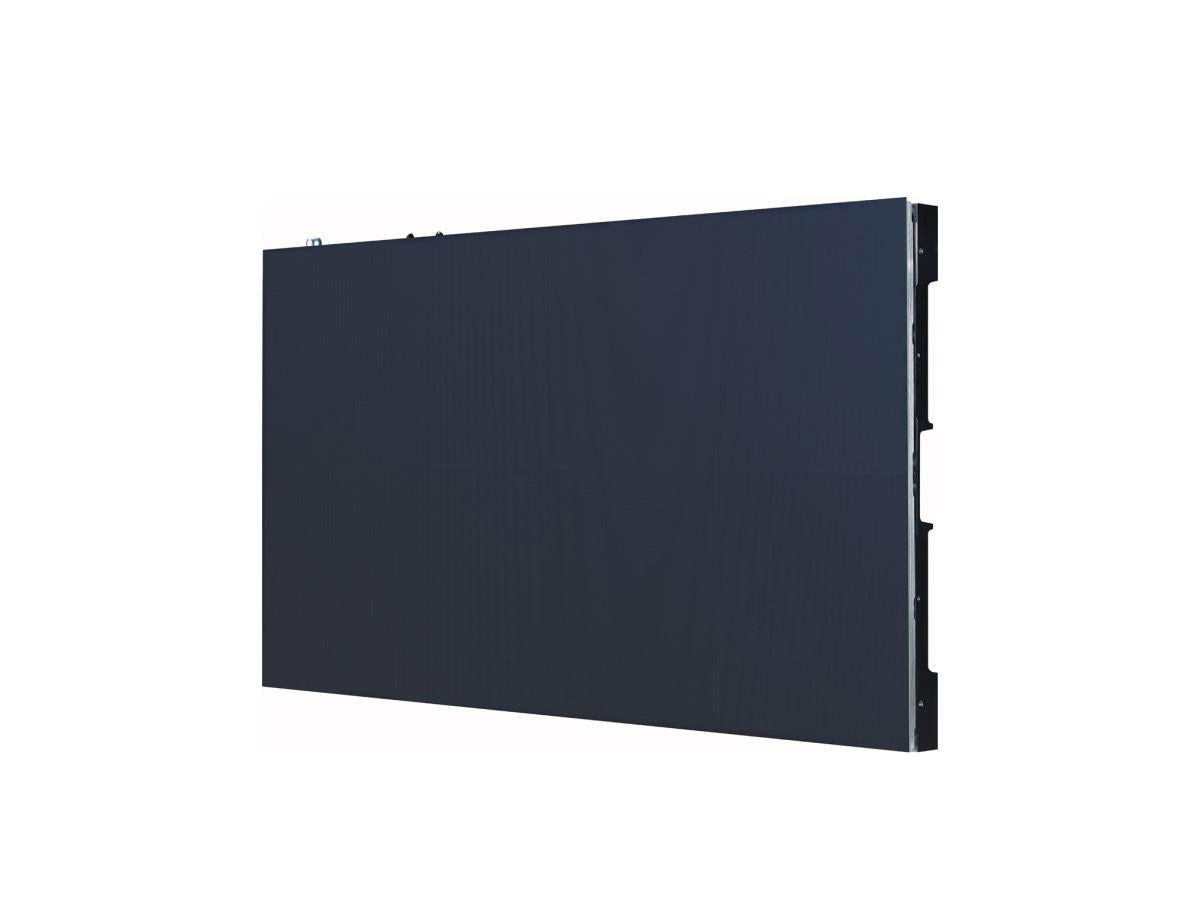

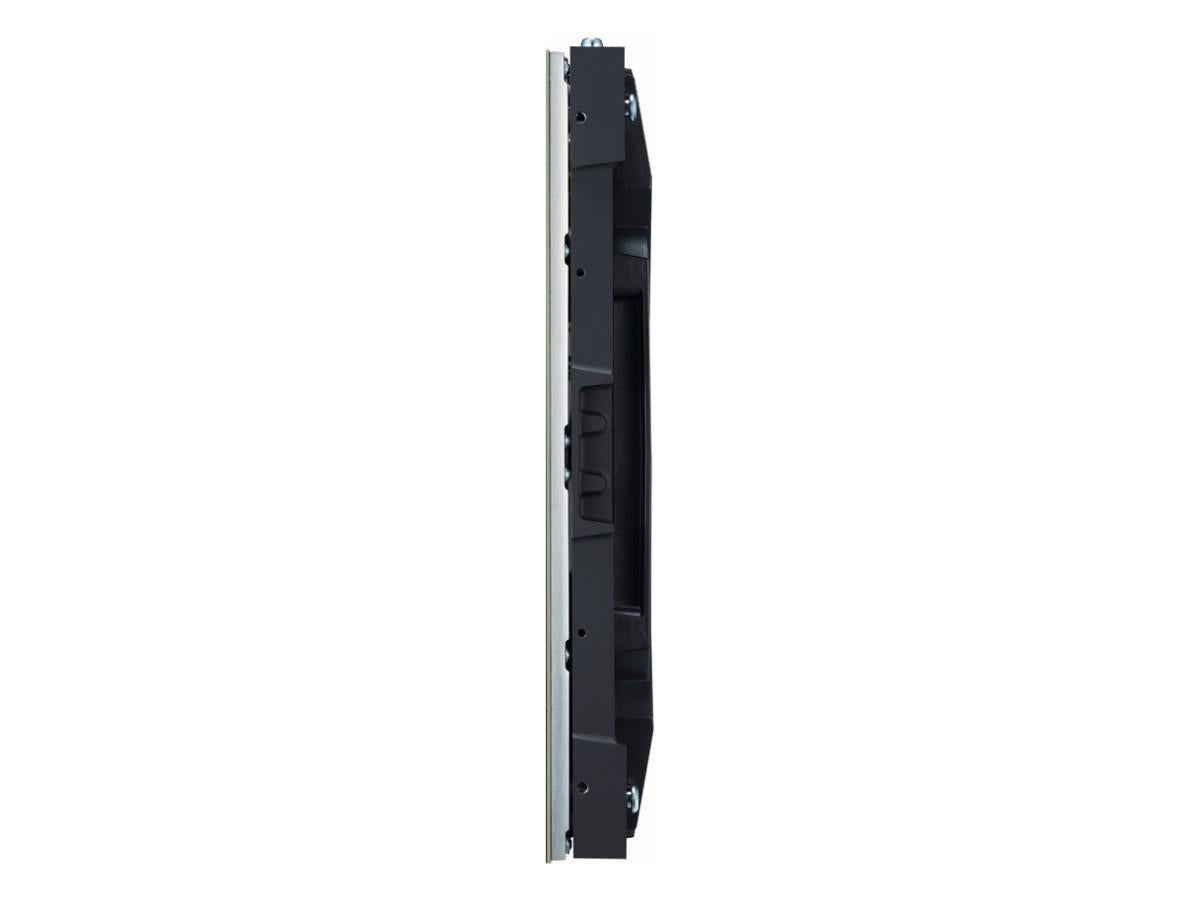

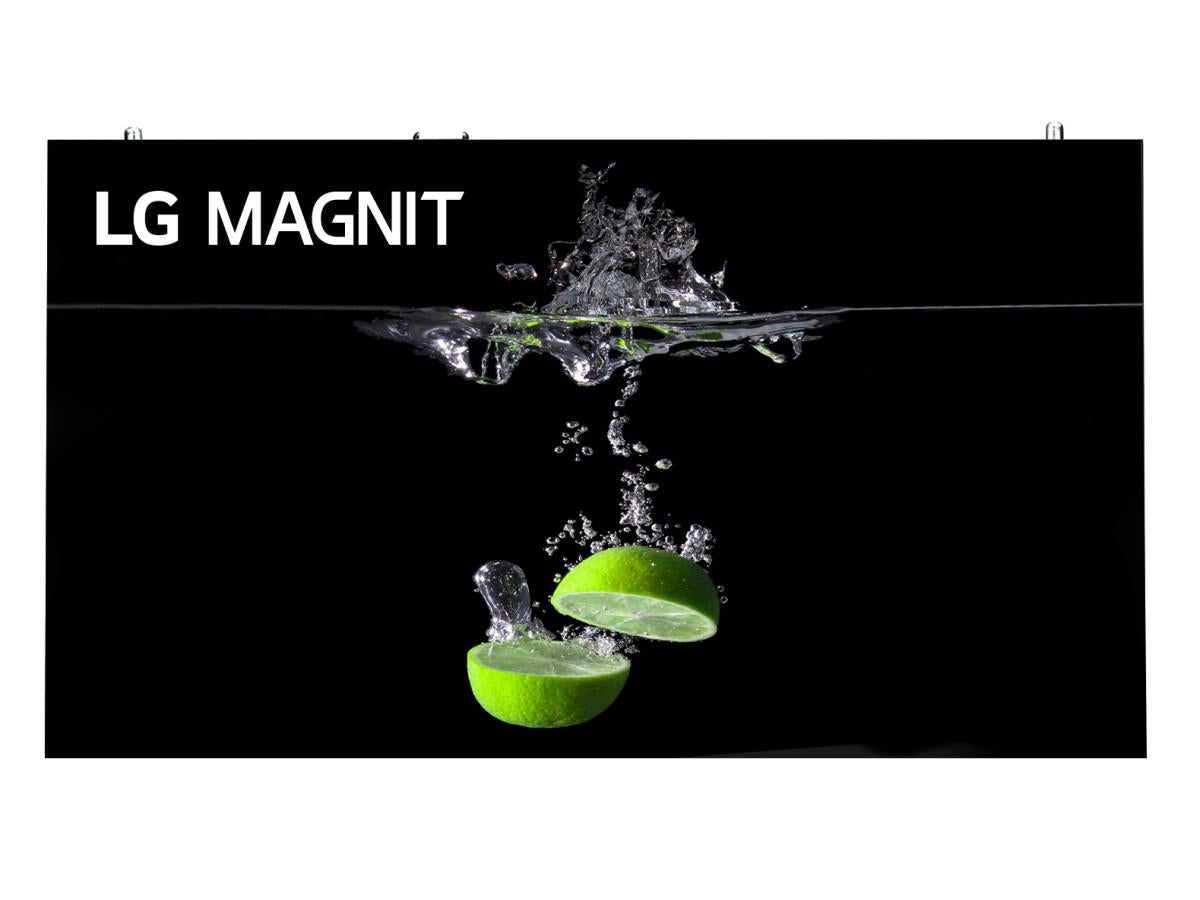

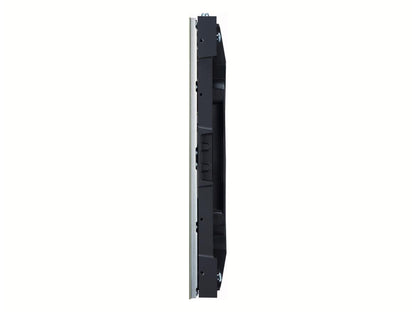

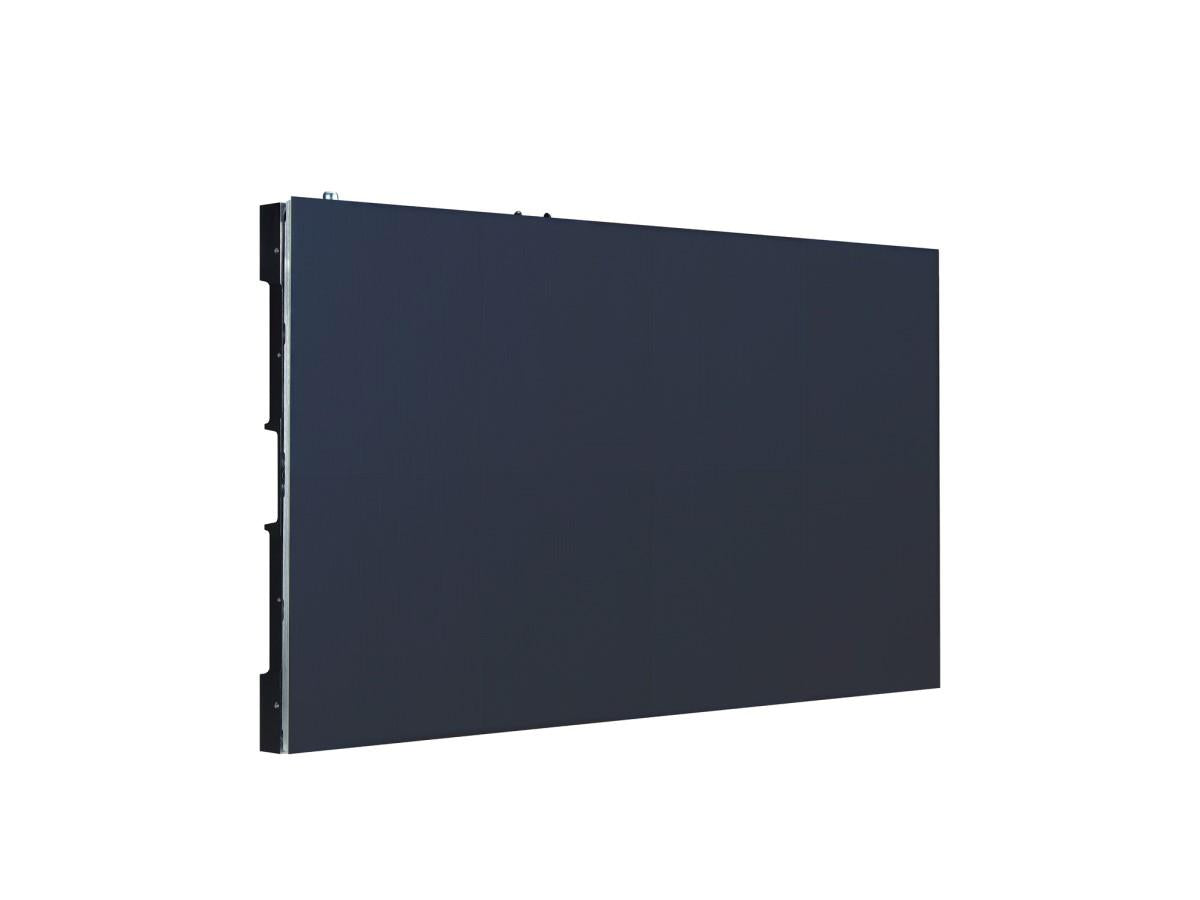

LG LSAB009-U14 0.937mm LED Display Module with Signal+Power Redundancy

VENDOR: LG Mfg Part#: LSAB009-U14 UPC#: 195174043943
1 1
Photo is for illustration purposes only. Actual product may be different.
$7,365.00
$7,365.00
Sale Sold out
MSRP: $9,825.00
Shipping calculated at checkout.
  • 0.937mm pixel pitch for high-resolution LED display applications
  • Peak brightness of 1200 nits and typical brightness of 600 nits for versatile environments
  • Chip-On-Board (COB) technology for durability and image quality
  • Main top signal and power redundancy for high availability
  • Compact size: 600 x 337.5 x 44.9 mm for easy integration
  • RoHS and TAA compliance for regulatory assurance

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed with main top signal and power redundancy, this module ensures continuous operation even in mission-critical deployments.
  • Featuring COB technology and up to 1200 nits peak brightness, it provides high-level visual performance in both bright and dim environments.
  • RoHS and TAA compliance make this display module suitable for government and enterprise procurement programs.

Product Overview

0.937mm,Peak. 1,200nit Typ. 600nit,COB,600 x 337.5 x 44.9_Main Top Signal+Power redundancy

Specifications

Product Overview
Product Type LED Display
Display Technology Chip-on-Board (COB) LED
Pixel Pitch 0.937 mm
Brightness (Peak) 1,200 nit
Brightness (Typical) 600 nit
Power Redundancy Yes (Main Top Signal + Power Redundancy)
Signal Redundancy Yes (Main Top Signal + Power Redundancy)
Built-in Power Supply Yes
Power Consumption (Typical) 60 W
Power Consumption (Max) 180 W
Maximum Power per Square Meter 546 W/m²
AC Input Voltage 100–240 VAC, 50/60 Hz
Cabinet Configuration Indoor LED Module

Wireless Features
Wi-Fi Support

Compliance & Origin
RoHS Yes
TAA Compliance Yes
Country of Origin Korea, Republic of
EMC Certifications FCC Class A, CE
Safety Certifications ETL, CB
Environment Certification RoHS, REACH

Advanced Security Features
Content Protection Yes (via external media player or controller)
Security Protocols Depends on external controller and network setup

Interfaces
Signal Input Type Proprietary Interface via LED Controller (LED Signage Controller required)
Connection Redundancy Yes (Signal and Power)
Control Interface LAN / RJ-45 via external controller

Physical & Environmental
Width 600 mm
Height 337.5 mm
Depth 44.9 mm
Weight 7.5 kg (approx.)
Bezel Width 1.2 mm (Edge to Edge)
Module Type Indoor Fixed Installation
Ingress Protection (Front/Rear) IP50 / IP20
Operating Temperature 0°C to 40°C
Operating Humidity 10%–80% RH (non-condensing)
Storage Temperature -20°C to 60°C
Storage Humidity 10%–85% RH (non-condensing)

Cloud Management & Licensing
Remote Management Via external LED Signage Controller (separate purchase required)
Compatible Management Platform LG SuperSign, LG ConnectedCare (optional)
Cloud Monitoring Compatible with LG ConnectedCare (optional license)
Included Software License Not included – license required for LG ConnectedCare or SuperSign
