LG LSAB012-N22 MAGNIT VI Series DVLED Display, P1.25, 480x270, TAA

VENDOR: LG Mfg Part#: LSAB012-N22 UPC#: 195174084380
1 2

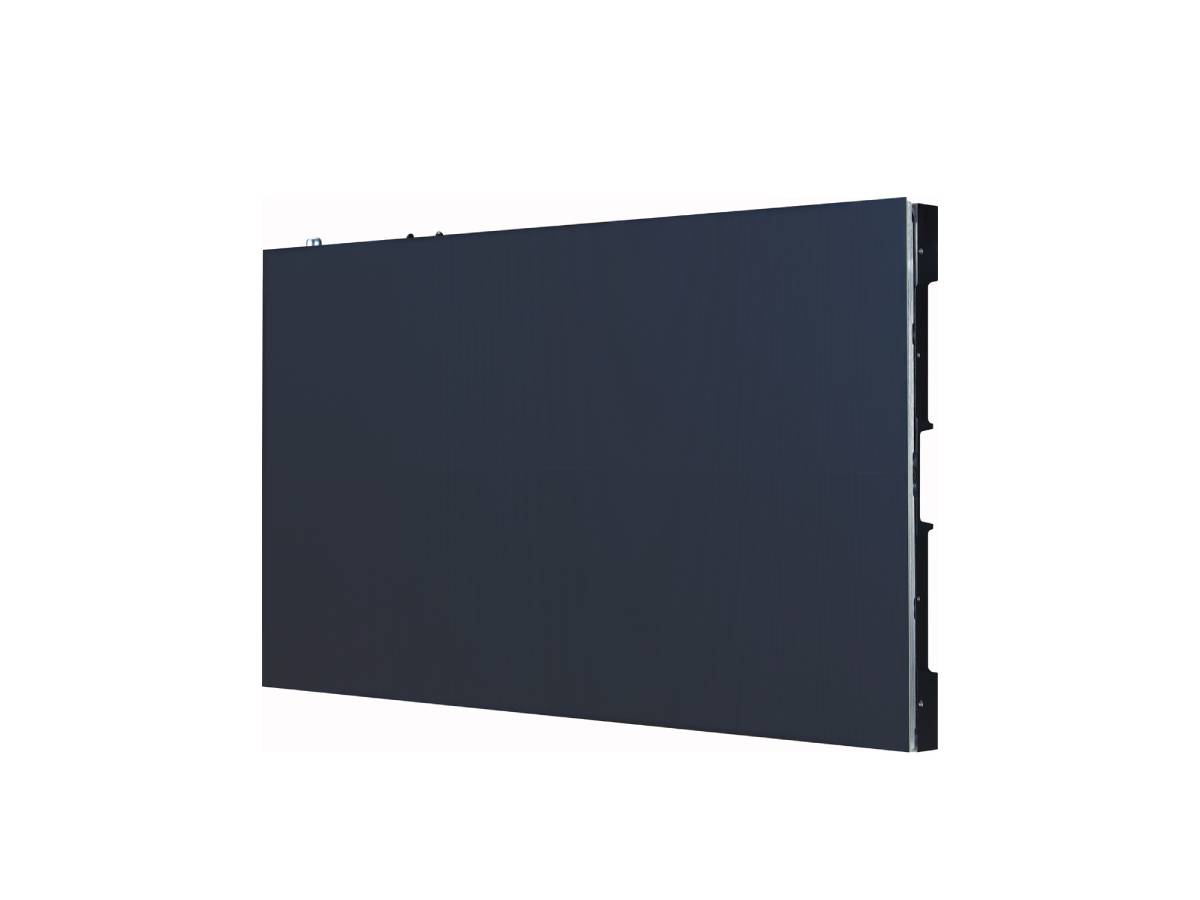

Photo is for illustration purposes only. Actual product may be different.
$6,645.00
$6,645.00
Sale Sold out
MSRP: $8,307.00
Shipping calculated at checkout.
  • MicroLED display technology with 1.25 mm pixel pitch for ultra-fine image clarity
  • 480 x 270 maximum resolution with a 40,000:1 contrast ratio
  • Peak brightness of 1500 nits and 3840 Hz refresh rate for dynamic visuals
  • Signal and power redundancy supports operational reliability
  • Compact cabinet dimensions: 600 x 337.5 x 44.9 mm
  • Energy-efficient at 35W operational power consumption

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered with signal and power redundancy for continuous uptime in mission-critical applications
  • MicroLED technology paired with high contrast and brightness delivers superior image quality
  • RoHS compliant and designed for professional indoor use with strict environmental performance thresholds

Product Overview

TAA MAGNIT LSAB VI SERIES DVLED, P1.25, 480X270 RESOLUTION, SIGNAL+POWER REDUNDANCY, MAIN BOTTOM, SECURE DP DOCKING PANEL/CABINET PREMIUM OTHERS CLASS, COB, 800 NIT, 600X337.5X44.9

Specifications

Product Overview
Manufacturer LG
Product Name LG LSAB012-N22 MAGNIT VI Series DVLED Display
Model LSAB012-N22
Product Type Direct View LED Display (DVLED)
Display Technology Micro LED
Form Factor Cabinet/Panel
Peak Power Consumption 35 Watt
Voltage Required 100 to 240V AC
UPC 195174084380

Interfaces
Signal Redundancy Support Yes
Power Redundancy Support Yes
Input Interface Secure DP Docking Panel

Compliance & Origin
RoHS Compliant Yes
TAA Compliant
Country of Origin

Advanced Security Features
Secure Data Docking Yes, via proprietary docking panel
Signal Path Redundancy Supported

Display Specifications
Pixel Pitch 1.25 mm
Native Resolution 480 x 270
Brightness (Typical) 600 nit
Brightness (Peak) 1500 nit
Contrast Ratio 40000:1
Refresh Rate 3840 Hz
Cabinet Configuration Main Bottom
Display Orientation Landscape

Physical & Environmental
Width 600 mm
Height 337.5 mm
Depth 44.9 mm
Minimum Operating Temperature 0 °C
Maximum Operating Temperature 40 °C
Operating Humidity Range 10% - 80% RH
Cooling Type Fanless (Passive)
Installation Method Wall Mount or Frame Mount (optional accessories)
Module Replacement Front & Rear Serviceable

Cloud Management & Licensing
Remote Monitoring & Management Supported via LG ConnectedCare (optional)
Software Compatibility LG SuperSign Management Software
Diagnostics Self-diagnosis via connected platform

Additional Features
Included Accessories (1) Spare Module Holder, (6) Modules for Phase VI Omega Flat LSAB012-2 Series
Design Feature Chip-on-Board (COB) Technology
Application Environment Indoor
