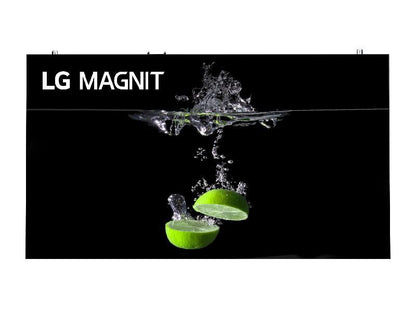

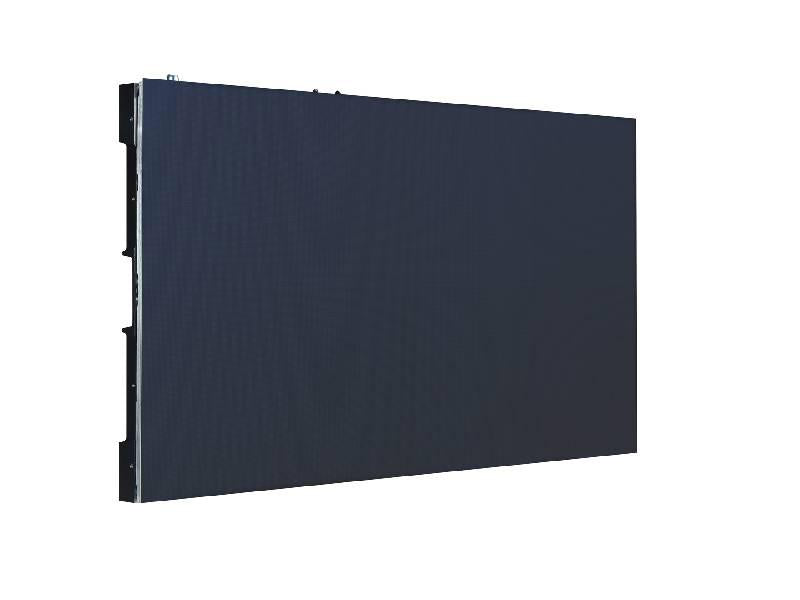

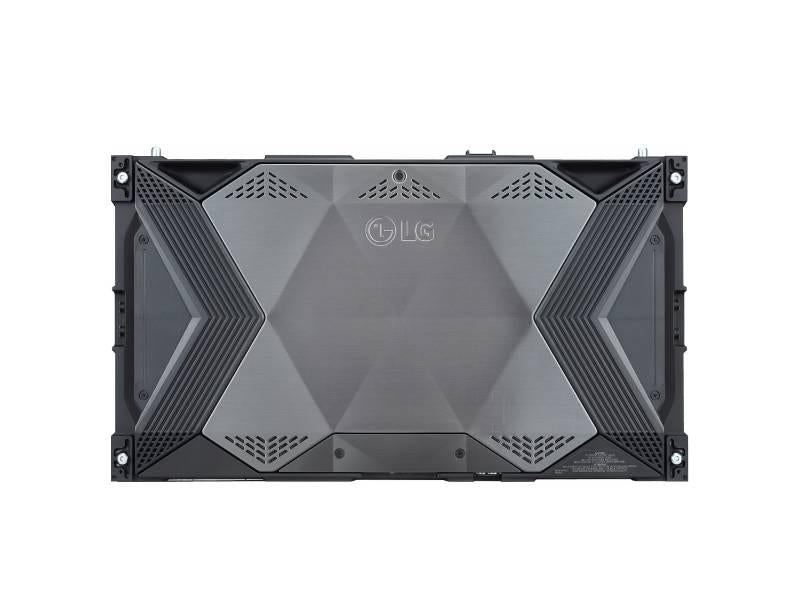

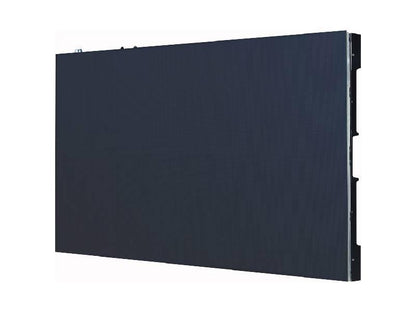

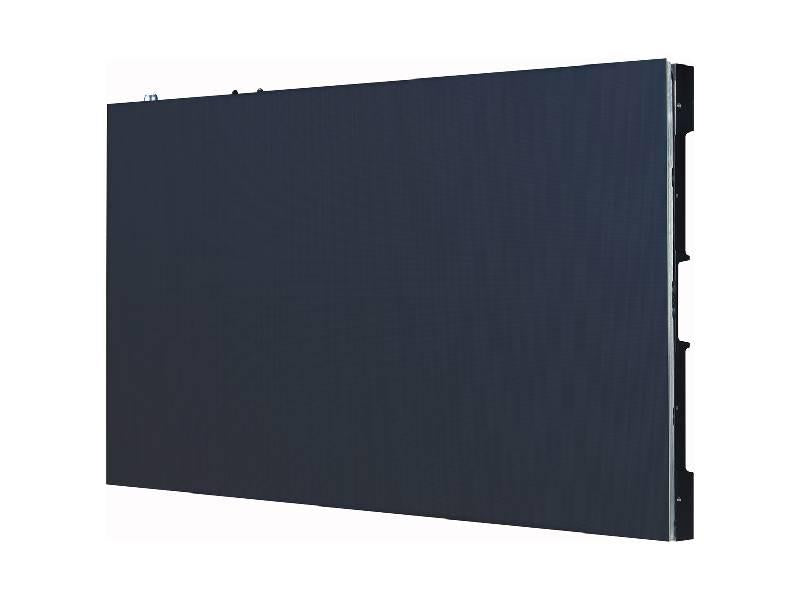

LG LSAB012-S12 Micro LED Display, 1.25mm Pixel Pitch, 1600 nit Peak

VENDOR: LG Mfg Part#: LSAB012-S12 UPC#: 195174044209
  • The LG LSAB012-S12 Micro LED Display is engineered for superior image clarity and professional-grade performance, with a finely tuned 1.25mm pixel pitch and up to 1600 nit peak brightness. Featuring HDR support, high refresh rate, and a compact design, this LED display is optimized for commercial installations where visual impact and reliability are paramount.
  • The LG LSAB012-S12 Micro LED Display is engineered for superior image clarity and professional-grade performance, with a finely tuned 1.25mm pixel pitch and up to 1600 nit peak brightness. Featuring HDR support, high refresh rate, and a compact design, this LED display is optimized for commercial installations where visual impact and reliability are paramount.
  • The LG LSAB012-S12 Micro LED Display is engineered for superior image clarity and professional-grade performance, with a finely tuned 1.25mm pixel pitch and up to 1600 nit peak brightness. Featuring HDR support, high refresh rate, and a compact design, this LED display is optimized for commercial installations where visual impact and reliability are paramount.
  • The LG LSAB012-S12 Micro LED Display is engineered for superior image clarity and professional-grade performance, with a finely tuned 1.25mm pixel pitch and up to 1600 nit peak brightness. Featuring HDR support, high refresh rate, and a compact design, this LED display is optimized for commercial installations where visual impact and reliability are paramount.
1 4
Photo is for illustration purposes only. Actual product may be different.
$6,040.11
$6,040.11
Sale Sold out
MSRP: $8,060.00
Shipping calculated at checkout.
  • Pixel pitch of 1.25mm for high-resolution detail
  • Peak brightness of 1600 nit and dynamic contrast ratio of 150000:1
  • 3840Hz refresh rate for flicker-free visual performance
  • HDR support for enhanced color and depth
  • Chip-on-Board (COB) architecture for increased durability
  • Wi-Fi connectivity and TAA/RoHS compliance
View full details

Key Benefits

Eye-Insights
  • Ideal for professional display environments requiring high brightness and fine pixel pitch, maximizing visual clarity in commercial installations.
  • 3840Hz refresh and HDR support make the display perfect for video playback, motion content, and studio applications.
  • Compact form factor and wide voltage support enable flexible deployment in various infrastructures and industries.

Product Overview

LG LSAB012-S12 Micro LED Display- Pixel Pitch : 1.25MM -PEAK - 1600 nit (Peak.) 800 nit (Max.) -150000 : 1 - HDR - COB - 600 X 337.5 X 44.9MM - SECONDARY STANDARD - POWER 76W - IP50 / IP20 - 3840 Hz - RoHS

Specifications

Primary Information
Model LSAB012-S12
Display Type LED Display
Flat / Curved Flat
Max Resolution 480 x 270
Display Diagonal Size Not Included
Display / Response Time Not Included
Display / Refresh Rate 3840 Hz
Dot Pitch / Pixel Pitch 1.25 Mm
Dynamic Contrast Ratio 150000 : 1
Brightness 1600:1
Viewing Angle 160/160
Image Aspect Ratio Not Included
HDR Capable Yes
Picture Enhancements None
Network Connectivity Wi-Fi
Power Consumption Operational 76 Watt
Power Consumption Sleeping None
Power Consumption SDR (On mode) None
Power Consumption HDR (On mode) None
Power Consumption (Off Mode) None
Power / Voltage Required 100 to 240 V
Width 600 Mm
Depth 44.9 Mm
Height 337.5 Mm
Min Operating Temperature 0 CELSIUS
Max Operating Temperature 40 CELSIUS
Humidity Range Operating 10-80% RH

UNSPSC Code
UNSPSC Code 44111511

Power
Power / Voltage Required 100 to 240 V
Power Consumption Operational 76 Watt
Power Consumption Sleeping None
Power Consumption (Off Mode) None
Power Consumption HDR (On mode) None
Power Consumption SDR (On mode) None

Special Feature
COO KOREA, REPUBLIC OF
TAA compliance Yes
RoHS Y

Display
Brightness 1600:1
Display Type LED Display
Dot Pitch / Pixel Pitch 1.25 Mm
Dynamic Contrast Ratio 150000 : 1
Display Diagonal Size Not Included
Flat / Curved Flat
HDR Capable Yes
Image Aspect Ratio Not Included
Picture Enhancements None
Flat / Curved Flat
