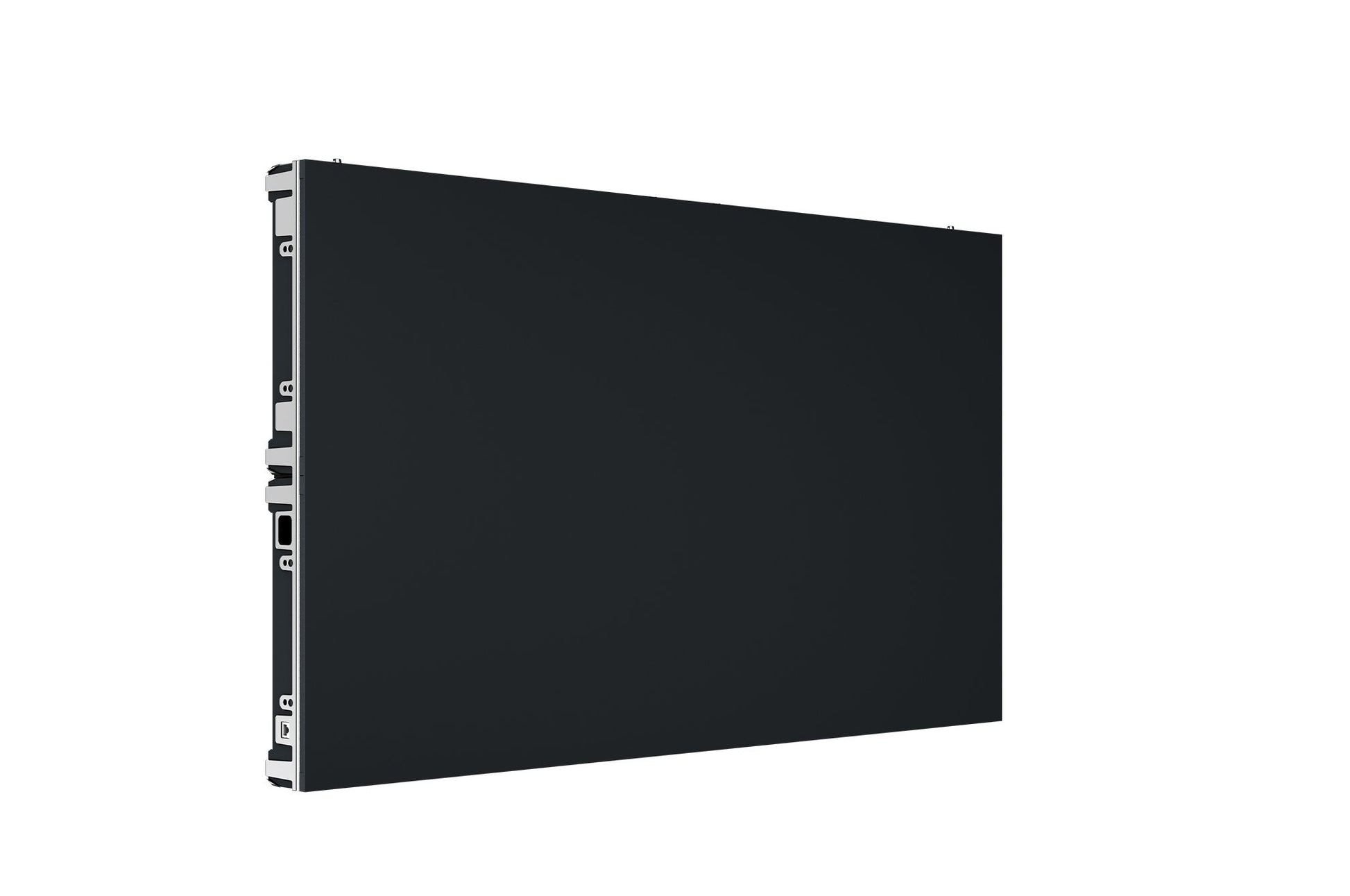

LG LSBE018-GDL DVLED Display, 320x180, 1.88mm Pixel Pitch, 600 nit

VENDOR: LG Mfg Part#: LSBE018-GDL UPC#: 195174076033
1 2
Photo is for illustration purposes only. Actual product may be different.
$1,140.00
$1,140.00
Sale Sold out
MSRP: $1,425.00
Shipping calculated at checkout.
  • 1. 1.88mm dot/pixel pitch for close-range clarity
  • 2. 320 x 180 resolution with 3840 Hz refresh rate
  • 3. Max brightness of 600 nits after calibration
  • 4. 5000:1 contrast ratio for deep image depth
  • 5. TAA compliant and manufactured in Slovakia
  • 6. Compact 600x337.5x72 mm form factor, 6.5 kg weight

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • TAA compliance makes it suitable for federal and government contracts.
  • High 3840 Hz refresh rate ensures flicker-free, smooth video performance.
  • Slim, lightweight cabinet simplifies integration in custom installations with 45° miter cuts.

Product Overview

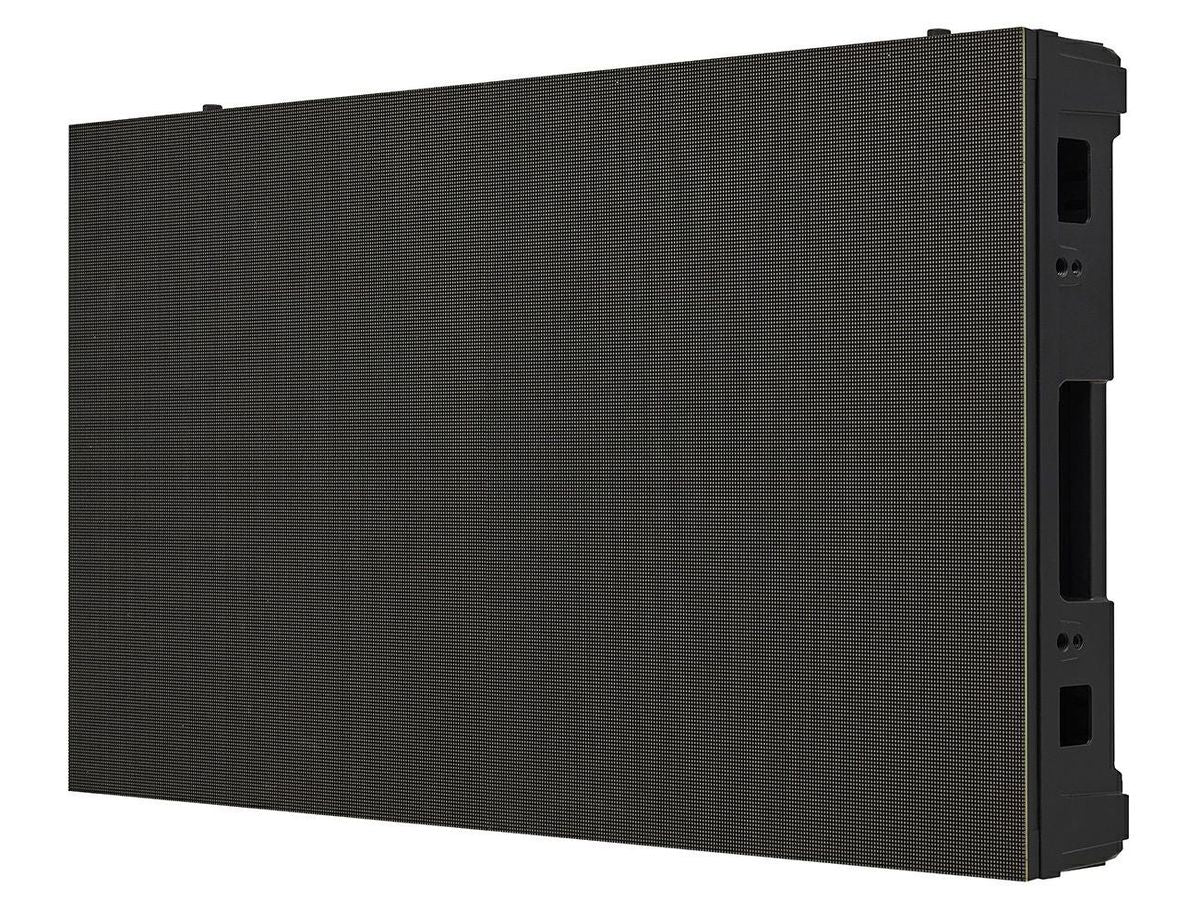

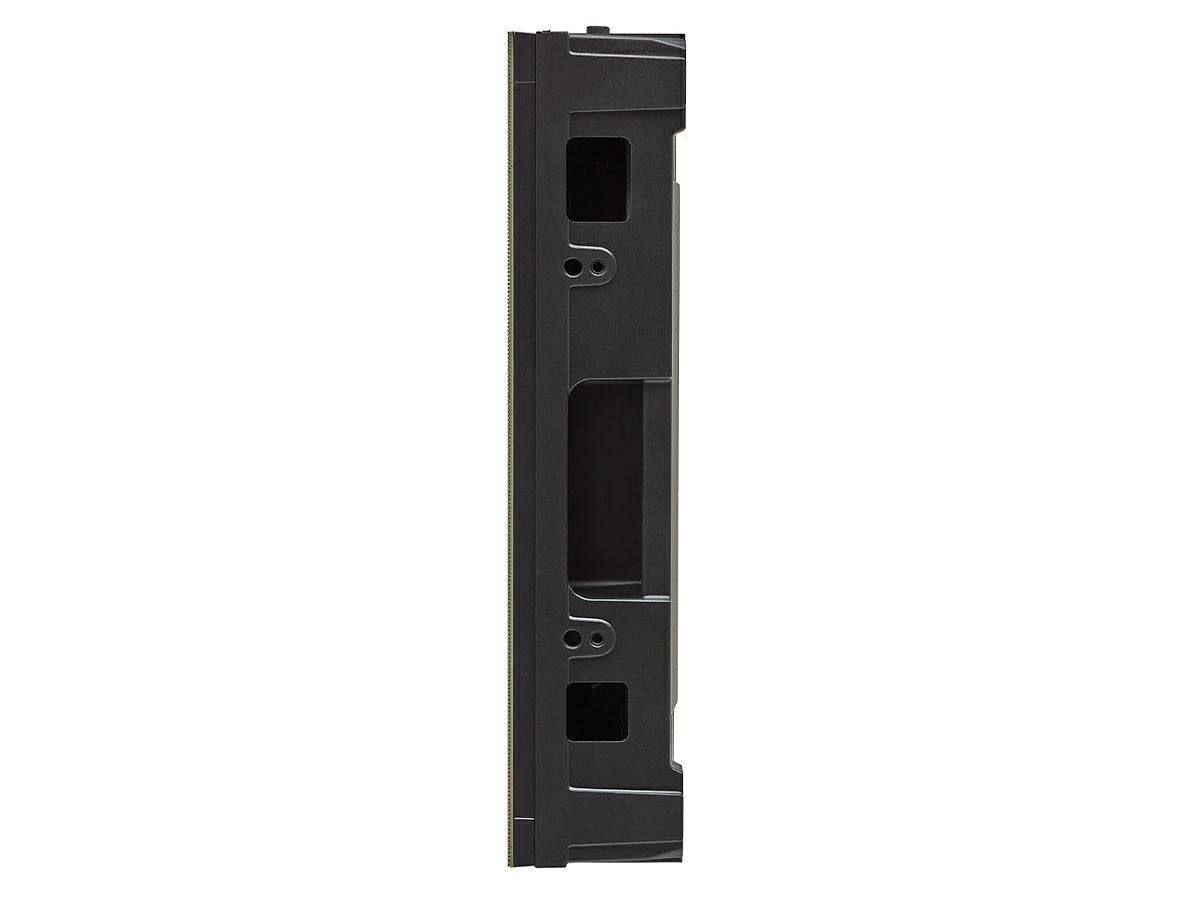

LSBE, DVLED, P1.875, 320X180 RESOLUTION, WITH LEFT CUT 45 DEGREE MITER, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 600X337.5X72

Specifications

Product Overview
Manufacturer LG
Product Name LSBE018-GDL DVLED Display
Type DVLED Display
Model Number LSBE018-GDL
Pixel Pitch 1.88 mm
Contrast Ratio 5000:1
Refresh Rate 3840 Hz
Brightness (After Calibration) 600 nits
Resolution 320 x 180
Form Factor Flat Panel
Weight 6.5 kg
Power Requirements 100-240 VAC
Power Consumption (Max) 103 W
Panel Technology Single SMD LED
Essential Series Essential 1 Class
Miters Left Cut 45° Miter

Physical & Environmental
Width 600 mm
Height 337.5 mm
Depth 72 mm
Operating Temperature (Min) -20°C
Operating Temperature (Max) 40°C
Operating Humidity Range 10–80% RH

Cloud Management & Licensing
Compatible with LG SuperSign Yes
Control Interface Supports remote control via controller cards

Interfaces
Connectivity Type DVLED cabinet connectivity (modular panel; backplane usually includes connections such as power/data-through)
Cabinet Interconnect Modular signal and power interconnect

Compliance & Origin
Country of Origin Slovakia
TAA Compliant Yes

Advanced Security Features
Tamper Detection
Secure Firmware Updates
