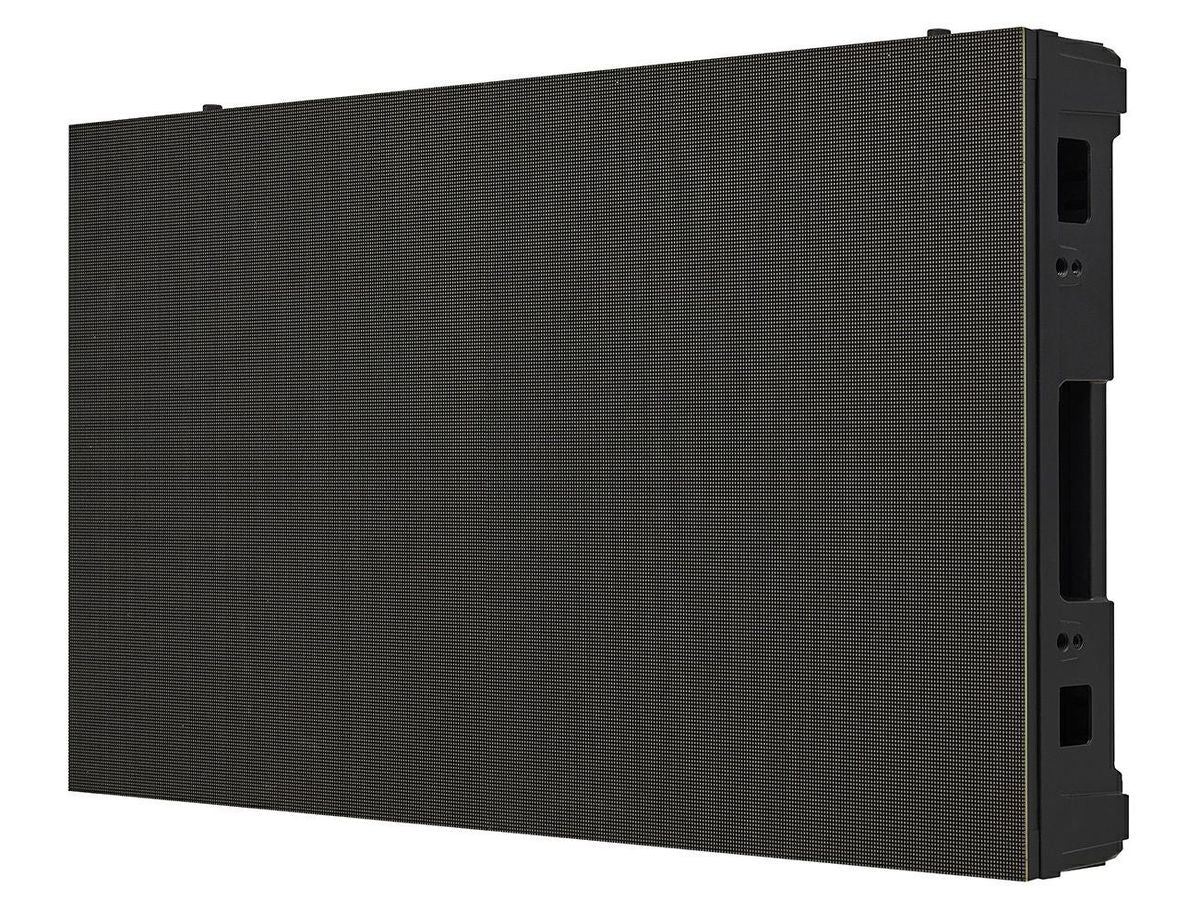

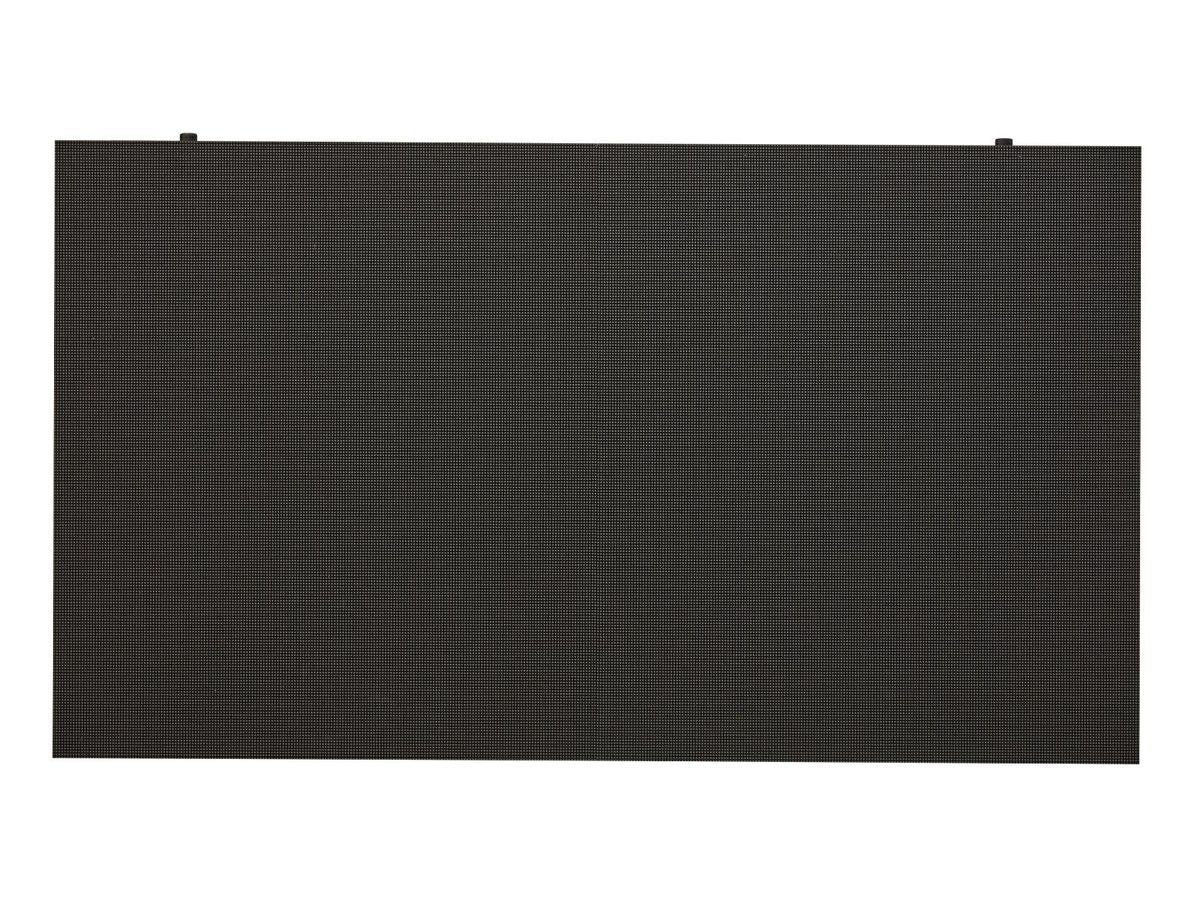

LG LSBE025-GDC DVLED Display Panel, 2.5mm, 600 Nit, 240x135 Res

VENDOR: LG Mfg Part#: LSBE025-GDC UPC#: 195174076156
1 1
Photo is for illustration purposes only. Actual product may be different.
$927.00
$927.00
Sale Sold out
MSRP: $1,158.00
Shipping calculated at checkout.
  • 2.5 mm pixel pitch for detailed imagery in short-viewing distance applications
  • 240 x 135 resolution with 3840 Hz refresh rate for smooth and crisp image rendering
  • 600 nit calibrated brightness and 5000:1 contrast ratio for high visibility
  • Miter-cut 45° edges on left/right sides for seamless corner installations
  • TAA compliant and manufactured in Slovakia for public sector compatibility
  • Operates in wide temperature (-20°C to 40°C) and humidity (10–80%) ranges

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Designed for precision video walls with a 2.5mm pixel pitch and 3840 Hz refresh, ensuring stunning image quality in enterprise settings
  • TAA compliance and European manufacturing make it ideal for government and institutional use
  • Installation flexibility with 45° miter edges enhances design potential for custom display arrays

Product Overview

LSBE, DVLED, P2.5, 240X135 RESOLUTION, WITH L/R CUT 45 DEGREE MITER, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 600X337.5X72

Specifications

Product Overview
Product Type DVLED Display Panel
Model LSBE025
Manufacturer Part Number LSBE025-GDC
UPC 195174076156
Pixel Pitch 2.5 mm
Panel Configuration Single SMD
Form Factor Flat Panel
Weight 6.5 kg
Power Requirements 100 to 240 V AC
Power Consumption (Max) 93 W per cabinet
Class Essential 1

Physical & Environmental
Width 600 mm
Height 337.5 mm
Depth 72 mm
Operating Temperature (Min) -20°C
Operating Temperature (Max) 40°C
Operating Humidity Range 10% – 80% RH

Compliance & Origin
Country of Origin Slovakia
TAA Compliant Yes
Certifications FCC Class A, CE

Installation & Mounting

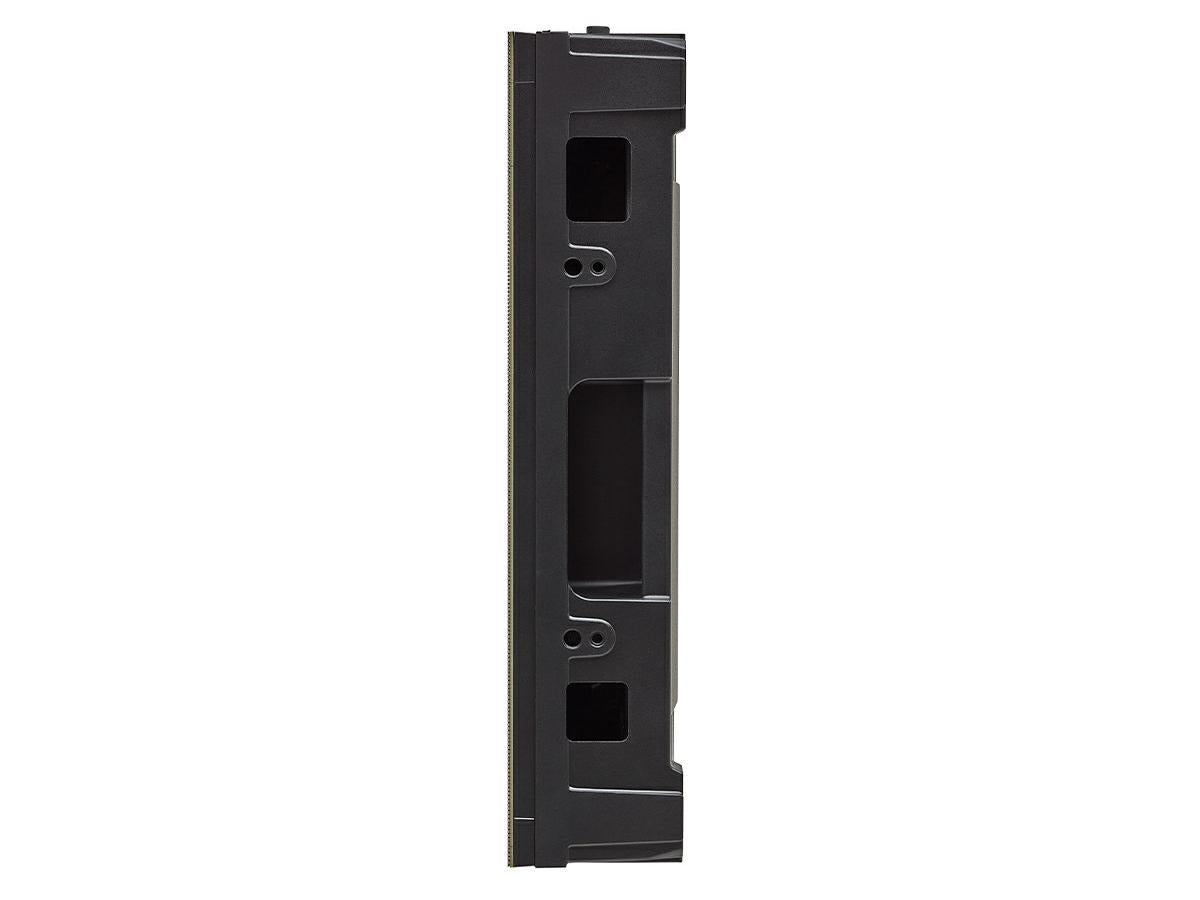

Cabinet Design Mitered 45° Angled (Left/Right Cut)
Mounting Type Modular, wall-mountable with compatible frame kits
Bezel Design Borderless / Seamless when tiled

Interfaces
Video Wall Configuration Support Yes, with L/R 45° Miter Cut
Display Refresh Rate 3840 Hz
Connectivity Type Modular, dependent on controller (not integrated)

Display Features
Display Type Direct View LED (DVLED)
Backlight Technology LED
Maximum Resolution 240 × 135 pixels
Brightness (Calibrated) 600 nits
Contrast Ratio 5000:1

Cloud Management & Licensing
Management Interface Compatible with LG LED Assistant or LG ConnectedCare (via controller)
Firmware Upgrade Remote via external controller (varies by system)
Cloud Management Supported by LG ConnectedCare (optional)

Advanced Security Features
Security Compliance Supports secure access via controller-level management
