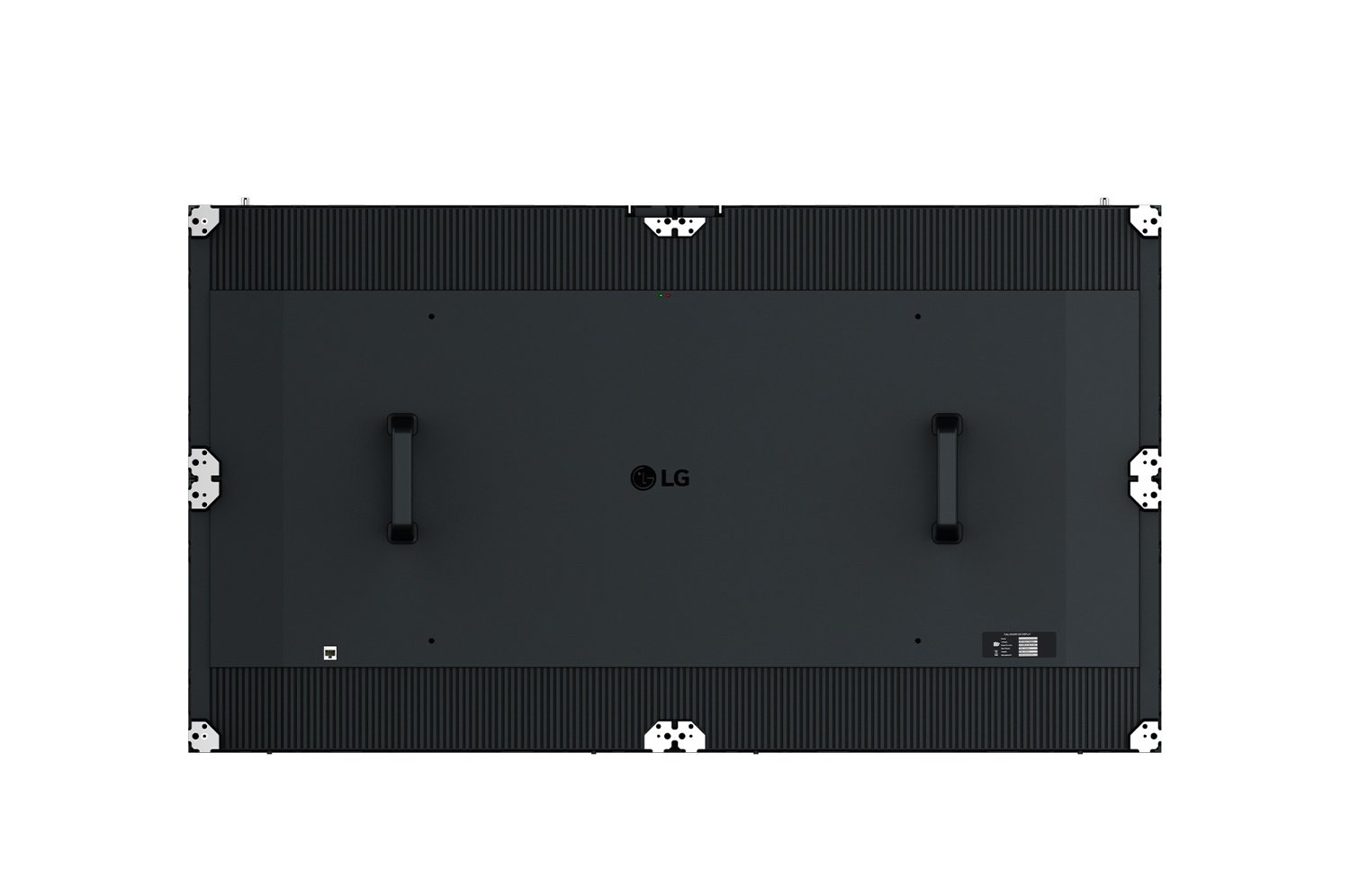

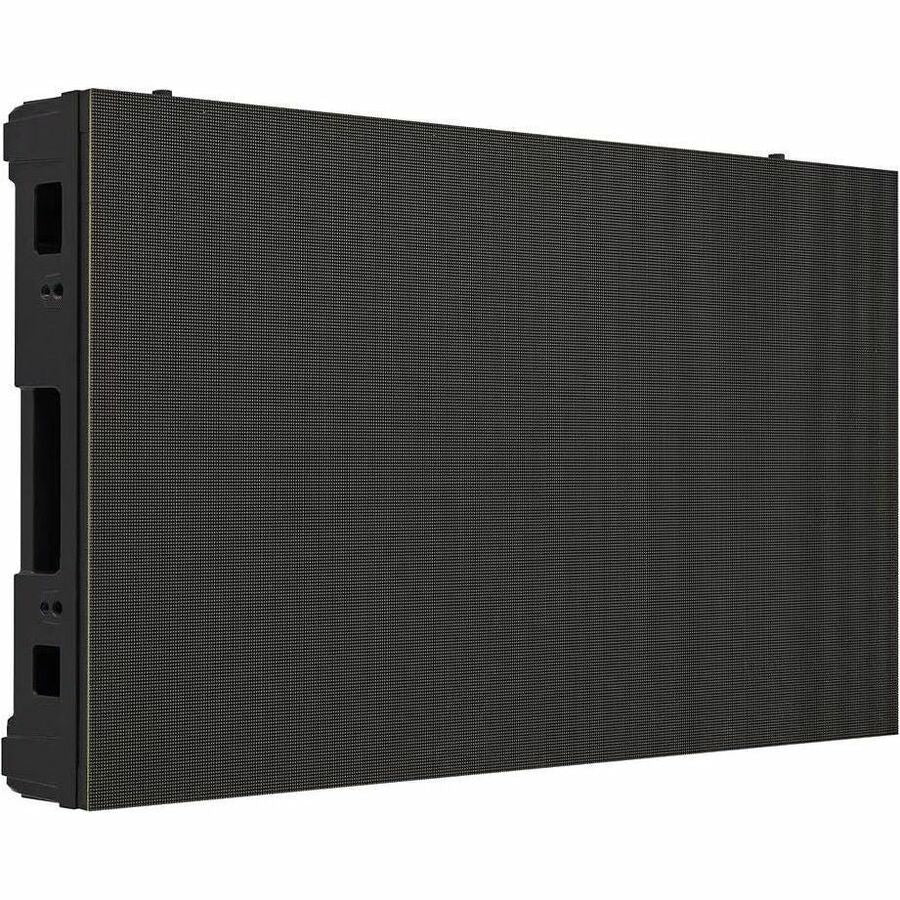

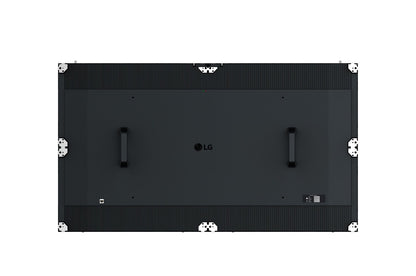

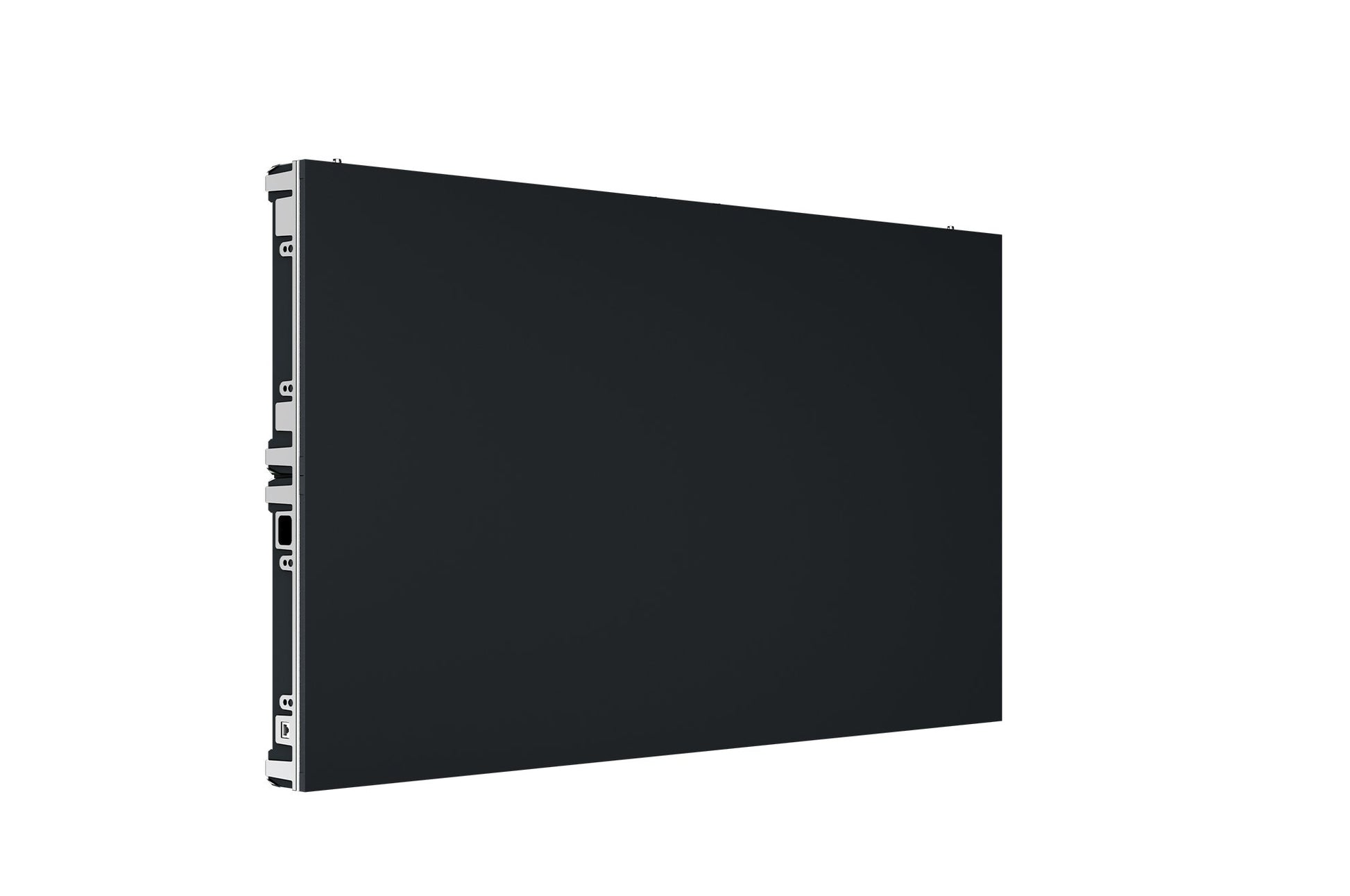

LG LSBE025-GDR DVLED Display, P2.5, 240x135, 600 Nit, TAA Compliant

VENDOR: LG Mfg Part#: LSBE025-GDR UPC#: 195174076088
1 5
Photo is for illustration purposes only. Actual product may be different.
$820.00
$820.00
Sale Sold out
MSRP: $1,025.00
Shipping calculated at checkout.
  • Pixel pitch of 2.5 mm for sharp image clarity in close-range applications
  • 240 x 135 resolution optimized for digital signage
  • Calibrated brightness of 600 nits and 5000:1 contrast ratio
  • 3840 Hz refresh rate for flicker-free video playback

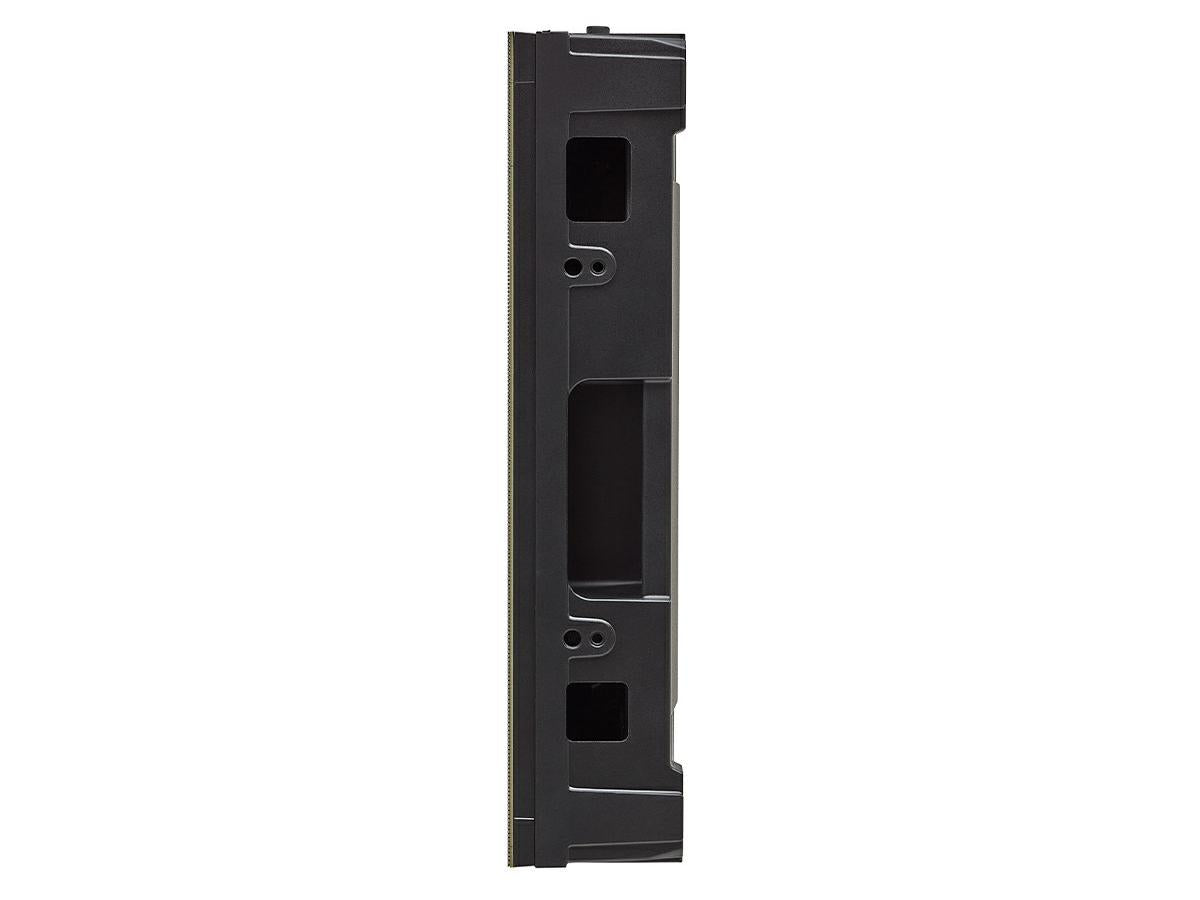

  • Modular design with 45° right-cut miter for seamless custom installations
  • TAA compliant and manufactured in Slovakia, ensuring regulatory readiness

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for government and institutional projects due to its TAA compliance
  • High image quality with 600 nit brightness, 5000:1 contrast ratio, and 2.5 mm pitch supports premium corporate and control room installations
  • Designed for scalable, curved, or angled video wall setups using modular right-cut architecture

Product Overview

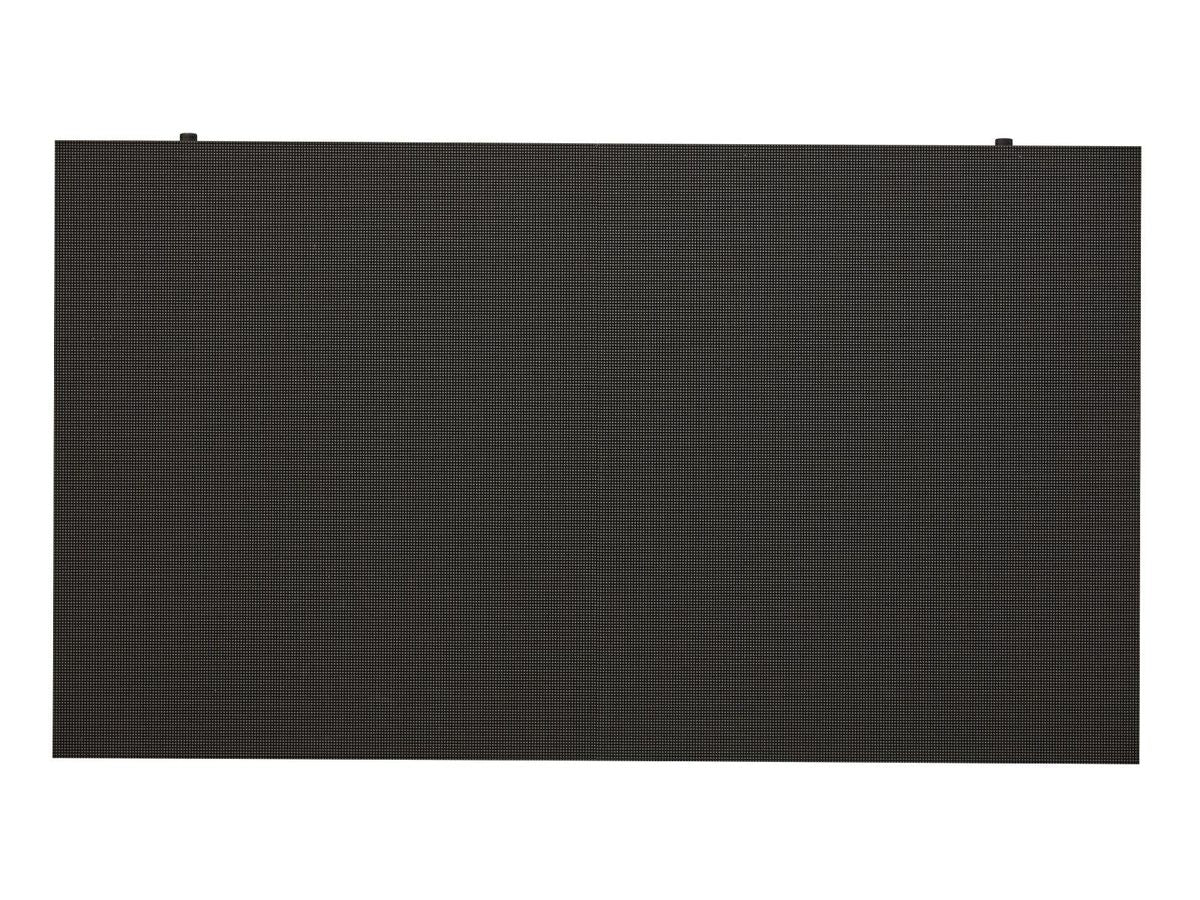

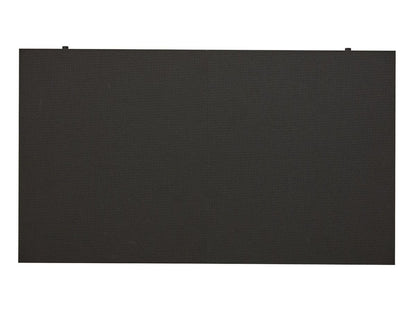

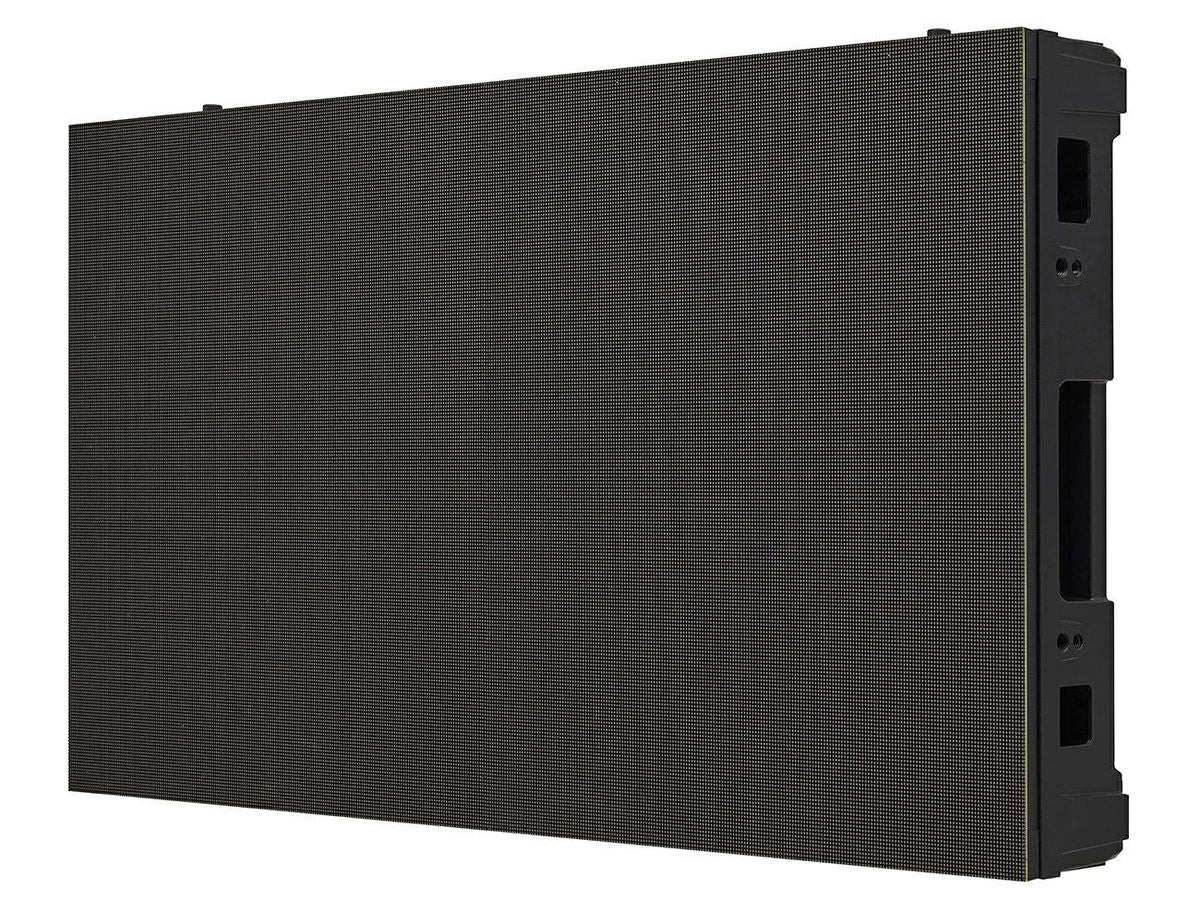

LSBE, DVLED, P2.5, 240X135 RESOLUTION, WITH RIGHT CUT 45 DEGREE MITER, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 600X337.5X72

Specifications

Product Overview
Product Type Direct View LED (DVLED) Display
Model Number LSBE025-GDR
Display Family LSBE Essential 1 Series
Form Factor Rectangular with Right-Cut 45° Miter
Pixel Pitch 2.5 mm
Contrast Ratio 5000:1
Brightness (Calibrated) 600 nits
Refresh Rate 3840 Hz
Resolution 240 x 135 pixels
LED Configuration Single SMD
Weight 6.5 kg
Power Consumption (Max, per cabinet) 93 W
Power Supply 100–240 VAC
Panel Orientation Flat

Physical & Environmental
Cabinet Width 600 mm
Cabinet Height 337.5 mm
Cabinet Depth 72 mm
Operating Temperature Minimum -20°C
Operating Temperature Maximum 40°C
Operating Humidity Range 10% – 80% RH, non-condensing
Ingress Protection Rating Front IP5X / Rear IP2X
Cooling System Fanless, natural convection

Cloud Management & Licensing
Remote Management Compatible with LG SuperSign Control+ (external controller required)
Cloud Monitoring Optional via LG ConnectedCare
Software Compatibility LG LED Assistant, LG SuperSign
Licensing Type Proprietary software license may apply for controller

Interfaces
Control Interface RJ45 (Ethernet)
Video Input Via external LED controller (not included)
Data Transmission CAT5e or better via controller

Compliance & Origin
TAA Compliant Yes
Country of Origin Slovakia
Regulatory Compliance FCC Class A, CE, ETL
Safety Certifications IEC 60950-1 / 62368-1
RoHS Compliant Yes
ENERGY STAR Certified

Advanced Security Features
Signal Encryption Support Yes (via controller input)
Physical Tamper Protection Cabinet-based installation, tamper-resistant with structural integration
Secure Content Handling Managed through connected controller
