LG LSBF015 DVLED Display, 1.56mm Pixel Pitch, 600 Nit, 1200x675mm

VENDOR: LG Mfg Part#: LSBF015-GDL UPC#: 195174076057
  • LSBE, DVLED, P1.56, 768X432 RESOLUTION, WITH LEFT CUT 45 DEGREE MITER, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 1200X675X72
  • LSBE, DVLED, P1.56, 768X432 RESOLUTION, WITH LEFT CUT 45 DEGREE MITER, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 1200X675X72
  • LSBE, DVLED, P1.56, 768X432 RESOLUTION, WITH LEFT CUT 45 DEGREE MITER, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 1200X675X72
  • LSBE, DVLED, P1.56, 768X432 RESOLUTION, WITH LEFT CUT 45 DEGREE MITER, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 1200X675X72
1 4

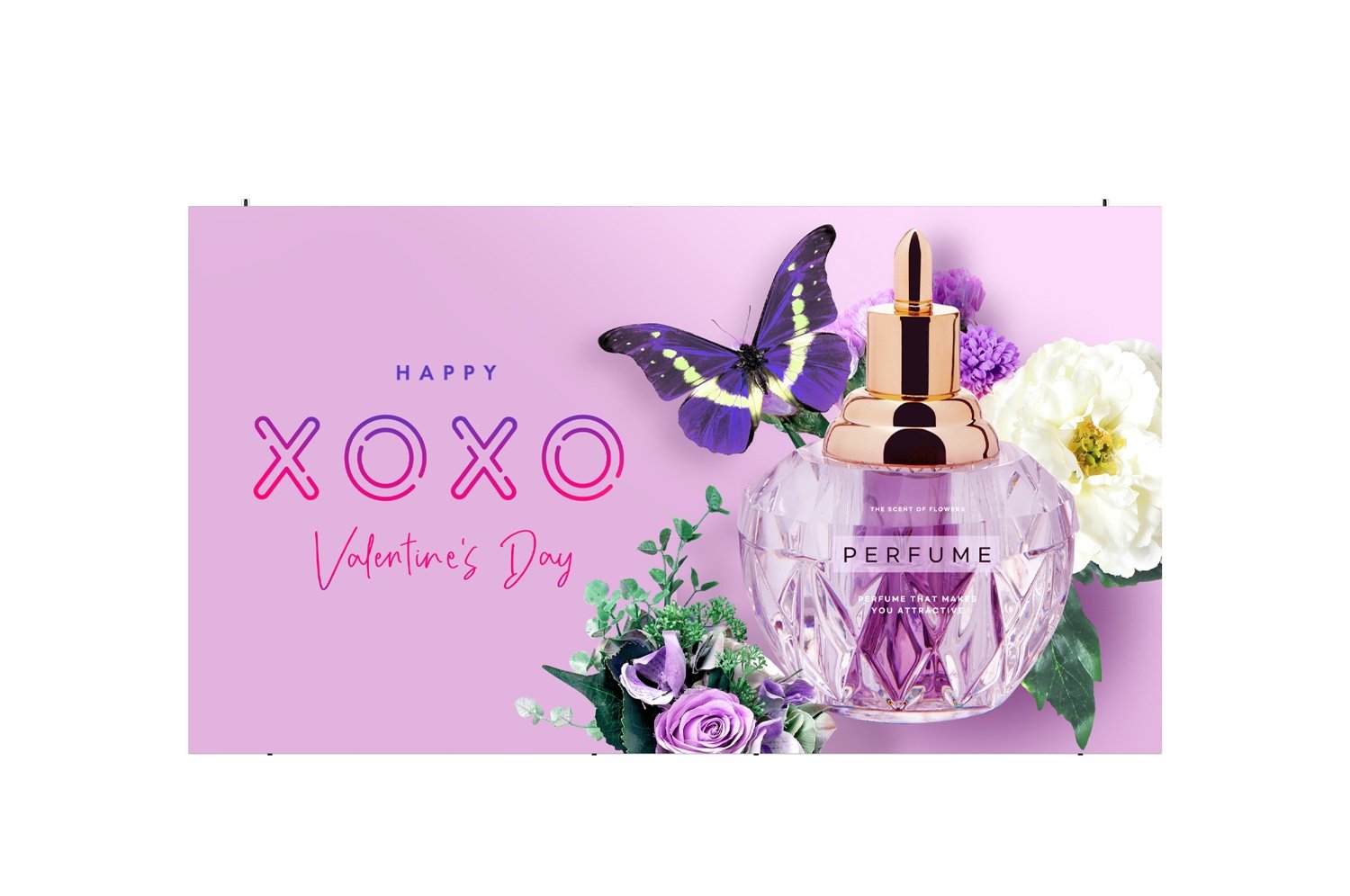

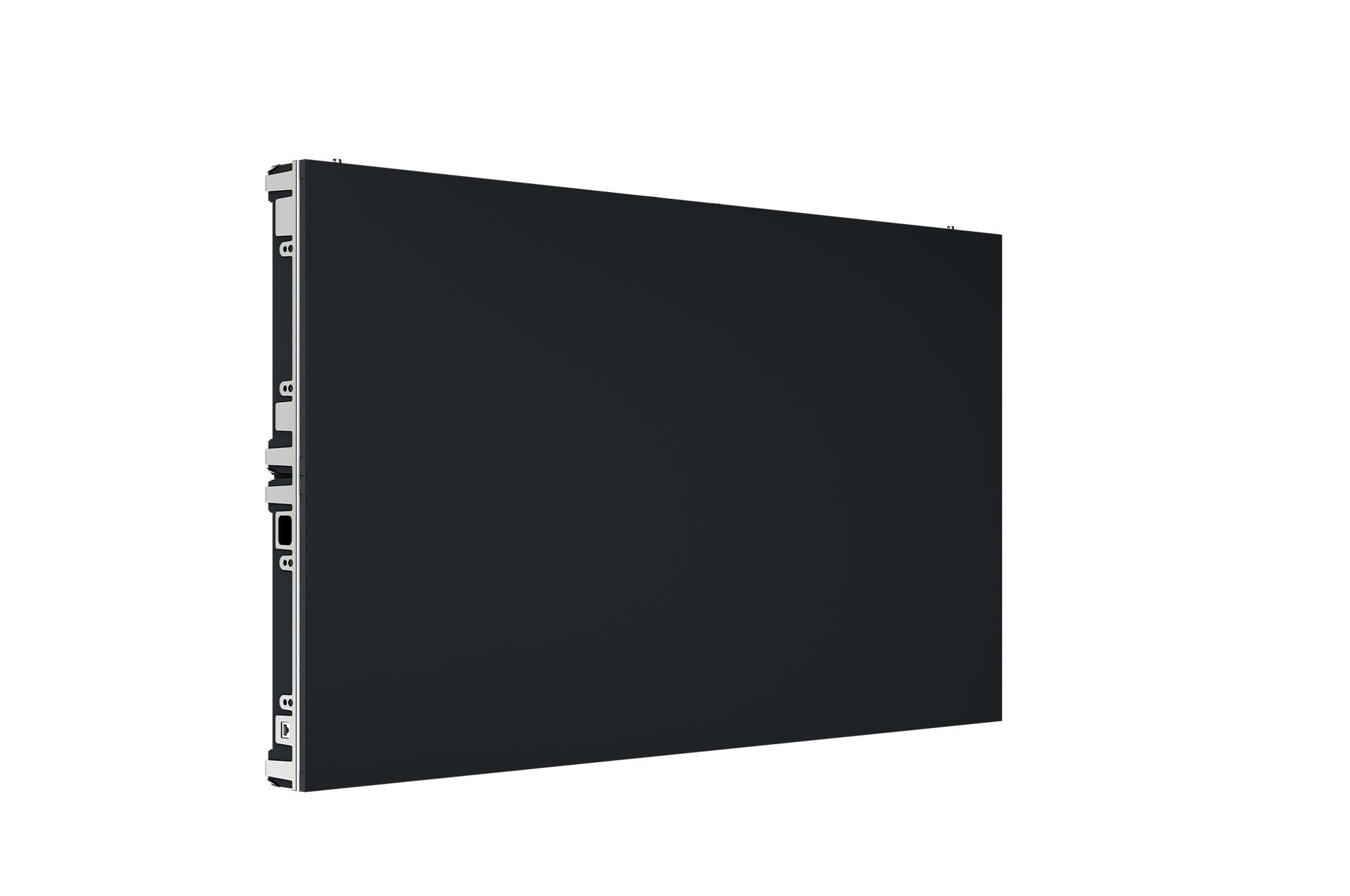

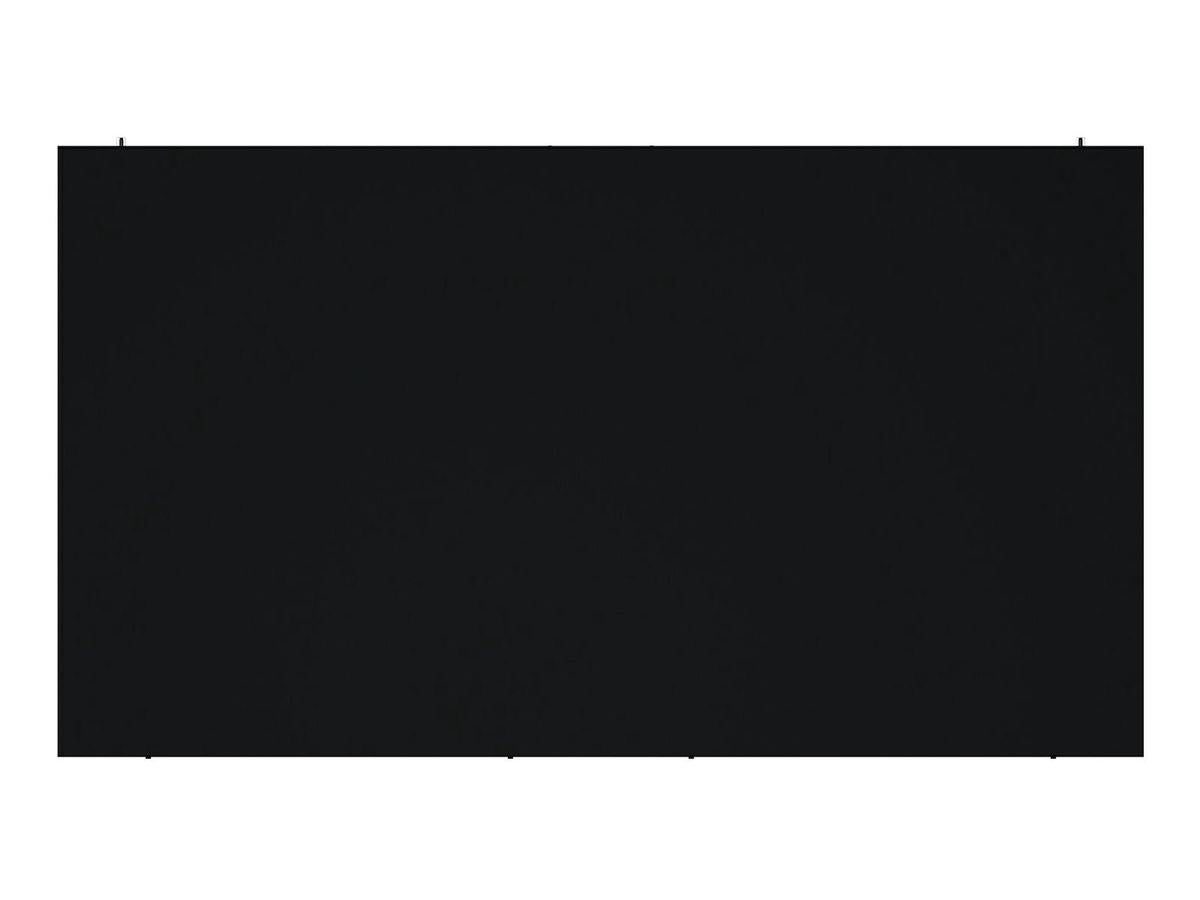

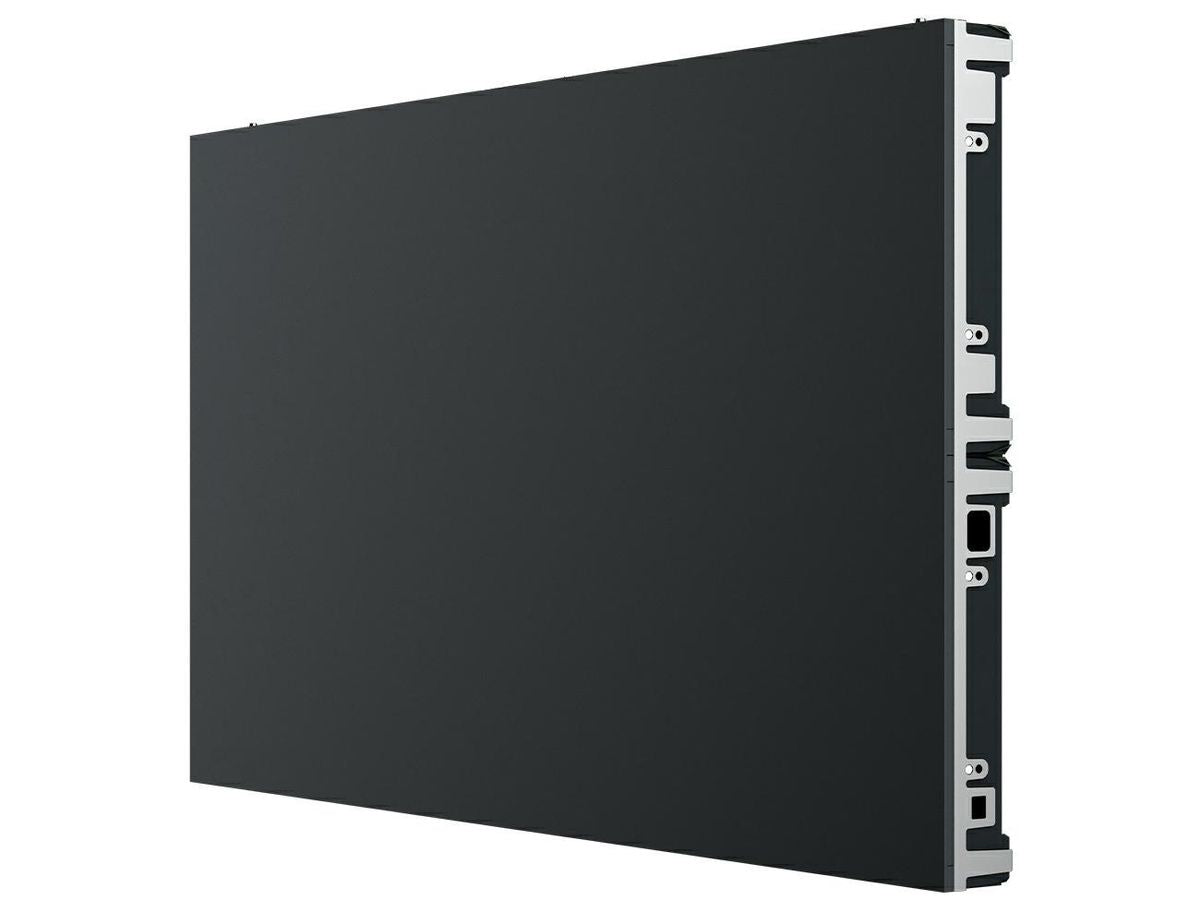

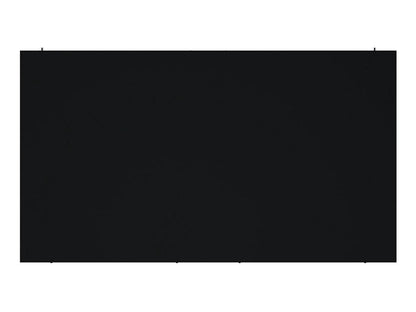

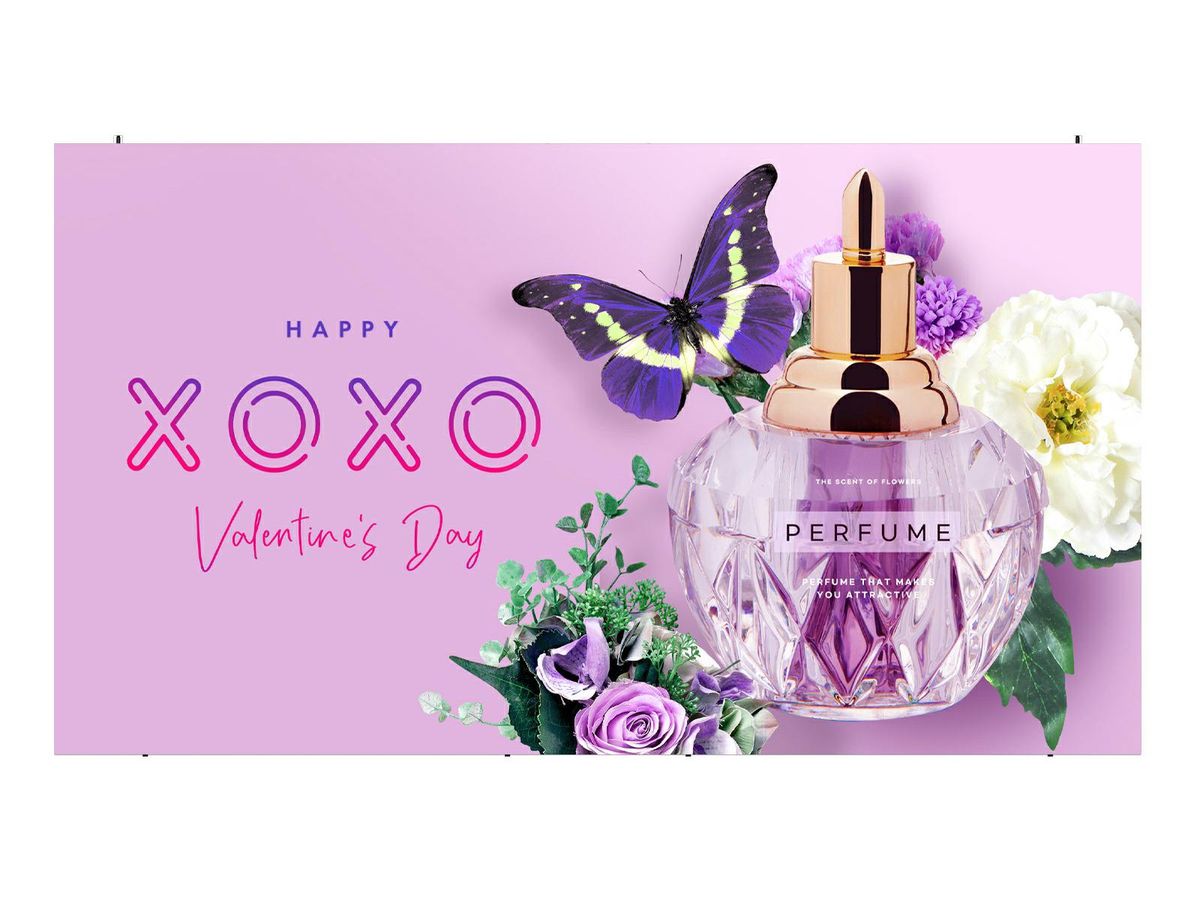

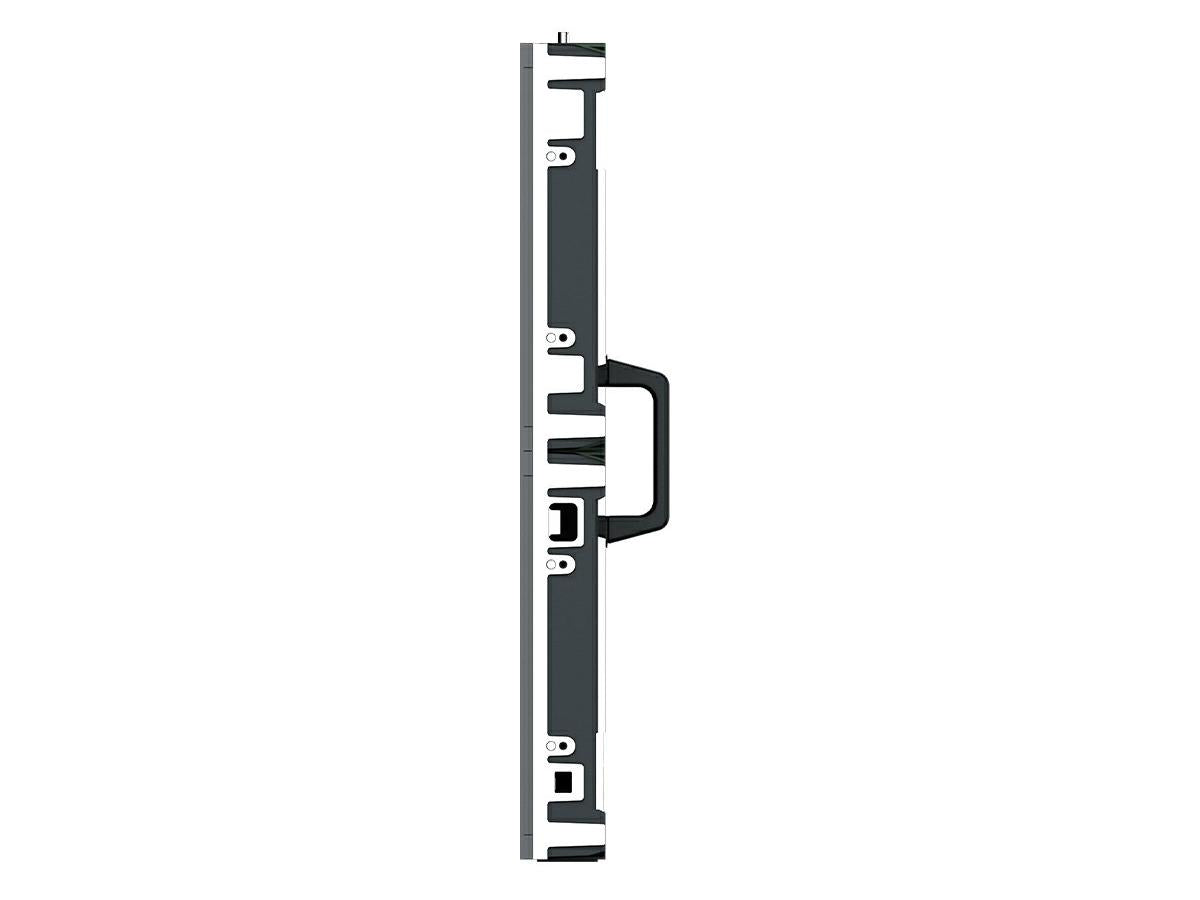

Photo is for illustration purposes only. Actual product may be different.
$5,767.14
$5,767.14
Sale Sold out
MSRP: $7,208.00
Shipping calculated at checkout.
  • 1. 1.56mm pixel pitch and 768x432 resolution for high-definition image clarity
  • 2. LED backlight technology with calibrated brightness of 600 nits
  • 3. High 3840 Hz refresh rate for smooth and flicker-free visuals
  • 4. 5000:1 contrast ratio for deep blacks and rich color reproduction
  • 5. TAA compliant and manufactured in Slovakia for regulated industry needs
  • 6. Left cut 45-degree miter for flexible, modular installation layouts
View full details

Key Benefits

Eye-Insights
  • Ideal for professional digital signage applications requiring sharp image detail due to the 1.56mm pixel pitch.
  • TAA compliance and Slovakian origin make it suitable for government and enterprise installations.
  • Supports flexible layout configurations with 45-degree miter cutting, enhancing creative video wall design.

Product Overview

LSBE, DVLED, P1.56, 768X432 RESOLUTION, WITH LEFT CUT 45 DEGREE MITER, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 1200X675X72

Specifications

Primary Information
Model LSBF015
Display Type LED Backlight
Flat / Curved Flat
Display / Refresh Rate 3840 Hz
Dot Pitch / Pixel Pitch 1.56 Mm
Image Contrast Ratio 5000:1
Brightness Max. Brightness (After Calibration) 600
Power Consumption Operational Power Consumption (W/Cabinet, Max.) 428 Power Consumption (W/Cabinet, Avg.) 182 Power Consumption (W/m, Max.) 530 Watt
Power / Voltage Required 100 to 240
Width 1200 Mm
Depth 675 Mm
Height 72 Mm
Weight 23 Kg
Min Operating Temperature -20C
Max Operating Temperature 40C
Humidity Range Operating 10-80% RH

Power
Power / Voltage Required 100 to 240
Power Consumption Operational Power Consumption (W/Cabinet, Max.) 428 Power Consumption (W/Cabinet, Avg.) 182 Power Consumption (W/m, Max.) 530 Watt

UNSPSC Code
UNSPSC Code 44111511

Display
Brightness Max. Brightness (After Calibration) 600
Display Type LED Backlight
Dot Pitch / Pixel Pitch 1.56 Mm
Flat / Curved Flat
Flat / Curved Flat

Special Feature
COO SLOVAKIA
TAA compliance Yes
