Products Display Screens & Monitors LG LSBF015 DVLED Display, 1...

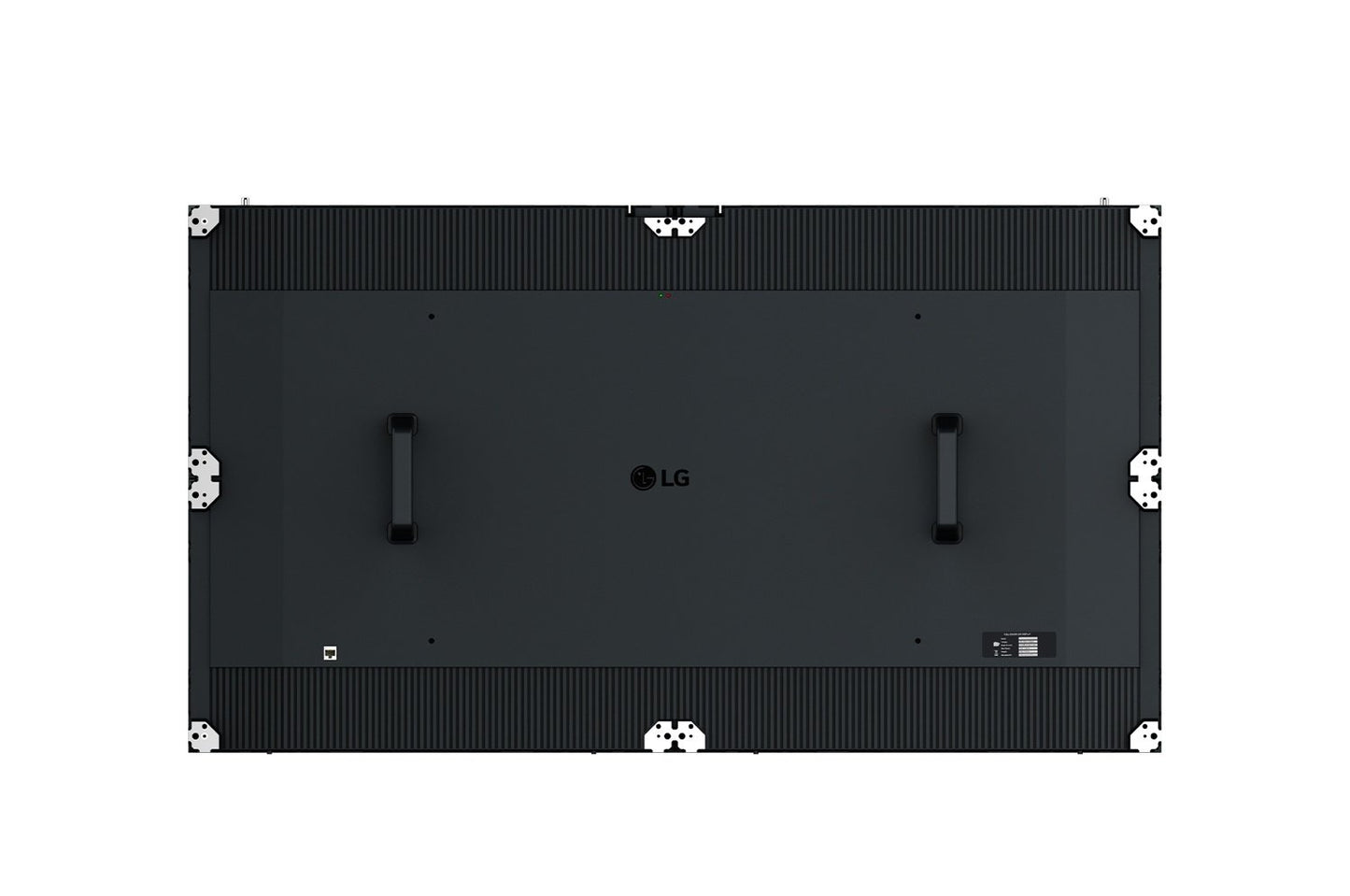

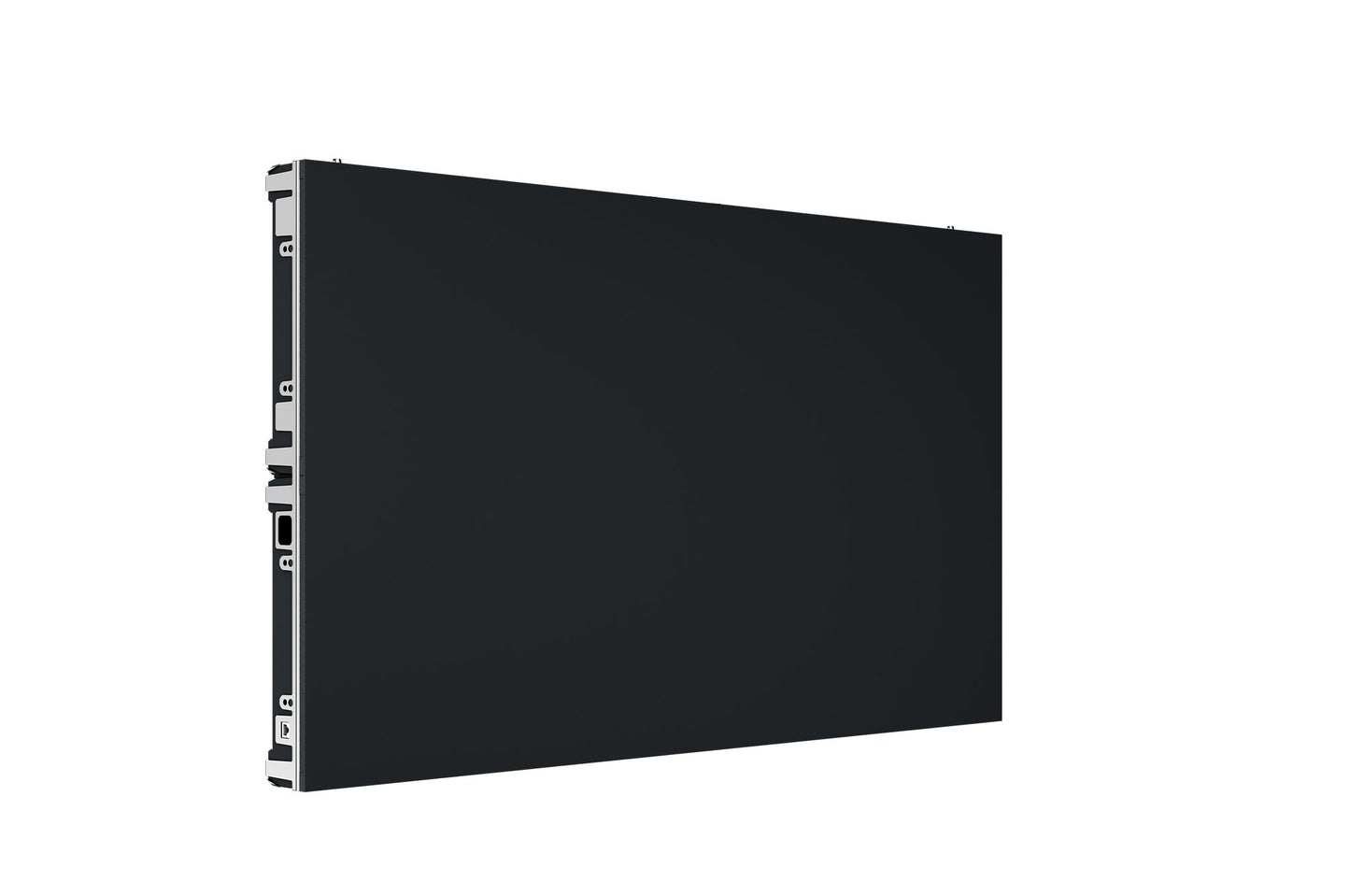

LG LSBF015 DVLED Display, 1.56mm Pixel Pitch, 768x432, 600 Nit, TAA Compliant

VENDOR: LG Mfg Part#: LSBF015-GD UPC#: 195174076262
1 4
Photo is for illustration purposes only. Actual product may be different.
$4,673.00
$4,673.00
Sale Sold out
MSRP: $5,842.00
Shipping calculated at checkout.
  • 1. 1.56mm pixel pitch enabling high-resolution 768x432 output
  • 2. Brightness level up to 600 nit after calibration
  • 3. Refresh rate of 3840 Hz for smooth visual playback
  • 4. 5000:1 contrast ratio for enhanced image detail
  • 5. TAA compliant and made in Slovakia
  • 6. Wide operational temperature range from -20°C to 40°C and 10–80% humidity

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers high visual clarity with 1.56mm fine pixel pitch and 600 nit brightness for demanding signage environments
  • Built to meet TAA compliance and strict enterprise procurement standards, ensuring public sector compatibility
  • Easy integration and scalability due to modular cabinet size, low depth profile, and wide power input range

Product Overview

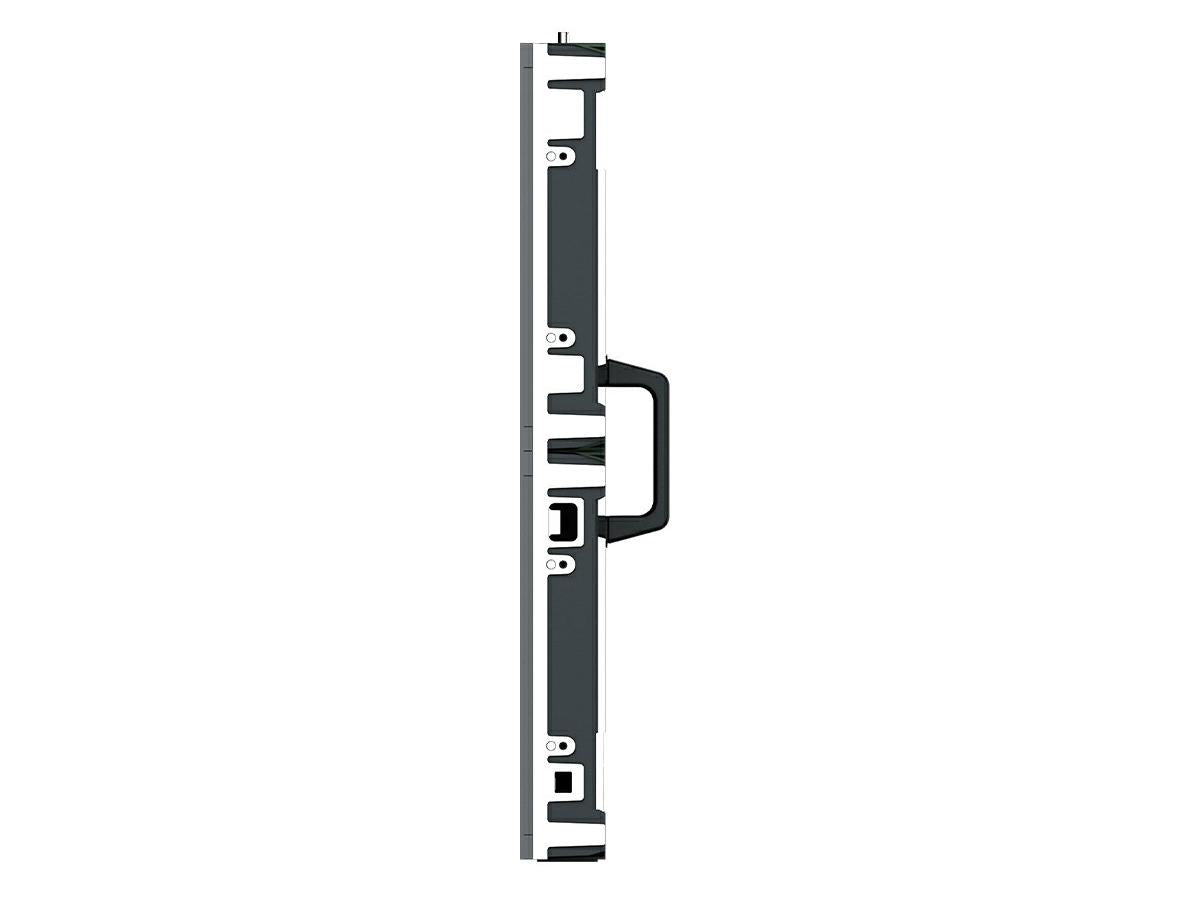

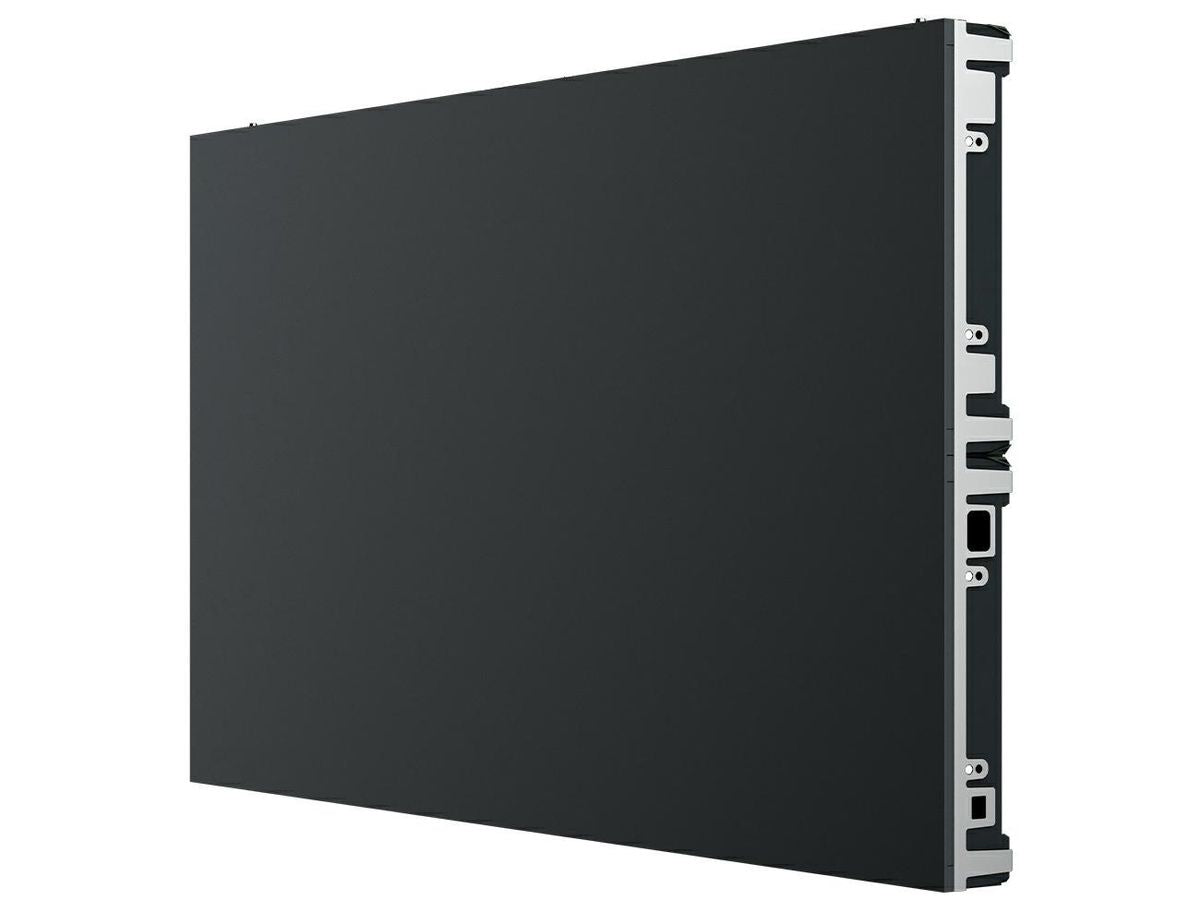

LSBE, DVLED, P1.56, 768X432 RESOLUTION, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 1200X675X72

Specifications

Product Overview
Product Type DVLED Display
Model LSBF015
Manufacturer Part Number LSBF015-GD
Form Factor Modular Panel
Flat / Curved Flat
Weight 23 kg
Power Consumption (Max) 428 W per cabinet
Power Requirements 100 to 240V AC
UPC 195174076262

Wireless Features
Wireless Support

Compliance & Origin
TAA Compliance Yes
Country of Origin Slovakia
Certifications FCC Class A, CE, ETL

Advanced Security Features
Access Control Password-protected settings via controller
Monitoring & Alerts Real-time error detection and event logging

Interfaces
Signal Input Type Digital (via controller, typically HDMI, DVI, DisplayPort through external box)
Control Interface RS232 / LAN (via system controller)
Refresh Rate 3840 Hz

Physical & Environmental
Width 1200 mm
Height 675 mm
Depth 72 mm
Pixel Pitch 1.56 mm
Resolution 768 x 432
Brightness (Calibrated) 600 nits
Contrast Ratio 5000:1
Operating Temperature (Min) -20°C
Operating Temperature (Max) 40°C
Operating Humidity Range 10% – 80% RH
LED Type Single SMD
Cabinet Material Aluminum
Heat Management Fanless design with natural convection

Cloud Management & Licensing
Remote Monitoring Supported via LG ConnectedCare
Device Management LG LED Assistant software
Cloud Control Platform Web-based GUI (via system controller)
Configuration Tools Included calibration and diagnostic tools
Licensing Model No licensing required
