Products Display Screens & Monitors LG LSBF018 DVLED Display, 6...

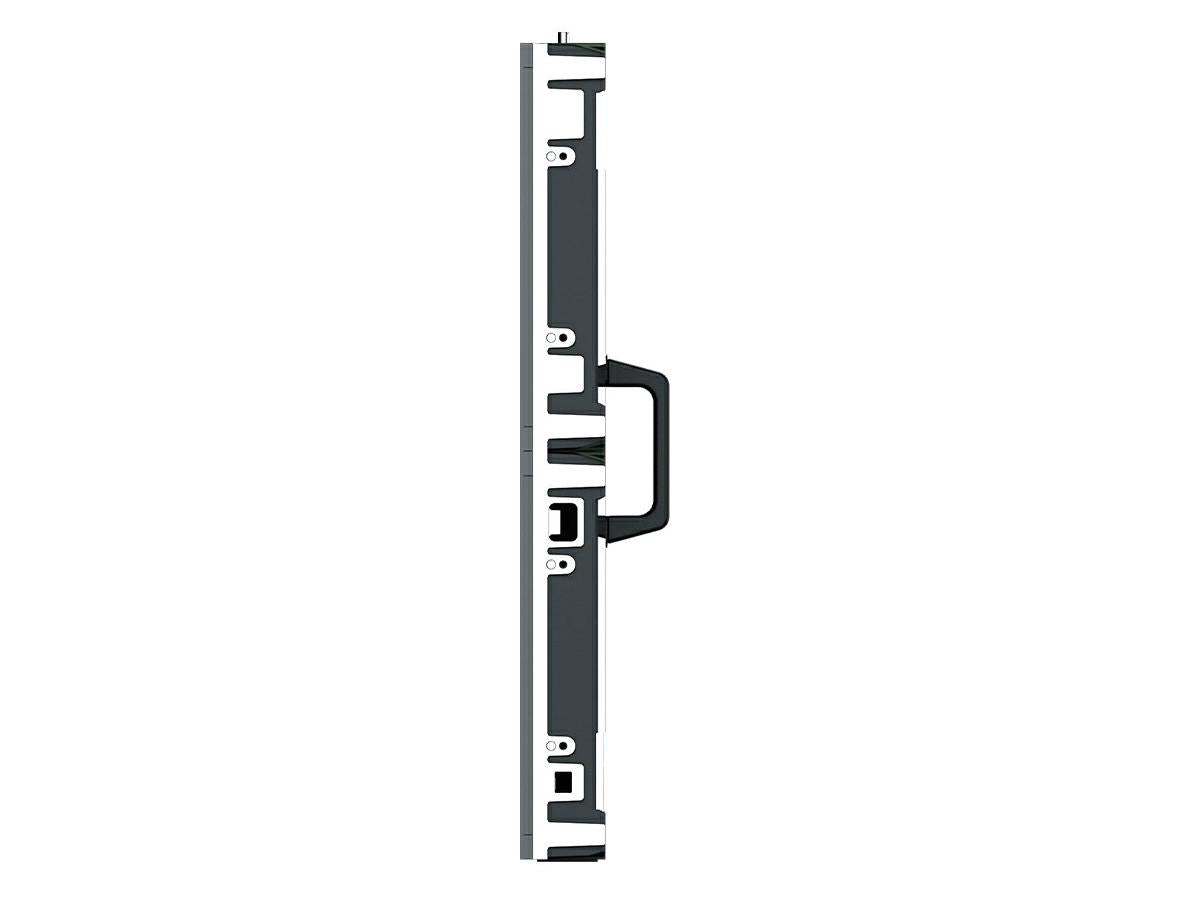

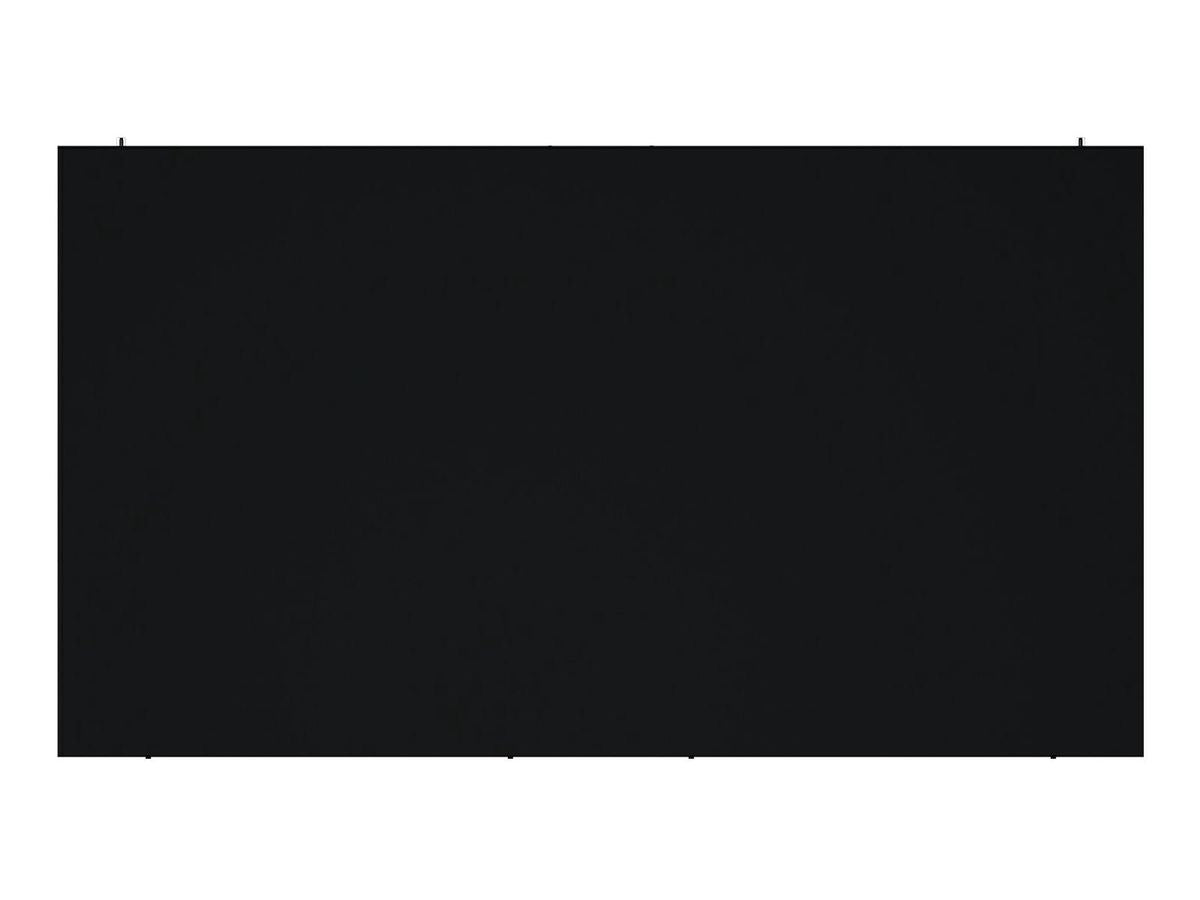

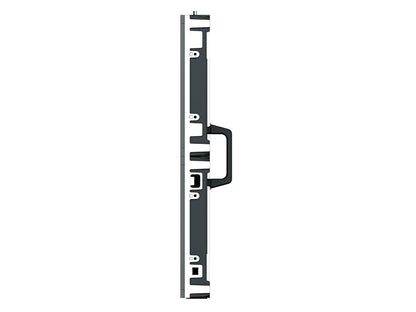

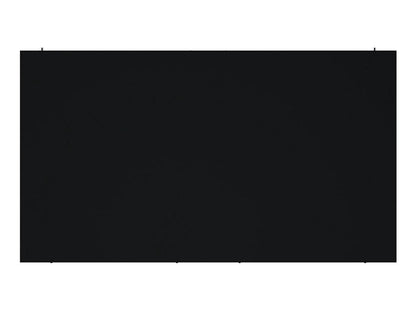

LG LSBF018 DVLED Display, 640x360, 1.88mm Pixel Pitch, 600 nits

VENDOR: LG Mfg Part#: LSBF018-GD UPC#: 195174076309
1 5
Photo is for illustration purposes only. Actual product may be different.
$3,713.00
$3,713.00
Sale Sold out
MSRP: $4,642.00
Shipping calculated at checkout.
  • 1. Pixel pitch of 1.88 mm for high-resolution close-view applications
  • 2. Calibrated brightness of 600 nits with 5000:1 contrast ratio for vivid imagery
  • 3. Refresh rate of 3840 Hz enables smooth content rendering
  • 4. Cabinet dimensions: 1200 mm (W) x 675 mm (D) x 72 mm (H), weight: 23 kg
  • 5. Operational temperature range: -20°C to 40°C; 10–80% RH humidity tolerance
  • 6. Power-efficient design with maximum consumption of 413W and voltage input of 100–240V

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • 1. High pixel density (1.88 mm) and 3840 Hz refresh rate deliver seamless visuals ideal for commercial and control room installations.
  • 2. TAA-compliant and manufactured in Slovakia, making it suitable for government and institutional use.
  • 3. Robust environmental tolerance (-20°C to 40°C) allows for reliable deployment in diverse indoor settings.

Product Overview

LSBE, DVLED, P1.875, 640X360 RESOLUTION, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 1200X675X72

Specifications

Product Overview
Product Type DVLED Display Module
Form Factor Cabinet (Modular Panel)
Model Number LSBF018-GD
Series Essential 1 Class, TAA Series
Pixel Pitch 1.88 mm
Resolution 640 x 360
Contrast Ratio 5000:1
Refresh Rate 3840 Hz
Max Brightness (Calibrated) 600 nits
Power Consumption (Max) 413 W per cabinet
Input Voltage Range 100 – 240 VAC
Weight 23 kg
Mounting Orientation Landscape/Portrait
LED Type Single SMD
Color Processing Bit Depth 16 bit
Cabinet Configuration 1200 mm x 675 mm (WxH)
Flat / Curved Flat

Wireless Features
Wireless Capability

Compliance & Origin
Country of Origin Slovakia
TAA Compliant Yes
RoHS Compliant Yes
EMC Certification EMC Class A
Safety Standards CE, FCC, ETL
Environment Standards ISO 9001 / ISO 14001

Advanced Security Features
Secure Network Communication Controller dependent, typically HTTPS / SNMPv3
Firmware Protection Controlled via controller system

Interfaces
Video Input Via controller (external control box required)
Control Interface Ethernet (RJ45)
Signal Receiver Embedded via controller system
Embedded Cables Support Yes (signal and power pass-through)

Physical & Environmental
Cabinet Width 1200 mm
Cabinet Height 675 mm
Cabinet Depth 72 mm
Operating Temperature Range -20°C to 40°C
Operating Humidity 10% - 80% RH (non-condensing)
Ingress Protection Level IP30 (front/rear)
Surface Finish Matte Anti-Glare
Service Access Front and Rear
Cooling Type Fanless (passive cooling)

Cloud Management & Licensing
Management Interface LG SuperSign or compatible LED controller platform
Remote Diagnostics Supported via controller
Control Protocol Support SNMP (via external controller)
Software Licensing Separate content management software licensing required
