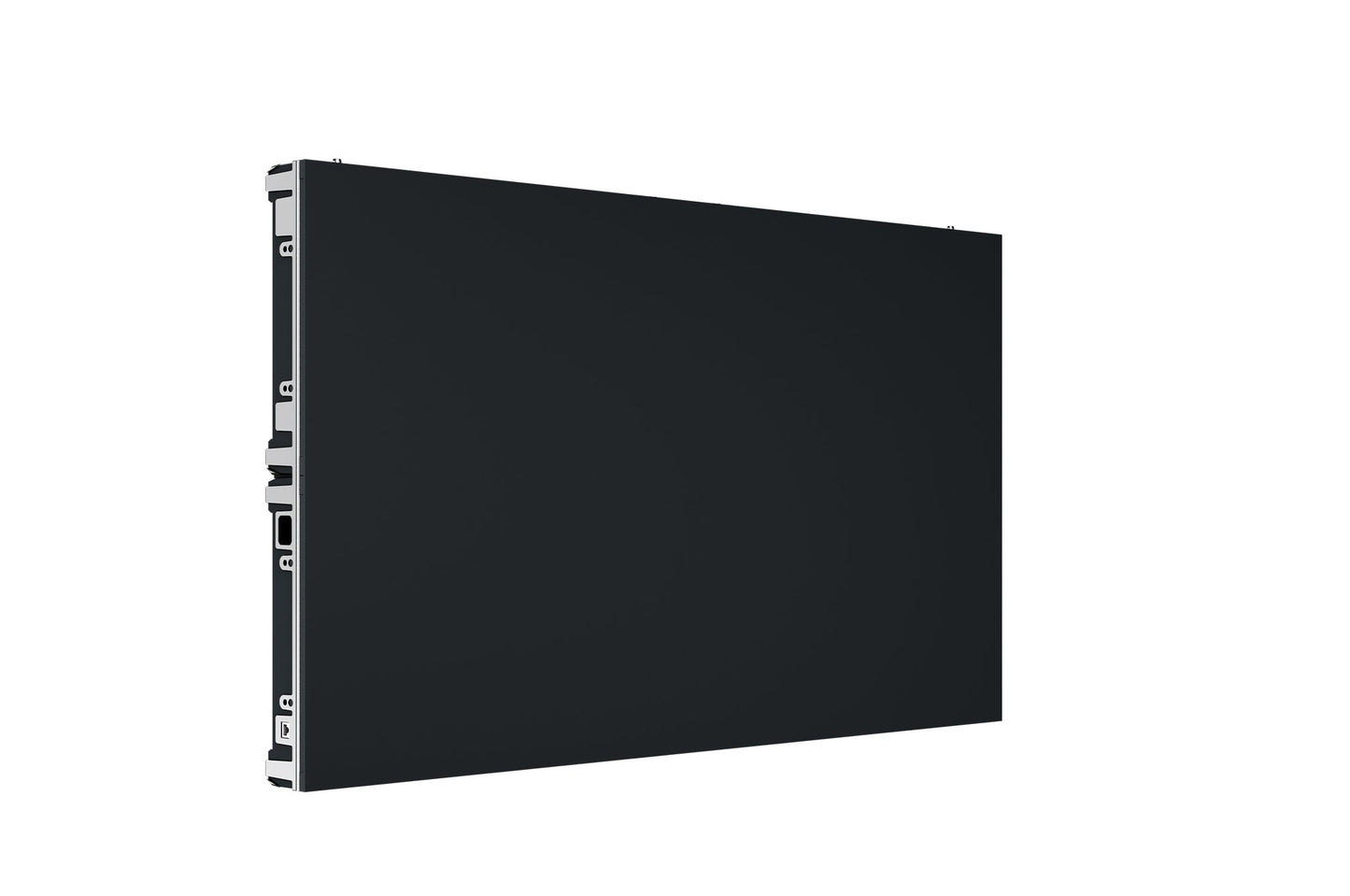

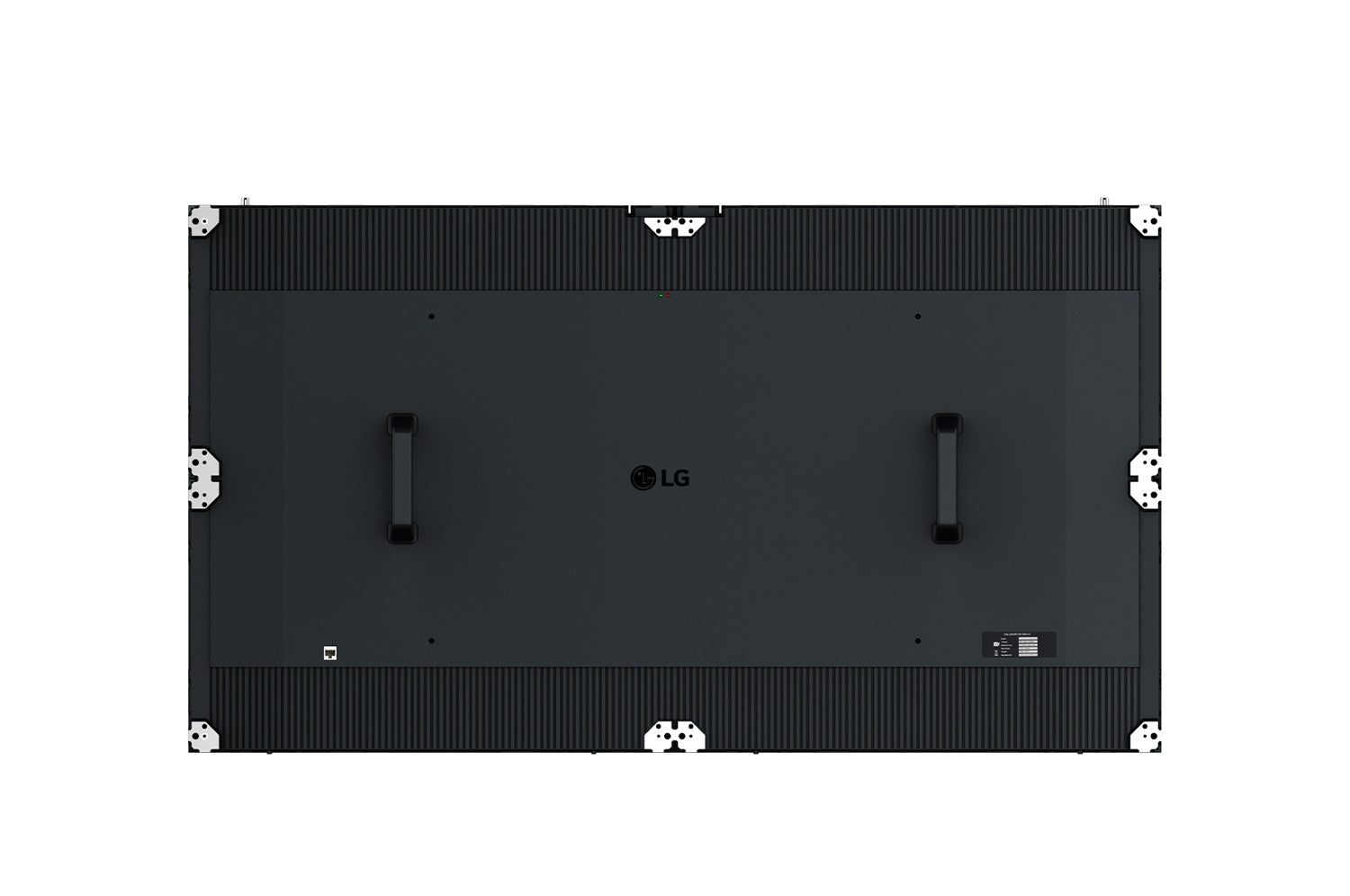

LG LSBF018 DVLED Display, 640x360, 600 Nit, TAA Compliant

VENDOR: LG Mfg Part#: LSBF018-GDR UPC#: 195174076224
1 4
Photo is for illustration purposes only. Actual product may be different.
$4,273.00
$4,273.00
Sale Sold out
MSRP: $5,342.00
Shipping calculated at checkout.
  • Direct View LED (DVLED) panel with 1.88 mm pixel pitch
  • Resolution of 640 x 360 with 600 nits brightness
  • High refresh rate of 3840 Hz for smooth visual playback
  • 5000:1 contrast ratio delivering dynamic image quality
  • Power input range of 100–240V with max 413W cabinet power
  • TAA compliant and manufactured in Slovakia

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Engineered with TAA compliance, making it suitable for government and public sector installations.
  • 45-degree right-edge cut supports versatile corner mounting for advanced video wall designs.
  • High refresh rate and contrast capabilities ensure optimal performance for professional and enterprise-level visual deployments.

Product Overview

LSBE, DVLED, P1.875, 640X360 RESOLUTION, WITH RIGHT CUT 45 DEGREE MITER, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 1200X675X72

Specifications

Product Overview
Product Type DVLED Display
Model Number LSBF018-GDR
Series Essential 1 Class, TAA Series
Form Factor Cabinet
Pixel Pitch 1.88 mm
Resolution 640 x 360
Refresh Rate 3840 Hz
Display Brightness (After Calibration) 600 nits
Contrast Ratio 5000:1

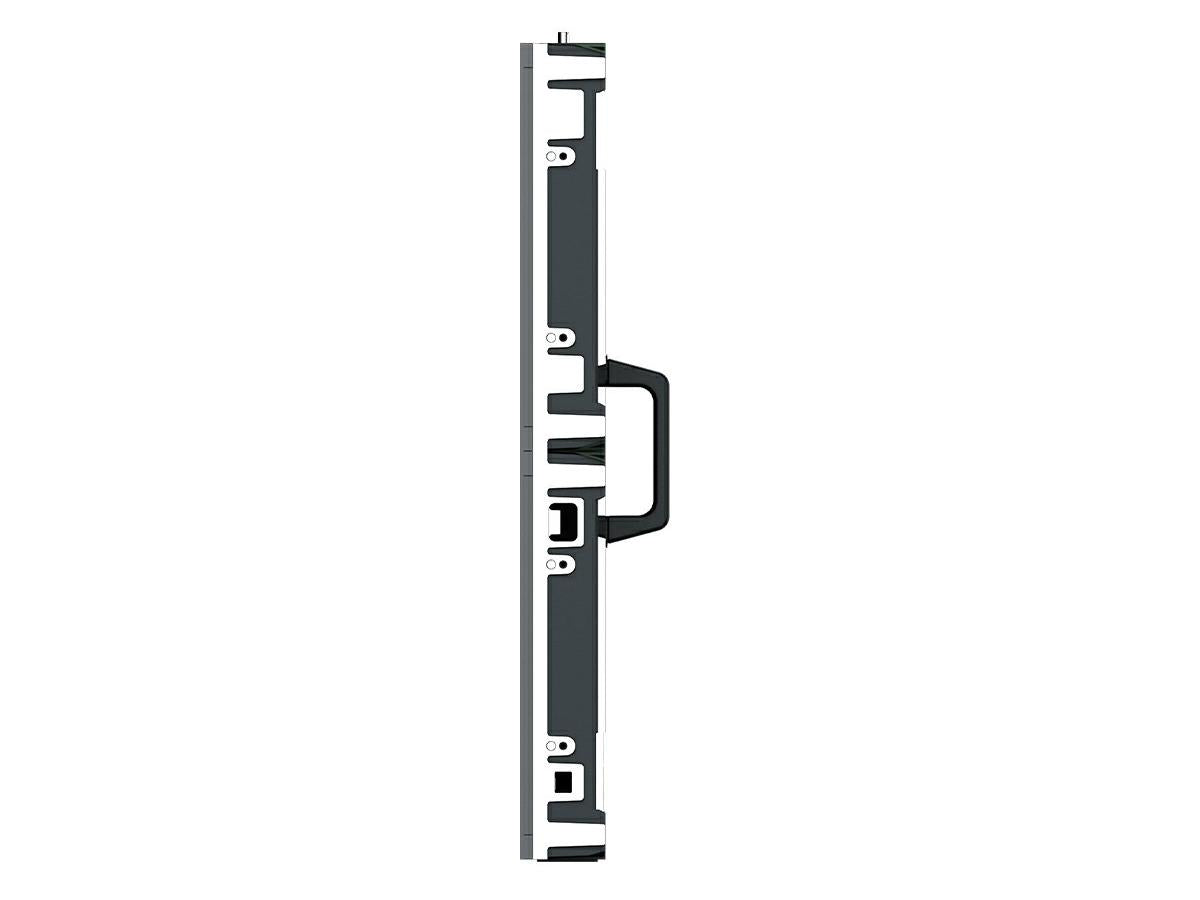

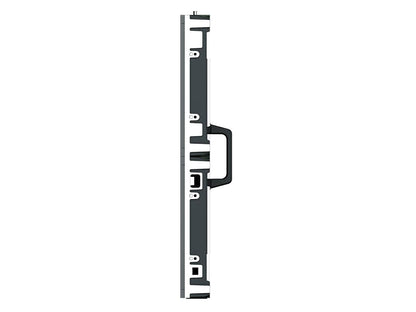

Cabinet Design Right cut 45-degree miter
LED Technology Single SMD
Backlight Type LED Backlight
Cabinet Weight 23 kg
Power Consumption (Max per Cabinet) 413 W
Power Requirements 100 to 240 V AC

Wireless Features
Wireless Capability

Compliance & Origin
TAA Compliant Yes
Country of Origin Slovakia
Certifications FCC, CE, ETL
RoHS Compliant Yes

Advanced Security Features
Data Protection Features Secured control and update channels via authorized software

Interfaces
Input Type Proprietary for DVLED display systems
Control Interface Via External Controller (Not Integrated)

Physical & Environmental
Width 1200 mm
Height 675 mm
Depth 72 mm
Operating Temperature Range -20°C to 40°C
Operating Humidity Range 10% to 80% RH (non-condensing)
Installation Type Indoor
Viewing Angle 160° horizontal / 160° vertical
Viewing Distance ≥1.8 meters

Cloud Management & Licensing
Remote Management Software LG ConnectedCare (Optional)
Content Management Compatible with Supersign CMS
Monitoring & Diagnostics Proactive care via ConnectedCare
Licensing Model Optional licenses for CMS
Control Method External controller-based or software interface
