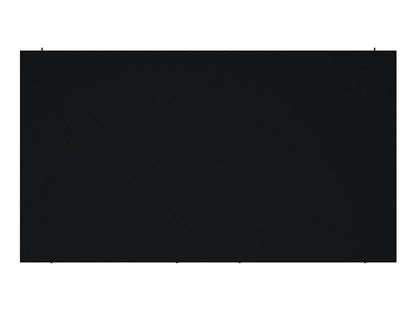

LG LSBF018 DVLED Display, P1.875, 640x360, 600 Nit, TAA Compliant

VENDOR: LG Mfg Part#: LSBF018-GDL UPC#: 195174076149
1 4

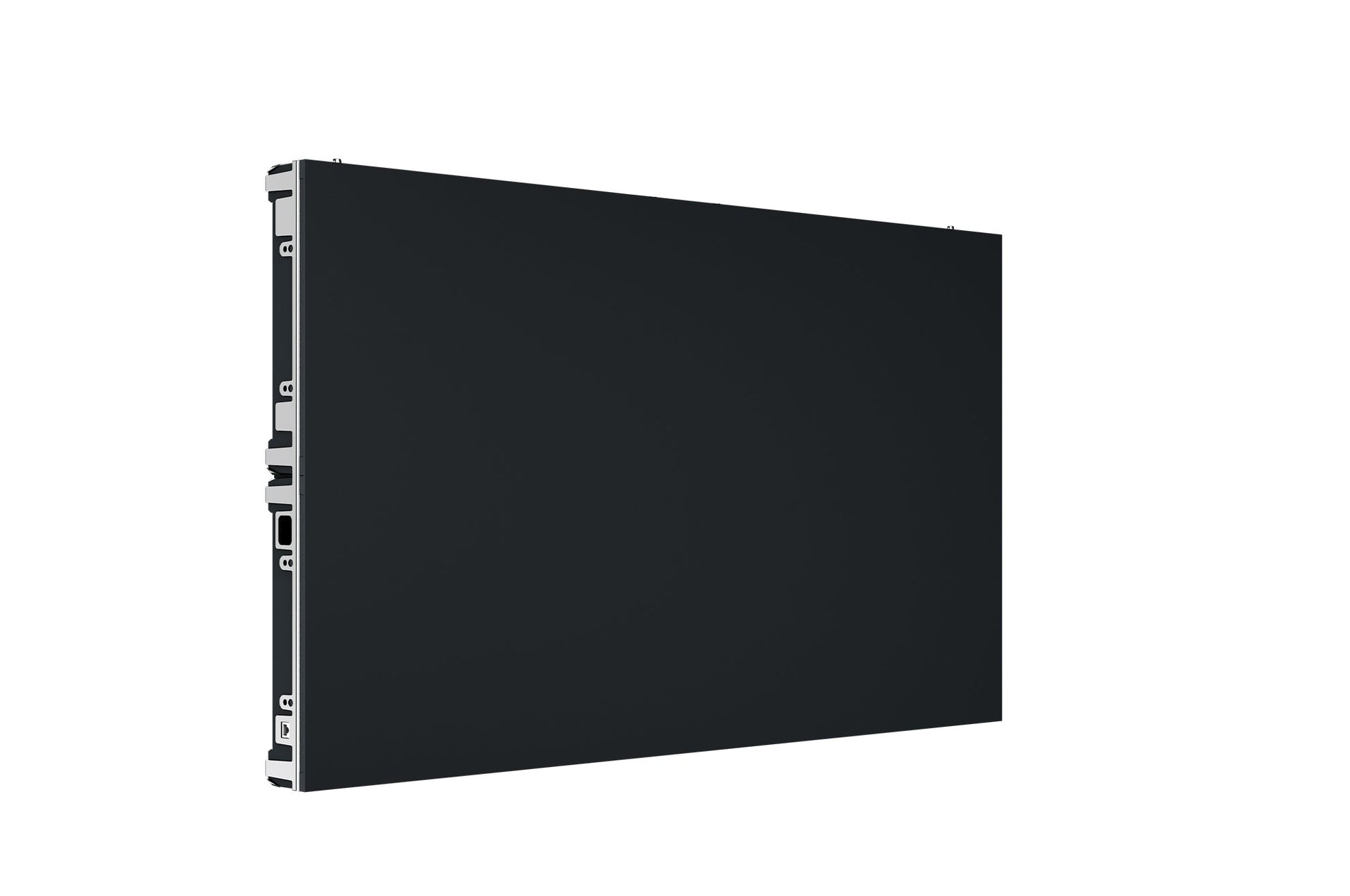

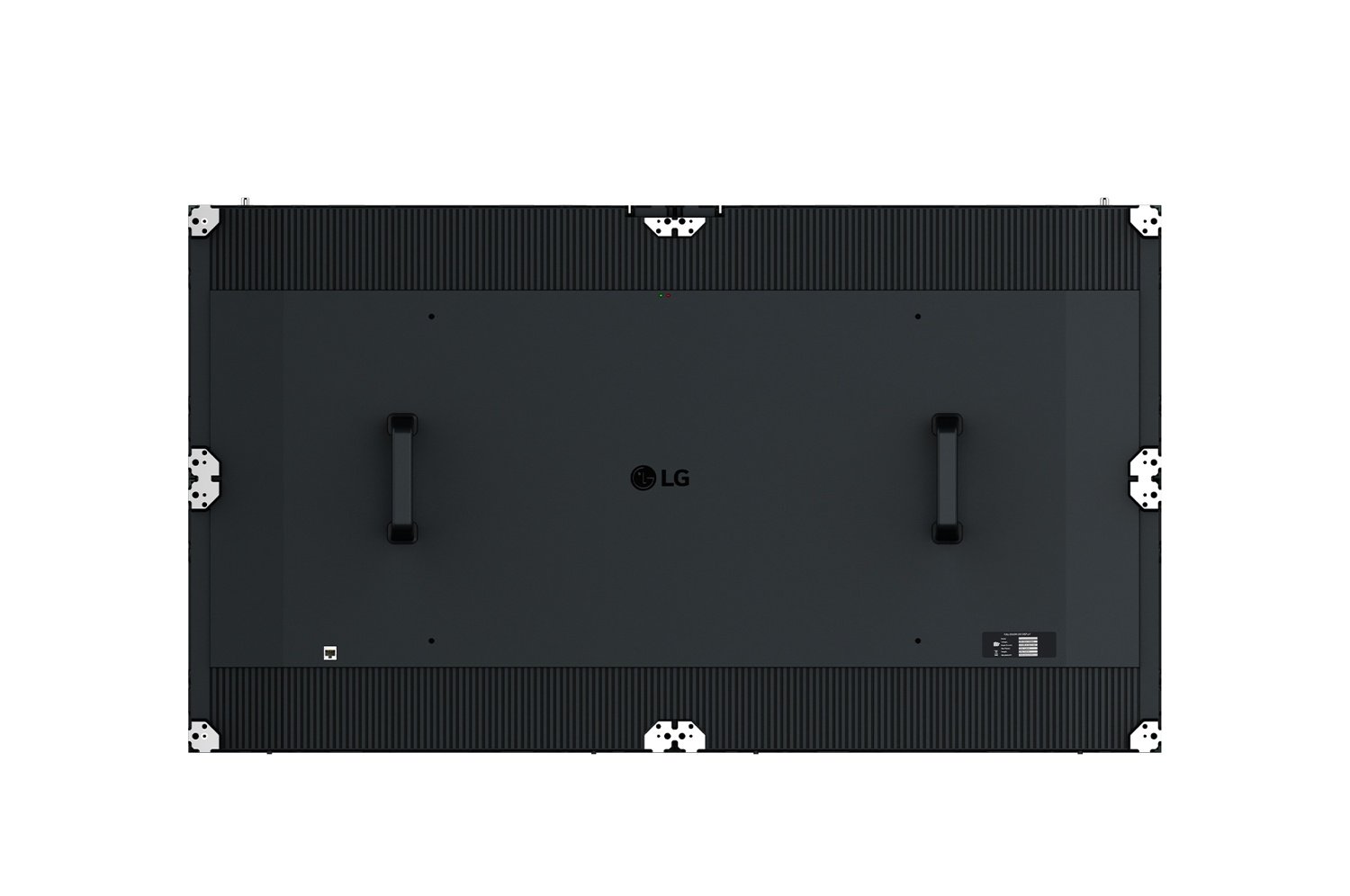

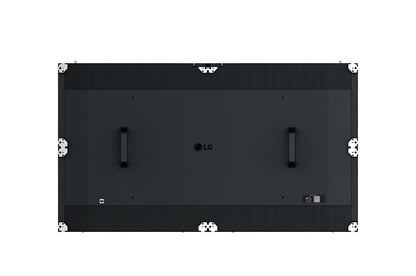

Photo is for illustration purposes only. Actual product may be different.
$4,273.00
$4,273.00
Sale Sold out
MSRP: $5,342.00
Shipping calculated at checkout.
  • Pixel pitch of 1.88mm for high-resolution indoor display applications
  • 640 x 360 resolution with a 5000:1 image contrast ratio ensures clear visuals
  • Max brightness of 600 nits after calibration; suitable for well-lit environments
  • 3840 Hz refresh rate for smooth content rendering and reduced flicker
  • TAA-compliant and manufactured in Slovakia, meeting government standards
  • Compact size (1200mm x 675mm x 72mm) with 45° left miter for corner installations

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Ideal for TAA-compliant installations thanks to verified compliance and European manufacturing
  • Designed for high-performance clarity with fine pixel pitch and 3840 Hz refresh rate
  • Engineered for modular, seamless visual integration with left-cut 45° miter corner and compact footprint

Product Overview

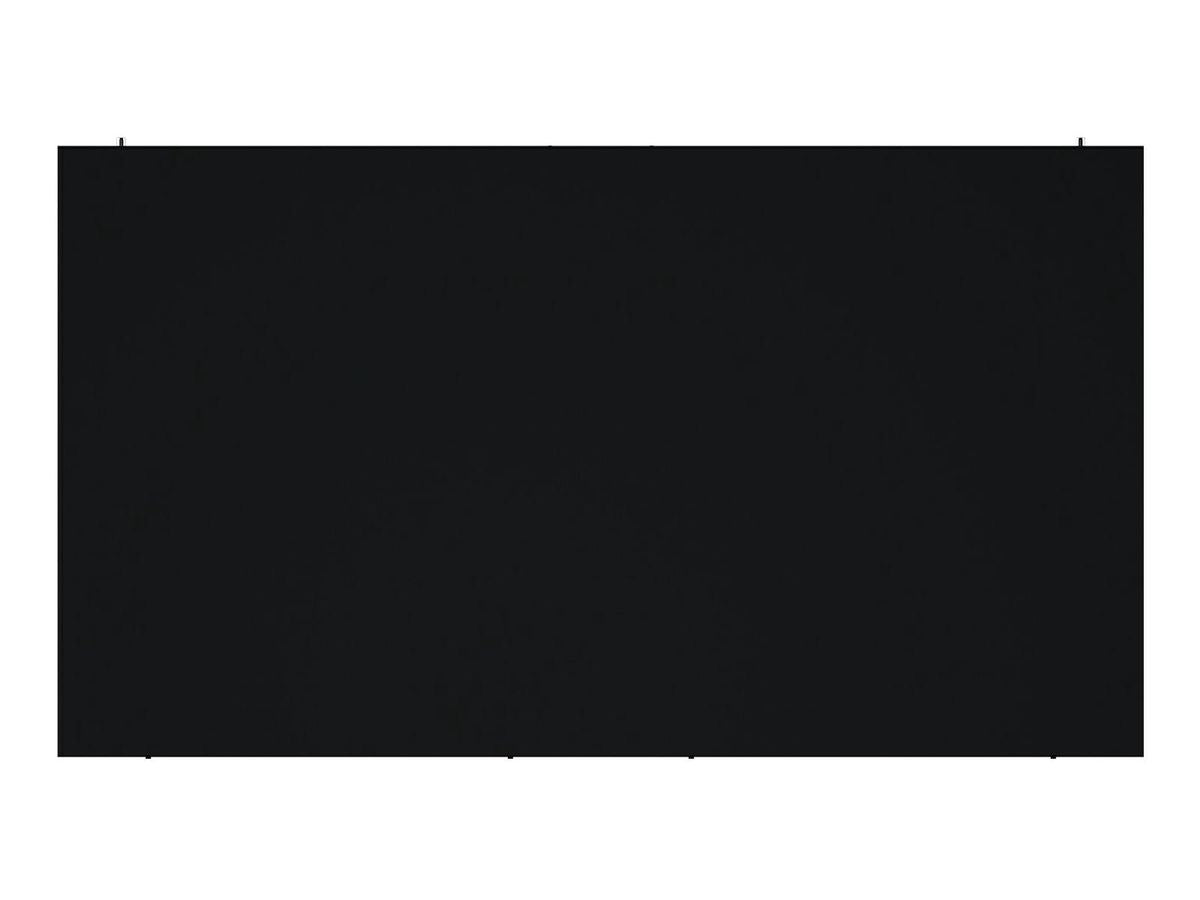

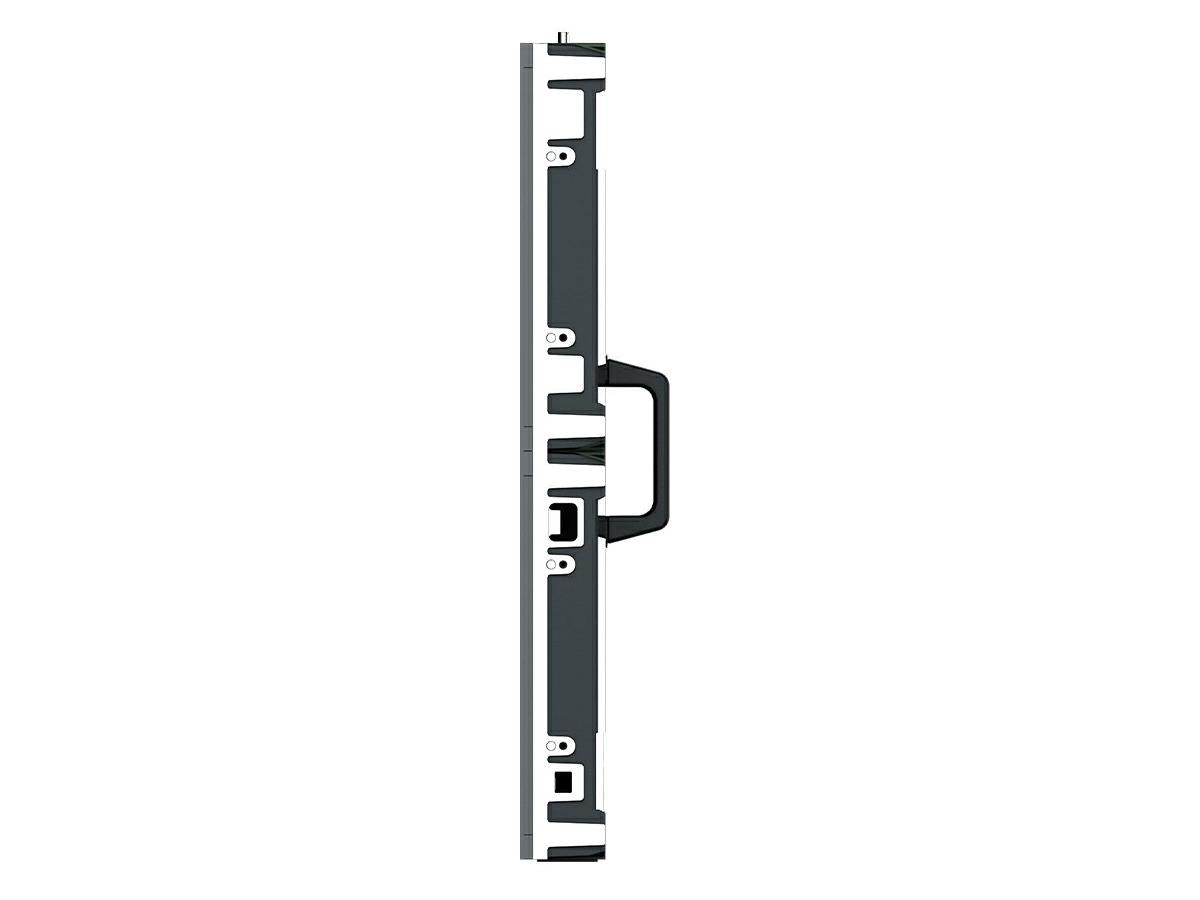

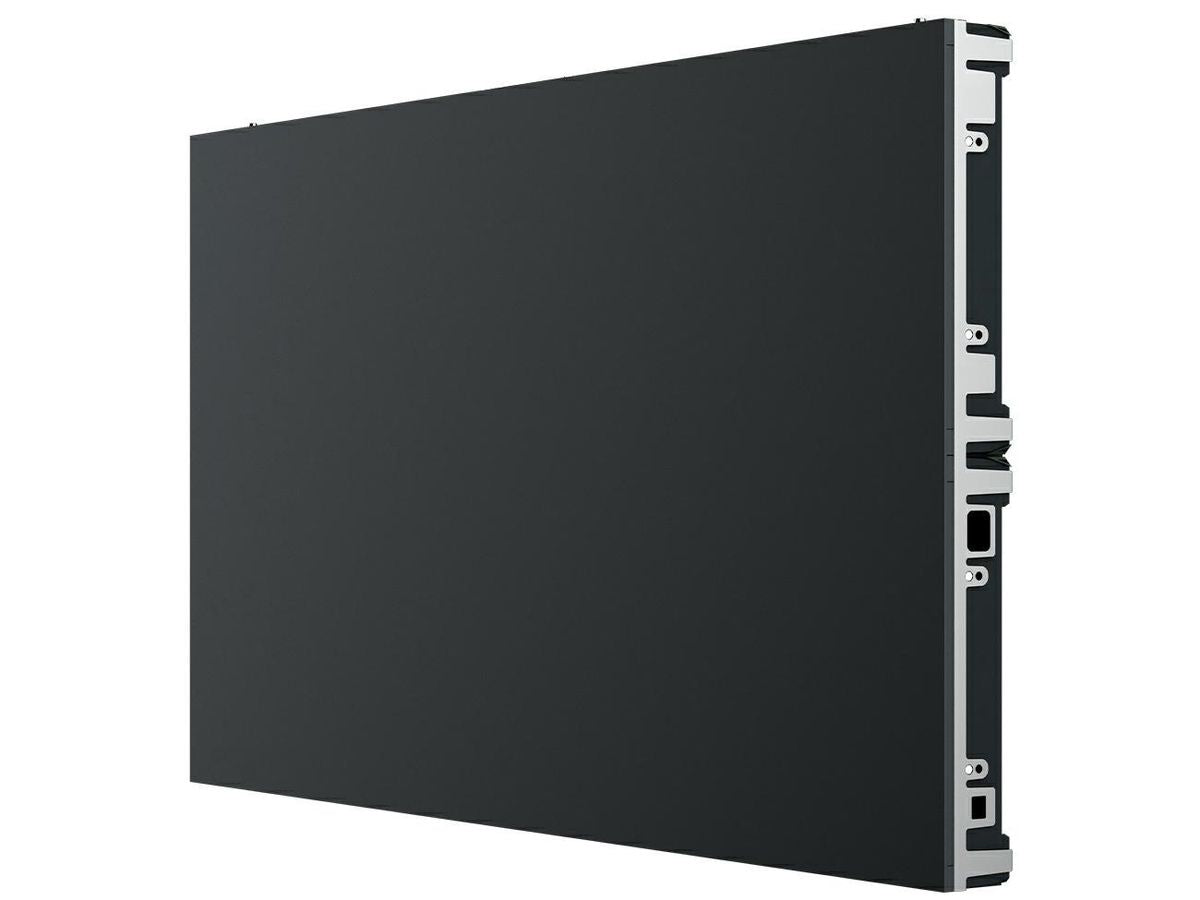

LSBE, DVLED, P1.875, 640X360 RESOLUTION, WITH LEFT CUT 45 DEGREE MITER, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 1200X675X72

Specifications

Product Overview
Product Type Direct View LED Display (DVLED)
Model LSBF018
Manufacturer Part Number LSBF018-GDL
Form Factor Modular Panel (with left cut 45° miter)
Display Type LED Backlight
Pixel Pitch 1.88 mm
Resolution 640 x 360
Display Refresh Rate 3840 Hz
Brightness (After Calibration) 600 nit
Contrast Ratio 5000:1
Weight 23 kg
Power Requirements 100 to 240 VAC
Power Consumption (Max) 413 W per cabinet
Panel Class Essential 1 Class
LED Configuration Single SMD

Wireless Features
Wireless Connectivity

Compliance & Origin
TAA Compliant Yes
Country of Origin Slovakia
Regulatory Approvals FCC, CE, RoHS (based on LG DVLED series standards)
Safety Certifications CB (IEC 60950/62368)

Advanced Security Features
Security Features Access control via management software (controller-based)
Secure Communication Protocols HTTPS (depends on controller platform)

Interfaces
Signal Input Via compatible controller (not onboard)
Data Interface Ethernet via controller
Control Interface RS232, LAN (controller-dependent)

Physical & Environmental
Width 1200 mm
Height 72 mm
Depth 675 mm
Operating Temperature (Min) -20°C
Operating Temperature (Max) 40°C
Operating Humidity Range 10% to 80% RH
Mounting Options Wall-mount (cabinet-based modular installation)
Cabinet Dimensions 1200 x 675 x 72 mm

Cloud Management & Licensing
Management Platform LG SuperSign / LED Assistant (optional)
Remote Management Supported via external controller software
License Requirement Software license may be required for control interface
