LG LSBF025-GDC DVLED Display, 2.5mm Pixel Pitch, 480x270, 600 Nit

VENDOR: LG Mfg Part#: LSBF025-GDC UPC#: 195174076255
1 3
Photo is for illustration purposes only. Actual product may be different.
$3,300.00
$3,300.00
Sale Sold out
MSRP: $4,125.00
Shipping calculated at checkout.
  • - 2.5mm pixel pitch with 480x270 resolution for detailed imaging
  • - 600 nit calibrated brightness for vibrant visual performance
  • - 3840 Hz refresh rate ensures smooth playback with reduced flicker
  • - TAA compliant and made in Slovakia for secure deployments

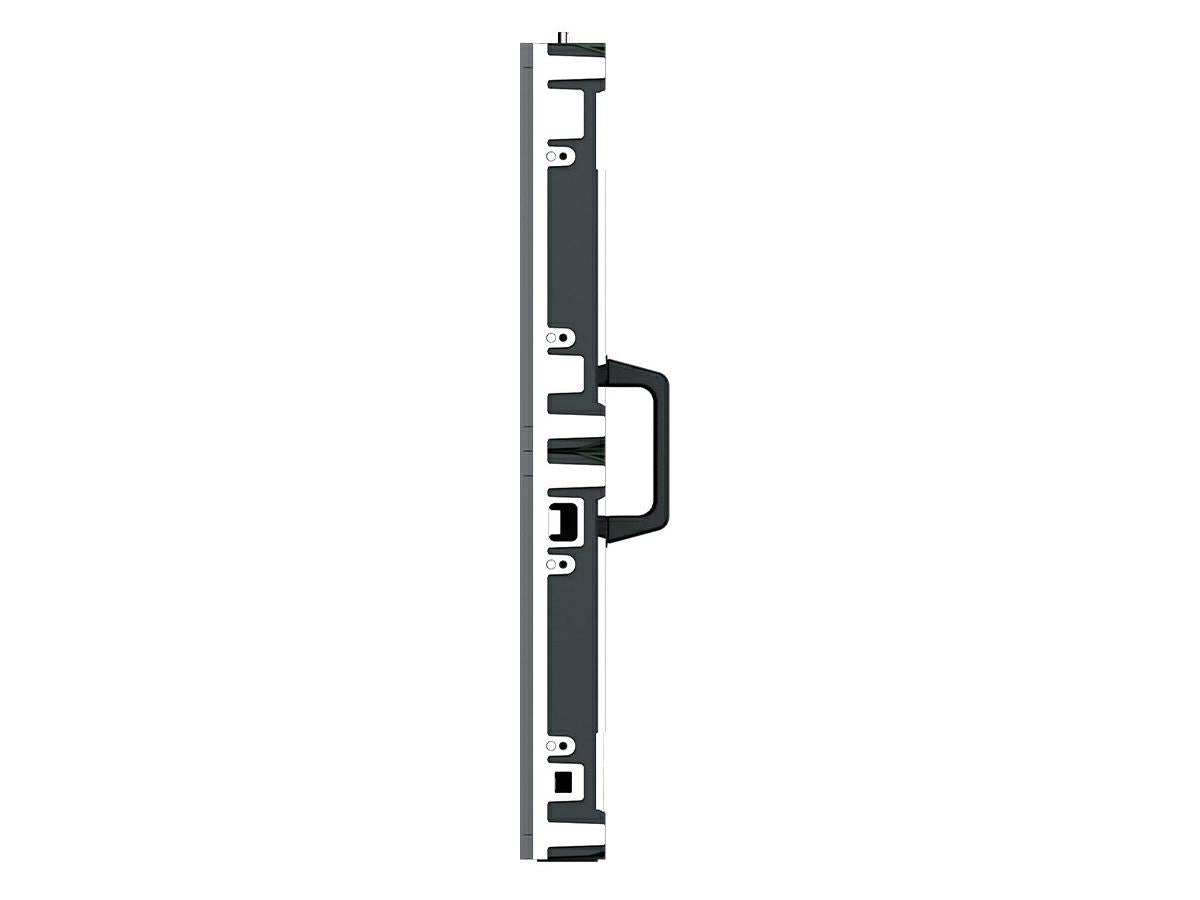

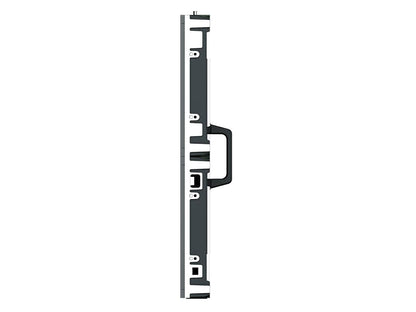

  • - Flat-panel design with 45° mitered edges for flexible installations
  • - Wide operating temperature range (-20°C to 40°C) and humidity (10–80% RH)

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - Optimized for government and institutional environments with TAA compliance and secure manufacturing origin
  • - High brightness and contrast ratio enhance visibility in a wide range of ambient lighting conditions
  • - Smart modular design with mitered edge enables creative and seamless video wall configurations

Product Overview

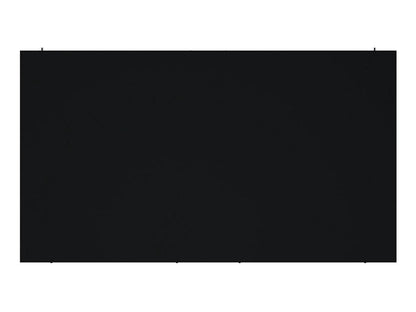

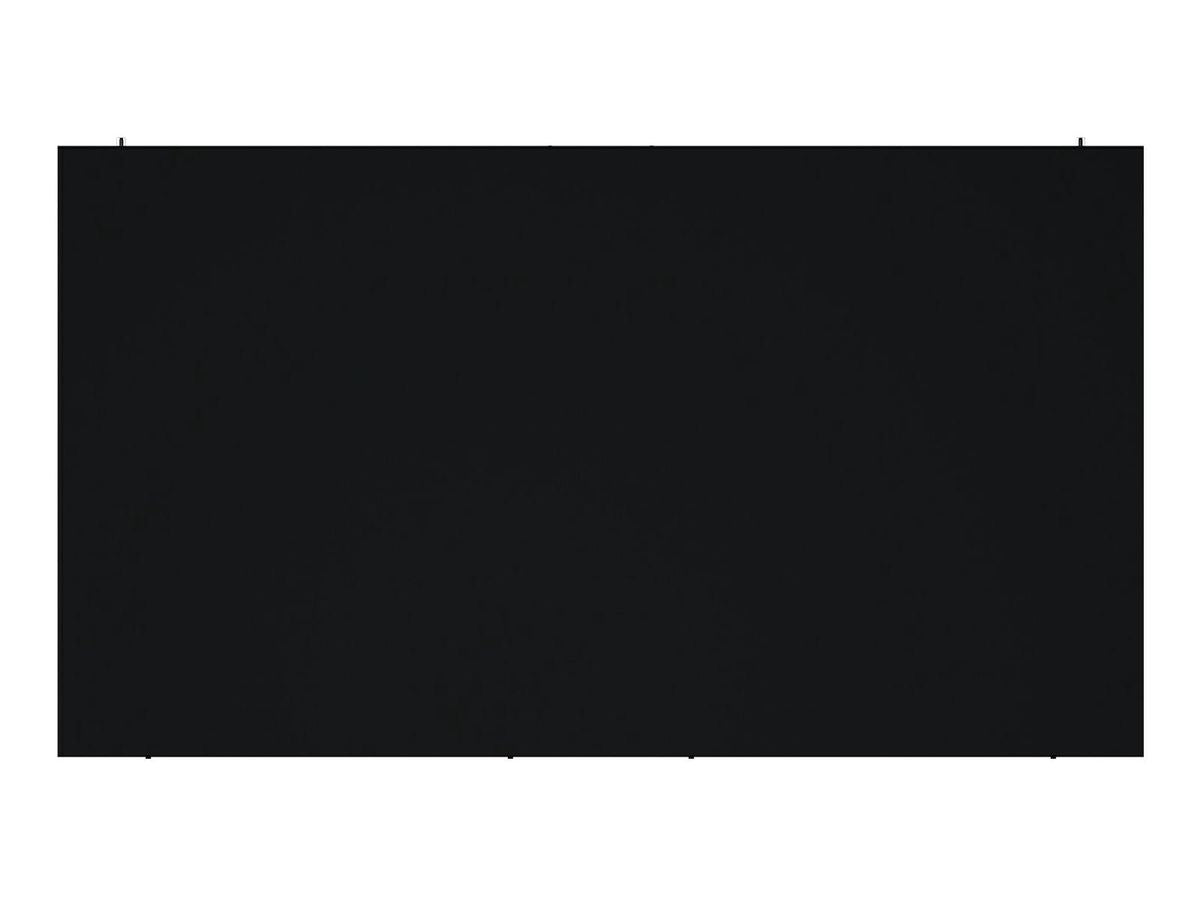

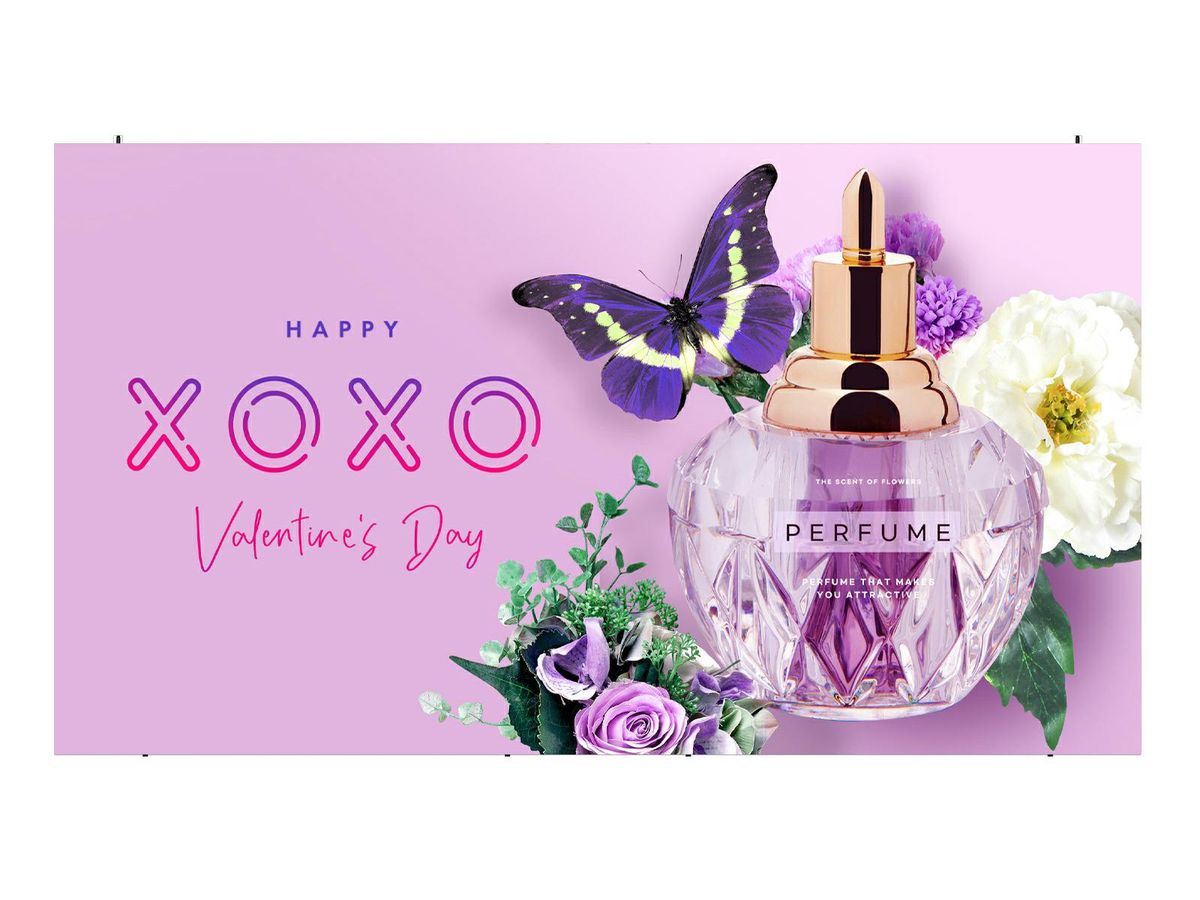

LSBE, DVLED, P2.5, 480X270 RESOLUTION, WITH L/R CUT 45 DEGREE MITER, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 1200X675X72

Specifications

Product Overview
Product Type Direct View LED (DVLED) Display
Model LSBF025-GDC
Family Essential Series 1
Form Factor Flat Panel
Pixel Pitch 2.5 mm
Resolution 480 x 270
Image Contrast Ratio 5000:1
Refresh Rate 3840 Hz
Brightness (After Calibration) 600 nit
Max Power Consumption 372 W per cabinet
Input Voltage 100 to 240 V AC
Weight 23 kg

Wireless Features
Wireless Connectivity

Compliance & Origin
Country of Origin Slovakia
TAA Compliant Yes
Certification FCC Class A, CE, RoHS

Advanced Security Features
Content Encryption Supports Encrypted Signal Hand-off via Controller
User Access Control Yes (Through Management Software)
Network Security Protocols Supports Authorized Access Only

Interfaces
Video Input Interface Controller Based (External LED Controller Required)
LED Controller Compatibility Compatible with LG LED Controller
Signal Interface Type Digital

Physical & Environmental
Width 1200 mm
Height 675 mm
Depth 72 mm
Min Operating Temperature -20°C
Max Operating Temperature 40°C
Operating Humidity Range 10% to 80% RH (Non-Condensing)
Installation Angle Capability Left/Right 45° Cut Miter
Cabinet Material Aluminum Die-Cast
Maintenance Access Front and Rear

Cloud Management & Licensing
Management Platform LG SuperSign or equivalent
Remote Monitoring Capability Yes
Cloud Content Management Supported via LG Software
Licensing Requirements LG Controller License May Be Required
