LG LSBF025-GDR 2.5mm DVLED Panel, 480x270, 600 nit, TAA-Compliant

VENDOR: LG Mfg Part#: LSBF025-GDR UPC#: 195174076118
1 1

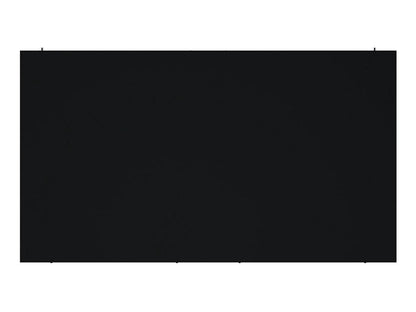

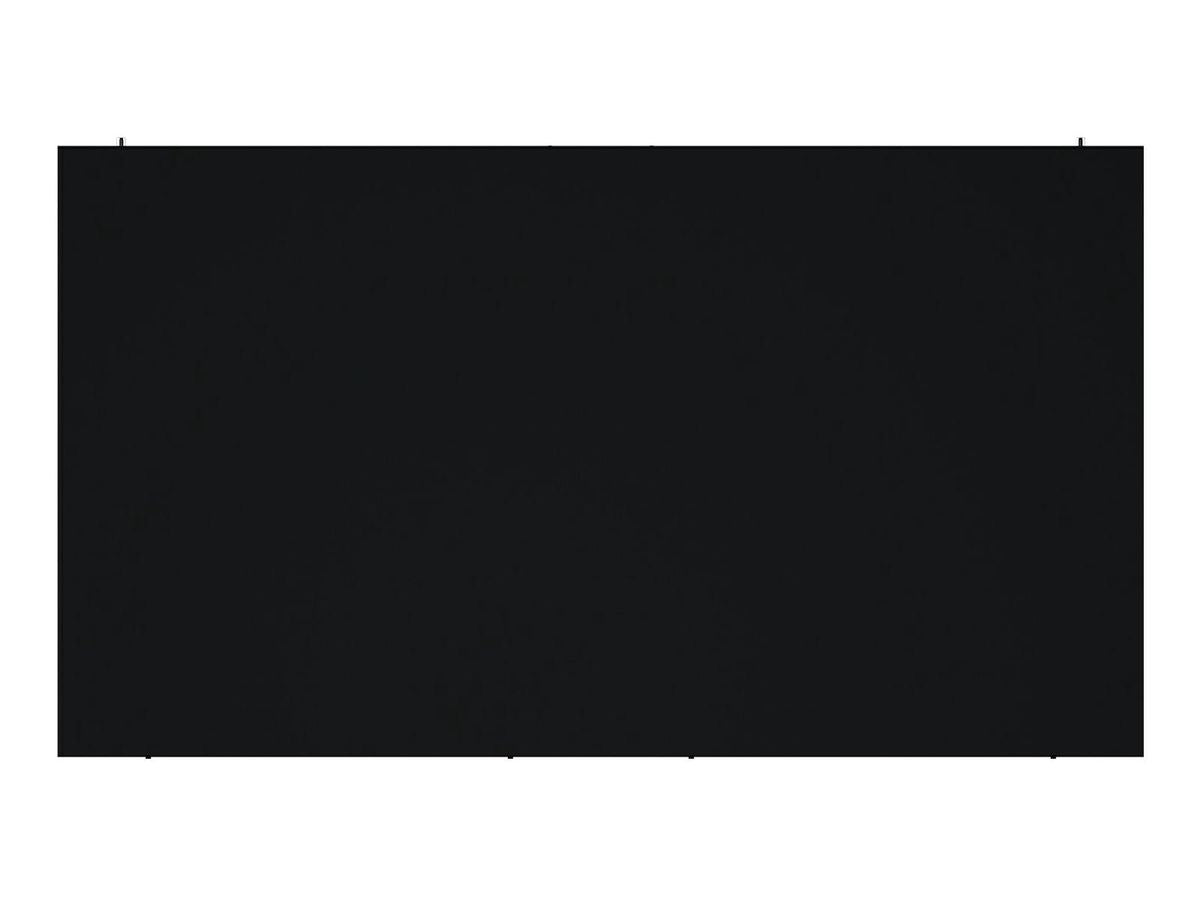

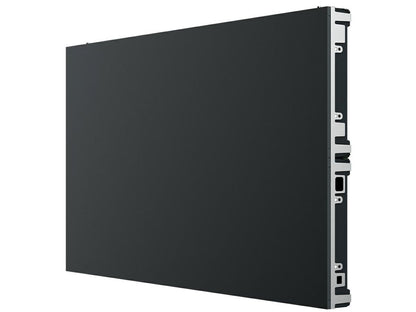

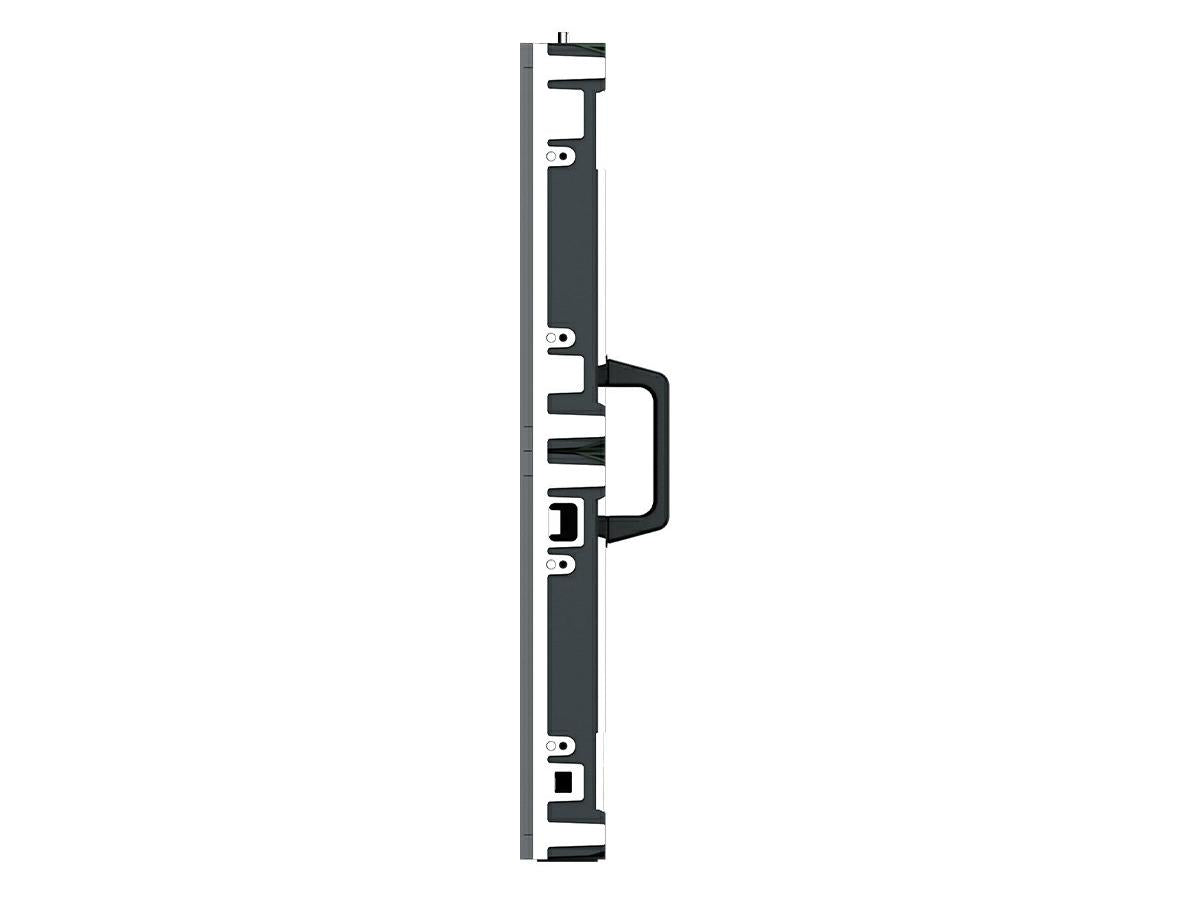

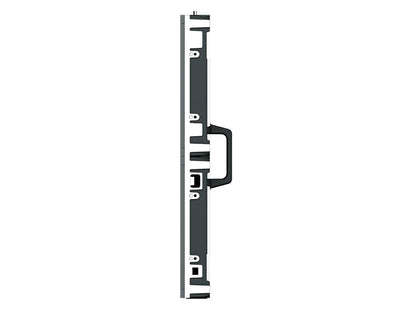

Photo is for illustration purposes only. Actual product may be different.
$2,920.00
$2,920.00
Sale Sold out
MSRP: $3,650.00
Shipping calculated at checkout.
  • - 2.5mm pixel pitch and 480x270 resolution for fine image detail
  • - 600 nits calibrated brightness with 5000:1 image contrast ratio
  • - 3840 Hz refresh rate enables smooth video playback
  • - Operational power consumption of 372W per cabinet
  • - TAA-compliant and manufactured in Slovakia
  • - Dimensions: 1200mm x 675mm x 72mm; weight: 23kg

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • - High brightness and contrast ratio make it ideal for well-lit and professional environments
  • - TAA compliance ensures suitability for government procurement and mission-critical use
  • - 45-degree right miter cut allows flexible, seamless video wall configurations

Product Overview

LSBE, DVLED, P2.5, 480X270 RESOLUTION, WITH RIGHT CUT 45 DEGREE MITER, ESSENTIAL 1 CLASS, TAA SERIES, SINGLE SMD, 600 NIT, 1200X675X72

Specifications

Product Overview
Manufacturer LG
Model LSBF025-GDR
Product Type DVLED Panel
Series TAA Series - Essential 1 Class
Pixel Pitch 2.5 mm
Native Resolution 480 x 270
Refresh Rate 3840 Hz
Brightness (Calibrated) 600 nits
Contrast Ratio 5000:1
Cabinet Width 1200 mm
Cabinet Height 675 mm
Cabinet Depth 72 mm
Weight per Cabinet 23 kg
Form Factor Right Cut 45° Miter Panel
Display Type Single SMD LED
Mounting Type Wall-mount or Frame Integration
Power Supply Requirements 100 to 240 V AC
Max. Power Consumption 372 W per cabinet

Wireless Features
Wireless Capability

Compliance & Origin
TAA Compliant Yes
Country of Origin Slovakia
Regulatory Approvals FCC Class A, CE, UL
EMC Compliance EN55032, EN55024
Environmental Certifications

Advanced Security Features
Network Security Features Depends on the connected controller and network configuration
Access Control Password-Protected Control Access via Software
Secure Firmware Updates Yes, via authenticated LG update mechanism

Interfaces
Input Type Digital via DVLED Controller (sold separately)
Control Interface RS-232C / RJ45 via Controller Module
Signal Transmission Type Digital Serial (via LG Controller)

Physical & Environmental
Operating Temperature Range -20°C to 40°C
Operating Humidity Range 10% to 80% RH
Ingress Protection Rating
Cooling System Internal Fan Cooling

Cloud Management & Licensing
Management Software LG SuperSign and LED Assistant (sold separately)
Remote Monitoring Supported via External Controller
Software Licensing Separate licensing for LG LED Assistant may be required
