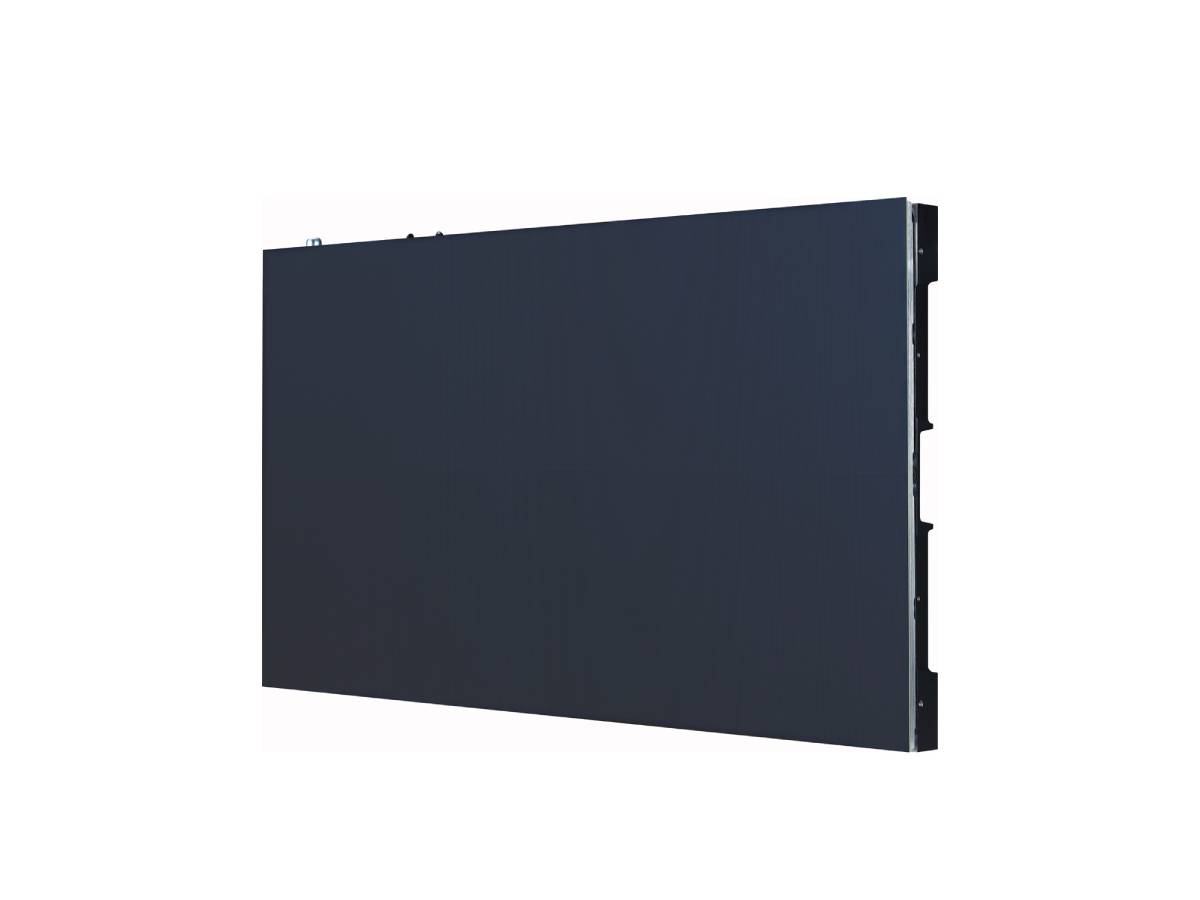

LG TAA MAGNIT LSAB012-U22 DVLED Display, 1.25mm Pixel Pitch, 480x270

VENDOR: LG Mfg Part#: LSAB012-U22 UPC#: 195174084403
1 1
Photo is for illustration purposes only. Actual product may be different.
$6,645.00
$6,645.00
Sale Sold out
MSRP: $8,307.00
Shipping calculated at checkout.
  • Micro LED technology with 40,000:1 contrast ratio for superior image quality
  • 1.25mm pixel pitch and 480 x 270 resolution optimized for close-proximity installations
  • 3840 Hz refresh rate ensures flicker-free performance in dynamic environments
  • Peak brightness of 1500 nits and maximum 600 nits suitability in varied lighting
  • Redundant signal and power configuration for enhanced system resilience
  • Modular 600 x 337.5 x 44.9 mm panel design with included spare modules

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • High-resolution Micro LED panel with a fine pixel pitch is ideal for premium corporate or control room applications
  • Redundant signal and power pathways reduce chances of downtime for critical operations
  • Low operational power consumption (35W) and wide voltage support (100–240V) improve energy efficiency and installation versatility

Product Overview

TAA MAGNIT LSAB VI SERIES DVLED, P1.25, 480X270 RESOLUTION, SIGNAL+POWER REDUNDANCY, MAIN TOP, SECURE DP DOCKING PANEL/CABINET PREMIUM OTHERS CLASS, COB, 800 NIT, 600X337.5X44.9

Specifications

Product Overview
Manufacturer LG
Model LSAB012-U22
Series MAGNIT LSAB VI
Product Type Direct View LED (DVLED) Display
Display Technology Micro LED
Form Factor Modular Cabinet Panel
Pixel Pitch 1.25 mm
Resolution 480 x 270
Refresh Rate 3840 Hz
Contrast Ratio 40,000:1
Peak Brightness 1500 nit
Max Brightness 600 nit
Power Consumption (Typical) 35 W
Input Voltage 100 to 240 V AC
Included Accessories 1 Spare Module Holder, 6 Modules for Phase VI, Omega, Flat LSAB012-2 Series

Wireless Features

Compliance & Origin
RoHS Compliant Yes
TAA Compliant Inquire
Country of Origin Inquire
Certifications FCC Class A, CE, KC (typical for this product class; must be verified per unit)

Advanced Security Features

Interfaces
Signal Redundancy Support Yes
Power Redundancy Support Yes
Docking Type Secure DP Docking Panel
Service Interface Main Top Access

Physical & Environmental
Width 600 mm
Height 337.5 mm
Depth 44.9 mm
Operating Temperature (Min) 0°C
Operating Temperature (Max) 40°C
Operating Humidity 10% to 80% RH
Cabinet Material Aluminum (assumed from product class: premium others class)

Cloud Management & Licensing
Remote Management Support Yes (via LG software suite - LED Assistant or SuperSign)
Management Platform LG LED Assistant (requires installation)
Licensing Required No (for basic panel operation)
