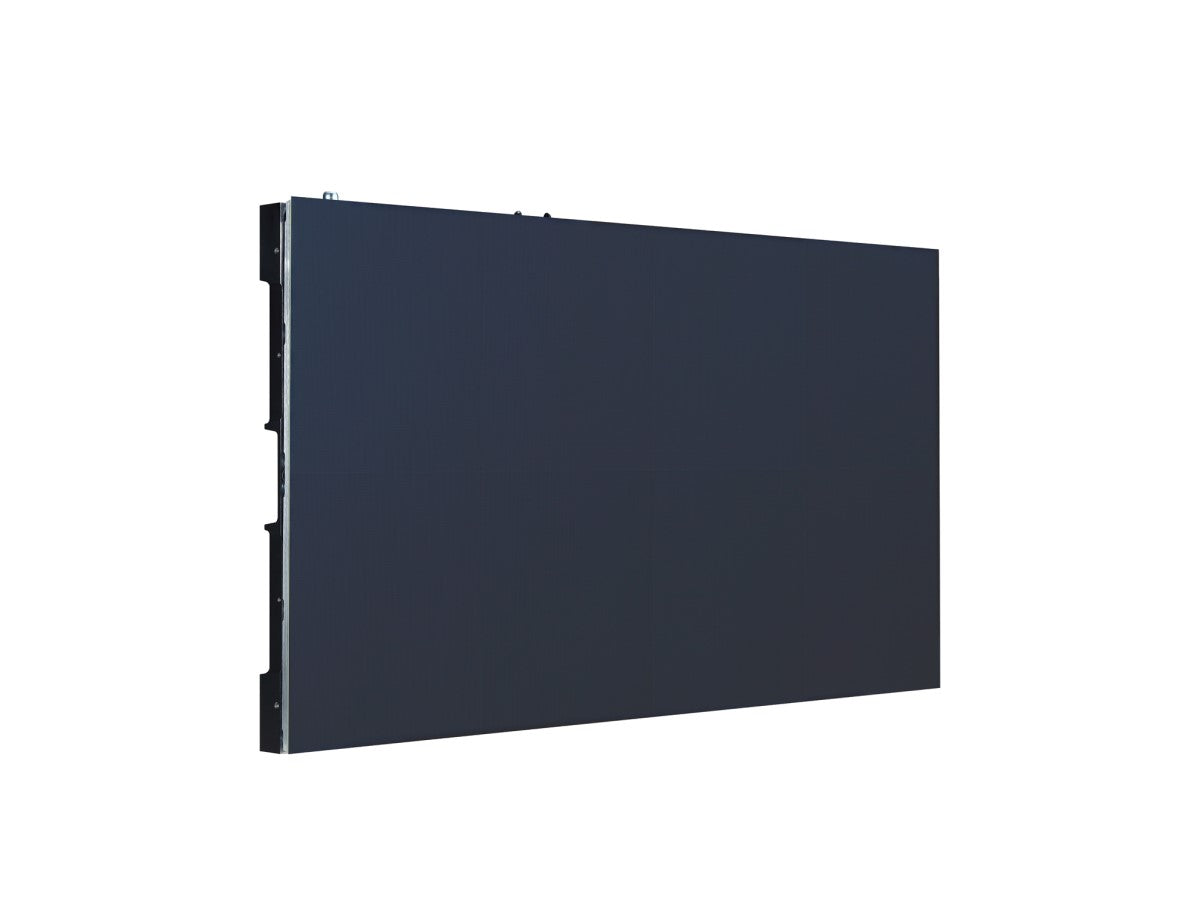

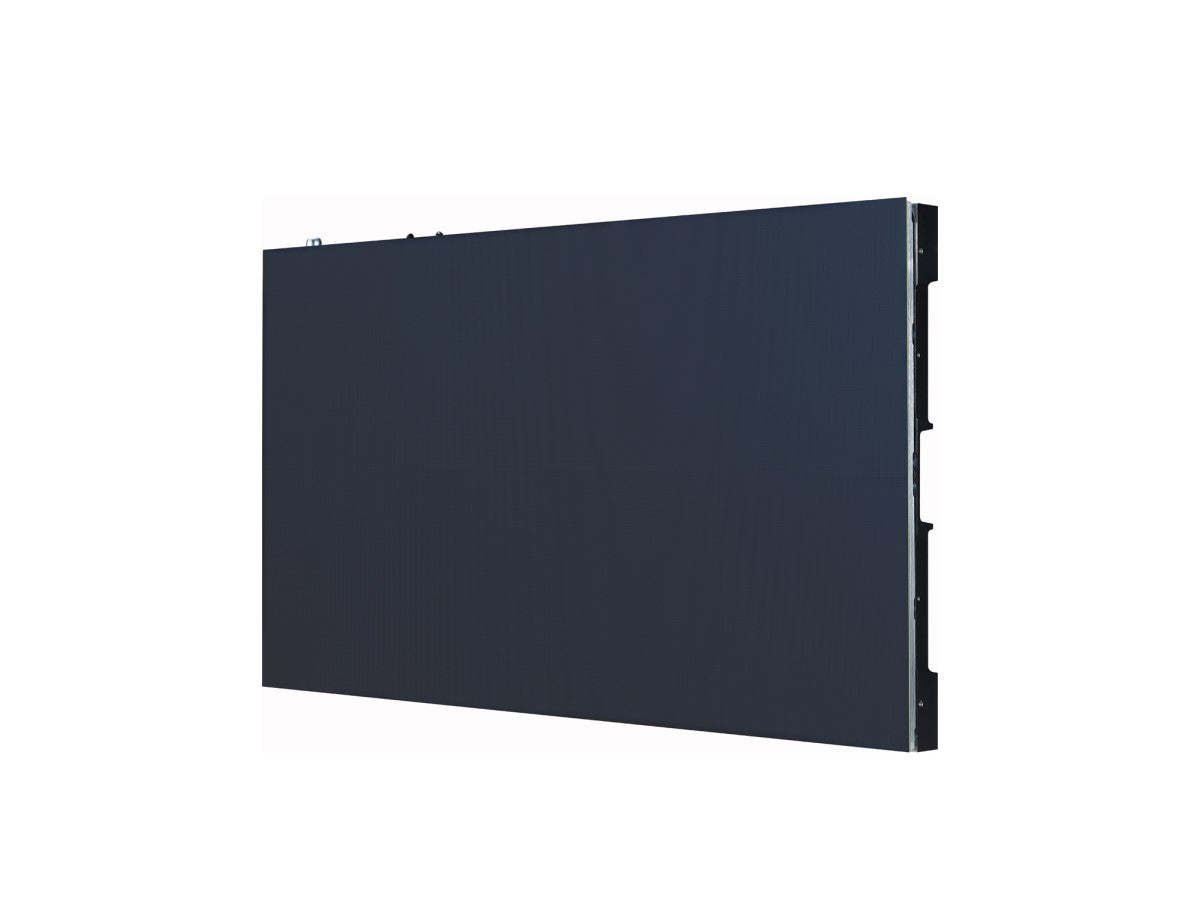

LG TAA MAGNIT LSAP012 DVLED P1.25 480x272 7680Hz Wall Cabinet

VENDOR: LG Mfg Part#: LSAP012-T23 UPC#: 195174099964
  • LG
1 1
Photo is for illustration purposes only. Actual product may be different.
$7,975.00
$7,975.00
Sale Sold out
MSRP: $9,968.00
Shipping calculated at checkout.
  • 1.25 mm pixel pitch for high visual clarity
  • 480 x 272 resolution with 7680 Hz refresh rate and 15:1 scan rate
  • 1,000 nit minimum brightness with 25,000:1 contrast ratio
  • Micro COB bonded Direct View LED (DVLED) panel
  • Signal and power redundancy with secure socket data connection
  • TAA compliant and compatible with Megapixel Controller

Shipping & Returns

All our products can be shipped anywhere in the Continental United States.

View our shipping and returns policy

View full details

Key Benefits

Eye-Insights
  • Delivers ultra-smooth video playback with 7680Hz refresh rate, ideal for dynamic enterprise applications
  • Engineered for high reliability with signal/power redundancy and bonded Micro COB display
  • TAA compliance and South Korean manufacturing support institutional and government procurement requirements

Product Overview

TAA MAGNIT LSAP VI F.L.A.T. Series DVLED, P1.25, 480x270 resolution, D-IC / High performance Refresh rate 7,680Hz, Scan rate 15:1 Wall type cabinet, Signal+Power Redundancy, Secondary, Secure Socket data connection, Panel/Cabinet compatible with Megapixel Controller,, Premium others class, Micro COB - Bonded, 1000 nit brightness, 600x337.5x44.9

Specifications

Product Overview
Manufacturer LG
Model LSAP012
Product Type Direct View LED Display Cabinet
Series TAA MAGNIT LSAP VI F.L.A.T.
Pixel Pitch 1.25 mm
Cabinet Type Wall Type
Form Factor Rectangular Cabinet
Weight 7.8 kg
Power Requirements 100 to 240 V AC

Physical & Environmental
Width 600 mm
Height 337.5 mm
Depth 44.9 mm
Minimum Operating Temperature 0°C
Maximum Operating Temperature 40°C
Humidity Range (Operating) 10–80% RH

Compliance & Origin
TAA Compliant Yes
Country of Origin Korea, Republic of

Advanced Security Features
Secure Data Connectivity Secure Socket Data Connection

Interfaces
Signal Redundancy Yes
Power Redundancy Yes
Data Connection Type Secure Socket
Controller Compatibility Megapixel Controller Compatible

Display Specifications
Display Technology Direct View LED
Display Type Micro COB - Bonded
Display Orientation Flat
Resolution 480 x 272
Brightness (Minimum) 1000 nits
Refresh Rate 7680 Hz
Contrast Ratio 25,000:1
Viewing Angle (Horizontal/Vertical) 150° / 150°
Scan Rate 15:1
Color Processing D-IC / High Performance Processing
LED Type Micro COB (Chip-on-Board)

Cloud Management & Licensing
Compatible Controller Megapixel Controller
